Description
Sold as: Each.

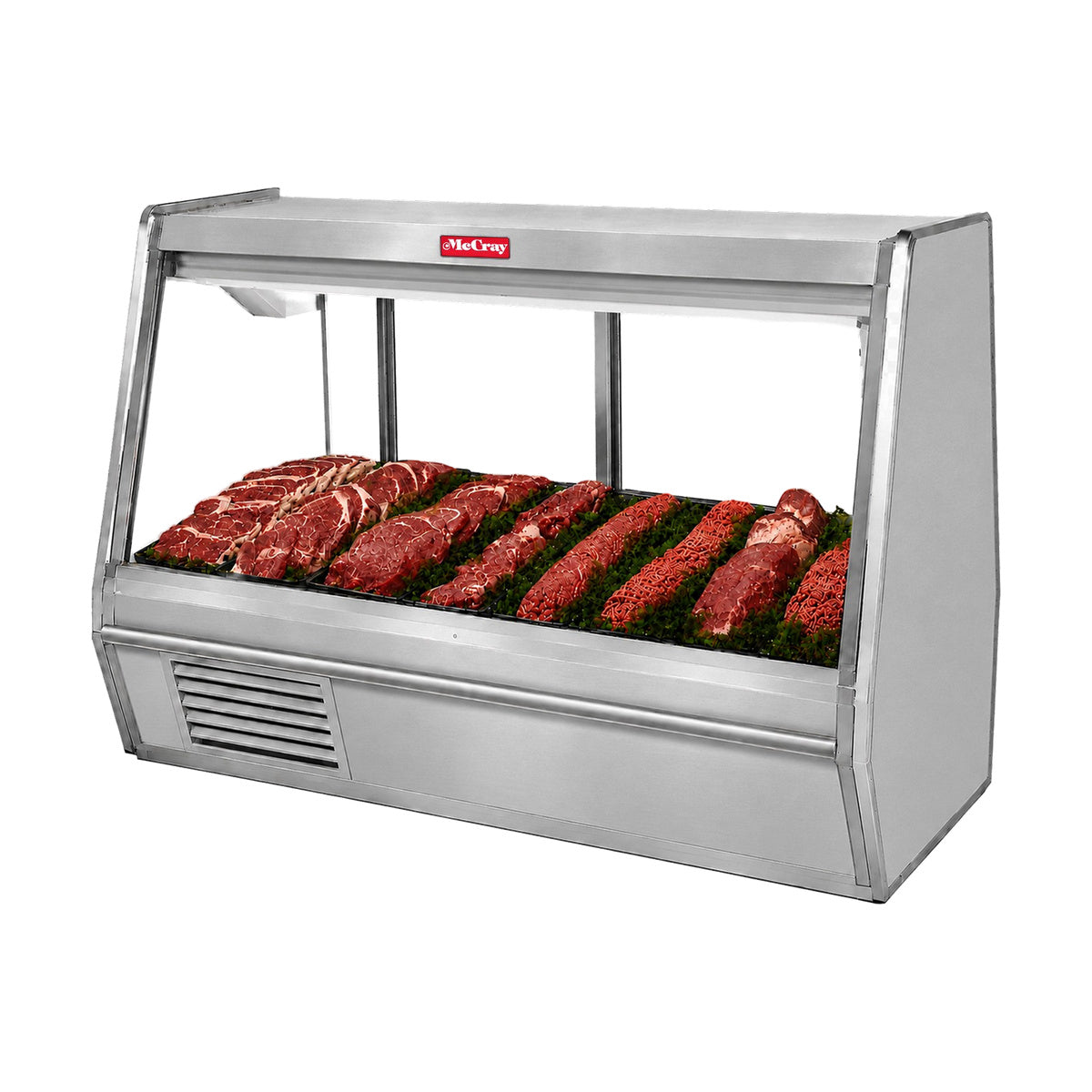

The Howard-McCray SC-CMS32E-6-S-LED 32E Series 74" Self-Contained Endless Design Single Duty - Red Meat - Stainless Steel
Howard-McCray SC-CMS32E-6-S-LED Standart Features
Construction and Electrical Requirements
- UL Classified to ANSI/NSF 7
- Foamed in place CFC free foam
- Thermal insulated front glass - 28" H
- Heavy gauge steel super structure
- Single duty display
- Endless design allows for continuous line up
- Drain is included for cleaning
- 2 rows of lighting at top of unit
- 115V with powercord
- UL/CUL listed
- 115V-5AMP general purpose receptacle
Interior and Exterior
- White, black, and stainless steel ends
- White aluminum floor-main deck shelves
- Air insulated baffle (prevents moisture from dripping into display area)
- Double pane rear removable doors
- Removable front grille allows for cleaning
- Removable rear grille for easy servicing
- 1" removeable end panels
- 1" Front bumper
Finishes and Refrigeration
- White, black, and stainless steel front and ends
- Stainless steel mirror trim
- Stainless steel heavy gauge top - 20" W
- Rear of unit is stainless steel brush finish at top
- Bottom rear is designer white or glossy black
- Copevap system (eliminates need for condensate pan)
- R513A expansion valve system
- Gravity coil located at inside top of unit
- Humidity coil lacated at main deck (provides extra humidity)
- Self contained unit
- Automatic defrost electronically controlled (self contained units only)
- Electronically maintains constant temperatures
- Remotes available
Howard-McCray SC-CMS32E-6-S-LED Options
- Stainless steel, laminate, or paint
- Mirrored doors
- Extra stainless steel mezzanine shelf
- 2" Front bumper
- Door locks
- Pass thru front doors
- Meat platters
- Red meat bulbs
Technical specifications
Specifications
| Manufacturer | Howard-McCray |
|---|---|
| Model Number | SC-CMS32E-6-S-LED |
| Weight | 680 lbs |
| Width | 74 |
| Depth | 30.5 |
| Height | 49.63 |
| Service Type | full service |
| Display Case Type | single duty |
| Compressor Location | bottom mounted |
| Compressor HP | 1/3 HP |
| Glass Style | flat |
| Refrigeration Type | gravity coil |
| Exterior Finish | stainless steel |
| Interior Finish | stainless steel |
| Voltage | 115 |
| Phase | 1 |
| Capacity (cu. ft.) | 34.5 |
| Selling unit | Each |
| Source units per case | 1 |
| Units per order | 1 |
| Source price unit | each |
