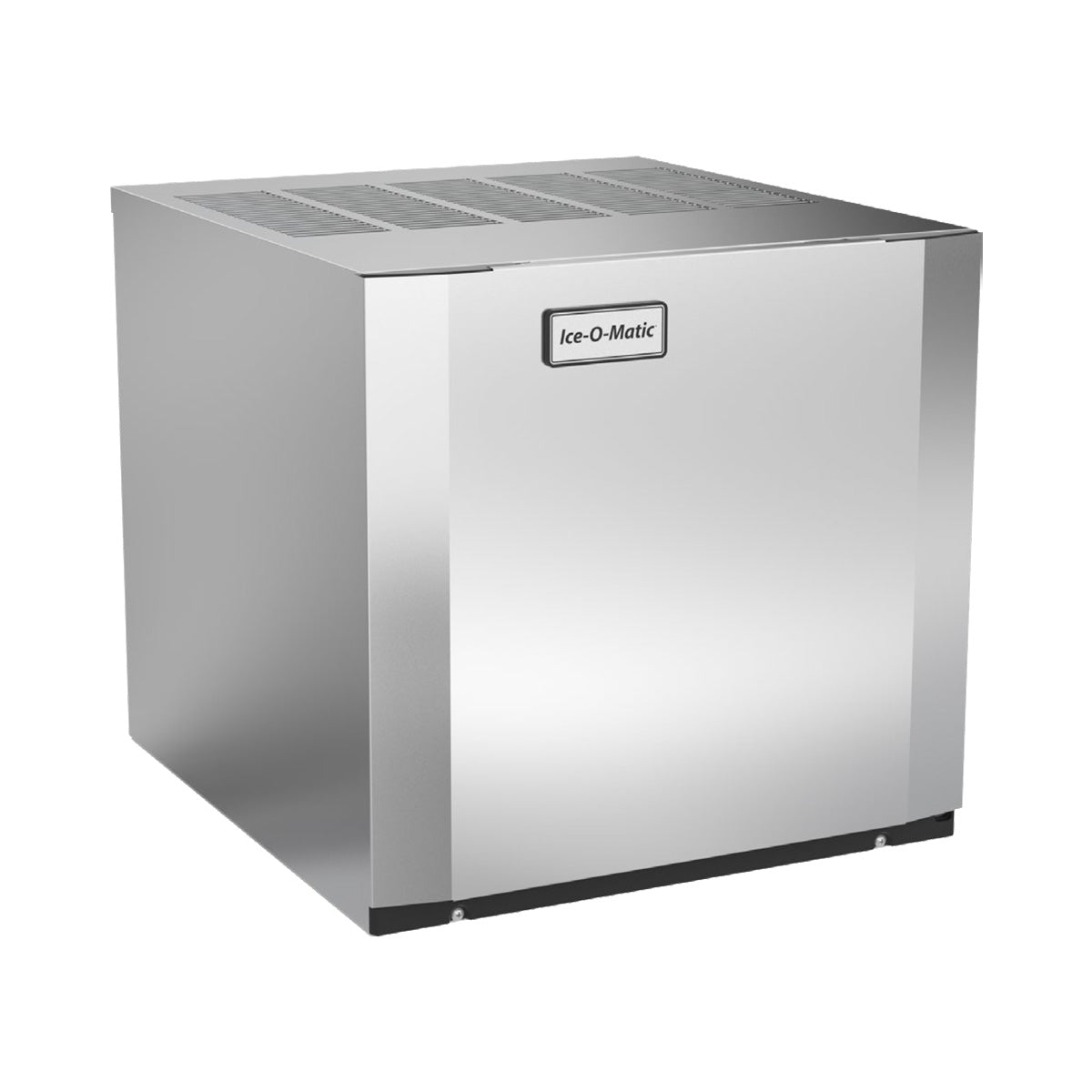

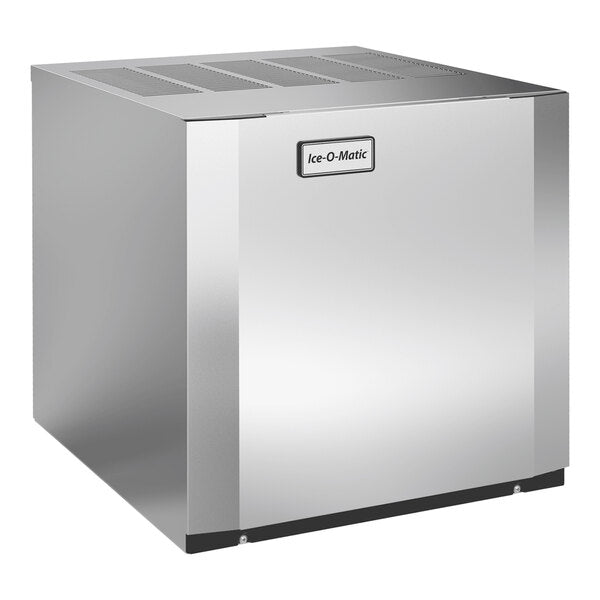

Ice-O-Matic CIM0320HA90 22" Air-Cooled Half Cube Ice Machine Head, 325 lb/24 hr, R290, 115V
A 22" air-cooled cube ice machine head that makes half cube ice on top of a bin or dispenser.
The Ice-O-Matic CIM0320HA90 is a 22" air-cooled modular cube ice machine head that makes half cube ice (3/8 x 7/8 x 7/8 in.). It is rated at 325 lb per 24 hours at 70°F air / 50°F water, or 240 lb at 90°F air / 70°F water. It runs on R290 refrigerant and connects to a 115/60/1 circuit with a 15 A maximum breaker. It ships as the head only: the storage bin or dispenser is sold separately.
Air-cooled CIM heads need 6" clearance at the rear, top, left and right in the standard exhaust setup (Ice-O-Matic installation manual).
Harvest Assist keeps ice production consistent for the life of the machine while cutting energy use and adding capacity, per Ice-O-Matic.
Electroless nickel plating on all evaporator plates is built for reliability and durability.
The evaporator faces the front, and the plastic parts are dishwasher safe up to 180°F.
Air can exhaust two ways, which gives flexible placement on bins or dispensers.
The cabinet is corrosion-resistant, fingerprint-proof aluminum.
Many parts are common across all CIM machines.
No. The CIM0320HA90 ships as the head only. Ice-O-Matic suggests these bin combinations: B40 with the KBT19 kit; B42 with no kit; B55 with the KBT19 kit; B110 with the KBT23C kit.
325 lb per 24 hours at 70°F air / 50°F water and 240 lb at 90°F air / 70°F water. Hotter rooms and warmer water lower output.
A 115/60/1 supply. The sheet lists a minimum circuit ampacity of 11.4 A and a maximum breaker of 15 A. Ice-O-Matic calls for a dedicated circuit and says GFCI receptacles must not be used.
A 3/8" FPT potable water inlet and a 3/4" FPT drain. Potable water use is 19 gal per 100 lb of ice at 90°F air / 70°F water. Water pressure must be 20 to 80 psi.
In the standard exhaust setup: 6" at the rear, top, left and right. With top exhaust bias the right side can be 0"; with side exhaust bias the top can be 3".
3 years parts and labor on the ice maker, 5 years parts on the evaporator and compressor, and 7 years parts and labor on the evaporator if the machine is enrolled in the filter program for US & Canada.
Ice-O-Matic pairs it with the IFQ1-S manifold system, which takes the IOMQ-S replacement filter.
Yes. Ice-O-Matic equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Ice-O-Matic |
|---|---|
| Model Number | CIM0320HA90 |
| Series | CIM Cube Ice Machine |
| Configuration | Modular Head, Bin Sold Separately |
| Shipping Weight | 125 lb. |
| Shipping Dimensions | 25 W x 27 D x 27 H in. |
| Width | 22.26 Inches |
| Depth | 24.62 Inches |
| Height | 21.25 Inches |
| Nominal Width | 22 Inches |
| Capacity | 325 lb per 24 hr at 70°F Air / 50°F Water |
| Production at 90°F Air / 70°F Water | 240 lb per 24 hr |
| Ice Type | Half Cube |
| Ice Size | 3/8 x 7/8 x 7/8 in.10 x 22 x 22 mm |
| Condensing Type | Air-Cooled |
| Refrigerant | R290 |
| Refrigerant Charge | 4.94 oz / 140 g |
| Heat Output | 5,650 BTU per hour, approx. |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Minimum Circuit Ampacity | 11.4 A |
| Maximum Breaker Size | 15 A |
| Energy Use at 70°F Air / 50°F Water | 3.9 kWh per 100 lb of ice |
| Energy Use at 90°F Air / 70°F Water | 6.4 kWh per 100 lb of ice |
| Potable Water Use | 19 gal per 100 lb of ice at 90°F air / 70°F water |
| Drain | 3/4" FPT |
| Water Inlet | 3/8" FPT |
| Electrical Connection | .875" [22.2] (2) |
| Condensate Base Drain | .50" [12.7] |
| Ambient Air Temperature | 50 - 100 Degrees F |
| Water Temperature | 40 - 100 Degrees F |
| Water Pressure | 20 - 80 PSIG |
| Suggested Bin Combinations | B40 + KBT19B42B55 + KBT19B110 + KBT23C |
| Spec Sheet Bin Chart | B40: KBT19B42: Kit Not RequiredB55: KBT19B110: KBT23B700-30: Kit Not RequiredB1000-48: Kit Not RequiredB1300-48: Kit Not RequiredB1325-60: Kit Not RequiredB1660-60: Kit Not Required |
| Water Filter | IFQ1-S manifold system, replacement filter IOMQ-S |
| Options | KCUBEDISPB for mounting to a dispenserB42 |
| Exterior | Corrosion-Resistant, Fingerprint-Proof Aluminum |
| Certifications | cULus, UL Energy Verified, ENERGY STAR |
| Build America, Buy America | Yes, per Ice-O-Matic |
| Warranty | 3 Years Parts and Labor |
| Evaporator and Compressor Warranty | 5 years parts |
| Extended Evaporator Warranty | 7 years parts and labor if enrolled in the filter program, US and Canada |
