Ice-O-Matic CIM0530FW90 30" Water-Cooled Full Cube Ice Machine Head, 550 lb/24 hr, R290, 115V
A 30" water-cooled cube ice machine head that makes full cube ice on top of a bin or dispenser.

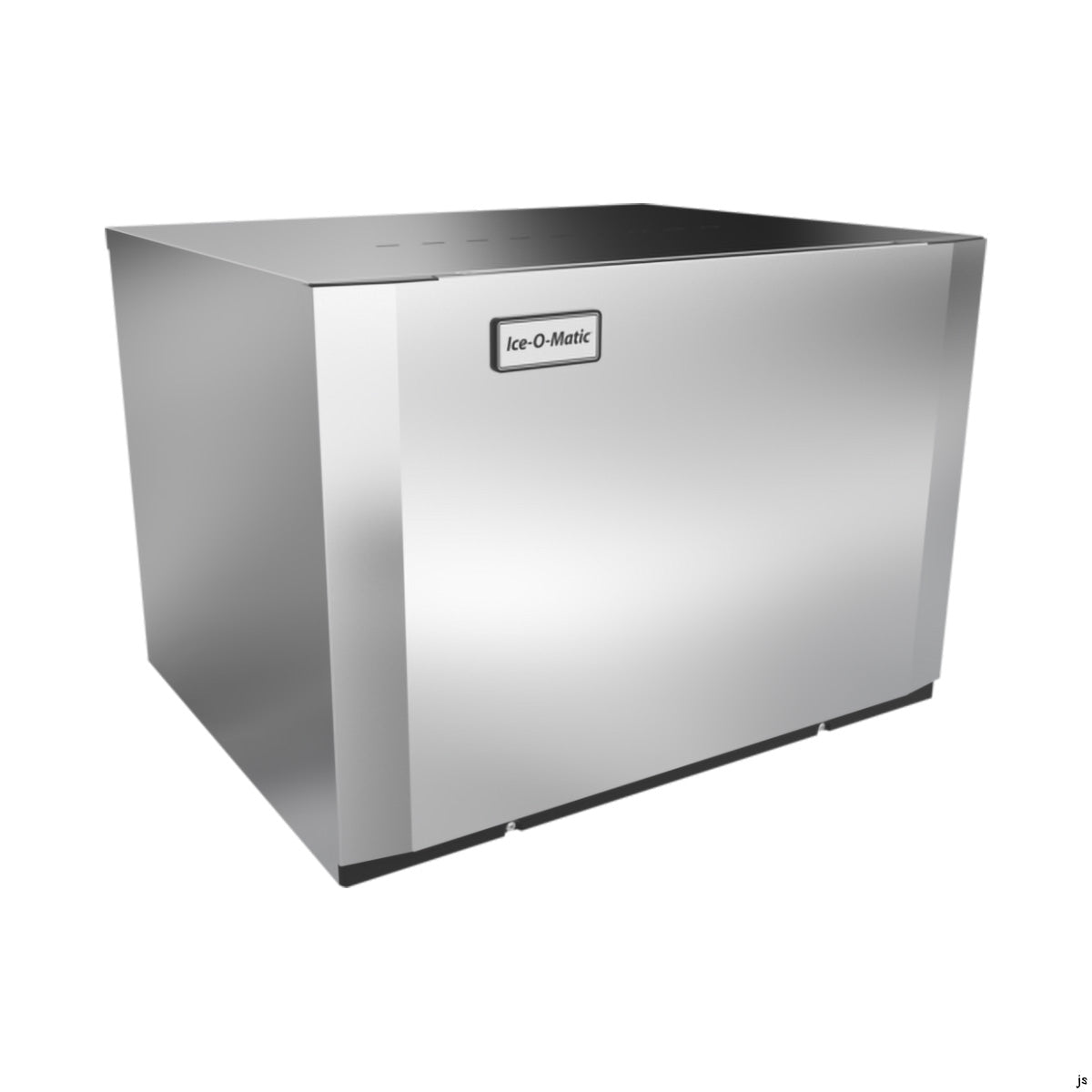

The Ice-O-Matic CIM0530FW90 is a 30" water-cooled modular cube ice machine head that makes full cube ice (7/8 x 7/8 x 7/8 in.). It is rated at 550 lb per 24 hours at 70°F air / 50°F water, or 485 lb at 90°F air / 70°F water. It runs on R290 refrigerant and connects to a 115/60/1 circuit with a 20 A maximum breaker. It ships as the head only: the storage bin or dispenser is sold separately.
Measure the space on top of the bin: the head is 30.26" wide and 24.62" deep.
Harvest Assist keeps ice production consistent for the life of the machine while cutting energy use and adding capacity, per Ice-O-Matic.
Electroless nickel plating on all evaporator plates is built for reliability and durability.
The evaporator faces the front, and the plastic parts are dishwasher safe up to 180°F.
A water-cooled condenser that uses 130 gal of condenser water per 100 lb of ice at 90°F air / 70°F water, per the sheet.
The cabinet is corrosion-resistant, fingerprint-proof aluminum.
Many parts are common across all CIM machines.

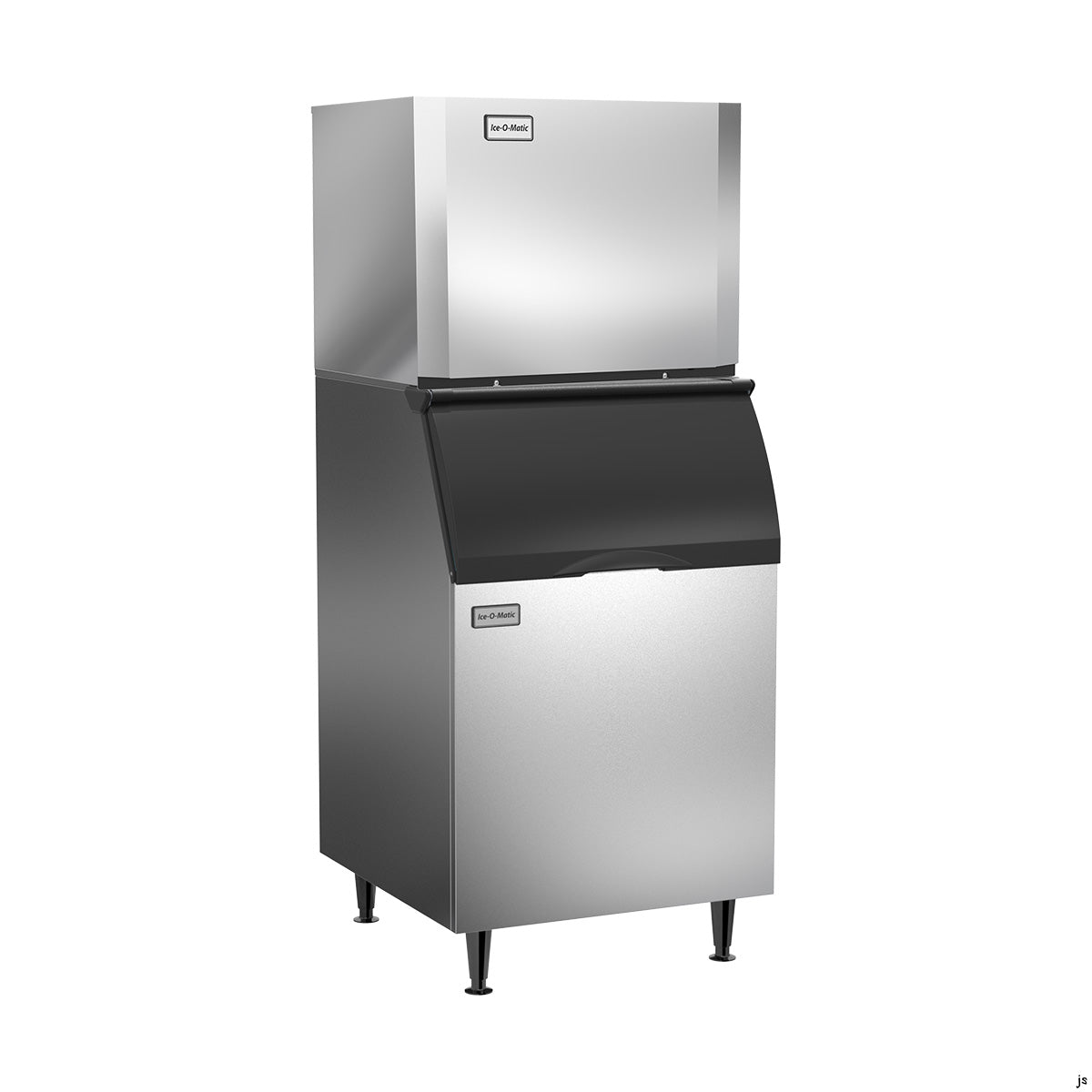

No. The CIM0530FW90 ships as the head only. Ice-O-Matic suggests these bin combinations: B40 with no kit; B55 with no kit; B110 with the BPF-1 kit.
550 lb per 24 hours at 70°F air / 50°F water and 485 lb at 90°F air / 70°F water. Hotter rooms and warmer water lower output.
A 115/60/1 supply. The sheet lists a minimum circuit ampacity of 11.5 A and a maximum breaker of 20 A. Ice-O-Matic calls for a dedicated circuit and says GFCI receptacles must not be used.
A 3/8" FPT potable water inlet and a 3/4" FPT drain. The water-cooled condenser also needs a 3/8" FPT inlet and 1/2" FPT outlet; it uses 130 gal per 100 lb of ice at 90°F air / 70°F water, plus 17 gal of potable water. Water pressure must be 20 to 80 psi.
3 years parts and labor on the ice maker, 5 years parts on the evaporator and compressor, and 7 years parts and labor on the evaporator if the machine is enrolled in the filter program for US & Canada.
Ice-O-Matic pairs it with the IFQ1-S manifold system, which takes the IOMQ-S replacement filter.
Ice-O-Matic ships the CIM0530FW90 as the head only. This listing also offers priced configuration choices; ask us which bin or kit a choice includes before you order.
Yes. Ice-O-Matic equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Ice-O-Matic |
|---|---|
| Model Number | CIM0530FW90 |
| Series | CIM Cube Ice Machine |
| Configuration | Modular Head, Bin Sold Separately |
| Shipping Weight | 156 lb. |
| Shipping Dimensions | 33 W x 27 D x 27 H in. |
| Width | 30.26 Inches |
| Depth | 24.62 Inches |
| Height | 21.25 Inches |
| Nominal Width | 30 Inches |
| Capacity | 550 lb per 24 hr at 70°F Air / 50°F Water |
| Production at 90°F Air / 70°F Water | 485 lb per 24 hr |
| Ice Type | Full Cube |
| Ice Size | 7/8 x 7/8 x 7/8 in.22 x 22 x 22 mm |
| Condensing Type | Water-Cooled |
| Refrigerant | R290 |
| Refrigerant Charge | 5.29 oz / 150 g |
| Heat Output | 8,200 BTU per hour, approx. |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Minimum Circuit Ampacity | 11.5 A |
| Maximum Breaker Size | 20 A |
| Energy Use at 70°F Air / 50°F Water | 3.4 kWh per 100 lb of ice |
| Energy Use at 90°F Air / 70°F Water | 3.83 kWh per 100 lb of ice |
| Potable Water Use | 17 gal per 100 lb of ice at 90°F air / 70°F water |
| Condenser Water Use | 130 gal per 100 lb of ice at 90°F air / 70°F water |
| Drain | 3/4" FPT |
| Water Inlet | 3/8" FPT |
| Electrical Connection | .875" [22.2] (2) |
| Condensate Base Drain | .50" [12.7] |
| Condenser Water Inlet | 3/8" FPT |
| Condenser Water Outlet | 1/2" FPT |
| Ambient Air Temperature | 50 - 100 Degrees F |
| Water Temperature | 40 - 100 Degrees F |
| Water Pressure | 20 - 80 PSIG |
| Suggested Bin Combinations | B40B55B110 + BPF-1 |
| Spec Sheet Bin Chart | B40: Kit Not RequiredB42: Not CompatibleB55: Kit Not RequiredB110: BPF-1B700-30: Kit Not RequiredB1000-48: Kit Not RequiredB1300-48: Kit Not RequiredB1325-60: Kit Not RequiredB1660-60: Kit Not Required |
| Water Filter | IFQ1-S manifold system, replacement filter IOMQ-S |
| Options | KSI-1 - Safe Ice ModuleKCUBEDISPB for mounting to a dispenserB55 |
| Exterior | Corrosion-Resistant, Fingerprint-Proof Aluminum |
| Certifications | cULus, UL Energy Verified |
| Build America, Buy America | Yes, per Ice-O-Matic |
| Warranty | 3 Years Parts and Labor |
| Evaporator and Compressor Warranty | 5 years parts |
| Extended Evaporator Warranty | 7 years parts and labor if enrolled in the filter program, US and Canada |
