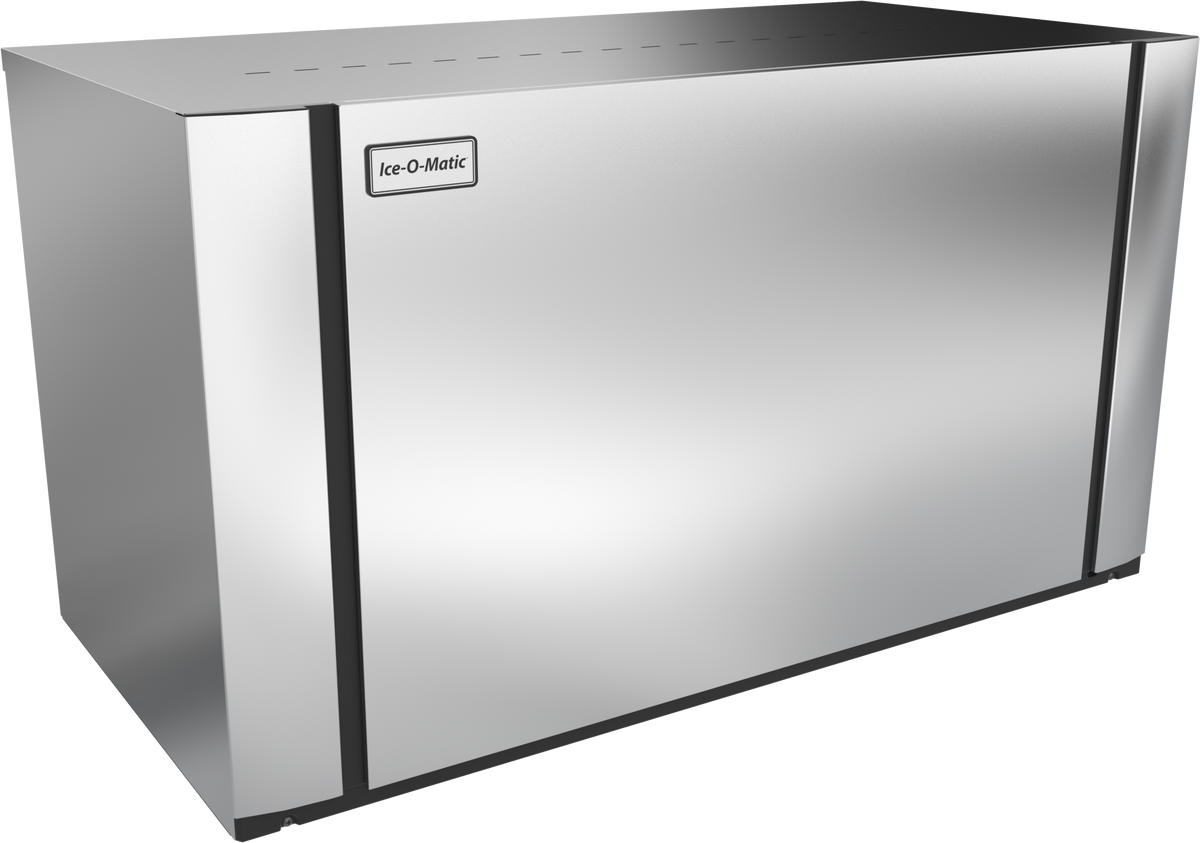

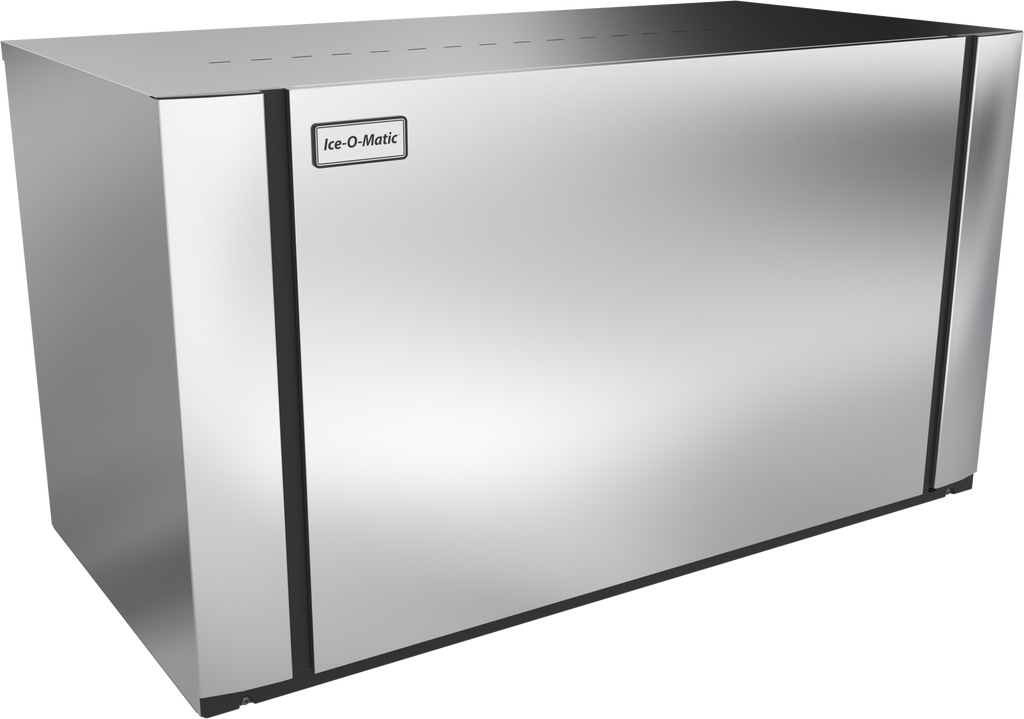

Ice-O-Matic CIM2046HR49 48" Remote-Cooled Half Cube Ice Machine Head, 1,830 lb/24 hr, R449A, 208-230V
A 48" remote-cooled cube ice machine head that makes half cube ice on top of a bin or dispenser.
The Ice-O-Matic CIM2046HR49 is a 48" remote-cooled modular cube ice machine head that makes half cube ice (3/8 x 7/8 x 7/8 in.). It is rated at 1,830 lb per 24 hours at 70°F air / 50°F water, or 1,502 lb at 90°F air / 70°F water. It runs on R449A refrigerant and connects to a 208-230/60/1 circuit with a 35 A maximum breaker. It ships as the head only: the storage bin or dispenser is sold separately.
Measure the space on top of the bin: the head is 48.25" wide and 24.25" deep.
Harvest Assist keeps ice production consistent for the life of the machine while cutting energy use and adding capacity, per Ice-O-Matic.
Electroless nickel plating on all evaporator plates is built for reliability and durability.
The evaporator faces the front, and the plastic parts are dishwasher safe up to 180°F.
Pairs with the RC406C49 remote condenser and RL49-25, RL49-40, and RL49-75 precharged line sets.
The cabinet is corrosion-resistant, fingerprint-proof aluminum.
Many parts are common across all CIM machines.
No. The CIM2046HR49 ships as the head only. Ice-O-Matic suggests these bin combinations: B110 with no kit.
1,830 lb per 24 hours at 70°F air / 50°F water and 1,502 lb at 90°F air / 70°F water. Hotter rooms and warmer water lower output.
A 208-230/60/1 supply. The sheet lists a minimum circuit ampacity of 22.5 A and a maximum breaker of 35 A. Ice-O-Matic calls for a dedicated circuit and says GFCI receptacles must not be used.
A 3/8" FPT potable water inlet and a 3/4" FPT drain. Potable water use is 15 gal per 100 lb of ice at 90°F air / 70°F water. Water pressure must be 20 to 80 psi.
The RC406C49 remote condenser and an RL49-25, RL49-40 or RL49-75 precharged line set, sold separately.
3 years parts and labor on the ice maker, 5 years parts on the evaporator and compressor, and 7 years parts and labor on the evaporator if the machine is enrolled in the filter program for US & Canada.
Ice-O-Matic pairs it with the IFQ1-L manifold system, which takes the IOMQ-L replacement filter.
Yes. Ice-O-Matic equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Ice-O-Matic |
|---|---|
| Model Number | CIM2046HR49 |
| Series | CIM Cube Ice Machine |
| Configuration | Modular Head, Bin Sold Separately |
| Shipping Weight | 329 lb. |
| Shipping Dimensions | 51 W x 27 D x 33 H in. |
| Width | 48.25 Inches |
| Depth | 24.25 Inches |
| Height | 26.84 Inches |
| Nominal Width | 48 Inches |
| Capacity | 1,830 lb per 24 hr at 70°F Air / 50°F Water |
| Production at 90°F Air / 70°F Water | 1,502 lb per 24 hr |
| Ice Type | Half Cube |
| Ice Size | 3/8 x 7/8 x 7/8 in.10 x 22 x 22 mm |
| Condensing Type | Remote-Cooled |
| Refrigerant | R449A |
| Refrigerant Charge | 292 oz |
| Heat Output | 29,600 BTU per hour, approx. |
| Remote Condenser | RC406C49, sold separately |
| Precharged Line Sets | RL49-25RL49-40RL49-75 |
| Voltage | 208-230 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Minimum Circuit Ampacity | 22.5 A |
| Maximum Breaker Size | 35 A |
| Energy Use at 70°F Air / 50°F Water | 3.5 kWh per 100 lb of ice |
| Energy Use at 90°F Air / 70°F Water | 4.44 kWh per 100 lb of ice |
| Potable Water Use | 15 gal per 100 lb of ice at 90°F air / 70°F water |
| Drain | 3/4" FPT |
| Water Inlet | 3/8" FPT |
| Electrical Connection | .875" [22.2] (2) |
| Condensate Base Drain | .50" [12.7] |
| Discharge Line Connection | 1/2" male quick connect for line set |
| Liquid Line Connection | 3/8" male quick connect for line set |
| Ambient Air Temperature | 50 - 100 Degrees F |
| Water Temperature | 40 - 100 Degrees F |
| Water Pressure | 20 - 80 PSIG |
| Suggested Bin Combinations | B110 |
| Spec Sheet Bin Chart | B40: Not CompatibleB42: Not CompatibleB55: Not CompatibleB110: Kit Not RequiredB700-30: Kit Not RequiredB1000-48: Kit Not RequiredB1300-48: Kit Not RequiredB1325-60: Kit Not RequiredB1660-60: Kit Not Required |
| Water Filter | IFQ1-L manifold system, replacement filter IOMQ-L |
| Options | KSI-1 - Safe Ice ModuleKCUBEDISPB for ice level control for a dispenser - verify adapter with dispenser manufacturerRC406C49 remote condenser |
| Exterior | Corrosion-Resistant, Fingerprint-Proof Aluminum |
| Certifications | cULus, UL Energy Verified |
| Build America, Buy America | Yes, per Ice-O-Matic |
| Warranty | 3 Years Parts and Labor |
| Evaporator and Compressor Warranty | 5 years parts |
| Extended Evaporator Warranty | 7 years parts and labor if enrolled in the filter program, US and Canada |
