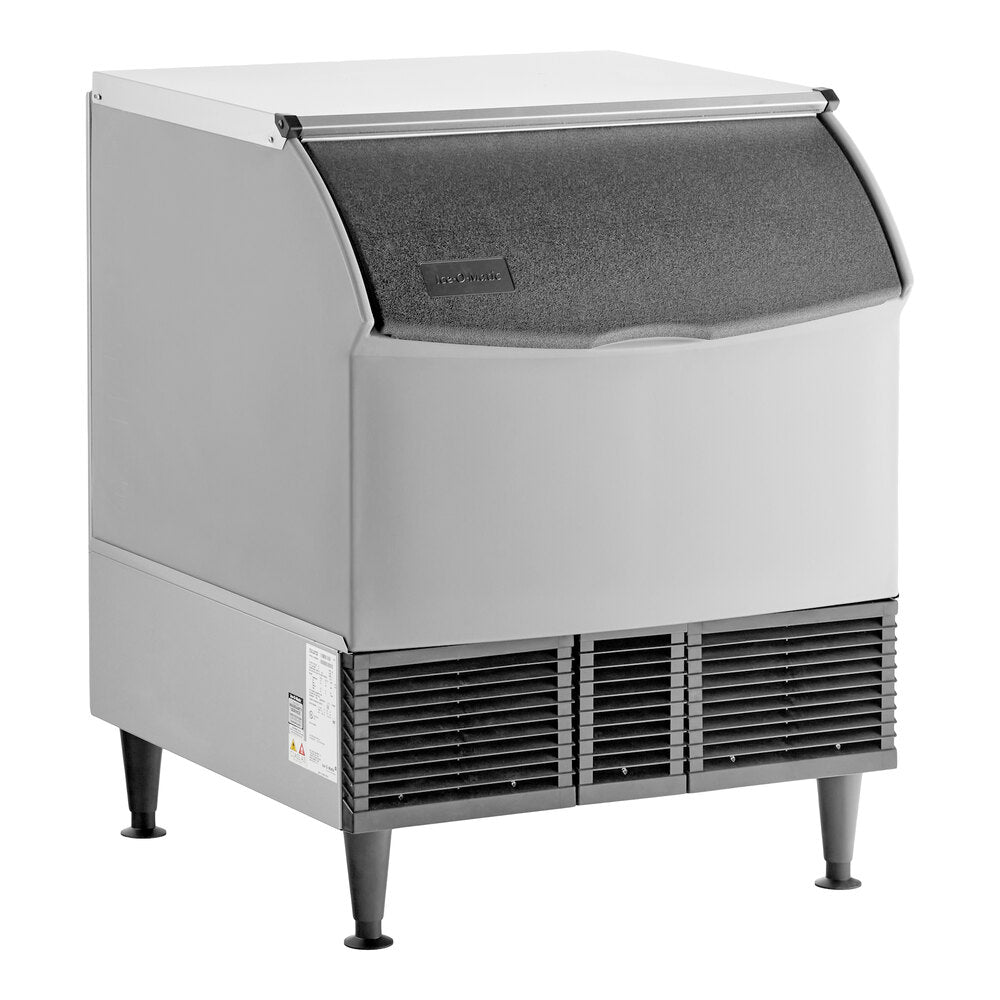

Ice-O-Matic CIMU300FA90 30" Air-Cooled Undercounter Full Cube Ice Machine, 302 lb/24 hr, 112 lb Bin, R290, 115V
A self-contained undercounter machine that makes full cube ice and stores up to 112 lb in its own bin.
The Ice-O-Matic CIMU300FA90 is a 30" air-cooled undercounter ice machine with a 112 lb built-in storage bin. It makes full cube ice (7/8 x 7/8 x 7/8 in.). It is rated at 302 lb per 24 hours at 70°F air / 50°F water, or 234 lb at 90°F air / 70°F water. It runs on R290 refrigerant and connects to a 115/60/1 circuit with a 15 A maximum breaker; a standard plug is included.

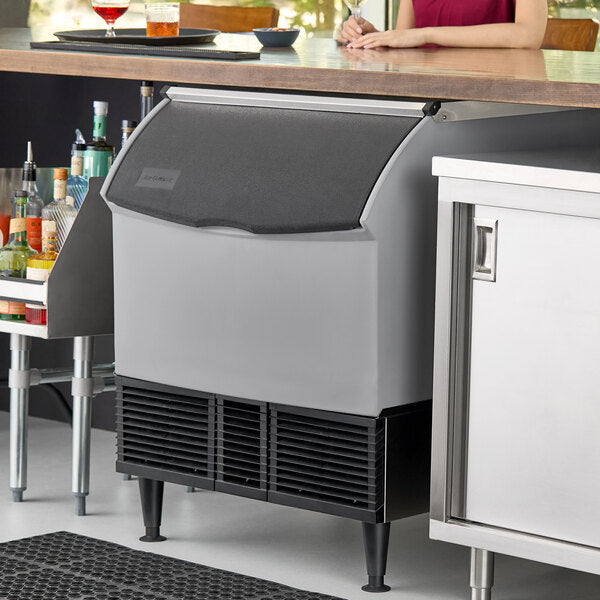

Measure the counter opening: the unit is 39" tall and 30.34" wide.
Air moves through the front, so it can go in tight or enclosed spaces.
Keeps ice production consistent while reducing energy use, per Ice-O-Matic.
Durable nickel-plated evaporator plates for long-lasting, reliable ice production.
Corrosion-resistant, fingerprint-resistant stainless steel is easy to wipe clean.
Routine cleaning starts with one touch, and the display handles adjustments, cleaning and status checks.

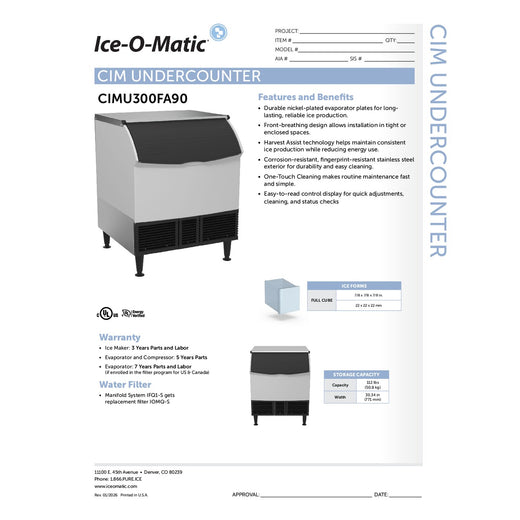

The built-in bin holds 112 lb of ice, per the Ice-O-Matic spec sheet.
302 lb per 24 hours at 70°F air / 50°F water and 234 lb at 90°F air / 70°F water. Hotter rooms and warmer water lower output.
A 115/60/1 supply. The sheet lists a minimum circuit ampacity of 10.6 A and a maximum breaker of 15 A. A standard plug is included.
A 3/8" FPT potable water inlet and a 3/4" FPT drain. Potable water use is 23.7 gal per 100 lb of ice at 90°F air / 70°F water. Water pressure must be 20 to 60 psi.

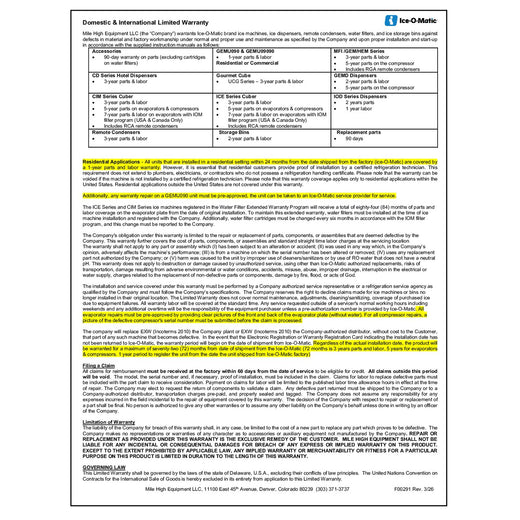

3 years parts and labor on the ice maker, 5 years parts on the evaporator and compressor, and 7 years parts and labor on the evaporator if the machine is enrolled in the filter program for US & Canada.
Ice-O-Matic pairs it with the IFQ1-S manifold system, which takes the IOMQ-S replacement filter. The IFQ1-C in-line system is also listed.
Yes. Ice-O-Matic equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Ice-O-Matic |
|---|---|
| Model Number | CIMU300FA90 |
| Series | CIMU Undercounter Cube Ice Machine |
| Configuration | Self-Contained Undercounter with Built-In Bin |
| Shipping Weight | 192 lb. |
| Shipping Dimensions | 33 W x 33 D x 39 H in. |
| Width | 30.34 Inches |
| Depth | 29.97 Inches |
| Height | 39 Inches |
| Nominal Width | 30 Inches |
| Capacity | 302 lb per 24 hr at 70°F Air / 50°F Water |
| Production at 90°F Air / 70°F Water | 234 lb per 24 hr |
| Bin Storage Capacity | 112 lb. |
| Ice Type | Full Cube |
| Ice Size | 7/8 x 7/8 x 7/8 in.22 x 22 x 22 mm |
| Condensing Type | Air-Cooled |
| Refrigerant | R290 |
| Refrigerant Charge | 70 g |
| Heat Output | 4,590 BTU per hour, approx. |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Minimum Circuit Ampacity | 10.6 A |
| Maximum Breaker Size | 15 A |
| Plug Type | Standard Plug Included |
| Energy Use at 70°F Air / 50°F Water | 4.4 kWh per 100 lb of ice |
| Energy Use at 90°F Air / 70°F Water | 6.35 kWh per 100 lb of ice |
| Potable Water Use | 23.7 gal per 100 lb of ice at 90°F air / 70°F water |
| Drain | 3/4" FPT |
| Water Inlet | 3/8" FPT |
| Electrical Connection | 7/8" Hole (Cord on 115V Models) |
| Ambient Air Temperature | 50 - 100 Degrees F |
| Water Temperature | 40 - 100 Degrees F |
| Water Pressure | 20 - 60 PSIG |
| Water Filter | IFQ1-S manifold system, replacement filter IOMQ-SIFQ1-C in-line system |
| Exterior | Corrosion-Resistant, Fingerprint-Resistant Stainless Steel |
| Certifications | cULus, UL Energy Verified |
| Warranty | 3 Years Parts and Labor |
| Evaporator and Compressor Warranty | 5 years parts |
| Extended Evaporator Warranty | 7 years parts and labor if enrolled in the filter program, US and Canada |
