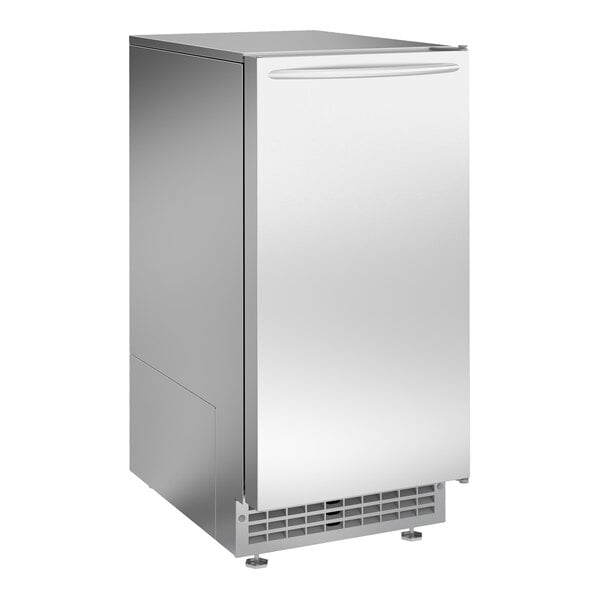

Ice-O-Matic GEMU09090 15" Air-Cooled Undercounter Pearl Nugget Ice Machine, 110 lb/24 hr, 26 lb Bin, R290, 115V
A self-contained undercounter machine that makes soft, chewable Pearl nugget-style ice and stores up to 26 lb in its own bin.
The Ice-O-Matic GEMU09090 is a 15" air-cooled undercounter ice machine with a 26 lb built-in storage bin. It makes soft, chewable Pearl nugget-style ice. It is rated at 110 lb per 24 hours at 70°F air / 50°F water, or 72 lb at 90°F air / 70°F water. It runs on R290 refrigerant and connects to a 115/60/1 circuit with a 15 A maximum breaker; a standard plug is included.
Measure the counter opening: the unit is 34" tall and 15" wide.
Soft, chewable Pearl ice cools drinks faster and longer while keeping flavors, and uses less water and power than cube ice makers, per Ice-O-Matic.
The load monitoring system checks gearbox workload and shuts the system down before a problem develops.
A water sensor prevents low or no water failures and works in adverse water conditions.
A stainless steel evaporator, maintenance-free double roller bearings and a heavy-duty gearbox.
Built-in, non-contact ice detection gives a fail-safe automatic shutoff.

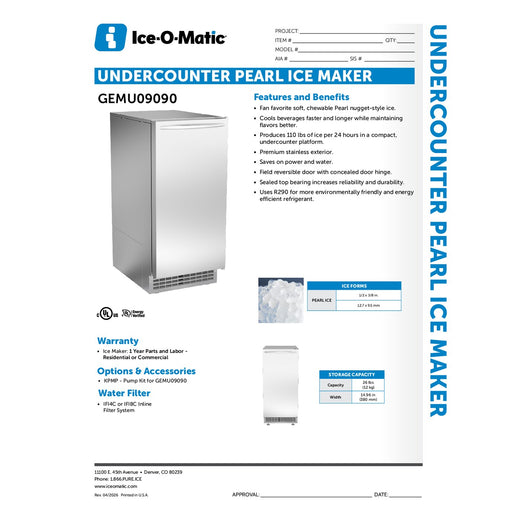

The built-in bin holds 26 lb of ice, per the Ice-O-Matic spec sheet.
110 lb per 24 hours at 70°F air / 50°F water and 72 lb at 90°F air / 70°F water. Hotter rooms and warmer water lower output.
A 115/60/1 supply. The sheet lists a maximum breaker of 15 A. A standard plug is included.
A 1/4" copper tube with compression fitting potable water inlet and a 5/8" ID flexible tubing drain. Potable water use is 12 gal per 100 lb of ice at 90°F air / 70°F water. Water pressure must be 20 to 80 psi.

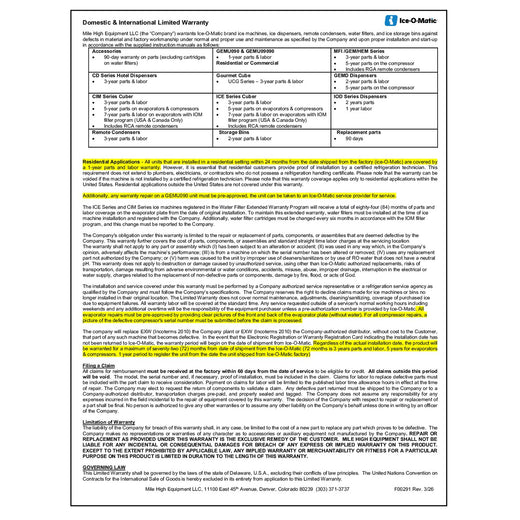

1 years parts and labor, residential or commercial on the ice maker.
Ice-O-Matic pairs it with the IFQ1-FS manifold system, which takes the IOMQ-FS replacement filter. The IFQ1-C in-line system is also listed.
Yes. Ice-O-Matic equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Ice-O-Matic |
|---|---|
| Model Number | GEMU09090 |
| Series | GEMU Undercounter Pearl Ice Machine |
| Configuration | Self-Contained Undercounter with Built-In Bin |
| Shipping Weight | 114 lb. |
| Shipping Dimensions | 27 W x 17 D x 36 H in. |
| Width | 15 Inches |
| Depth | 24 Inches |
| Height | 34 Inches |
| Nominal Width | 15 Inches |
| Capacity | 110 lb per 24 hr at 70°F Air / 50°F Water |
| Production at 90°F Air / 70°F Water | 72 lb per 24 hr |
| Bin Storage Capacity | 26 lb. |
| Ice Type | Pearl Ice |
| Ice Size | 1/2 x 3/8 in.12.7 x 9.5 mm |
| Condensing Type | Air-Cooled |
| Refrigerant | R290 |
| Refrigerant Charge | 85 g |
| Heat Output | 1,500 BTU per hour, approx. |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Maximum Breaker Size | 15 A |
| Plug Type | Standard Plug Included |
| Energy Use at 70°F Air / 50°F Water | 4.2 kWh per 100 lb of ice |
| Energy Use at 90°F Air / 70°F Water | 6.4 kWh per 100 lb of ice |
| Potable Water Use | 12 gal per 100 lb of ice at 90°F air / 70°F water |
| Gravity Drain | 5/8" ID Flexible Tubing |
| Pump Drain, Optional | 5/8" ID Flexible Tubing |
| Water Inlet | 1/4" Copper Tube With Compression Fitting |
| Electrical Connection | Power Cord |
| Ambient Air Temperature | 50 - 100 Degrees F |
| Water Temperature | 40 - 100 Degrees F |
| Water Pressure | 20 - 80 PSIG |
| Water Filter | IFQ1-FS manifold system, replacement filter IOMQ-FSIFQ1-C in-line system |
| Options | KPMP - Pump Kit for GEMU09090 |
| Evaporator | Stainless Steel, Double Roller Bearings, Heavy-Duty Gearbox |
| Certifications | cULus, UL Energy Verified |
| Warranty | 1 Years Parts and Labor, Residential Or Commercial |
