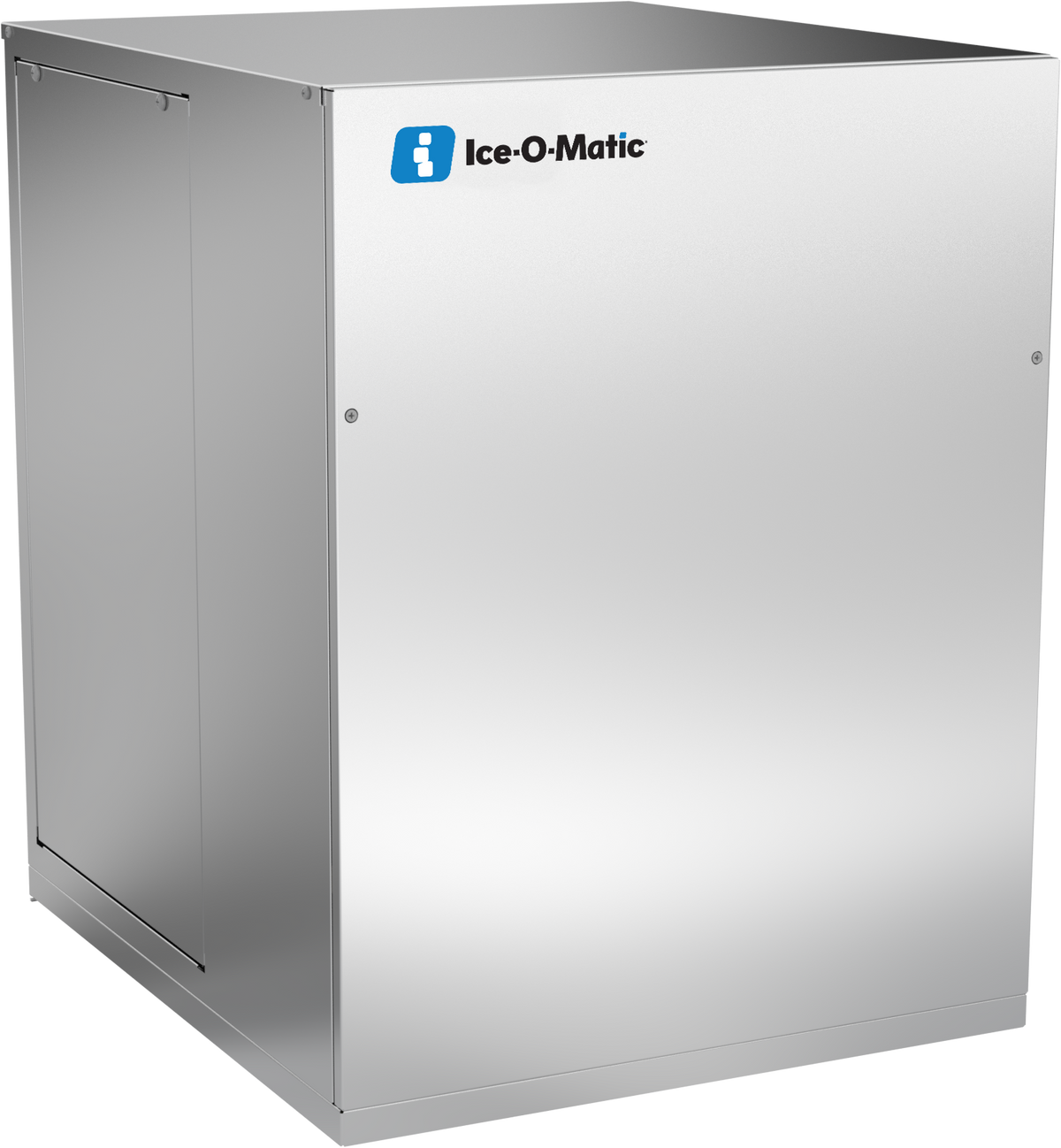

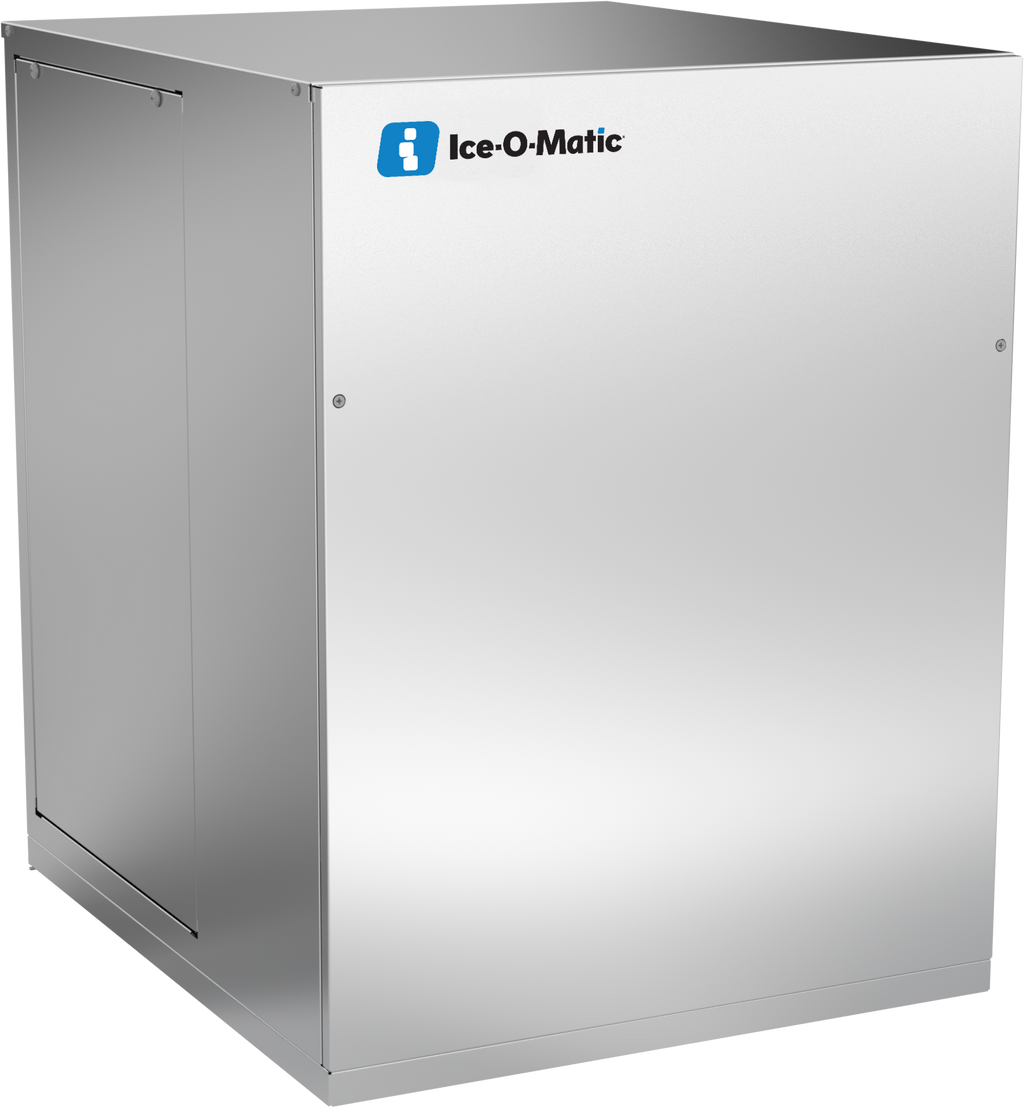

Ice-O-Matic HEM0650W90 21" Water-Cooled Quartz Nugget Ice Machine Head, 610 lb/24 hr, R290, 115V
Up to 610 lb a day of harder, slow-melting Quartz nugget ice from a 21" head.
The Ice-O-Matic HEM0650W90 is a 21" wide Quartz nugget ice machine head for bars, restaurants, healthcare and drink stations. It makes up to 610 lb of ice per 24 hours at 70°F air and 50°F water, and 522 lb at 90°F air and 70°F water. It is water-cooled and uses 135 gallons of condenser water per 100 lb of ice at 90°F air and 70°F water, on top of the potable water that becomes ice. The bin is sold separately.
Height is the head only; add the bin height. The 21" width must match the bin or its top kit.
Ice-O-Matic's new, harder Quartz nugget, 3/4" x 1/2" x 1/2", dispenses better and melts more slowly.
610 lb per 24 hours at 70°F air / 50°F water; 522 lb at 90°F air / 70°F water. Energy use is 2.8 kWh per 100 lb at 70/50 and 3.7 kWh at 90/70.
The load monitoring system checks the gearbox workload and shuts the machine down before a problem develops. The gearbox runs on maintenance-free double roller bearings.
A water sensor prevents low or no water failures and works in adverse water conditions. Built-in non-contact ice detection gives a fail-safe automatic shutoff.
Ice-O-Matic uses R290 for a more environmentally friendly and efficient refrigerant.
A rugged stainless steel evaporator assembly is built for daily commercial use.
No. This is the ice machine head only. Ice-O-Matic's chart lists B700-30, B1000-48, B1300-48, B1325-60 and B1660-60 without a kit, and B40 and B55 with KBT19, B42 with KBT24, B110 with KBT23.
115/60/1. Ice-O-Matic lists 13.1 minimum circuit amps and a 20 A maximum breaker, with 3 wires including ground.
Up to 610 lb per 24 hours at 70°F air and 50°F water, and 522 lb at 90°F air and 70°F water.
12 gallons of potable water and 135 gallons of condenser water per 100 lb of ice at 90°F air and 70°F water.
Ice-O-Matic's spec sheet pairs this model with the IFQ1-FS manifold filter system; its replacement cartridge is IOMQ-FS.
Ice-O-Matic covers the ice maker for 3 years parts and labor and the compressor for 5 years parts.
Ice-O-Matic lists the KGEMDISPB kit for ice level control on a dispenser; verify the adapter with the dispenser manufacturer.
Yes. Ice-O-Matic equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Ice-O-Matic |
|---|---|
| Model Number | HEM0650W90 |
| Series | HEM Quartz Nugget Ice Maker |
| Shipping Weight | 199 lb. |
| Shipping Dimensions | 24" W x 27" D x 32" H |
| Width | 21 Inches |
| Depth | 24.25 Inches |
| Height | 27.03 Inches |
| Ice Type | Quartz Nugget, 3/4" x 1/2" x 1/2" |
| Capacity | 610 lb. per 24 Hours at 70°F Air / 50°F Water |
| Production at 90°F Air / 70°F Water | 522 lb. per 24 Hours |
| Bin | Not Included |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Minimum Circuit Amps | 13.1 |
| Maximum Breaker Size | 20 A |
| Number of Wires | 3 Including Ground |
| Condensing Type | Water-Cooled |
| Refrigerant | R290 |
| Refrigeration Charge | 5.29 oz / 150 g |
| Heat Rejection | 8,190 BTU per Hour, Approximate |
| Energy at 70°F Air / 50°F Water | 2.8 kWh per 100 lb. of Ice |
| Energy at 90°F Air / 70°F Water | 3.7 kWh per 100 lb. of Ice |
| Potable Water Use | 12 Gallons per 100 lb. of Ice at 90°F Air / 70°F Water |
| Condenser Water Use | 135 Gallons per 100 lb. of Ice at 90°F Air / 70°F Water |
| Hookups | Drain 3/4" FPTPotable water inlet 3/8" FPTElectrical connection junction boxWater condenser inlet 3/8" FPTWater condenser outlet 1/2" FPT |
| Ambient Air | 50°F to 100°F |
| Water Temperature | 40°F to 100°F |
| Water Pressure | 20 to 80 psig |
| Compatible Bins | Without a kit: B700-30, B1000-48, B1300-48, B1325-60 and B1660-60 without a kitKits: B40 and B55 with KBT19, B42 with KBT24, B110 with KBT23 |
| Water Filter | IFQ1-FS Manifold System, Replacement Cartridge IOMQ-FS |
| Dispenser Kit | KGEMDISPB for Ice Level Control on a Dispenser |
| Certifications | cULus, UL Energy Verified |
| Warranty | 3 Years Parts and Labor, 5 Years Parts on Compressor |
