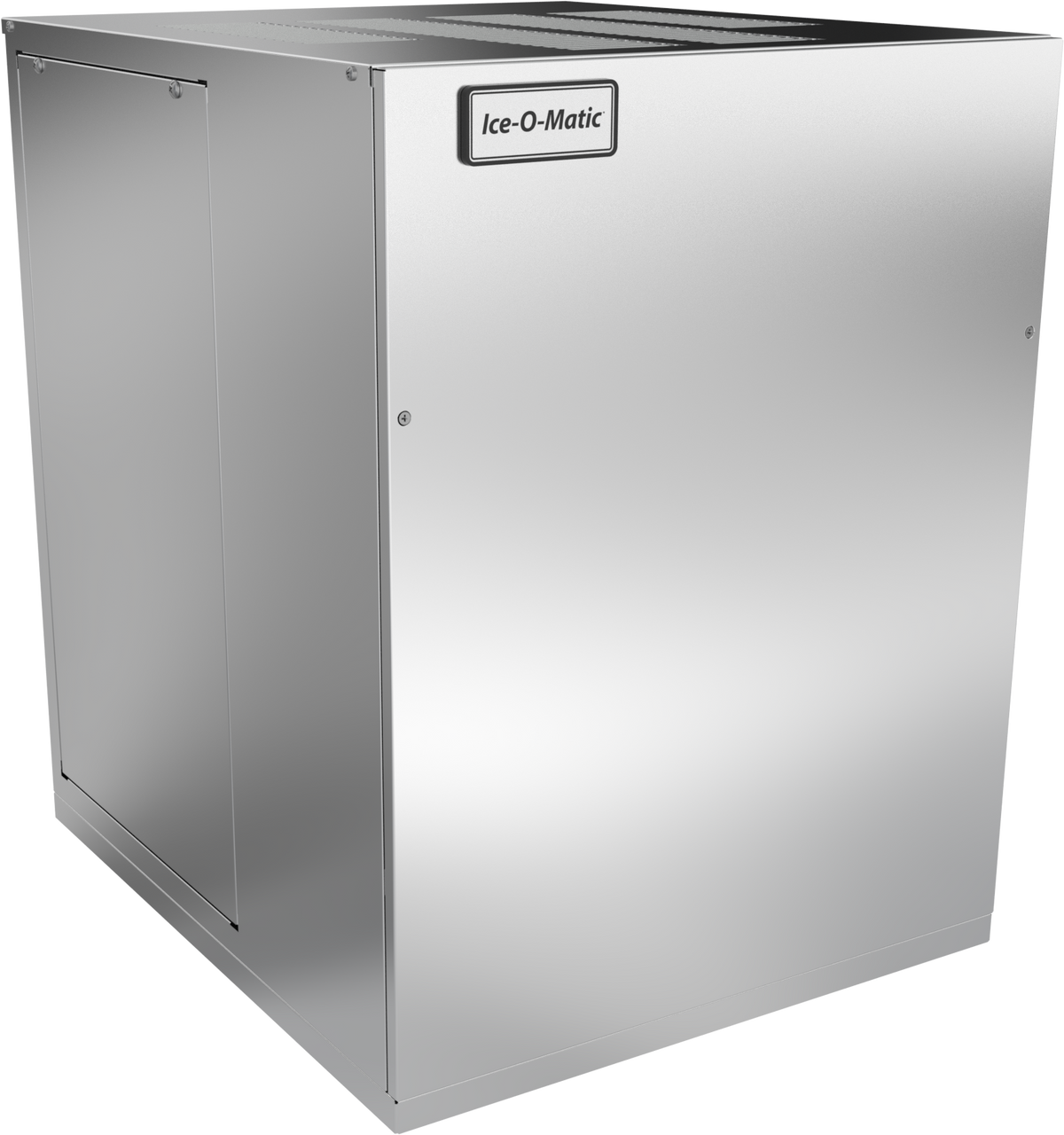

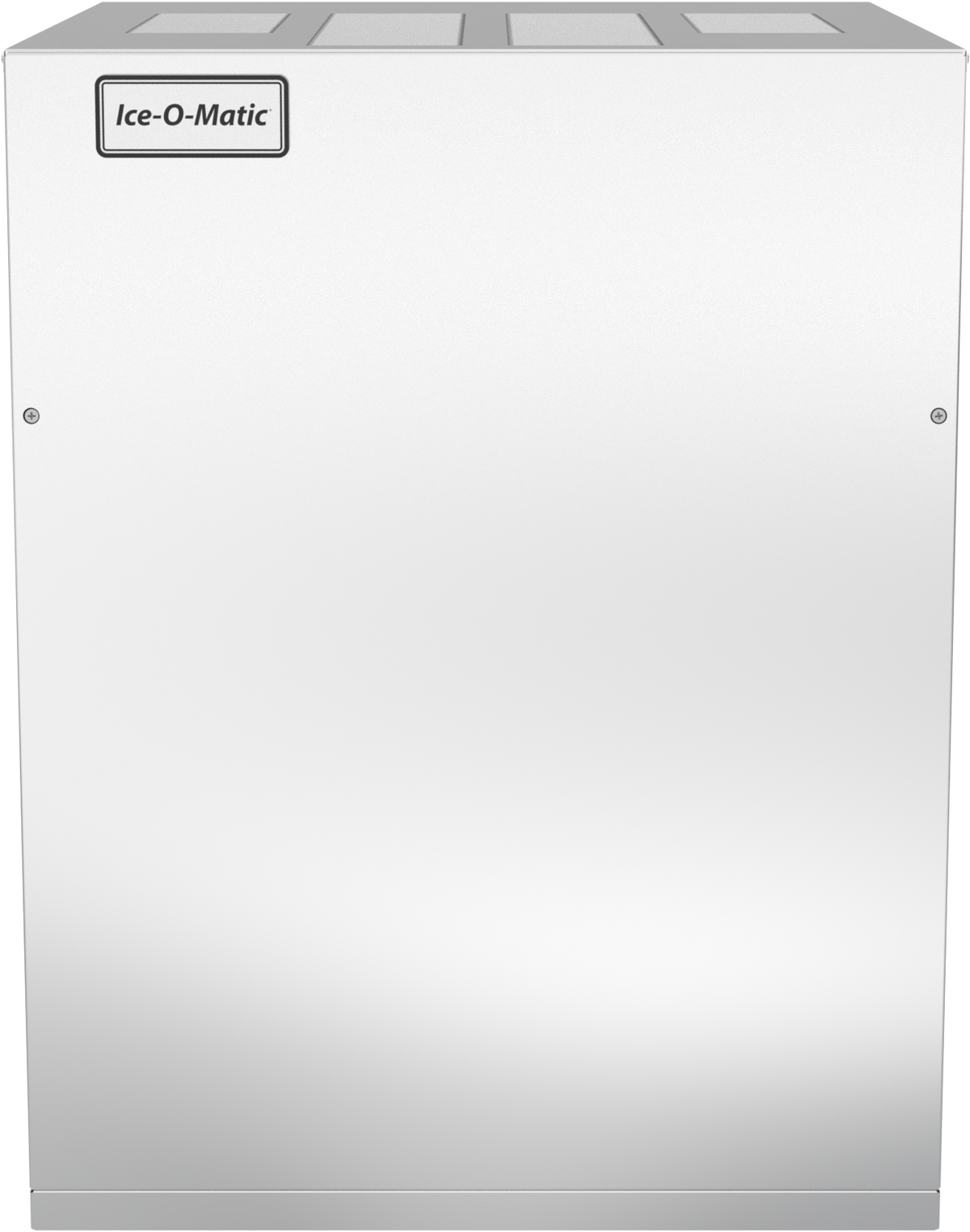

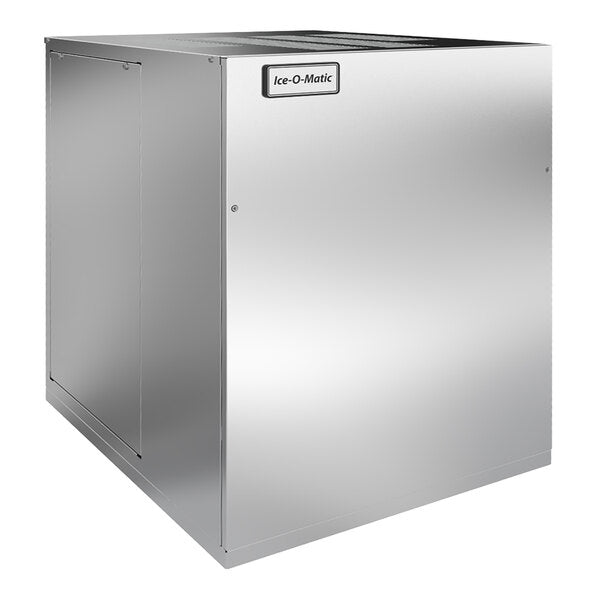

Ice-O-Matic MFI0800A90 21" Air-Cooled Flake Ice Machine Head, 790 lb/24 hr, R290, 115V
A 21" air-cooled flake ice machine head that makes flake ice on top of a bin or dispenser.
The Ice-O-Matic MFI0800A90 is a 21" air-cooled modular flake ice machine head that makes flake ice. It is rated at 790 lb per 24 hours at 70°F air / 50°F water, or 585 lb at 90°F air / 70°F water. It runs on R290 refrigerant and connects to a 115/60/1 circuit with a 20 A maximum breaker. It ships as the head only: the storage bin or dispenser is sold separately.
Measure the space on top of the bin: the head is 21" wide and 24.25" deep.
Ice-O-Matic rates flake ice best for preservation and presentation.
The load monitoring system checks gearbox workload and shuts the system down before a problem develops.
A water sensor prevents low or no water failures and works in adverse water conditions.
A stainless steel evaporator, maintenance-free double roller bearings and a heavy-duty gearbox.
Built-in, non-contact ice detection gives a fail-safe automatic shutoff.
No. The MFI0800A90 ships as the head only. Ice-O-Matic suggests these bin combinations: B40 with the KBT19 kit; B42 with the KBT24 kit; B55 with the KBT19 kit; B110 with the KBT23C kit.
790 lb per 24 hours at 70°F air / 50°F water and 585 lb at 90°F air / 70°F water. Hotter rooms and warmer water lower output.
A 115/60/1 supply. The sheet lists a minimum circuit ampacity of 13.6 A and a maximum breaker of 20 A.
A 3/8" FPT potable water inlet and a 3/4" FPT drain. Potable water use is 12 gal per 100 lb of ice at 90°F air / 70°F water. Water pressure must be 20 to 80 psi.
3 years parts and labor on the ice maker, 5 years parts on the compressor.
Ice-O-Matic pairs it with the IFQ1-FS manifold system, which takes the IOMQ-FS replacement filter.
Yes. Ice-O-Matic equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Ice-O-Matic |
|---|---|
| Model Number | MFI0800A90 |
| Series | MFI Flake Ice Machine |
| Configuration | Modular Head, Bin Sold Separately |
| Shipping Weight | 176 lb. |
| Shipping Dimensions | 24 W x 27 D x 32 H in. |
| Width | 21 Inches |
| Depth | 24.25 Inches |
| Height | 27.03 Inches |
| Nominal Width | 21 Inches |
| Capacity | 790 lb per 24 hr at 70°F Air / 50°F Water |
| Production at 90°F Air / 70°F Water | 585 lb per 24 hr |
| Ice Type | Flake Ice |
| Condensing Type | Air-Cooled |
| Refrigerant | R290 |
| Refrigerant Charge | 3.88 oz / 110 g |
| Heat Output | 8,190 BTU per hour, approx. |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Minimum Circuit Ampacity | 13.6 A |
| Maximum Breaker Size | 20 A |
| Energy Use at 70°F Air / 50°F Water | 2.5 kWh per 100 lb of ice |
| Energy Use at 90°F Air / 70°F Water | 3.5 kWh per 100 lb of ice |
| Potable Water Use | 12 gal per 100 lb of ice at 90°F air / 70°F water |
| Drain | 3/4" FPT |
| Water Inlet | 3/8" FPT |
| Electrical Connection | .875" [22.2] |
| Ambient Air Temperature | 50 - 100 Degrees F |
| Water Temperature | 40 - 100 Degrees F |
| Water Pressure | 20 - 80 PSIG |
| Suggested Bin Combinations | B40 + KBT19B42 + KBT24B55 + KBT19B110 + KBT23C |
| Spec Sheet Bin Chart | B40: KBT19B42: KBT24B55: KBT19B110: KBT23B700-30: Kit Not RequiredB1000-48: Kit Not RequiredB1300-48: Kit Not RequiredB1325-60: Kit Not RequiredB1660-60: Kit Not Required |
| Water Filter | IFQ1-FS manifold system, replacement filter IOMQ-FS |
| Options | B42 |
| Evaporator | Stainless Steel, Double Roller Bearings, Heavy-Duty Gearbox |
| Certifications | cULus, UL Energy Verified, ENERGY STAR |
| Warranty | 3 Years Parts and Labor |
| Compressor Warranty | 5 years parts |
