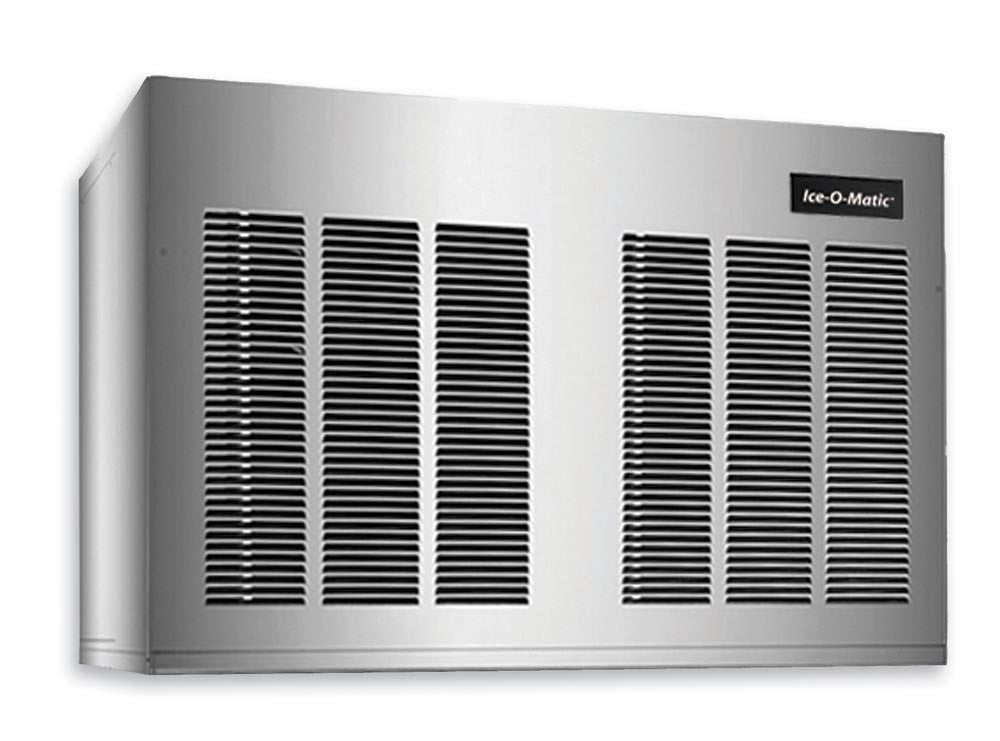

Ice-O-Matic MFI2306W 30" Water-Cooled Flake Ice Machine Head, 2600-2700 lb/24 hr Class, R404A, 208-230V
A 30" water-cooled flake ice machine head that makes flake ice on top of a bin or dispenser.
The Ice-O-Matic MFI2306W is a 30" water-cooled modular flake ice machine head that makes flake ice. Ice-O-Matic lists it in the 2600-2700 lb per 24 hours production range. It runs on R404A refrigerant and connects to a 208-230/60/1 circuit. It ships as the head only: the storage bin or dispenser is sold separately.
Measure the space on top of the bin: the head is 30" wide and 24" deep.
Ice-O-Matic rates flake ice best for preservation and presentation.
The load monitoring system checks gearbox workload and shuts the system down before a problem develops.
A water sensor prevents low or no water failures and works in adverse water conditions.
A stainless steel evaporator, maintenance-free double roller bearings and a heavy-duty gearbox.
Built-in, non-contact ice detection gives a fail-safe automatic shutoff.
Ice-O-Matic builds this head with a water-cooled condenser; plan for condenser water supply and return lines.
No. The MFI2306W ships as the head only. Ice-O-Matic suggests these bin combinations: B40 with the KBT19 kit; B42 with the KBT24 kit; B55 with the KBT19 kit; B110 with the KBT23C kit.
Ice-O-Matic lists it in the 2600-2700 lb per 24 hours production range. Hotter rooms and warmer water lower output.
A 208-230/60/1 supply. Check the serial nameplate for the breaker size before installation.
3 years parts and labor on the ice maker, 5 years parts on the compressor.
Ice-O-Matic lists the IFQ2-XL filter system for this model.
Ice-O-Matic ships the MFI2306W as the head only. This listing also offers priced configuration choices; ask us which bin or kit a choice includes before you order.
Yes. Ice-O-Matic equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Ice-O-Matic |
|---|---|
| Model Number | MFI2306W |
| Series | MFI Flake Ice Machine |
| Configuration | Modular Head, Bin Sold Separately |
| Width | 30 Inches |
| Depth | 24 Inches |
| Height | 27 Inches |
| Nominal Width | 30 Inches |
| Capacity | 2600-2700 lb per 24 hr Production Range |
| Ice Type | Flake Ice |
| Condensing Type | Water-Cooled |
| Refrigerant | R404A |
| Voltage | 208-230 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Suggested Bin Combinations | B40 + KBT19B42 + KBT24B55 + KBT19B110 + KBT23C |
| Water Filter | IFQ2-XL filter system |
| Evaporator | Stainless Steel, Double Roller Bearings, Heavy-Duty Gearbox |
| Warranty | 3 Years Parts and Labor |
| Compressor Warranty | 5 years parts |
