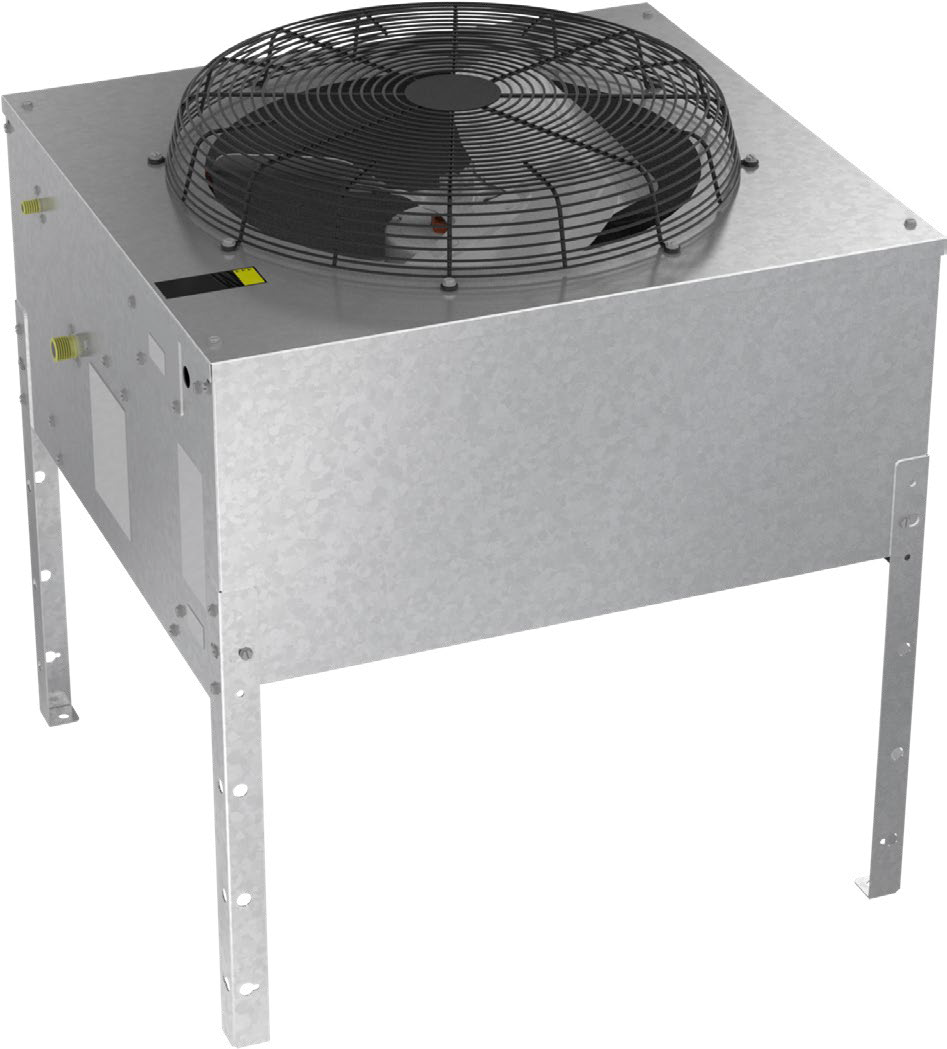

Ice-O-Matic RC106G49 Remote Condenser for GEM0956R49 and More, R449A, 208-230V
Moves ice machine heat and fan noise outside the building.
The Ice-O-Matic RC106G49 is the outdoor remote condenser for GEM0956R49, GEM1306R49, HEM0956R49, HEM1306R49, MFI1256R49 and MFI1506R49 ice machines. It mounts outside with a vertical air discharge, so the heat and fan noise stay out of the dining room or bar. It connects to the ice machine with an Ice-O-Matic line set, sold separately.
Ice-O-Matic limits the calculated line set length to 100 ft: rise x 1.7, plus drop x 6.6, plus the horizontal run.
Ice-O-Matic names the RC106G49 as the remote condenser for GEM0956R49, GEM1306R49, HEM0956R49, HEM1306R49, MFI1256R49 and MFI1506R49 ice machines.
A weather-resistant design and corrosion-resistant galvanized steel cabinet handle -20°F to 120°F ambient air.
The condenser fan sits outside, so the room stays quieter, and the remote system cuts the load on your air conditioning.
An efficient PSC fan motor draws 93 watts and discharges air vertically.
Install with precharged RL49 line sets or noncharged, partially assembled KRL line sets.
Ice-O-Matic names it as the remote condenser for GEM0956R49, GEM1306R49, HEM0956R49, HEM1306R49, MFI1256R49 and MFI1506R49 ice machines.
Ice-O-Matic offers precharged RL49-25, RL49-40 and RL49-75 line sets and noncharged KRL-25, KRL-40 and KRL-75 line sets. Pick the length that covers your run.
The calculated length must not exceed 100 ft. Ice-O-Matic calculates it as rise x 1.7, plus drop x 6.6, plus the horizontal run.
208-230/50-60/1, with a 0.9 A minimum circuit ampacity, through a 7/8" liquid-tight electrical connection.
Ice-O-Matic rates it for -20°F to 120°F ambient air.
Ice-O-Matic covers remote condensers for 3 years parts and labor.
Yes. Ice-O-Matic equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Ice-O-Matic |
|---|---|
| Model Number | RC106G49 |
| Product Type | Remote Condenser |
| Shipping Weight | 91 lb. |
| Shipping Dimensions | 32" W x 34" D x 28" H |
| Width | 29 Inches |
| Depth | 31 Inches |
| Height | 34.5 Inches |
| Compatible Ice Machines | GEM0956R49, GEM1306R49, HEM0956R49, HEM1306R49, MFI1256R49, MFI1506R49 |
| Voltage | 208-230 Volts |
| Hertz | 50/60 Hz |
| Phase | 1 |
| Minimum Circuit Amps | 0.9 |
| Fan Watts | 93 |
| Refrigerant | R449A |
| Refrigeration Charge | 16 oz |
| Condensing Type | Remote |
| Discharge Line | Inlet, 1/2" Male Quick Connect |
| Liquid Line | Outlet, 3/8" Male Quick Connect |
| Electrical | 7/8" Hole, Liquid-Tight Connection |
| Mounting Holes | 4, 1/2" |
| Temperature Range | -20 to 120 Degrees F Ambient |
| Line Set Limit | Calculated Length Max 100 ft: Rise x 1.7 + Drop x 6.6 + Horizontal Run |
| Line Sets | Precharged RL49-25, RL49-40, RL49-75Noncharged KRL-25, KRL-40, KRL-75 |
| Cabinet | Corrosion-Resistant Galvanized Steel, Weather-Resistant Design |
| Fan | PSC Motor, Vertical Air Discharge |
| Certifications | cULus, UL Energy Verified |
| Warranty | 3 Years Parts and Labor |
