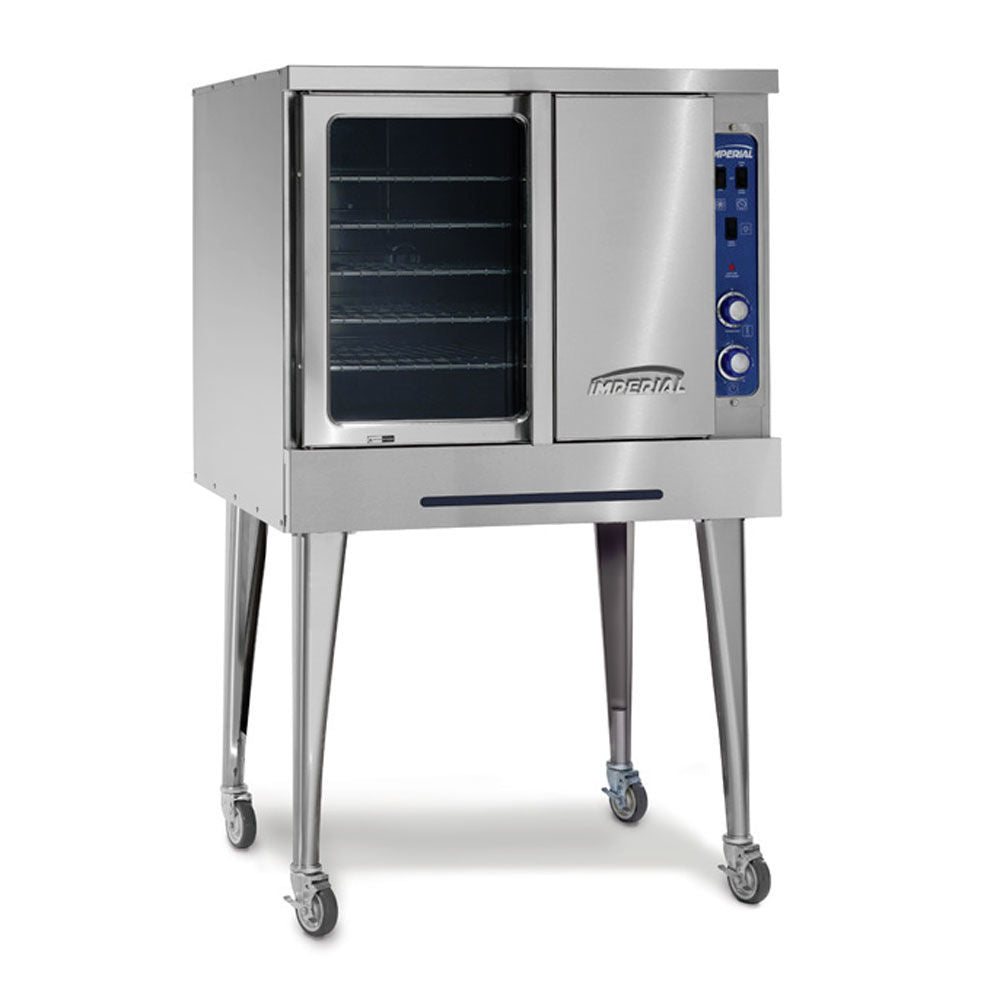

Imperial ICVE-1 Single Deck Convection Oven Electric


🚚 Lead Time - Usually Ships in 2 - 5 Days

Price:
Sale price$5,693.00

Description

Model number ICVE-1
Power type Electric
Electrical output 11 KW
Depth Standard
Installation type Floor model
KW/hr. output 11 KW
KW, volts, phase, hertz, amps 208V 1 Ph 60/50 Hz 53 A max
208V 3 Ph 60/50 Hz 31 A max
240V 1 Ph 60/50 Hz 46 A max
240V 3 Ph 60/50 Hz 27 A max
480V* 3 Ph 60/50 Hz 14 A max
*For export only
Oven depth Standard
Element description A 3-tier element assembly surrounds fan
Thermostat range Snap action control
Cavity dimensions 29" x 28-1/4" x 24" (737 x 717 x 610 mm)
Cavity surface Porcelainized interior
Racks Chrome plated racks, 5 included
Rack guides Chrome plated, 10 positions
Fan speeds 2 speeds, low and high
Cool down fan speeds 2 speeds, low and high
Switch Remote, centrifugal
Fan motor 2 speed, 1/2 h.p. 1725/1140 RPM
Dual opening 40/60 doors, open simultaneously 130°
One hand operation Yes
Window 1 large
Number of bearings 4 bearings per door
Chassis "U" channel bolted and welded to oven frame
Gasket Stainless steel pressure locking
Handle Full length, cool to the touch aluminium
Handle attachment Secured top and bottom to the 10 ga stainless steel internal door chassis
Manual controls Standard
Serviceability 100% serviceable from the oven front, captive fasteners
Fan toggle 2 speeds for oven and cool down
Light switch Momentary switch for 2 interior llghts
Oven ready indicator Light off when temperature reached
Thermostat range 150° to 500°F (66° to 260°C)
Timer 1 hr. manual, audible buzzer
Second step needed Audible buzzer signal
Programmable controls Optional
Cook 'n Hold feature Optional
Digital Timer 24 hr. countdown, LED digital display
Fan options 2 speed
Temperature readout Fahrenheit or Celsius
Wrap material Stainless steel exterior, except back
Control knobs Stainless steel
Dimensions 38" w x 41-1/2" d x 64" h (965 x 1054 x 1625 mm)
Legs Stainless steel with adjustable bullet feet
Crated dimensions 40" x 47-1/2" x 38-1/2" (1016 x 1206 x 978 mm)
Ship weight 521 (236 Kg)

Spec Sheet
