Description
Sold as: Each.

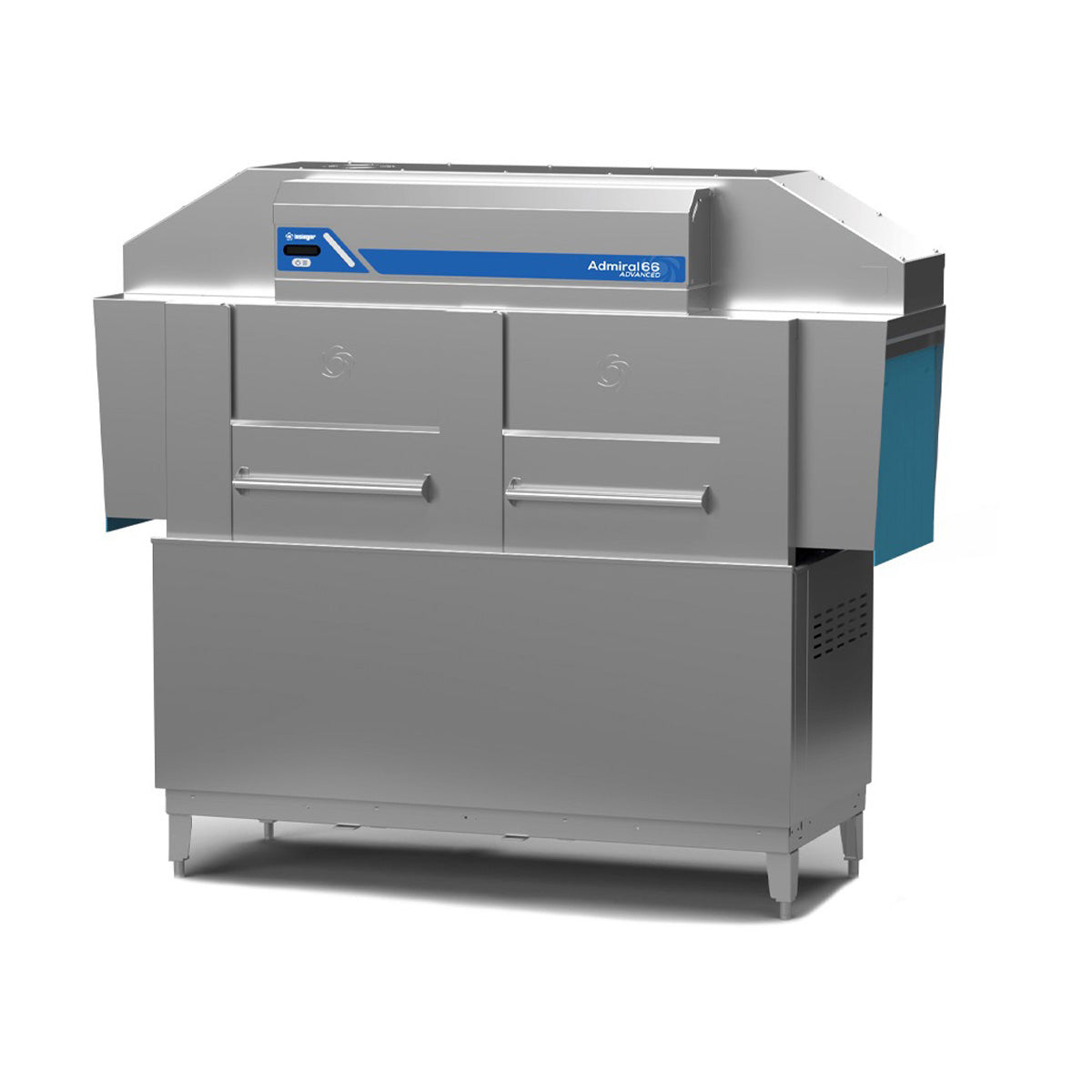

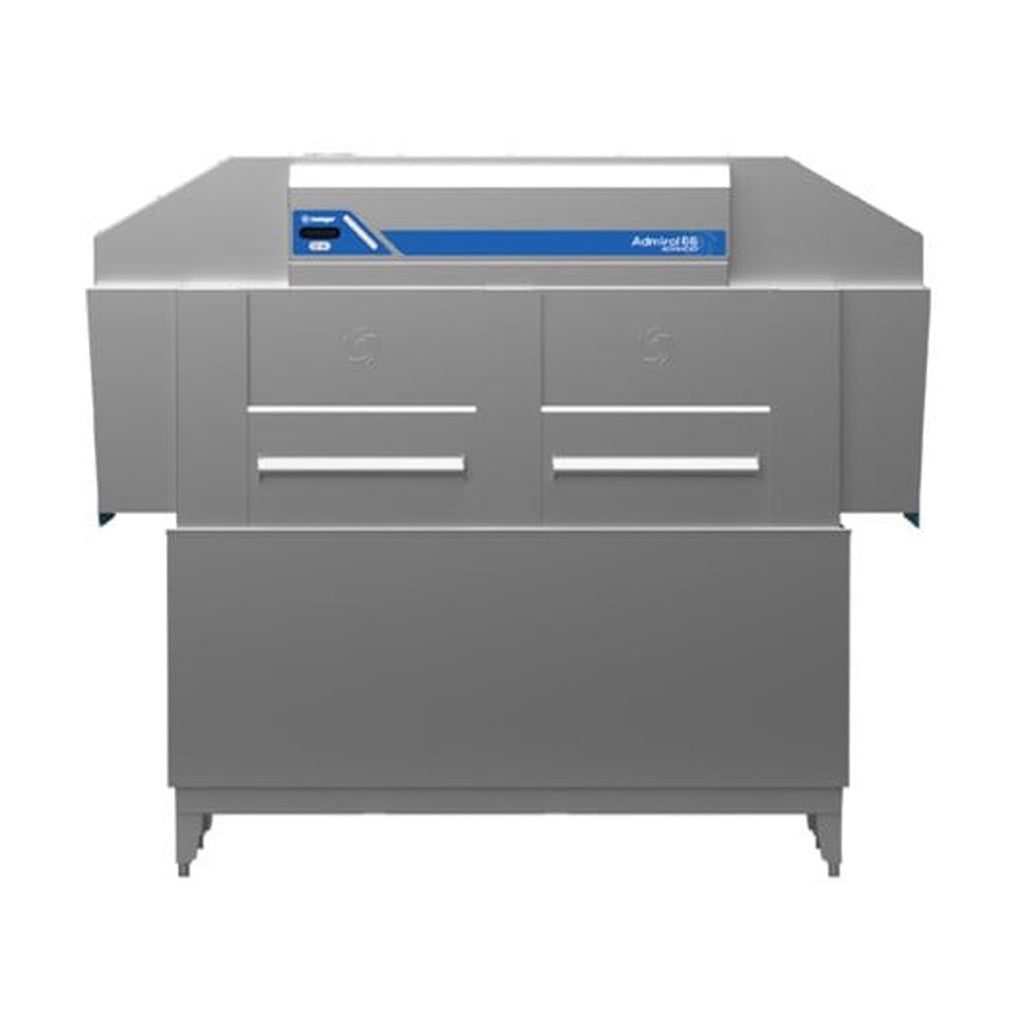

Insinger Admiral 66 Advanced VG Single Tank Rack Conveyor Dishwasher with Optional VaporGuard System
Standard Features:
- CrossFire Wash System
- Color-coded curtains
- Tank heat: integrated booster
- Heat and energy saving transfer system
- Manifold clean-out brush
- S/S 304 stainless steel construction
- Automatic tank fill
- Low water protection
- Single point electrical connection: motor, controls and tank heat
- Detergent connection provision
- Elevated top mounted control panel
- Door safety switches
- Standard frame drip proof motors
- Override switch for de-liming
- SureFire Start-Up & Check-Out Service
- Ventilation fan connection provision
- End caps/pipe plugs secured to prevent loss
- VFD controlled continuous drive conveyor
- Automatic conveyor, rack type, single tank dishwasher with recirculating pre-wash, wash and fresh water final rinse
- 0.63 gallons per rack at 20 PSI
- Capacity is 233 (20” x 20”) racks per hour or 5,825 dishes per hour
- VaporGuard Condensation Removal System
- Telescoping doors allow for efficient daily cleaning
- Dual IS Booster System built into the machine
- No hood required (Refer to your local building code)
Technical specifications
Specifications
| Manufacturer | Insinger |
|---|---|
| Model Number | ADMIRAL VG (66") |
| Weight | 1100 lbs |
| Temperature | high temp with booster |
| Energy Efficiency | ENERGY STAR® |
| Rack capacity | approximately (234) racks/hour |
| Construction | stainless steel |
| Tank design | (1) tank with pre-wash |
| Tank Heat | electric |
| Voltage | 208, 240, 480 |
| Pre-Wash Length | 22" pre-wash |
| Phase | 3 |
| Water Consumption(Approx) | 147 Gallons Per Hour |
| Conveyor Length | 66" |
| Energy Recovery System | Vapor Guard System (VR) |
| Selling unit | Each |
| Source units per case | 1 |
| Units per order | 1 |
| Source price unit | each |
