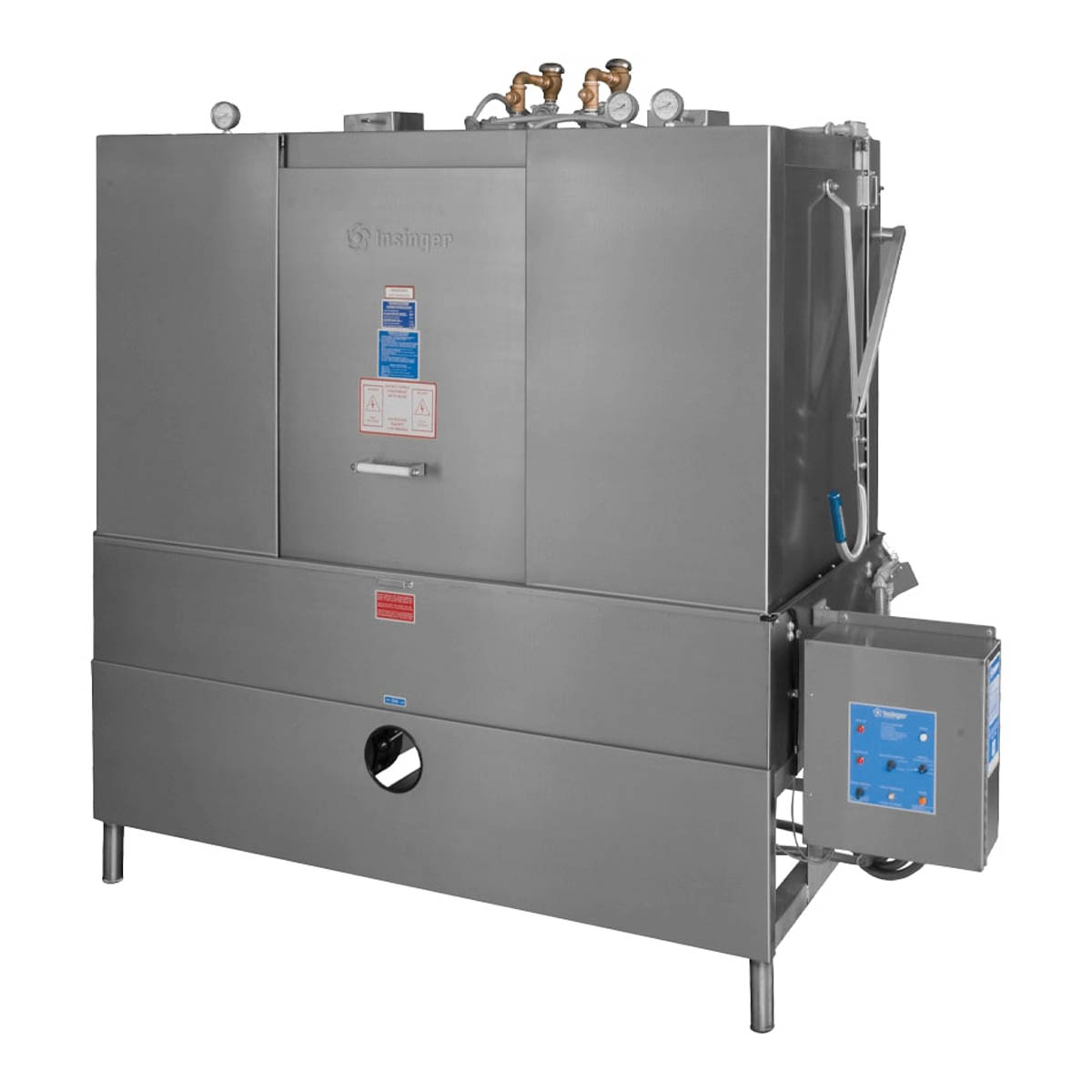

Insinger DA-3 Straight-Thru Load Double Rack Pot/Pan & Utensil Washer, HighTemp - 50 RPH / (2) 5hp

Insinger DA-3 72" Door Type Pot/Pan/Utensil Dishwasher

Insinger DA-3 Standard Features

• Automatic door type utensil washer with timed wash and rinse cycle
• Capacity- 50 24” x 28” racks per hour or 276 bun/pans per hour or 184 steam table (2” thick) pans per hour
• Fully automatic operation with power on/off button
• Cycle starts when doors are closed
• Rinse pressure regulator
• Hold-Down Rack System for secure washing
• Rollers make getting large racks in and out easier
• Wash tank heat: electric or steam injection
• Pressure regulator
• Single point electrical connection
• Low water protection
• Door safety switches
• 2 vent openings with adjustable damper
• Inspection door
• Vacuum breaker on all incoming water lines
• Capillary thermometer for wash and final rinse
• 304 stainless steel construction
• Stainless steel front panel
• Automatic fill
• Detergent connection provision
• Hold-down rack system
• Rollers for track
• Manual bypass selector switch
• Side-mounted control panel (NEMA 12)
• Simplified scrap screen design
• Interchangeable upper and lower spray arms
• Standard frame drip proof motor
• Rack assortment- 2 general utility, 2 bake sheets, 1 basket, 1 counter pan
• Manifold clean-out brush
• SureFire® Start-Up & Check-Out Service

Insinger DA-3 Specifications

• CONSTRUCTION- Hood and tank constructed of 14 gauge 18-8 type 304 S/S. Hood unit of all welded seamless construction. S/S frame, legs and feet. All internal castings are non-corrosive lead free nickel alloy or bronze.
• DOORS- A front inspection/clean-out door and two simultaneously opening operating doors. Operating doors balanced by externally mounted springs. Extra large die formed 18-8 type 304 S/S doors ride in all S/S channels. A triple ply leading edge on the door channels made of S/S.
• PUMP- Centrifugal type “packless” pump with a brass petcock drain. Construction includes ceramic seal and a balanced cast impeller on a precision ground stainless steel shaft, extension or sleeve. All working parts mounted as an assembly and removable as a unit without disturbing pump housing. Two 5 hp motors, standard horizontal C-face frame, drip proof, internally cooled with ball-bearing construction
• CONTROLS- Side-mounted control cabinet, NEMA 12 rated, housing motor controls and overload protection, transformer, contactors and all dishwasher integral controls. All controls safe low voltage 24 VAC.
• SPRAY SYSTEM- Wash and rinse spray systems made of 18-8 type 304 S/S pipe threaded into cast hub assemblies. Upper and lower spray assemblies are interchangeable and are removable without the use of tools
• WASH- 4 power spinning wash arms above and 4 power spinning wash arms below, each designed with 8 high pressure action cleansing holes.
• FINAL RINSE- 4 power spinning wash arms above and 4 power spinning rinse arms below, each designed with 3 nozzles.
• DRAIN- Drain valve externally controlled. Overflow assembly with skimmer cap is removable with the use of simple tools for drain line inspection. Heater is protected by low water level control.
• Shipping Weight : 1500 lbs
