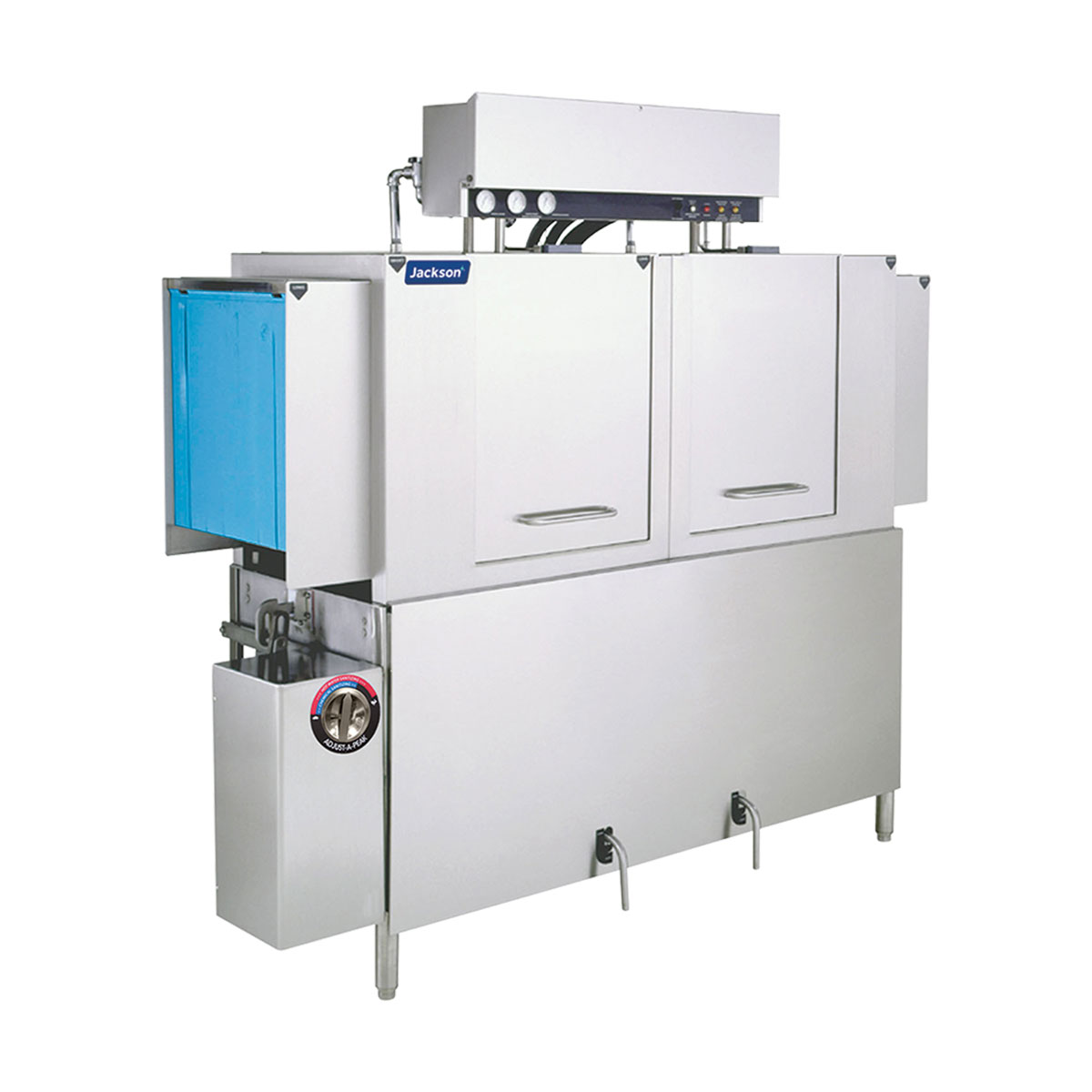

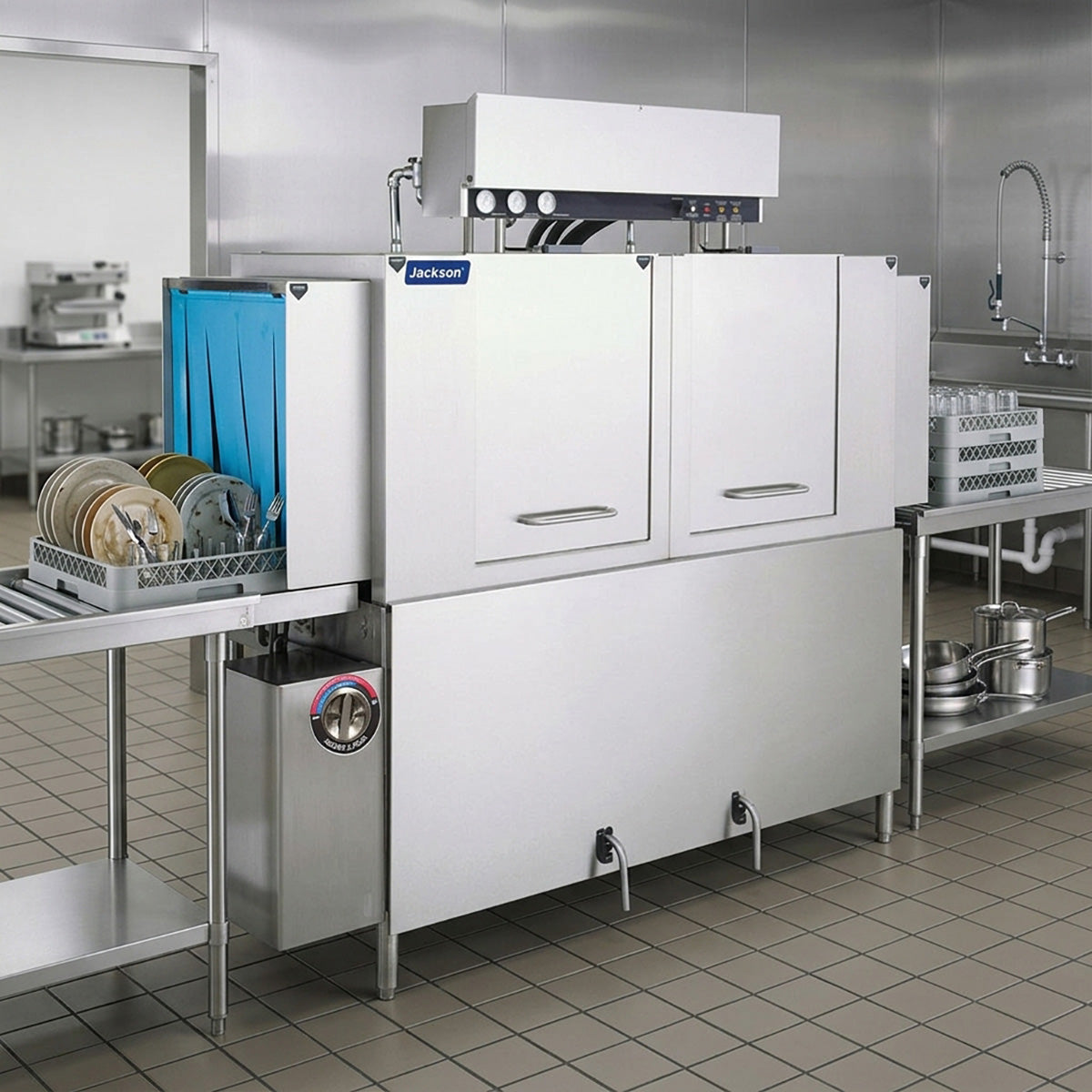

Jackson WWS AJ-64CE 64" Conveyor Dishwasher, 287 Racks/Hr - 222 Gal/Hr - High Temp without Booster

Jackson Warewashing Systems AJ-64 Vision Series

Standard Features:

• 287 racks per hour hi-temp sanitizing rinse
• 0.77 gallons per rack hi-temp sanitizing rinse
• Incoming water pressure regulator
• Exclusive Adjust-A-Peak feature (patented) allows the owner operator to manually adjust the speed of the conveyor system from 144 racks per hour all the way to maximum capacity of 287 racks per hour.
• Standard 25” clearance allows owner operators the ability to wash large utensils, trays, and bun pans.
• Totally electro-mechanical; no solid state controls utilized.
• Fully automatic including auto-fill.
• Completely self-draining, stainless steel wash and recirculating rinse pumps.
• Exclusive “Energy Guard” controls system energizes wash, recirculating rinse, and final rinse sections only when a rack is in place.
• Convenient, externally operated lever drains.
• Stainless steel frame, legs, adjustable bullet feet, and front appearance panel are all standard.
• Standard 8” vent cowls/splash shields on both wash and rinse ends of the machine.
• Heavy gauge construction for extra ruggedness and durability.

Additional Standard Equipment:

• Vent cowls/splash shields with 4” x 16” openings covered with removable plates for connection to exhaust ducts when required.
• Flexible NSF approved strip curtains provided at the ends of the vent cowls as well as at the ends of the machine and separating the prewash, wash, power rinse, and final rinse sections.
• Extra large inspection doors located on front of machine for easy access and cleanability.
• Safety door switches shut down machine should any door be opened during operation.
• Stainless steel front appearance panel.
• Positive low level water protection for wash and power rinse tank heat.
• Sealed dial type thermometers for the prewash, wash, power rinse and final rinse temperatures
