Description
Sold as: Each.

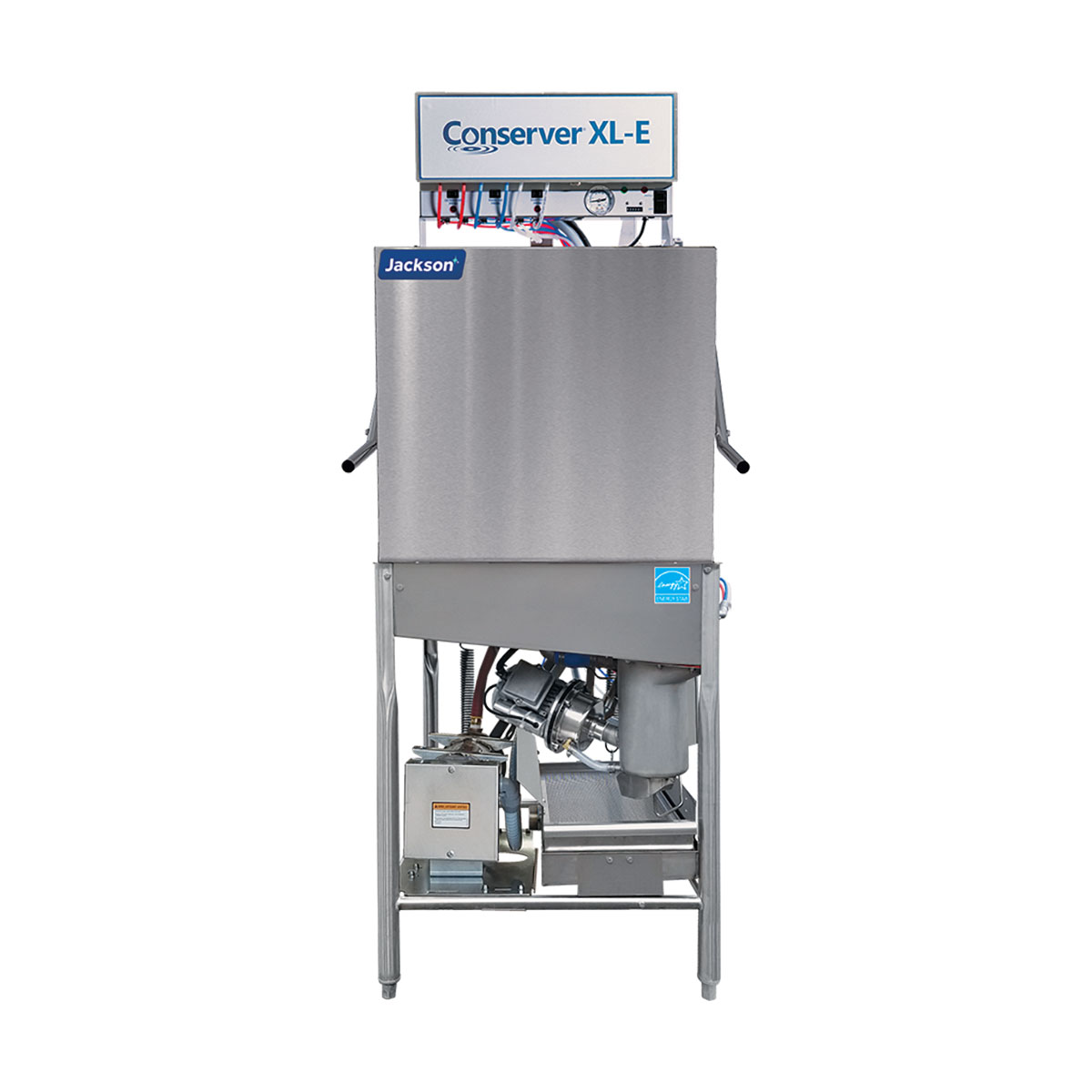

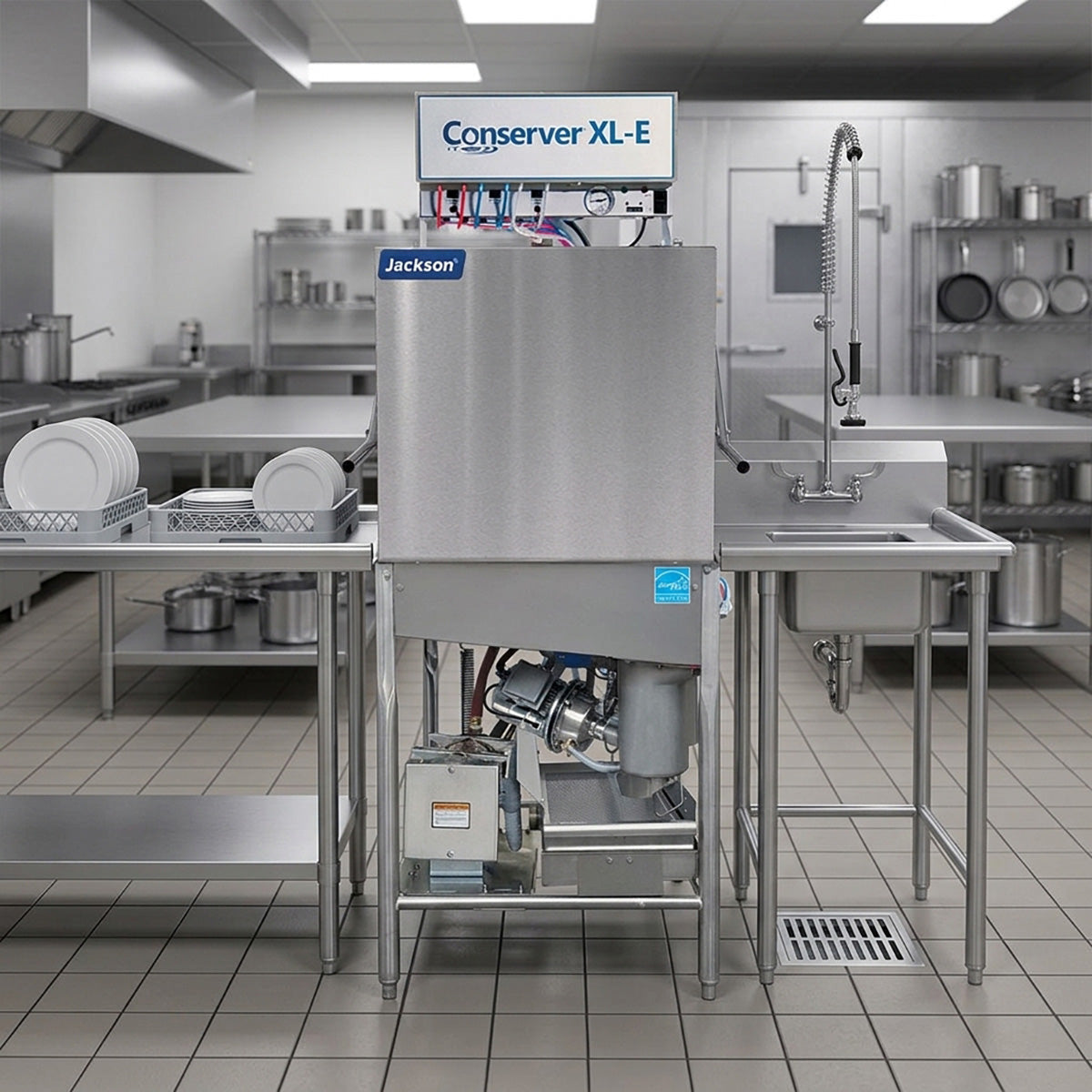

Jackson Warewashing Conserver® XL-E-LTH Low Temperature Chemical Sanitizing Door-type with Booster Heater
Description
Specified unit will be a Jackson Conserver XL-E-LTH low temperature chemical sanitizing door-type dishwasher with built-in booster heater, rated to NSF/ANSI Standard 3 by ETL Sanitation. Unit will be ENERGY STAR® certified. Unit to be rated for 41 racks per hour, 1.02 gallons per rack, and will include an electronic timer with three (3) selectable cycles, and an internal sump. Booster heater will ensure 145 °F wash water. Other features include a 17 1/4 inch vertical inside clearance, interchangeable wash/rinse arms, 1 HP self-draining stainless steel wash pump, built-in chemical pumps and priming switches, delime mode, low chemical indicator lights and built-in waste accumulator. Constructed of durable stainless steel with adjustable bullet feet.
Standard Features
- Built-in booster heater ensures constant 145 °F water to the unit for outstanding performance
- Fill and Dump design disposes of dirty water, replacing it with a fresh water rinse every cycle
- Electronic timer with three selectable cycles for flexibility and performance
- Internal sump design
- Delime mode for easy removal of hard water deposits
- Door-actuated start
- Convenient top mounted controls
- 17 1/4” (438 mm) vertical inside clearance
- Interchangeable upper and lower stainless steel wash/rinse arms
- Door switch
- Self-draining stainless steel pump eliminates soil/detergent carryover between wash and rinse cycles
- Built-in waste accumulator
- Removable scrap screen
- Built-in chemical pumps and priming switches
- Field convertible from straight to corner and corner to straight for flexible installations and applications (kit required)
- Air gap instead of vacuum breaker
- Low chemical indicator lights
- Wash thermometer
- Single point electrical connection
- Adjustable bullet feet
- Durable stainless steel construction
Technical specifications
Specifications
| Manufacturer | Jackson WWS |
|---|---|
| Model Number | CONSERVER XL-E-LTH |
| Weight | 300 lbs |
| Depth | 29.5 |
| Height | 68.5 |
| Design | universal (straight-thru/corner) |
| Racks | single |
| Temperature | low temp chemical |
| Dishwasher Type | Standard |
| Energy Efficiency | ENERGY STAR® |
| Rack capacity | approximately (39) racks/hour |
| Construction | stainless steel |
| Tank Heat | electric |
| Voltage | 230, 208 |
| Drain Type | gravity drain |
| Door Clearance | 17" |
| Number Of Wash Cycle | 3 |
| Phase | 1, 3 |
| Water Consumption(Approx) | 40 Gallons Per Hour |
| Selling unit | Each |
| Source units per case | 1 |
| Units per order | 1 |
| Source price unit | each |
