Description
Sold as: Each.

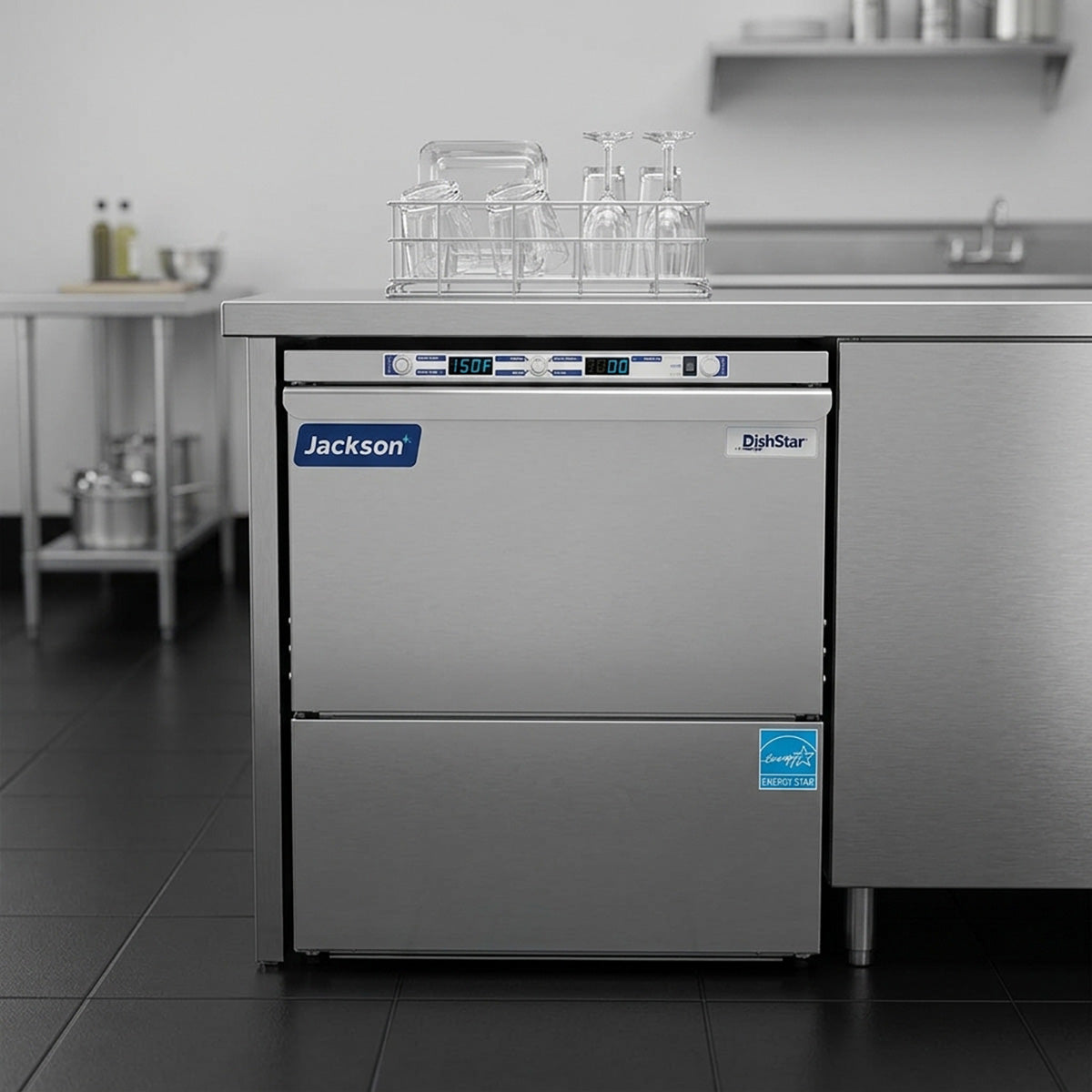

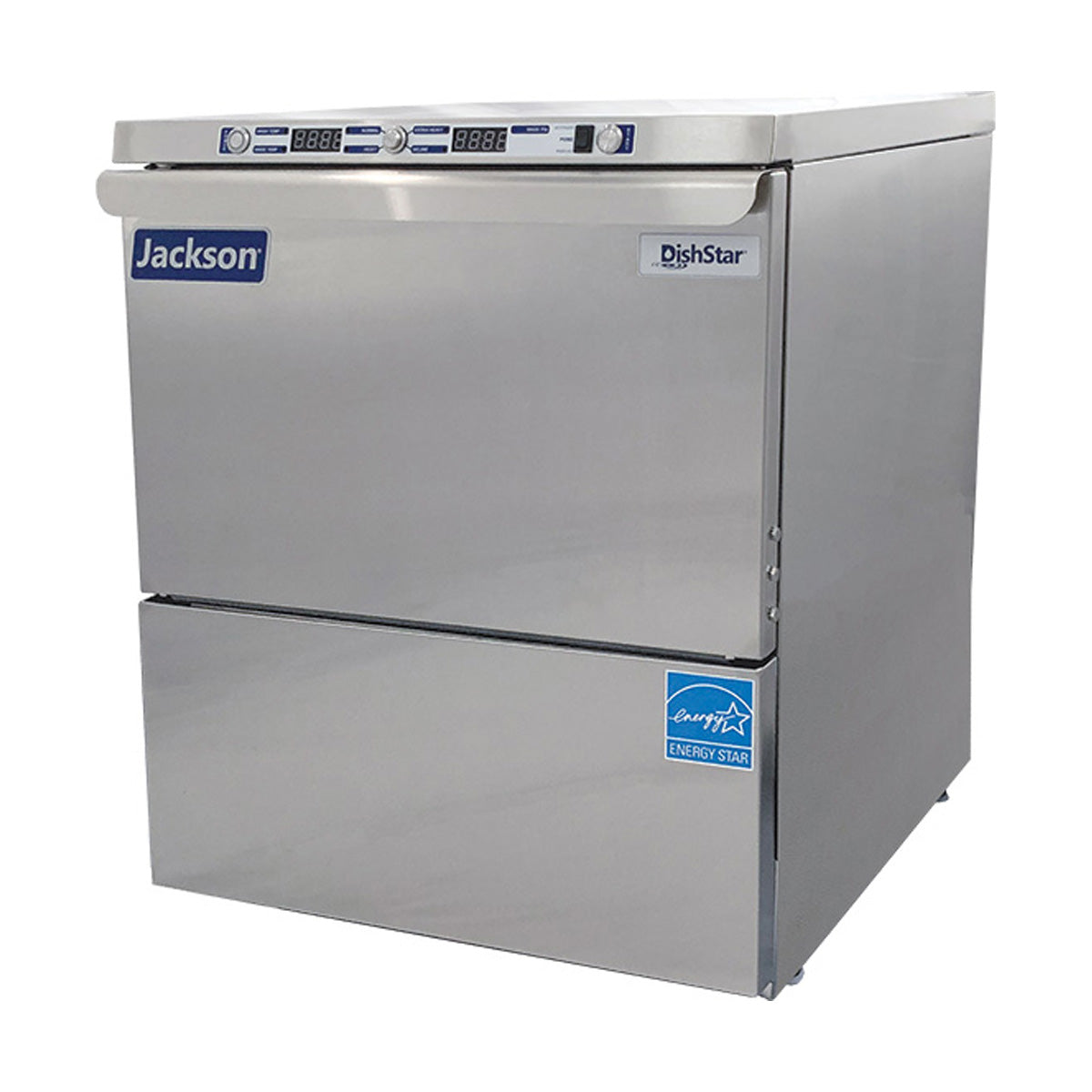

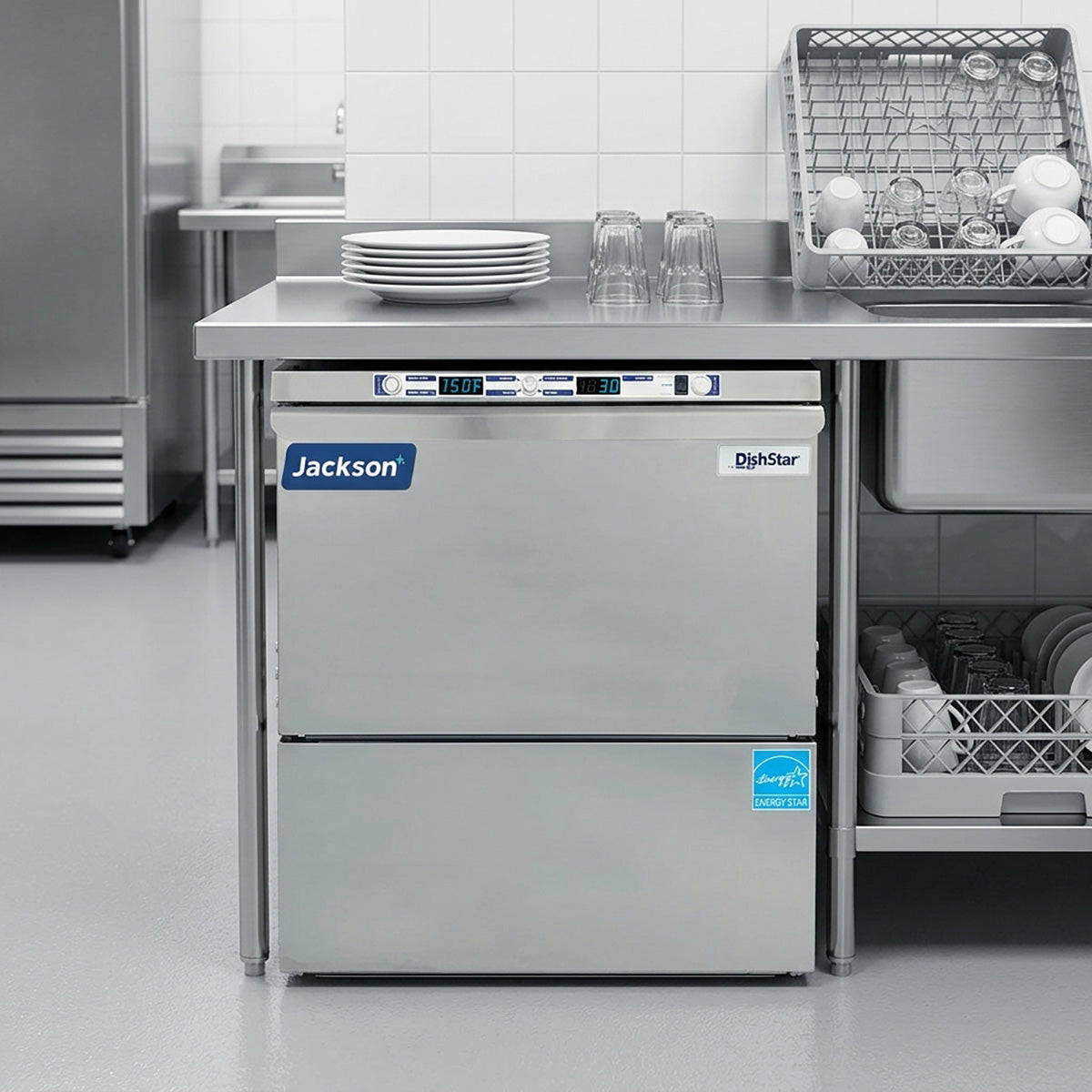

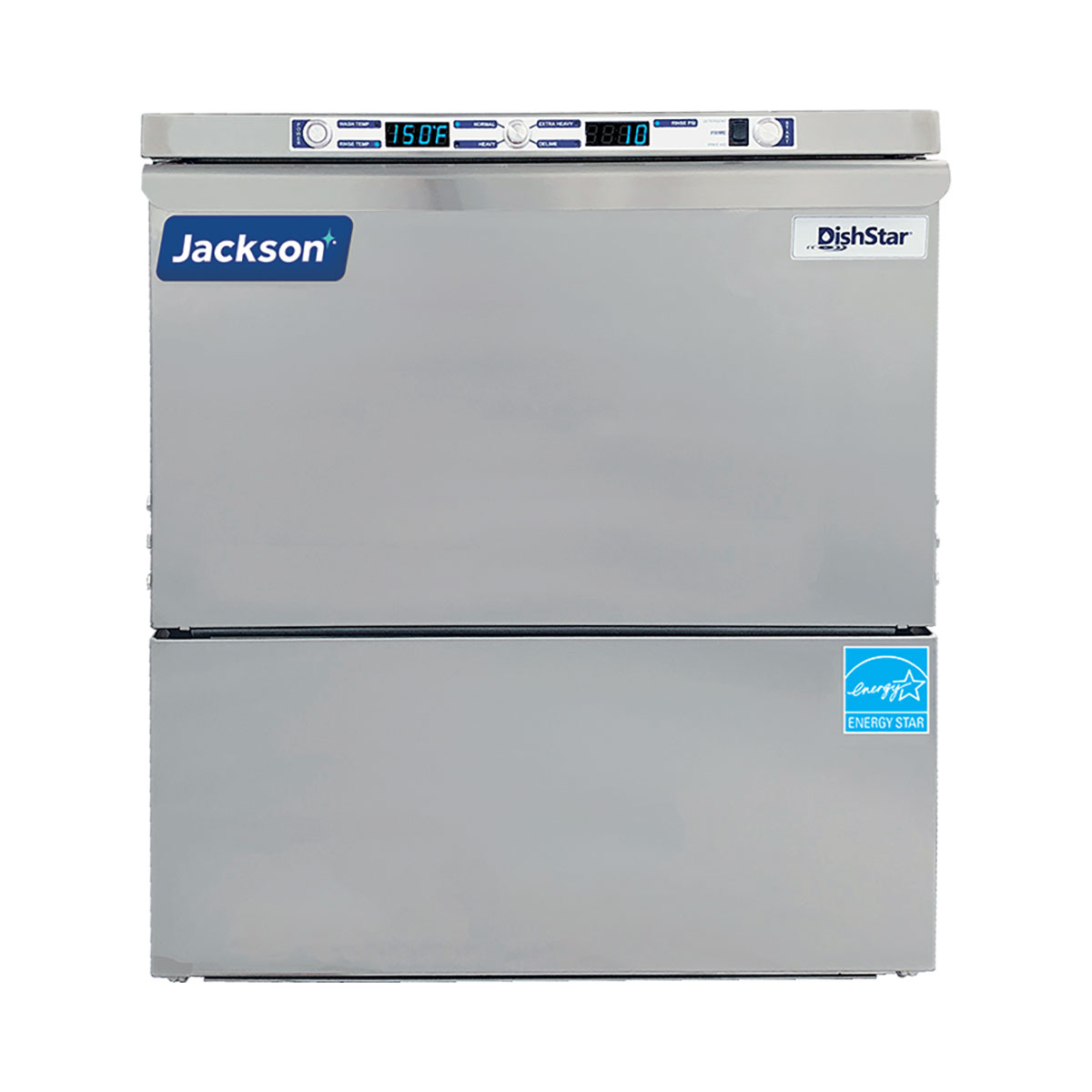

Jackson Warewashing Systems DishStar® ADA-SEER
Specifications
Specified unit will be an ADA-compliant Jackson DishStar ADA-SEER high temperature sanitizing door-type undercounter. Unit will be rated to NSF/ANSI Standard 3 by ETL Sanitation, will be ENERGY STAR® certified, and will operate on a single 3/4” cold water supply. Unit to include SEER, steam elimination and energy recovery. Unit to be rated for 24 racks per hour, 0.60 gallons per rack, and will include a 70 °F rise booster heater with Sani-Sure™ final rinse system, Energy Saver Mode, three (3) selectable timed cycles, and solid-state controls with digital LED temperature/operator display. Other features include Soft Start to protect glassware from chipping and breakage, built-in chemical pumps with automatic prime, automatic tank fill, above-water scrap basket, delime cycle, 3/4 HP stainless steel wash pump motor, pumped drain, pressure regulator, water hammer arrestor, door interlock switch, labyrinth-style door seal, and double-wall cabinet. Constructed of durable stainless steel. 1-year parts and labor warranty.
Features and Benefits
- ADA Compliant
- Fits easily beneath 34” countertops
- Steam Elimination
- Energy Recovery System collects the hot water vapor inside the machine and uses it to preheat the incoming rinse water
- Operates on a single cold water connection
- Soft Start helps protect glassware and dishes from chipping and breaking
- Energy Saver Mode
- Door interlock
- Pressure regulator and water hammer arrestor
- Recirculating wash design with fresh water rinse
- Built-in booster heater with Sani-Sure™ final rinse system ensures proper rinse temperature
- Solid-state controls with three selectable timed cycles for warewashing flexibility and performance
- Digital LED temperature/operator display
- Automatic tank fill with push button start
- Delime cycle
- Automatic pumped drain for floor and wall drain installations
- Built-in chemical pumps with automatic prime
- Stainless steel wash pump
- Above-water scrap basket
- Door switch
- Labyrinth-type door seal design
- Double-wall cabinet for quiet operation and heat retention
- Durable stainless steel construction
- One (1) each peg and combination rack included
Technical specifications
Specifications
| Manufacturer | Jackson WWS |
|---|---|
| Model Number | DISHSTAR ADA-SEER |
| Weight | 270 lbs |
| Width | 24.25 |
| Depth | 26.88 |
| Height | 29.75 |
| Height Of Legs | No Leg |
| Temperature | high temp with booster |
| Dishwasher Type | Dishwasher Only |
| Energy Efficiency | ENERGY STAR® |
| Rack capacity | approximately (24) racks/hour |
| Construction | stainless steel |
| Rack Size | 20" x 20" |
| Tank Heat | electric |
| Cabinet base | fully enclosed |
| Voltage | 230, 208 |
| Door Clearance | 12" |
| Number Of Wash Cycle | 3 |
| Certifications | cETLus, ETL-Sanitation, ENERGY STAR |
| Phase | 1 |
| Water Consumption(Approx) | 14 Gallons Per Hour |
| Selling unit | Each |
| Source units per case | 1 |
| Units per order | 1 |
| Source price unit | each |
