Description
Sold as: Each.

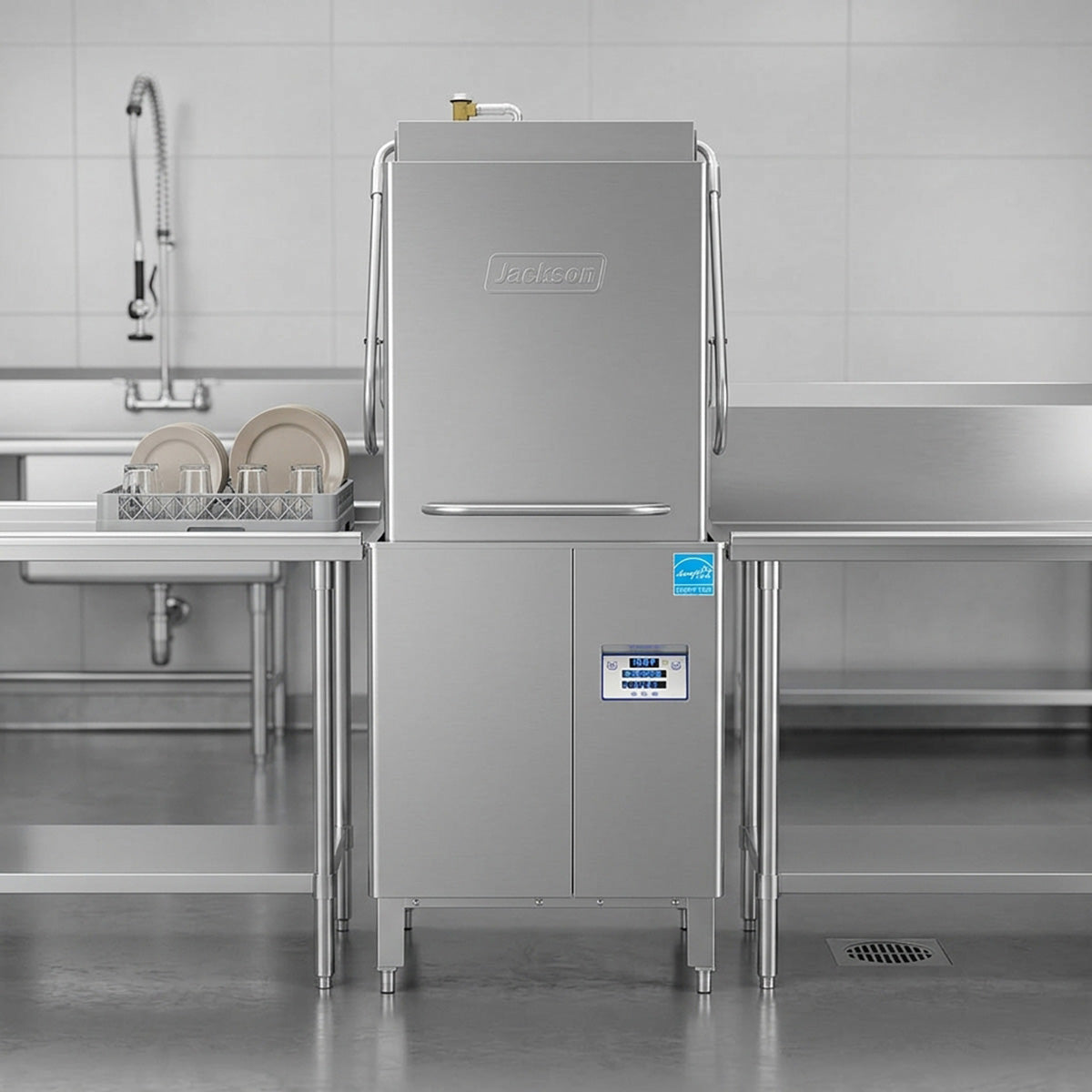

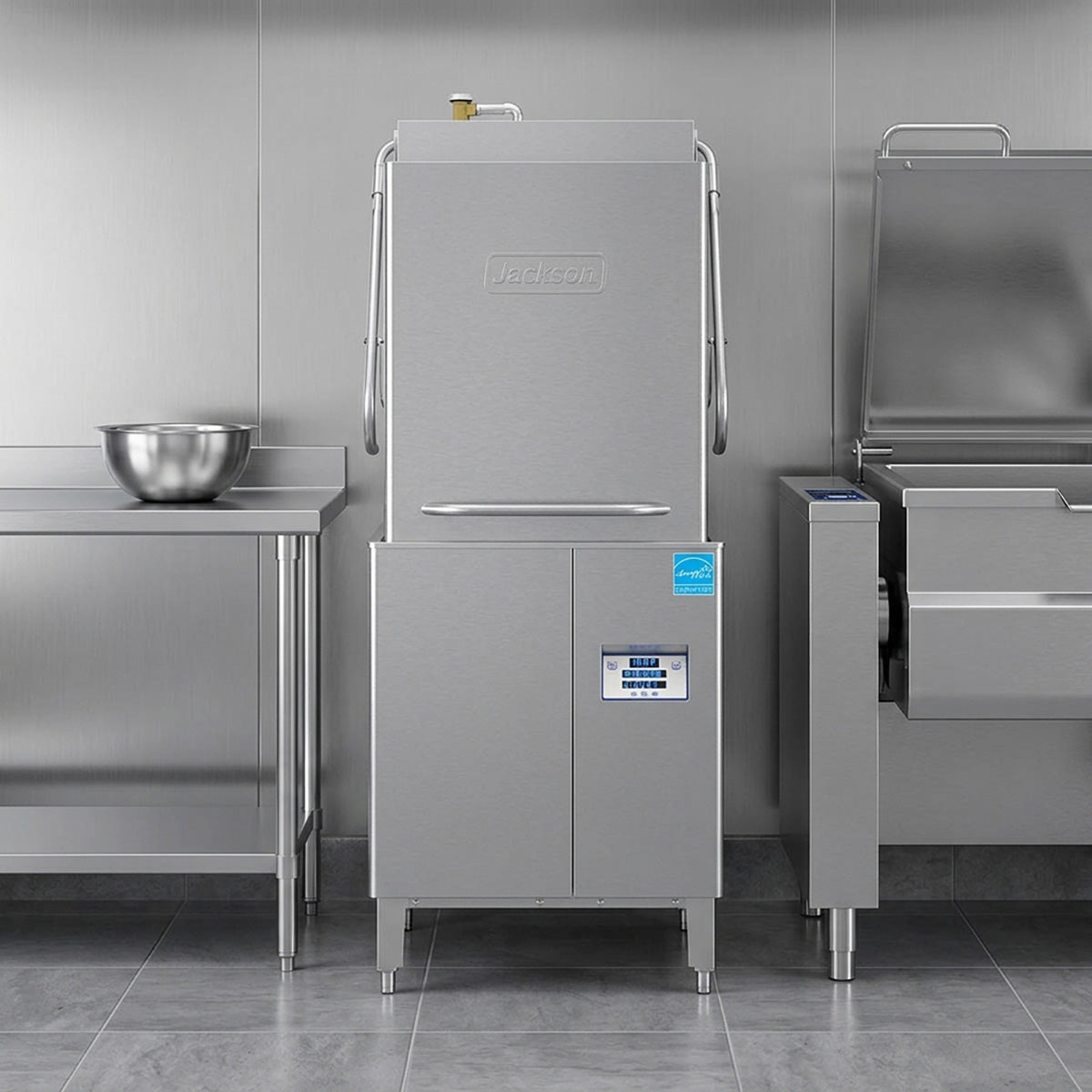

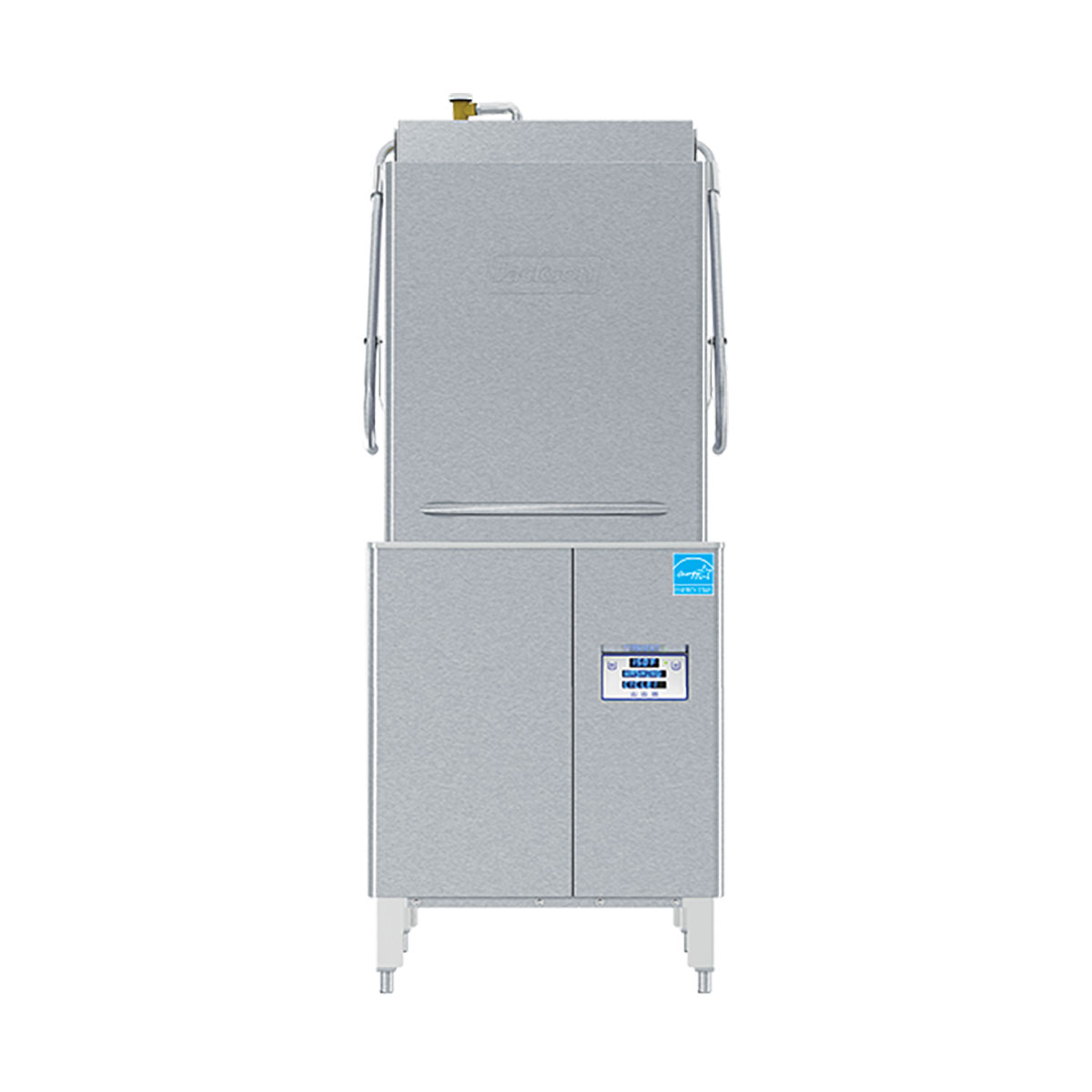

Jackson Warewashing DynaStar® HH-E Tall Chamber High Temperature Sanitizing Door-type
Description
Specified unit will be a Jackson DynaStar HH-E tall chamber, high temperature sanitizing door-type dishwasher, rated to NSF/ANSI Standard 3 by ETL Sanitation. Unit will be ENERGY STAR® certified and will be dual certified as both a dishwasher and a potwasher on all cycle settings. Unit to be rated for 62 racks per hour, 0.72 gallons per rack, and will include a built-in 40-70 °F rise booster heater with SaniSure™ final rinse system, three (3) selectable timed cycles, solid-state controls with digital LED temperature/operator display and service diagnostics. Unit will have an adjustable rinse system, Econo Rinse uses 0.72 gallons per rack; Turbo Rinse uses 0.89 gallons per rack. Other features include automatic tank fill, delime cycle, triple wash arm system, pumped final rinse, vent fan control, and 2 HP stainless steel wash pump motor. Constructed of durable stainless steel with adjustable bullet feet.
Standard Features
- Dual certified as both a dishwasher and a potwasher at all cycle settings
- Built-in 40-70 °F rise booster heater with SaniSure™ final rinse system ensures proper rinse water temperature
- Adjustable rinse system Econo uses 0.72 gallons per rack Turbo uses 0.89 gallons per rack
- Pumped rinse for consistent rinse pressure
- Automatic tank fill
- Door-actuated start
- Three (3) selectable timed cycles
- Digital LED display
- Onboard service diagnostics
- Delime cycle
- 27” (686 mm) vertical chamber clearance
- Triple wash arm system provides consistent and reliable washing performance
- Specially designed stainless steel nozzles provide superior cleaning action
- 2 HP stainless steel wash pump motor
- Vent fan control shuts vent fan off when machine is idle
- Interchangeable scrap baskets
- Single point connections for all utilities
- Field convertible from straight through to corner and vice versa (kit required)
- Field convertible from 3-phase to single phase and vice versa (kit required)
- Low watt density electric wash tank heater
- Hi-limit thermostat and low water protection
- Detergent/rinse additive signal connection fuse box
- Front and side stainless steel dress panels
- Adjustable bullet feet
- Durable stainless steel construction
Technical specifications
Specifications
| Manufacturer | Jackson WWS |
|---|---|
| Model Number | DYNASTAR HH-E W/O |
| Weight | 366 lbs |
| Width | 30.5 |
| Depth | 30 |
| Height | 71.5 |
| Design | universal (straight-thru/corner) |
| Racks | single |
| Temperature | high temp without booster |
| Dishwasher Type | Standard |
| Energy Efficiency | ENERGY STAR® |
| Rack capacity | approximately (57) racks/hour |
| Construction | stainless steel |
| Tank Heat | electric |
| Voltage | 230, 208, 460 |
| Drain Type | gravity drain |
| Door Clearance | 27" |
| Number Of Wash Cycle | 3 |
| Certifications | cETLus, ETL-Sanitation |
| Phase | 1, 3 |
| Water Consumption(Approx) | 41 Gallons Per Hour |
| Selling unit | Each |
| Source units per case | 1 |
| Units per order | 1 |
| Source price unit | each |
