Description
Sold as: Each.

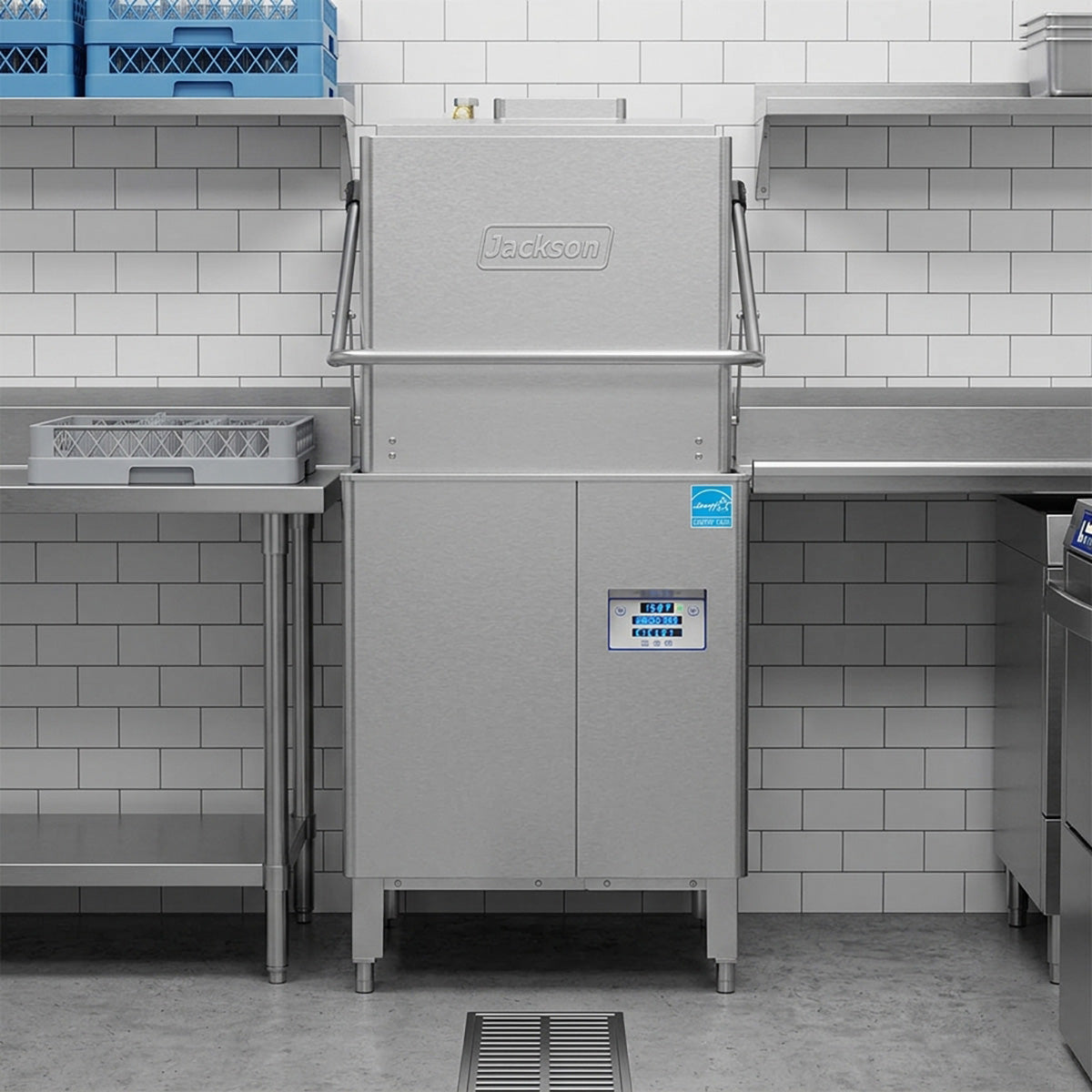

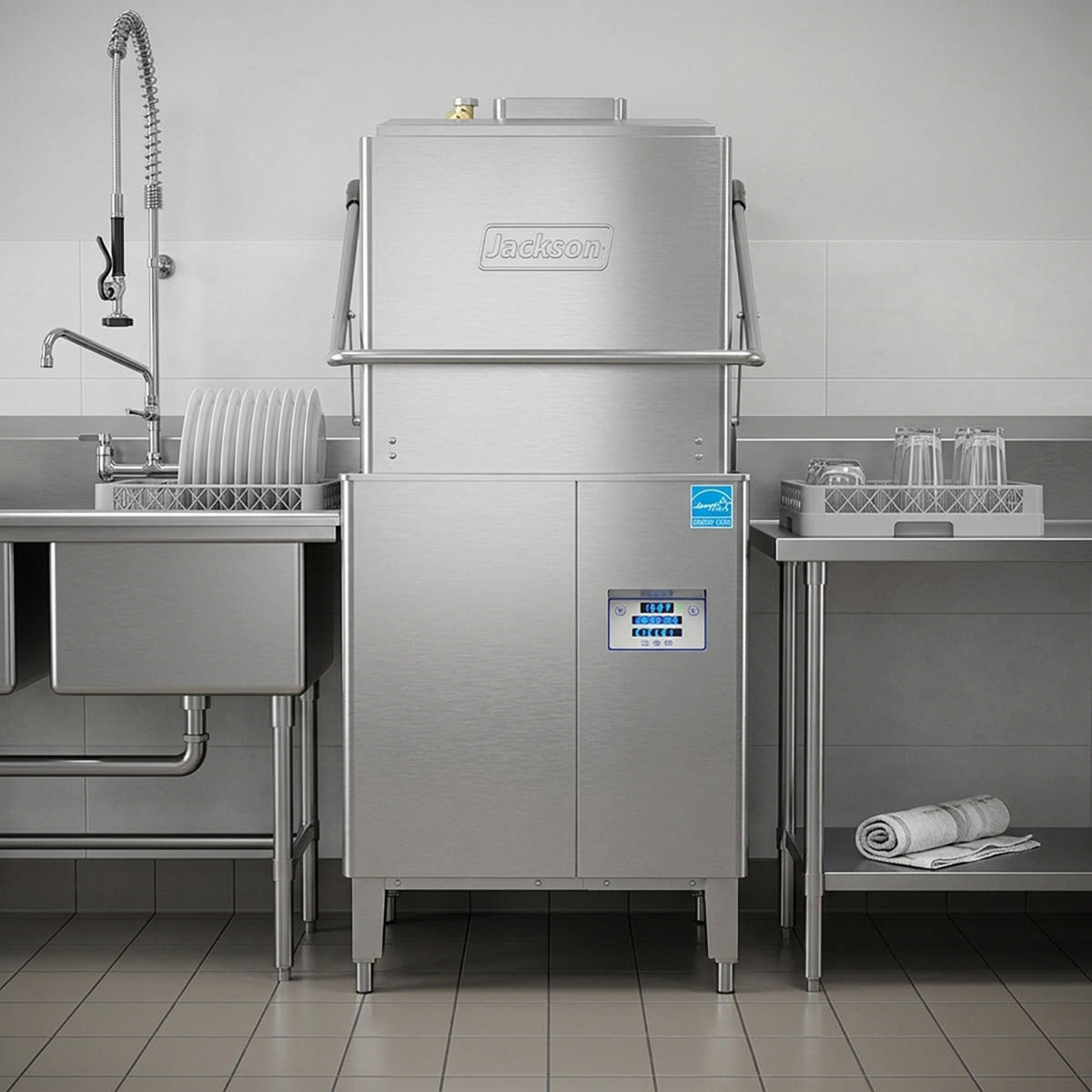

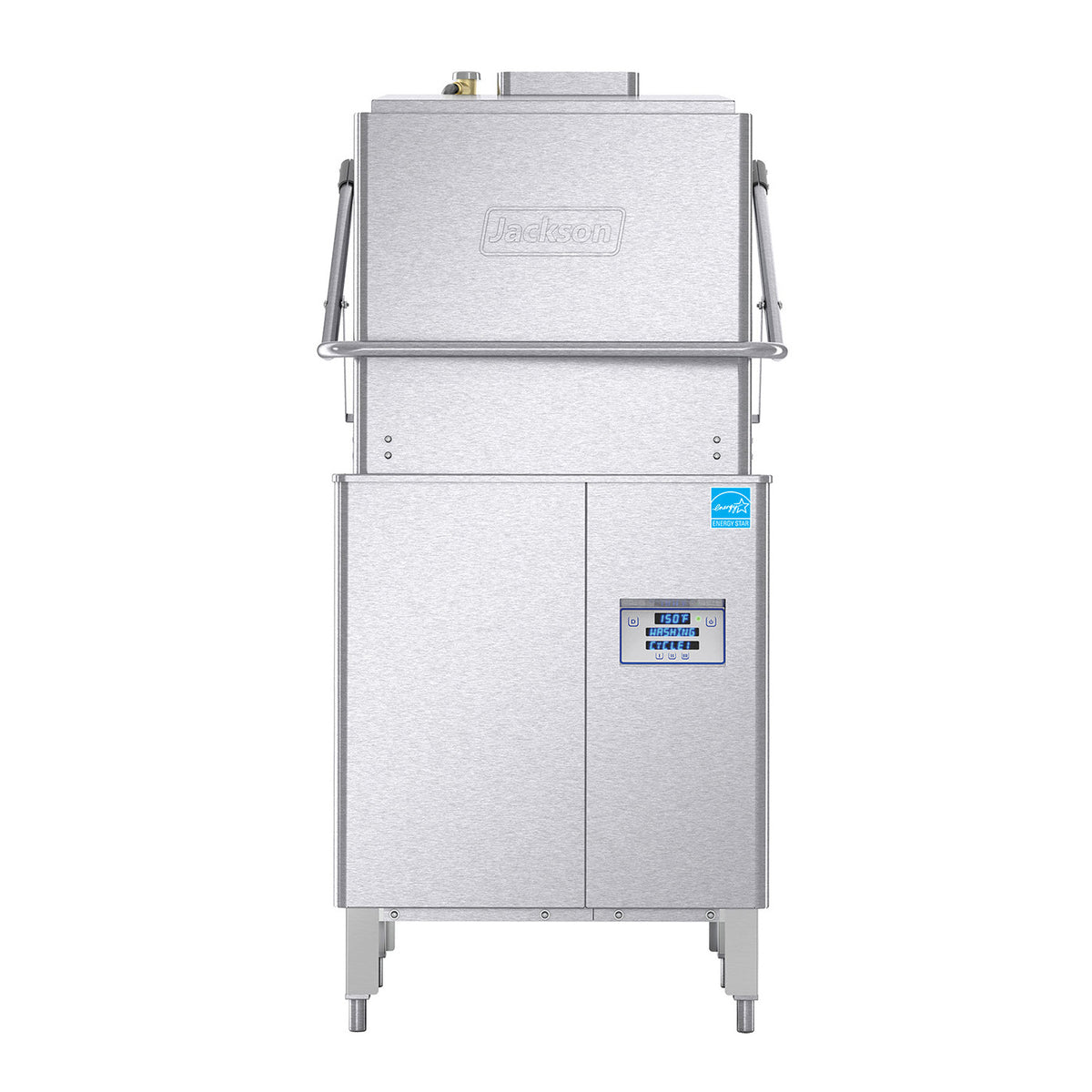

Jackson Warewashing DynaStar® VER High Temperature Sanitizing Ventless Door-type with Energy Recovery
Description
Specified unit will be a Jackson DynaStar ventless high temperature sanitizing door-type dishwasher with two-pass energy recovery system, rated by ETL Sanitation to NSF/ ANSI Standard 3. Unit to be rated for 40 racks per hour, 0.66 gallons per rack, and will include a built-in 40-70 °F rise booster heater with Sani-Sure™ final rinse system, three (3) selectable timed cycles, solid-state controls with digital LED temperature/operator display and service diagnostics. Unit will have an adjustable rinse system, Econo Rinse uses 0.66 gallons per rack; Turbo Rinse uses 0.89 gallons per rack. Other features include automatic tank fill, delime cycle, triple wash arm, pumped final rinse, vent fan control, 1 HP stainless steel wash pump motor, pressure regulator and water hammer arrestor. Height of dishmachine including heat exchanger shall be 62 3/8”. Constructed of durable stainless steel with adjustable bullet feet.
Standard Features
- Ventless: does not require a hood
- Unique, two-pass Energy Recovery System
- Door interlock keeps door locked during cycle
- Built-in 40-70 °F rise booster heater with SaniSure™ final rinse system ensures proper rinse water temperature
- Pumped rinse for consistent rinse pressure
- Adjustable rinse system Econo uses 0.66 gallons per rack Turbo uses 0.89 gallons per rack
- Automatic tank fill
- Door-actuated start
- Three (3) selectable timed cycles
- Digital LED display
- Onboard digital diagnostics
- Delime cycle
- 17 1/2” (445 mm) vertical chamber clearance
- Triple wash arm provides consistent and reliable washing performance
- Specially designed stainless steel nozzles provide superior cleaning action
- Interchangeable upper and lower wash/rinse arms
- 1 HP stainless steel wash pump motor
- Vent fan control shuts vent fan off when machine is idle
- Interchangeable scrap baskets
- Single point connections for all utilities
- Field convertible from straight through to corner and vice versa (kit required)
- Field convertible from 3-phase to single phase and vice versa (kit required)
- Low watt density electric wash tank heater
- Hi-limit thermostat and low water protection
- Detergent/rinse additive signal connection fuse box
- Front and side stainless steel dress panels
- Adjustable bullet feet
- Durable stainless steel construction
Technical specifications
Specifications
| Manufacturer | Jackson WWS |
|---|---|
| Model Number | DYNASTAR VENTLESS (VER) |
| Weight | 391 lbs |
| Width | 29.25 |
| Depth | 34.5 |
| Height | 62.38 |
| Design | universal (straight-thru/corner) |
| Racks | single |
| Temperature | high temp with booster |
| Dishwasher Type | Ventless |
| Energy Efficiency | ENERGY STAR® |
| Rack capacity | approximately (38) racks/hour |
| Construction | stainless steel |
| Tank Heat | electric |
| Voltage | 230, 208, 460 |
| Drain Type | gravity drain |
| Door Clearance | 17" |
| Number Of Wash Cycle | 3 |
| Phase | 1, 3 |
| Water Consumption(Approx) | 25 Gallons Per Hour |
| Selling unit | Each |
| Source units per case | 1 |
| Units per order | 1 |
| Source price unit | each |
