Description
Sold as: Each.

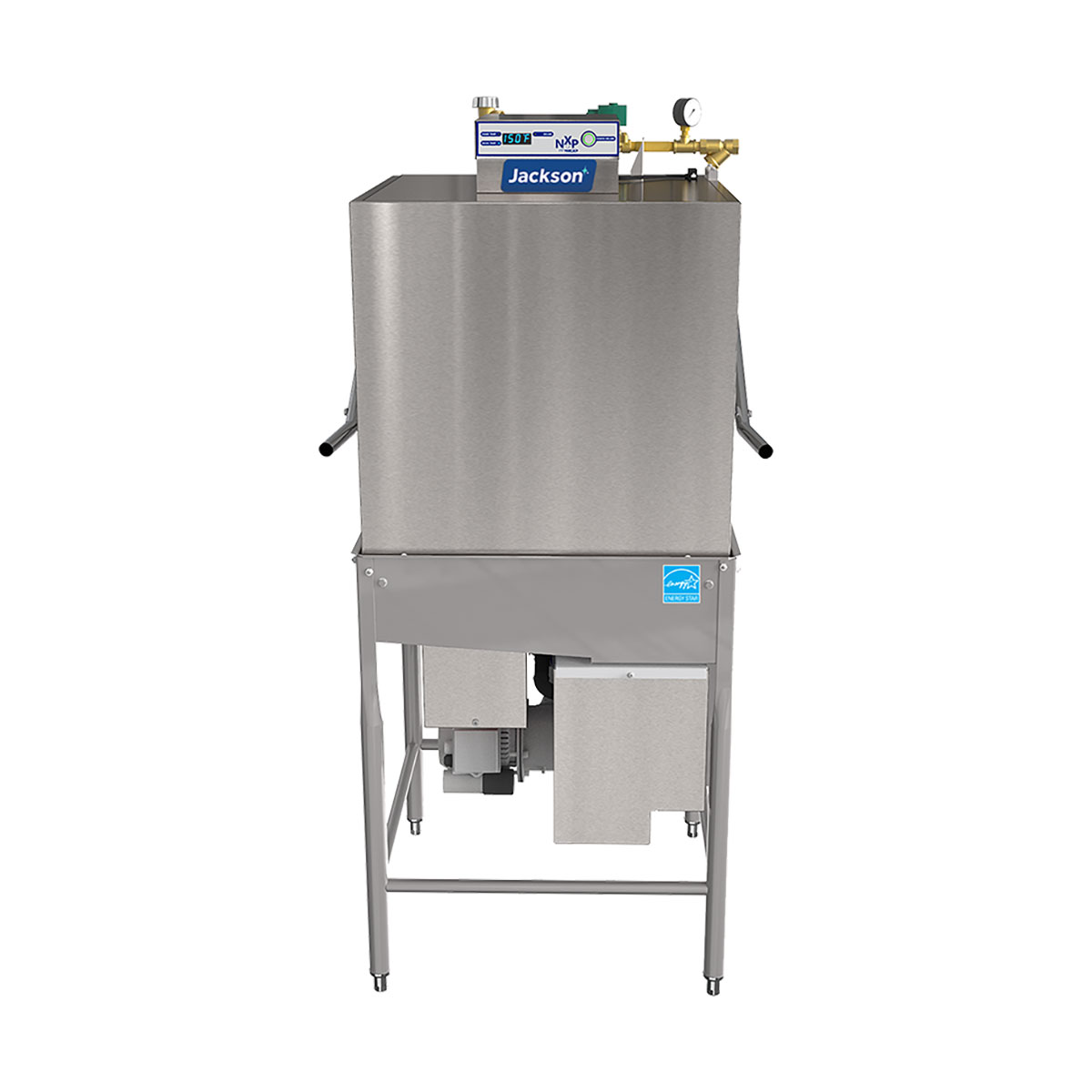

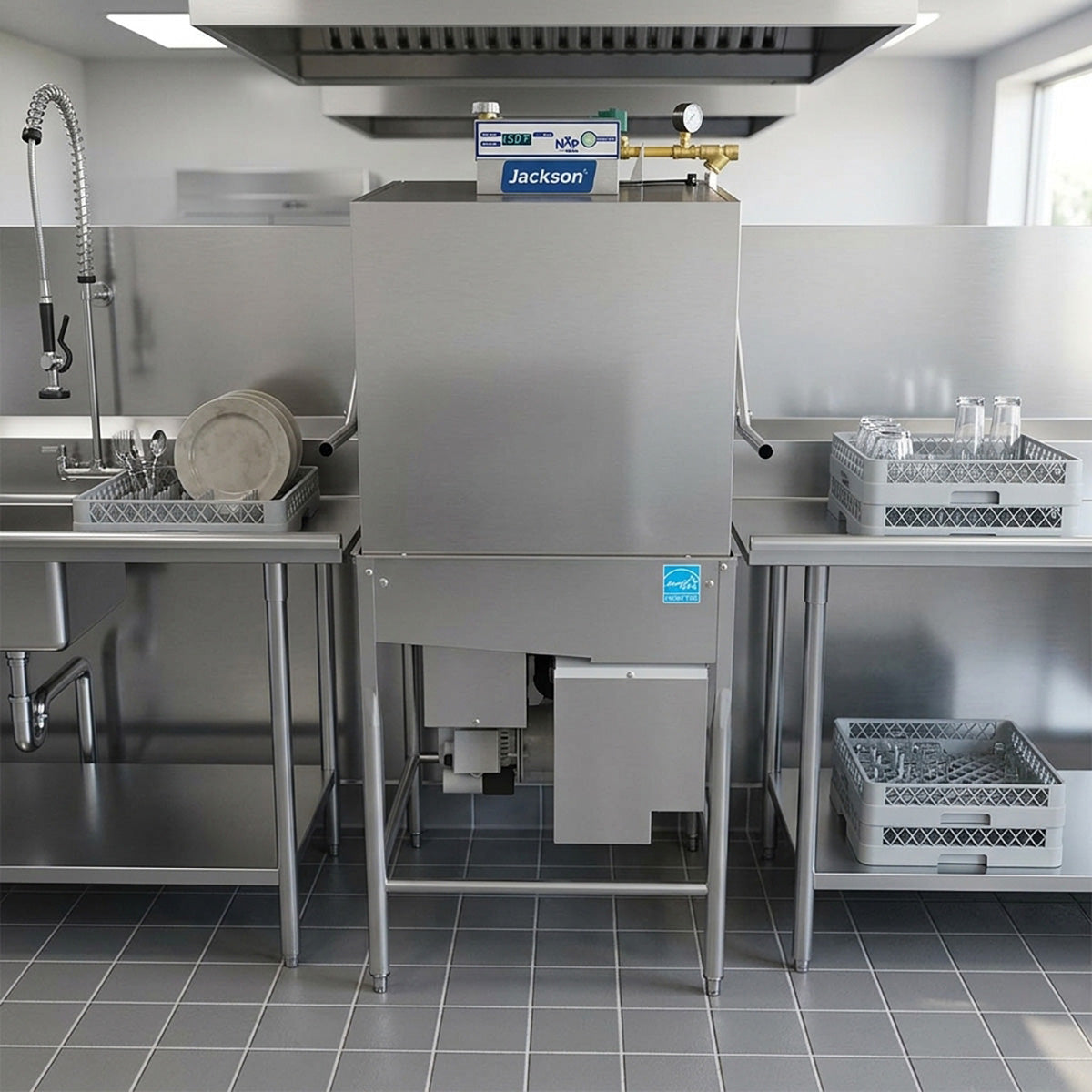

Jackson Warewashing NXP-HTD High Temperature Sanitizing Door-type
Description
Specified unit will be a Jackson NXP-HTD high temperature sanitizing door-type dishwasher, rated by ETL Sanitation to NSF/ANSI Standard 3. Unit will be ENERGY STAR® certified. Unit to be rated for 63 racks per hour, 0.89 gallons per rack, and will include a builtin 70 °F rise booster heater with Sani-Sure™ final rinse system, one 57 second cycle, and top mounted controls. Other features include a digital LED display, automatic tank fill, delime cycle, vent fan control, interchangeable wash/rinse arms, and 1 HP stainless steel wash pump motor. Constructed of durable stainless steel with adjustable bullet feet.
Standard Features
- Built-in 70 °F (38.9 °C) rise booster heater with Sani-Sure™ final rinse system
- Automatic tank fill
- Door-actuated start
- Single 57 second wash cycle
- Top-mounted controls for ease of operation
- Delime cycle
- 17-1/4” (438 mm) vertical chamber clearance
- Specially designed stainless steel nozzles provide superior cleaning action
- Interchangeable wash/rinse arms screw out for simple cleanup
- Door switch
- 1 HP self-draining stainless steel wash pump
- Vent fan control shuts vent fan off when machine is idle
- Large scrap basket
- Single point connections for all utilities
- Field convertible from straight through to corner and vice versa (kit required)
- Field convertible from 3-phase to single-phase and vice versa (kit required)
- Low watt density electric wash tank heater
- Hi-limit thermostat and low water protection
- Detergent/rinse additive signal connection fuse box
- Uses standard 20” X 20” (508 mm X 508 mm) racks
- Adjustable stainless steel bullet feet
- Durable stainless steel construction
Technical specifications
Specifications
| Manufacturer | Jackson WWS |
|---|---|
| Model Number | NXP-HTD |
| Weight | 263 lbs |
| Width | 30.63 |
| Depth | 29 |
| Height | 64 |
| Design | universal (straight-thru/corner) |
| Racks | single |
| Temperature | high temp with booster |
| Dishwasher Type | Standard |
| Energy Efficiency | ENERGY STAR® |
| Rack capacity | approximately (63) racks/hour |
| Construction | stainless steel |
| Tank Heat | electric |
| Voltage | 230, 208 |
| Door Clearance | 17" |
| Number Of Wash Cycle | 1 |
| Phase | 1, 3 |
| Water Consumption(Approx) | 56.07 Gallons Per Hour |
| Selling unit | Each |
| Source units per case | 1 |
| Units per order | 1 |
| Source price unit | each |
