Description
Sold as: Each.

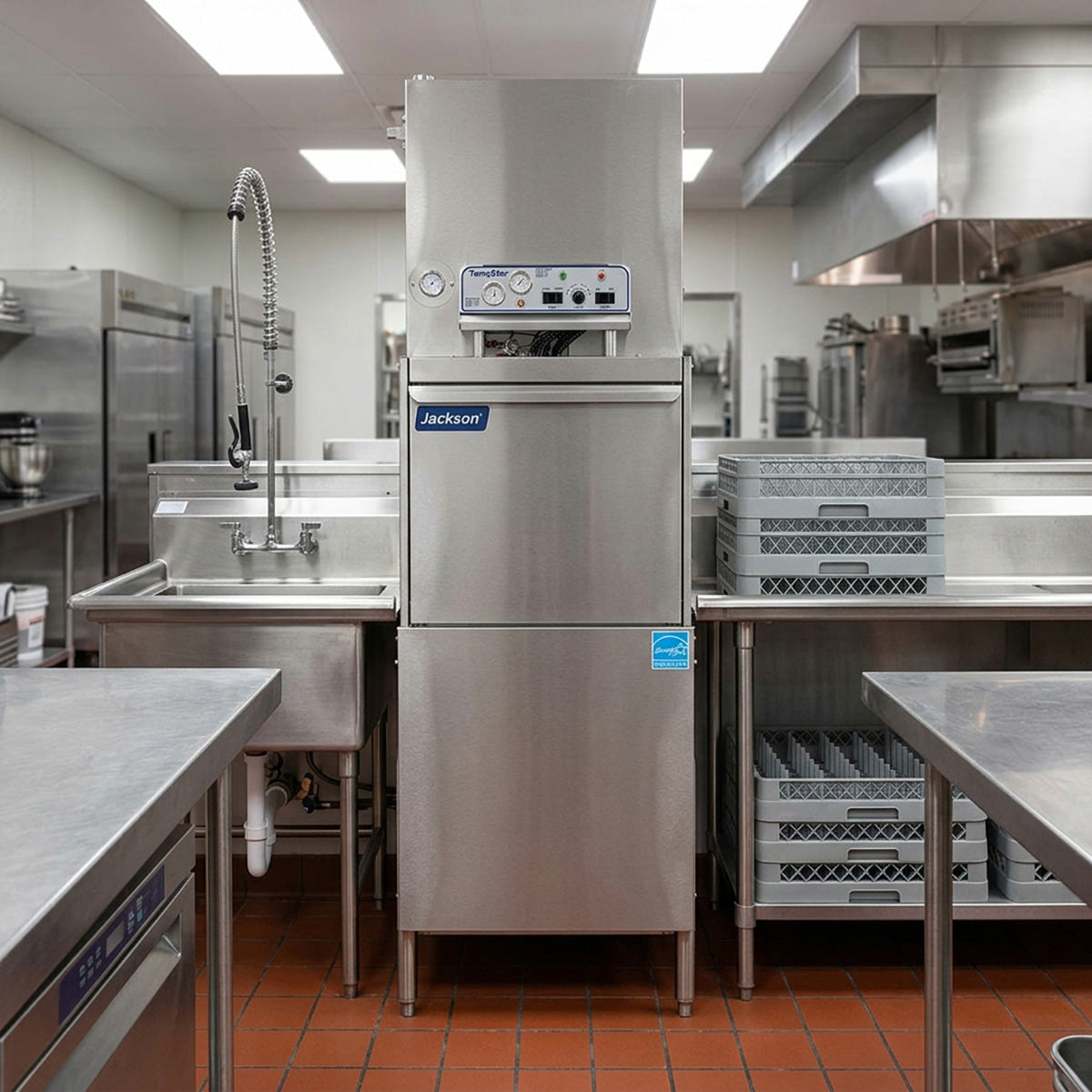

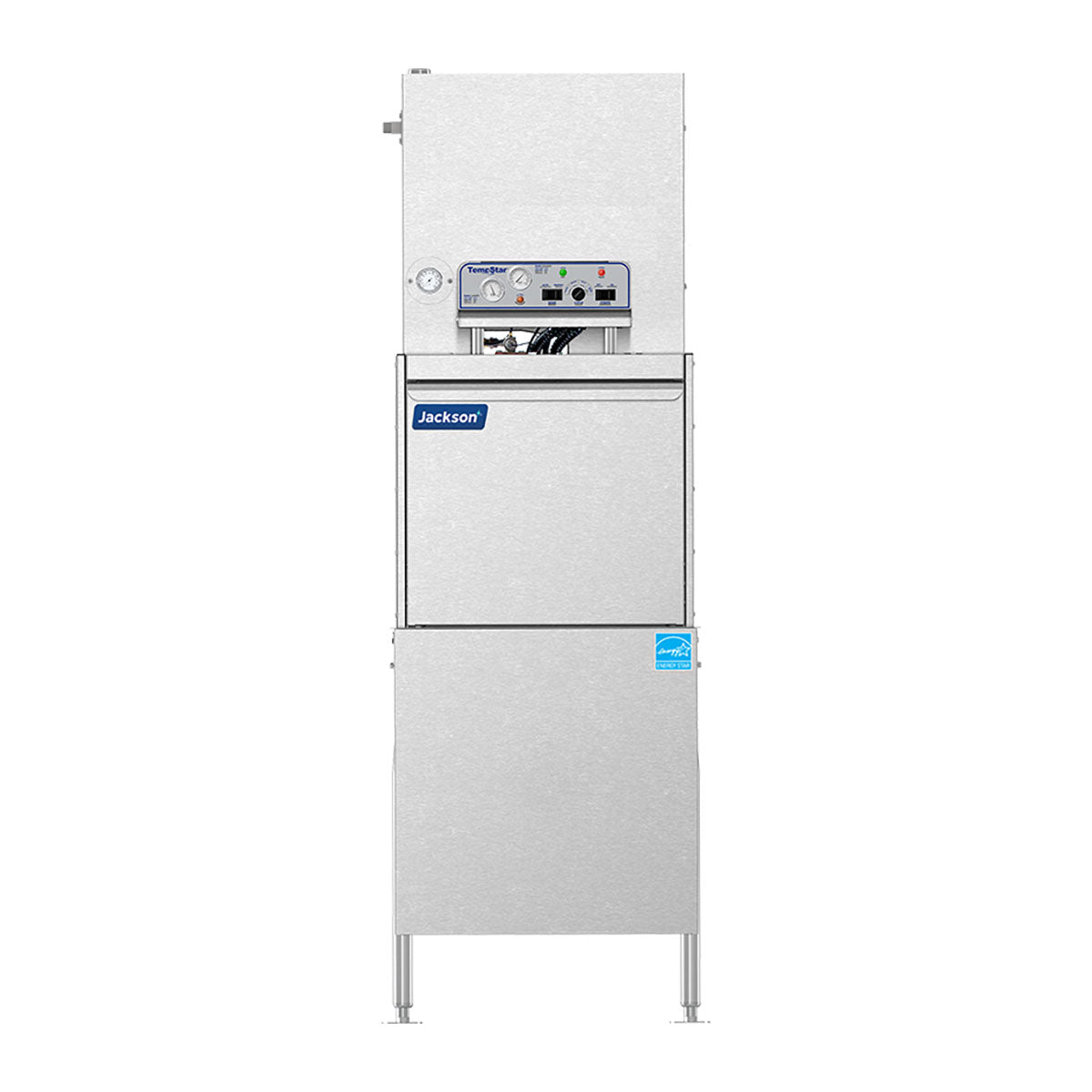

Jackson Warewashing TempStar® FL-VER Front-loading High Temperature Sanitizing Ventless Door-type with Energy Recovery
Description
Specified unit will be a Jackson TempStar FL-VER frontloading ventless high temperature sanitizing door-type dishwasher with energy recovery, rated by ETL Sanitation to NSF/ANSI Standard 3 and operates on a 3/4” cold water supply. Unit will be ENERGY STAR® certified. Unit to be rated for 41 racks per hour, 0.89 gallons per rack, and will include a built-in 70 °F rise booster heater with Sani-Sure™ final rinse system, four (4) selectable timed cycles, and top mounted controls. Other features include automatic tank fill, delime mode, vent fan control, and 1 HP stainless steel wash pump motor. Constructed of durable stainless steel with adjustable bullet feet.
Standard Features
- Ventless: does not require a hood
- Energy Recovery System
- Door interlock keeps door locked during cycle
- Cold water connection only
- Built-in 70 °F rise booster heater with Sani-Sure™ final rinse system ensures proper rinse water temperature
- Automatic tank fill
- Door-actuated start
- Four (4) selectable timed cycles
- Top mounted controls
- Delime/manual wash mode
- 15 5/8” (397 mm) vertical chamber clearance
- Specially designed stainless steel nozzles provide superior cleaning action
- Interchangeable upper and lower wash/rinse arms
- 1 HP self-draining stainless steel wash pump motor
- Vent fan control shuts vent fan off when machine is idle
- Large scrap basket
- Pressure regulator is provided for installation by others
- Single point connections for all utilities
- Field convertible from 3-phase to single phase and vice versa (kit required)
- Low watt density electric wash tank heater
- Hi-limit thermostat and low water protection
- Detergent/rinse additive signal connection fuse box
- Front stainless steel dress panel
- Uses standard 20” x 20” racks
- Adjustable bullet feet
- Durable stainless steel construction
Technical specifications
Specifications
| Manufacturer | Jackson WWS |
|---|---|
| Model Number | TEMPSTAR FL-VER |
| Weight | 385 lbs |
| Width | 26.37 |
| Depth | 32.25 |
| Height | 82 |
| Design | front loading |
| Racks | single |
| Temperature | high temp with booster |
| Dishwasher Type | Ventless |
| Energy Efficiency | ENERGY STAR® |
| Rack capacity | approximately (40) racks/hour |
| Construction | stainless steel |
| Tank Heat | electric |
| Voltage | 230, 208, 460 |
| Drain Type | pump drain system |
| Door Clearance | 16" |
| Number Of Wash Cycle | 4 |
| Certifications | cETLus, ETL-Sanitation, ENERGY STAR |
| Phase | 1, 3 |
| Water Consumption(Approx) | 36.49 Gallons Per Hour |
| Selling unit | Each |
| Source units per case | 1 |
| Units per order | 1 |
| Source price unit | each |
