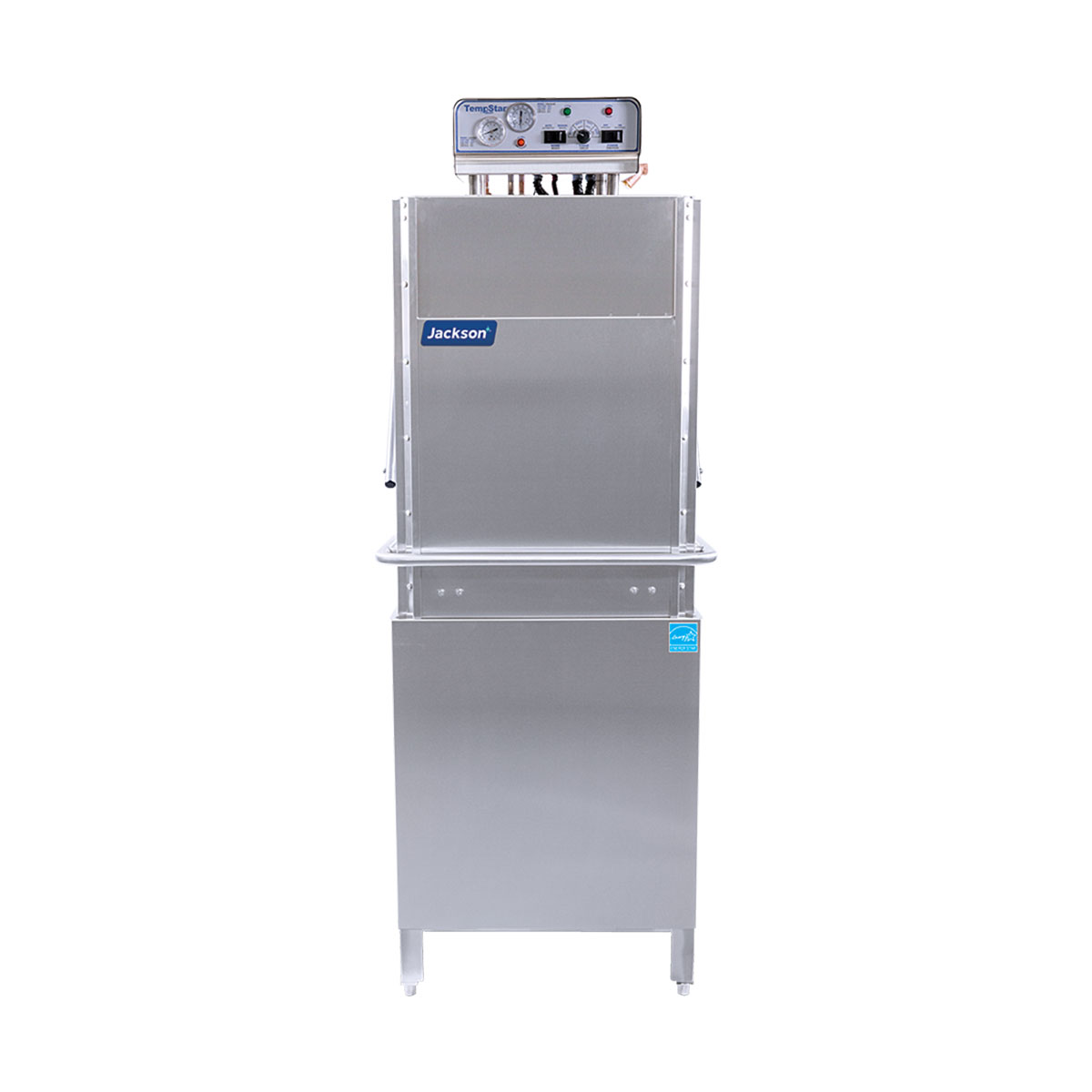

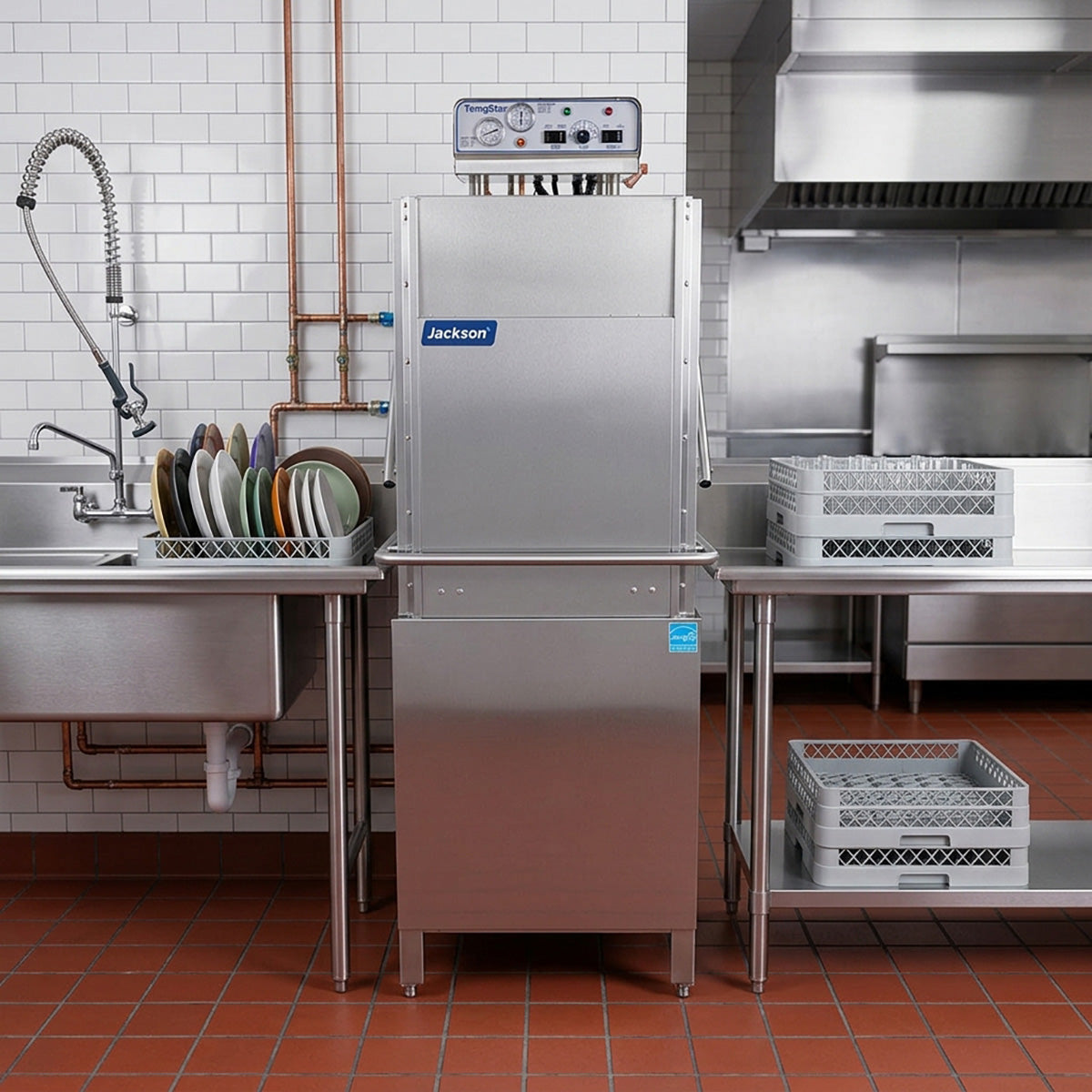

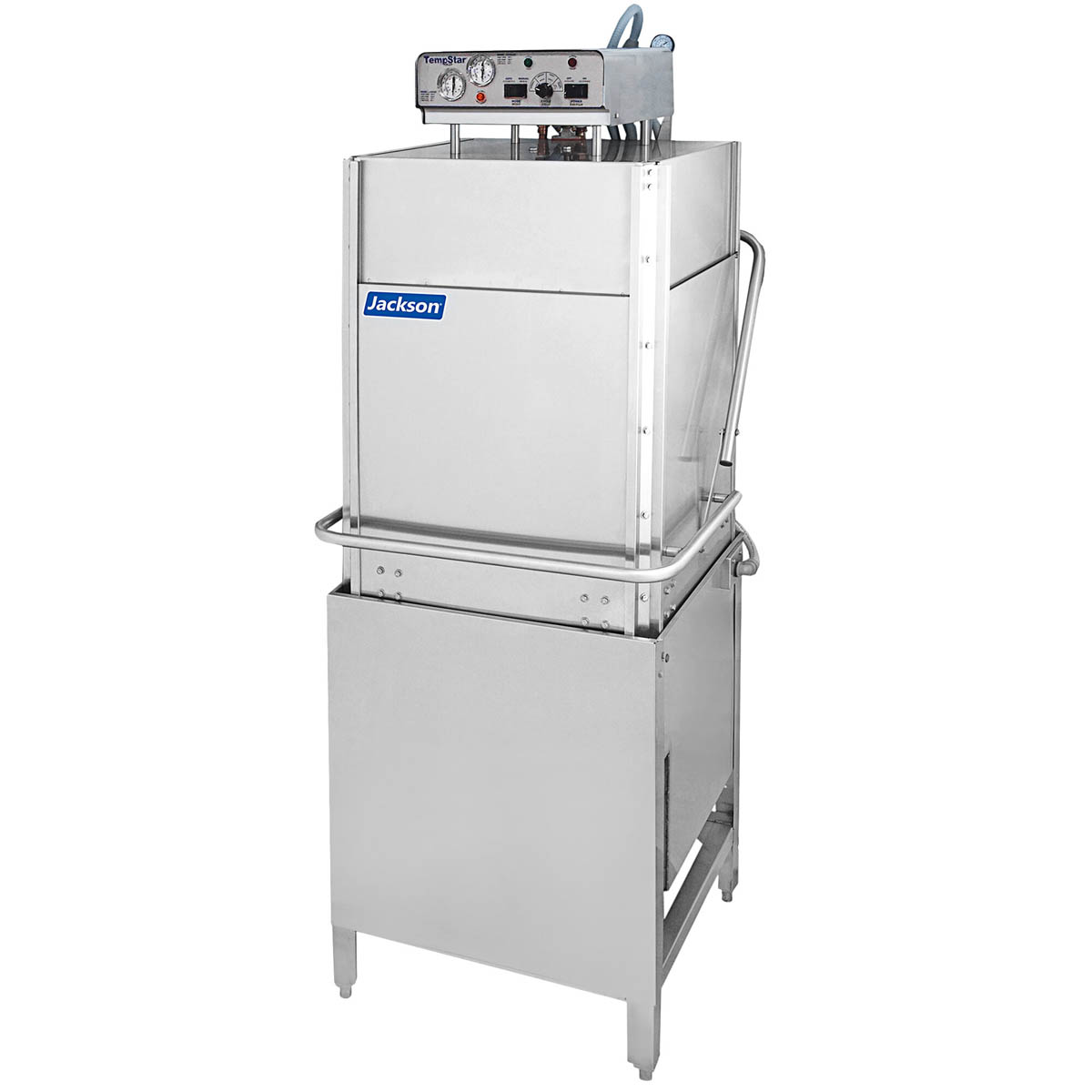

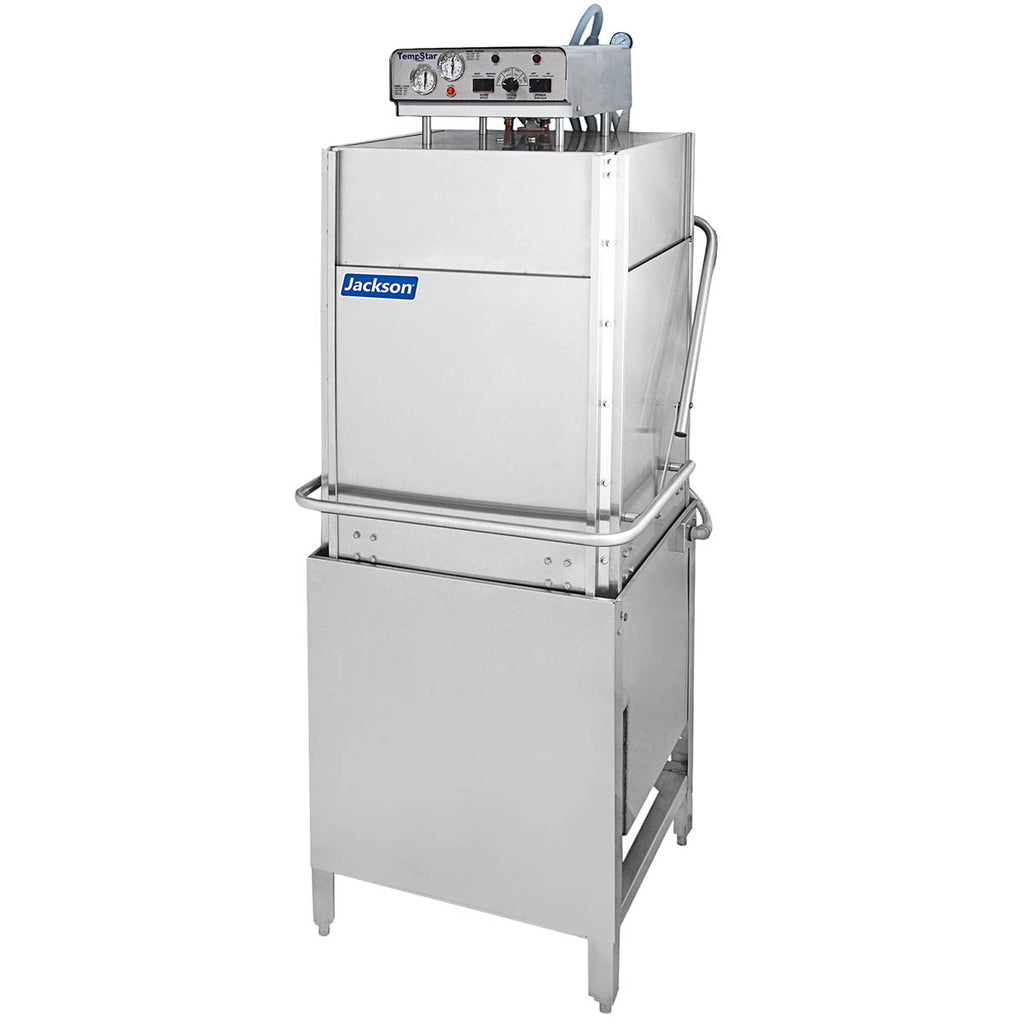

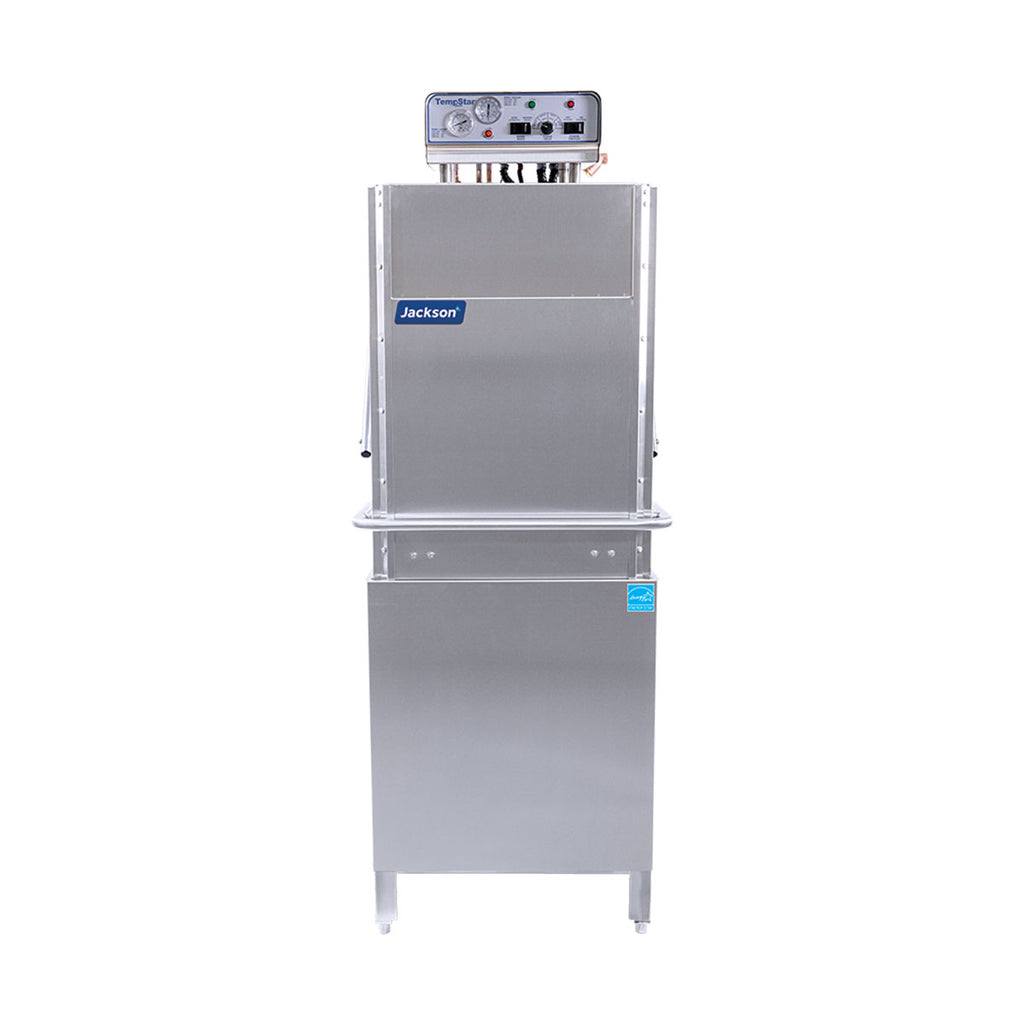

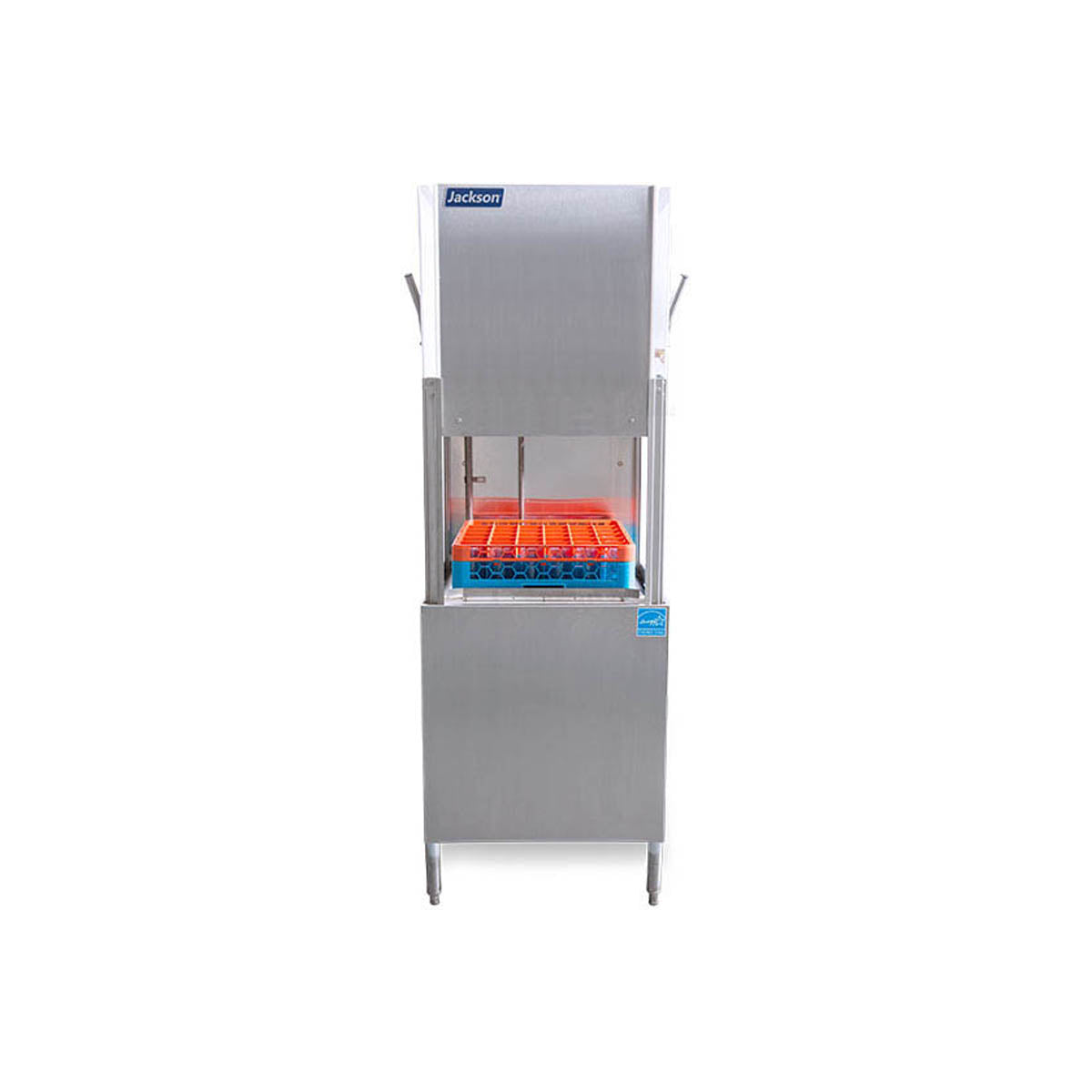

Jackson Warewashing TempStar® HH-E Tall Chamber High Temperature Sanitizing Door-type
Description
Specified unit will be a Jackson TempStar HH-E tall chamber, high temperature sanitizing door-type dishwasher, rated by ETL Sanitation to NSF/ANSI Standard 3. Unit will be ENERGY STAR® certified and will be dual rated as both a dishwasher and a potwasher. Unit to be rated for 60 racks per hour, 0.78 gallons per rack, and will include a built-in 70 °F rise booster heater with Sani-Sure™ final rinse system, four (4) selectable timed cycles, and top mounted controls. Other features include automatic tank fill, delime mode, vent fan control, and 2 HP stainless steel wash pump motor. Constructed of durable stainless steel with adjustable bullet feet.
Standard Features
- Certified as both a dishwasher and a potwasher to NSF/ANSI3 standards
- Built-in 70 °F (38.9 °C) rise booster heater with Sani-Sure™ final rinse system; 40 °F (22.2 °C) rise booster heater is available at no cost and must be specified at time of order
- Automatic tank fill
- Door actuated start
- Four (4) selectable timed cycles
- Delime/manual wash mode
- 27" (686 mm) vertical chamber clearance
- Lower counter-rotating wash arms and upper wash arm with specially designed stainless steel nozzles provide optimum spray coverage and superior cleaning action
- Split-door design accommodates installations with low ceiling heights
- Door switch
- 2 HP self-draining stainless steel wash pump
- Vent fan control shuts fan off when machine is idle
- Large scrap basket
- Single point connections for all utilities
- Field convertible from straight through to corner and vice versa (kit required)
- Low watt density electric wash tank heater
- Hi-limit thermostat and low water protection
- Detergent/rinse additive signal connection fuse box
- Front stainless steel dress panel
- Uses standard 20” X 20” (508 mm X 508 mm) racks
- Adjustable bullet feet
- Durable stainless steel construction
Technical specifications
Specifications
| Manufacturer | Jackson WWS |
|---|---|
| Model Number | TEMPSTAR HH-E |
| Weight | 393 lbs |
| Depth | 34.38 |
| Height | 76.38 |
| Design | universal (straight-thru/corner) |
| Racks | single |
| Temperature | high temp with booster |
| Dishwasher Type | Standard |
| Energy Efficiency | ENERGY STAR® |
| Rack capacity | approximately (55) racks/hour |
| Construction | stainless steel |
| Tank Heat | electric |
| Voltage | 230, 208, 460 |
| Drain Type | gravity drain |
| Door Clearance | 27" |
| Number Of Wash Cycle | 4 |
| Phase | 1, 3 |
| Water Consumption(Approx) | 40 Gallons Per Hour |
| Selling unit | Each |
| Source units per case | 1 |
| Units per order | 1 |
| Source price unit | each |
