Description
Sold as: Each.

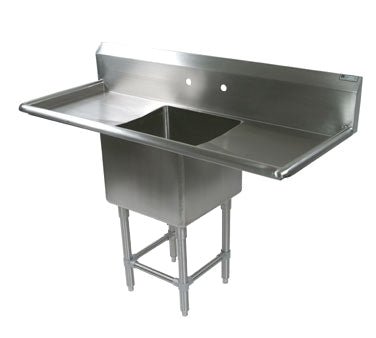

John Boos 67" (1) One Compartment Sink-16"W x 20"L Bowl, With 2 Drainboards
Features
- Standard 16ga Type 300 stainless steel with #4 polish, satin finish
- All corners, both vertical and horizontal, coved at 5/8" radius
- Bottoms of bowls formed for drainage to 3-1/2" diameter die stamped opening
- Full length 10" high boxed backsplash, with 2" return to wall at 45 degree and 3/4" turned down rear lip
- 8" on-center, 1" faucet holes in backsplash
- Solid stainless steel front panel, Type 300 stainless steel with #4 polish, satin finish
- All outside corners of assembly are bullnosed to provide safe, clean, and polished edge
Construction
- Top: Stainless steel sinks are TIG welded; exposed welds are polished to match adjacent surface.
- Base: Stainless steel bases, standard K.D.
Material
- Bowls & Top: 16ga Type 300 stainless steel with #4 polish, satin finish
- Legs: 1-5/8" round O.D. stainless steel
- Bracing: 1-1/4" round O.D. stainless steel
- Gussets: Stainless steel
- Feet: 1" adjustable stainless steel bullet feet
Technical specifications
Specifications
| Manufacturer | John Boos |
|---|---|
| Model Number | 1PB1620-2D24 |
| Weight | 73 lbs |
| Width | 67.25 |
| Depth | 25.5 |
| Height | 44.06 |
| Compartment (front - back) | 20" |
| Compartment Width (side - side) | 16" |
| Drainboards | with left & right-hand drainboards |
| Base Type | legs with front & side crossrails |
| Base Construction | stainless steel |
| Splash Height | 10" |
| Top Gauge | 16 gauge |
| Top Stainless Series | 300 series |
| Sink Depth (rim - drain) | 12" |
| Selling unit | Each |
| Source units per case | 1 |
| Units per order | 1 |
| Source price unit | each |
