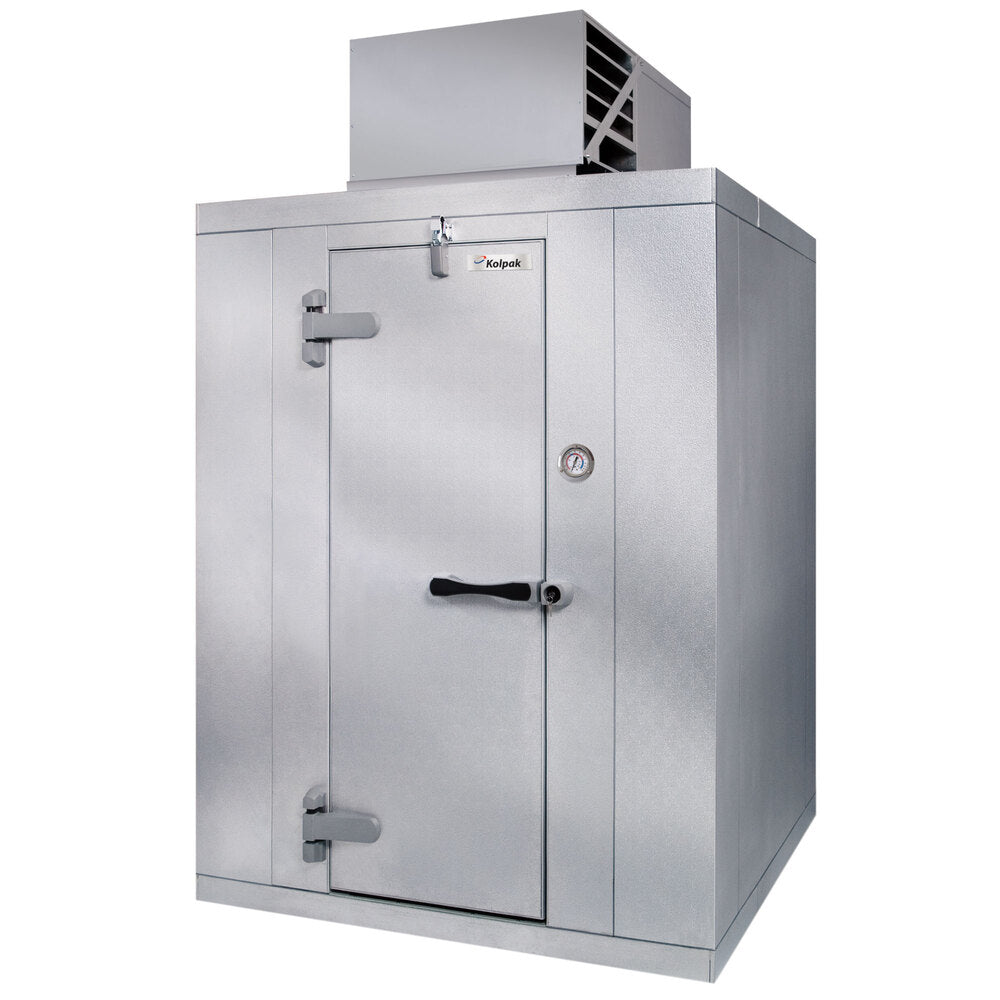

Kolpak P7-0610-CT Polar-Pak 6' x 10' x 7' Walk-In Cooler with Era Floor and Top-Mount Refrigeration
A 6' x 10' x 7' nominal Kolpak Polar-Pak walk-in cooler with its own floor and a drop-in refrigeration unit on the roof.
The Kolpak P7-0610-CT is a Polar-Pak walk-in cooler: P7 marks the 7-foot height class and 0610 the 6' x 10' nominal footprint. Kolpak's Polar-Pak list prints this size at 5'10" x 9'8" outside and 7'6-1/4" high with the floor. Walls, ceiling and floor are 4" foamed-in-place polyurethane panels skinned in 26 gauge embossed Galvalume, and the Polar-Pak Series R-448A refrigeration unit drops into the ceiling flush with the interior. Kolpak's current Polar-Pak sheet is a family sheet, so the refrigeration data for this exact model (horsepower, electrical, capacity) is confirmed with your order.
Measure doorways and the path to the room: panels arrive flat and are assembled on site. Leave head room above the box for the top-mount refrigeration unit.
Walls, ceiling and floor use 4" nominal panels of 100% foamed-in-place polyurethane, CFC and HCFC free, blown with an HFO agent.
Panels join tongue and groove, and cam locks pull them into a rigid, airtight seal. Coved floor corners make the inside easier to clean.
The standard Era floor is rated for foot traffic and light rolling carts up to 1,000 lb. per sq. ft. uniform load.
The Polar-Pak Series R-448A unit with scroll compressor drops into the ceiling, flush with the interior, with air circulation around the coils.
FRP door perimeter and jamb, door closer, deadbolt locking handle, adjustable hinges and an interior safety release.
Energy-saving LED lighting, with a constant-burn, low-wattage LED nightlight in the door section.
Kolpak's current Polar-Pak sheet covers the whole family: 4" panels, Galvalume finish, Era floor, 26" x 78" door and R-448A top-mount refrigeration. The outside size comes from Kolpak's Polar-Pak price list. Compressor horsepower, electrical, capacity and weight for this exact model are confirmed with your order.
Plan for 5'10" x 9'8" outside plus at least 2" on every side, per Kolpak. The base must be level before the panels go up.
The standard Era floor handles foot traffic and light rolling carts up to 1,000 lb. per sq. ft. uniform load. Kolpak's warranty excludes electric pallet jacks and forklifts.
Kolpak builds the door right or left hinged; tell us which side you need when you order.

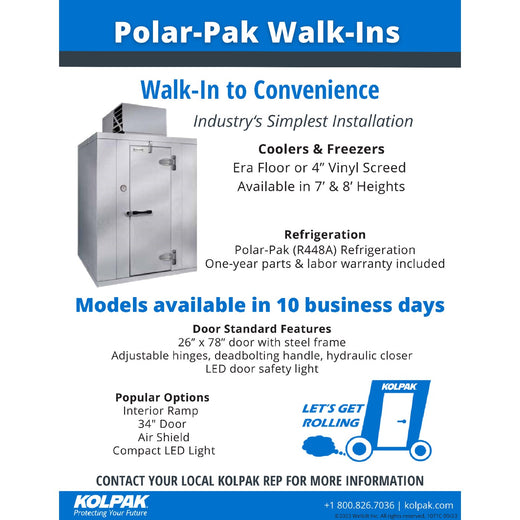

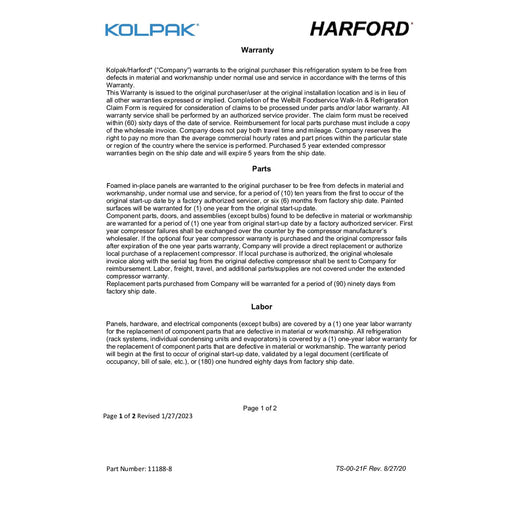

Kolpak warrants foamed-in-place panels for 10 years and components, doors and assemblies for 1 year, with 1 year of labor. The Polar-Pak flyer lists one year of parts and labor on the refrigeration. An extended compressor warranty is optional.

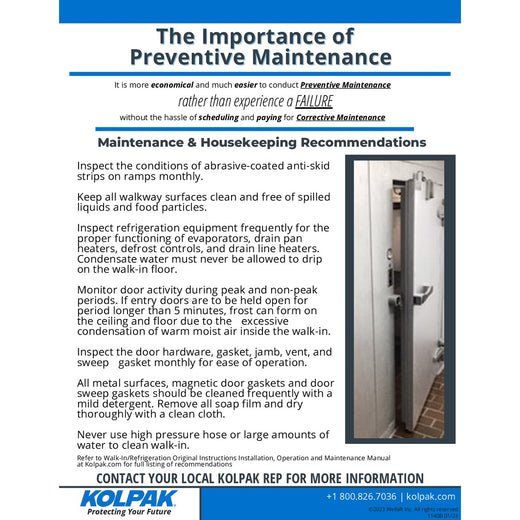

Wipe metal surfaces and gaskets with a mild detergent, remove the soap film and dry. Do not hose or wet-mop the walk-in; Kolpak's warranty excludes damage from it.
Kolpak lists an air shield, angle trim, interior and exterior ramps, strip door, 34" door and a compact 18" LED light as popular Polar-Pak options.
Yes. Kolpak equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Kolpak |
|---|---|
| Model Number | P7-0610-CT |
| Series | Polar-Pak |
| Type | Walk-in cooler with floor, top-mount refrigeration |
| Documentation | Kolpak Polar-Pak family spec sheet 1094b 09/23; model-specific refrigeration data confirmed at order |
| Nominal Size | 6' x 10' x 7' |
| Width | 70 Inches |
| Depth | 116 Inches |
| Height | 90-1/4 Inches |
| Size Source | Kolpak Polar-Pak list price book, effective 12/1/2017 |
| Door Opening | 26" x 78" |
| Panel Thickness | 4" nominal |
| Insulation | 100% foamed-in-place polyurethane, CFC and HCFC free, HFO blowing agent |
| Interior Finish | 26 gauge embossed Galvalume |
| Exterior Finish | 26 gauge embossed Galvalume |
| Panel Joints | Tongue and groove with cam locks |
| Floor | Era bracket floor, coved corners |
| Floor Load | 1,000 lb. per sq. ft. uniform load, standard Era floor |
| Door Frame | FRP door perimeter and jamb |
| Door Hardware | Deadbolt locking handleAdjustable spring-loaded hingesDoor closerInterior safety release |
| Hinge Side | Right or left, chosen at order |
| Lighting | LED, constant-burn low-wattage LED nightlight in door section |
| Refrigeration System | Polar-Pak Series top-mounted drop-in unit, flush to the ceiling |
| Refrigerant | R-448A |
| Compressor Type | Scroll |
| Refrigeration Electrical | Confirmed at order for this model |
| Door Section Service | 120V, 60 Hz, single phase typical, per Kolpak manual |
| Warranty | 10 Years Panels, 1 Year Parts and Labor |
| Compressor Warranty | Extended compressor warranty optional |
| Popular Options | Air shieldAngle trimInterior or exterior rampStrip door34" door1809 compact 18" LED light |
