Description

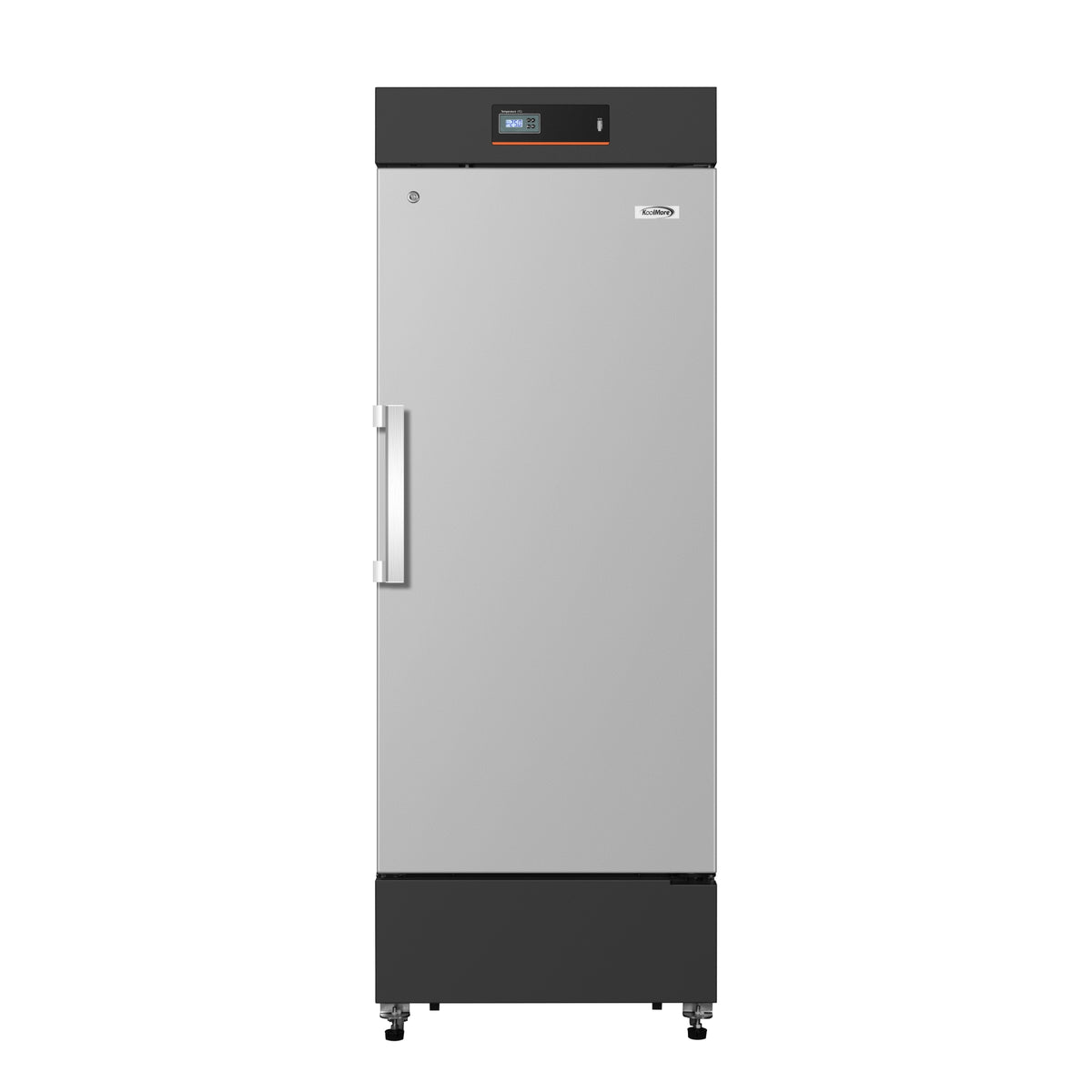

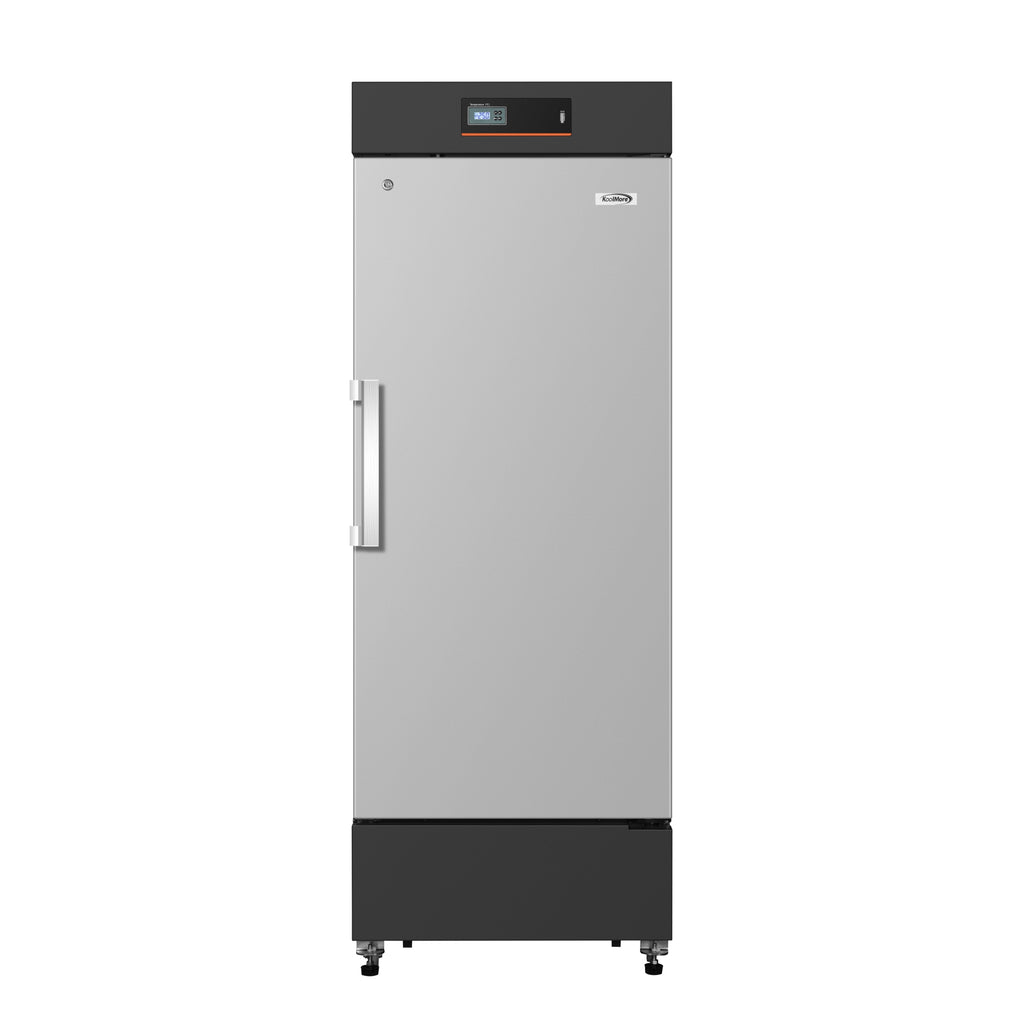

KoolMore KM-PHF-10C Laboratory / Medical Freezer
The KoolMore KM-PHF-10C is a laboratory / medical freezer. Use the specified cold-storage format when planning a laboratory, pharmacy or research storage station. Match the documented temperature capability and access arrangement to your validated storage protocol.
Configuration and everyday use
This model is specified with manufacturer-listed capacity: 10.8 cu. ft.; nominal size: 27 in.; number of doors: 1; number of shelves: 7.
- Temperature Range: -13-14 F
- Defrost Type: Manual
- Door Style: Swing
- Color Finish: Grey
Technical specifications
| Brand | KoolMore |
|---|---|
| Model / ordering code | KM-PHF-10C |
| Net Cubic Feet | 10.8 cu. ft. |
| Door Material | Steel and Foam |
| Color Finish | Grey |
| Interior Lights | No |
| Casters | 4 |
| Number of Feet | 2 |
| Defrost Type | Manual |
| Refrigerant Type | R-290 |
| Cooling Unit Type | Static |
| Compressor Location | Bottom |
| Control Type | Digital |
| Number of Doors | 1 |
| Door Style | Swing |
| Self Closing Door | No |
| Number of Shelves | 7 |
| Shelves Adjustable | No |
| Temperature Range | -13-14 F |
| Ambient Temperature Range | 50-90 F |
| Data Logging | Yes |
| USB Port | Yes |
| Safety Lock | Yes |
| Amps | 3 A |
| Hertz | 60 Hz |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Voltage | 115 V |
| Wattage | 280 W |
| Nominal Size | 27 in. |
| Manufacturer-Listed Capacity | 10.8 cu. ft. |
| Layout | Upright |
| Alarm and Monitoring Backup Battery Runtime | 20 hours |
Installation and purchasing considerations
Confirm the required temperature range, alarms, monitoring and electrical service. The specification does not establish suitability for every medicine or sample; follow the storage protocol for the material and the manufacturer installation requirements. Confirm the exact installed dimensions and supplied components before ordering. Nominal size and cabinet capacity describe the product format; use the manufacturer drawing for the installation footprint.
Frequently asked questions
What should I confirm before choosing this model?
Check the configuration, available space and utilities against the tasks at the station. Use the exact ordering code when checking manufacturer specifications and accessory compatibility.
Where can I review the detailed specifications?

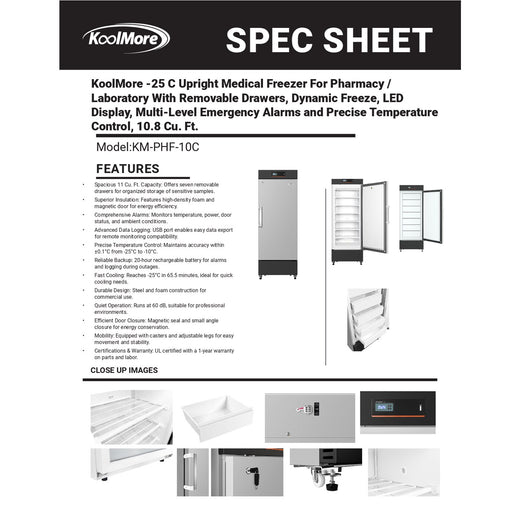

Available manufacturer documents are provided in the Resources & Documents section. A family manual may cover multiple models; follow the instructions applicable to KM-PHF-10C.
