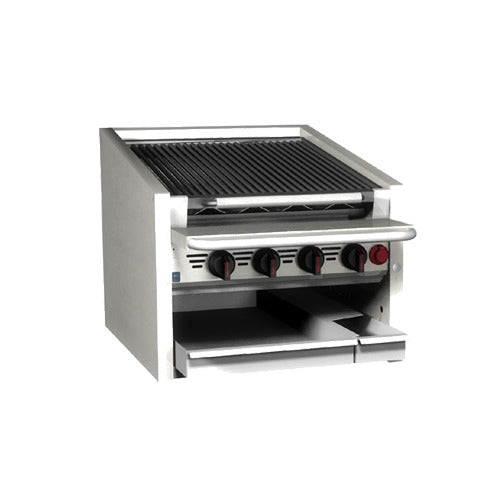

Magikitchn CM-SMB-636 36" Countertop Ceramic Briquette Gas Charbroiler, 7 Burners, 105,000 BTU, Natural Gas or LP
A 36" ceramic briquette gas charbroiler with 7 burners and the look of coal cooking.
The MagiKitch'n CM-SMB-636 is a 36" countertop charbroiler for restaurants, grills and food counters. 7 stainless steel burners put out 105,000 BTU/hr (140,000 with the high output option) across 810 sq. in. of grid, and it sits on a counter, a 21" stand or a properly insulated refrigerated base. A stainless steel coal screen holds MagiCoals ceramic briquettes, for the look of coal cooking with gas.
Measure every doorway and turn on the delivery path against the crate size, and plan a ventilation hood over the unit. A licensed gas fitter should make the connection.
MagiKitch'n built the Series 600 around a computer-designed heat pattern with baffles for even heat across the whole grid, so less experienced cooks waste less food.
The free-floating round-rod grids tilt so grease runs into the front trough; MagiKitch'n says about 70% of it drains to the collection box.
Stainless radiant, cast iron radiant and ceramic coal setups are interchangeable; with the conversion parts the change takes under 15 minutes and no tools.
All-stainless burners, a double-walled insulated cabinet and ventilated heat shields over the manifold keep knobs and valves cool. Removable water tubs make daily cleaning quick.
Either. Choose the gas type in the option above the Add to Cart button. If you are above 2,000 feet, tell us your elevation when you order so it is built for it.
Standard burners are 15,000 BTU each for 105,000 BTU/hr. The high output option raises them to 20,000 BTU each, 140,000 BTU/hr in total, for heavy production. You can choose it in the burner option above the Add to Cart button.
The spec sheet lists the stainless coal screen as standard, and MagiKitch'n's price book lists MagiCoals ceramic briquettes as a separate item (1 box of 50 and 1 box of 100 for this size). Ask us to confirm what your order includes before it ships.
Yes. MagiKitch'n designs it for counters, work tables or properly insulated refrigerated or freezer bases, and a 21" equipment stand gives a 36" working height.
Plan on one. The spec sheet says not to block the flue gases from flowing into the hood, and local codes require commercial gas charbroilers to go under a ventilation hood. The manual says it is for indoor use only.
The spec sheet lists 0" at the sides and rear and 30" in front. The manual says to install it in a non-combustible location.
MagiKitch'n covers defects in material and workmanship for 2 years, parts and labor, starting at installation (or 6 months after the unit leaves the factory, if that comes first). Repairs must be done by an authorized service agency; labor is covered within 50 miles of one. Labor on removable and consumable parts such as briquettes, coal screens, burners, grates and radiants is not covered.
Specs
| Manufacturer | MagiKitch'n |
|---|---|
| Model Number | CM-SMB-636 |
| Series | CM-RMB/SMB 600 Series Counter Gas Charbroiler |
| Quantity | 1/Each |
| Shipping Weight | 601 lb. |
| Shipping Crate | 26" H x 45" W x 36" L |
| Shipping Cube | 21.6 cu. ft. |
| Width | 36 Inches |
| Depth | 35-1/2 Inches |
| Height | 25-1/2 Inches |
| Front Height | 25-3/8" on 4" Legs |
| Counter Space | 36" x 35-1/2" |
| Cooking Area | 810 sq. in. |
| Water Tub Aisle Clearance | 31-1/8" |
| Gas Type | Natural Gas or LP |
| Total BTU | 105,000 BTU/hr |
| High Output Option | 140,000 BTU/hr, 20,000 BTU per Burner |
| Burners | 7 Stainless Steel Burners, 15,000 BTU Each |
| Supply Pressure | Natural Gas 7 - 10" W.C.LP 11 - 13" W.C. |
| Burner Pressure | Natural Gas 4" W.C.LP 10" W.C. |
| Gas Connection | 3/4" NPT Supply Connection3/4" Gas Regulator Shipped Unattached, Install Before Connecting |
| Pilot | Runner Tube Pilot SystemSafety Pilot Optional |
| Heat Source | Stainless Steel Coal Screen for MagiCoals Ceramic Briquettes |
| Controls | Individual Front Burner Controls |
| Top Grid | 1 Free-Floating 1/2" Steel Rod Top Grid, Standard 5/16" SpacingE-Z Tilt Drains Grease to the Front Trough |
| Grate Options | MagiKrome, Scround, Cast Iron, Cast Iron Fish, Diamond Waffle |
| Crumb Trays | 1 |
| Water Tubs | Stainless Steel, Standard |
| Exterior | Stainless Steel on All Four SidesFully Insulated Double-Walled Cabinet |
| Service Shelf | 6" Stainless Steel Front Shelf with Towel Bar |
| Legs | 4" Legs Standard, Can Mount Flush |
| Included | Top Grid Scraper |
| Clearances | Front 30"Sides 0"Rear 0"Floor 0" |
| Location | Indoor Use OnlyNon-Combustible LocationsUnder a Ventilation Hood, Flue Not Blocked |
| Placement | Countertop: work table, counter, equipment stand or a properly insulated refrigerated or freezer base |
| MagiKitch'n Options | Lower RackSmoker BoxBack ShelfSlip-On CoversSide and Back Extensions21" Equipment StandPan Cutouts in 10" or 12" ShelfSafety PilotMagiGriddle Griddle Top48" Quick-Disconnect Gas Hose |
| Certifications | CSA Star, CSA Flame, NSF |
| Warranty | 2 Years Parts & Labor |
| Warranty Terms | Starts at Installation, or 6 Months After Factory Shipment if SoonerLabor Within 50 Miles of an Authorized Service Agency |
