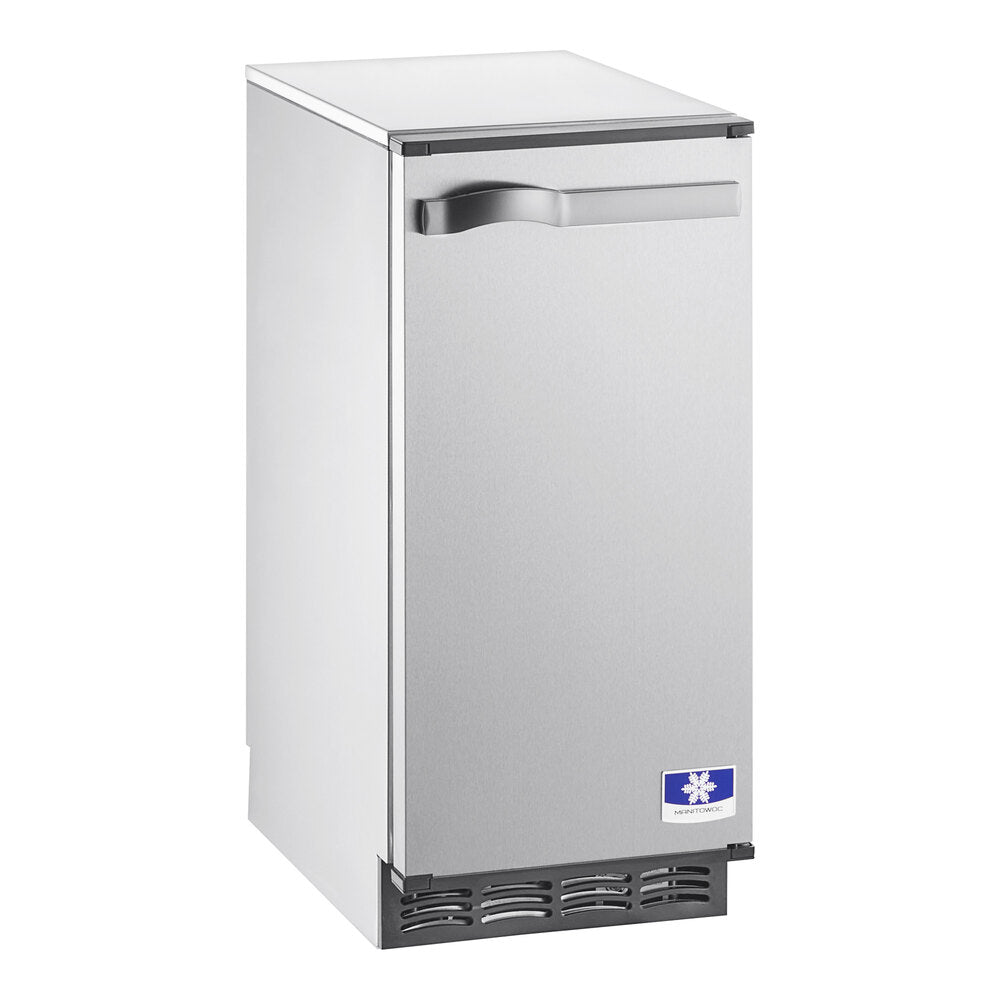

Manitowoc Ice UCP0050A 15" Air-Cooled Undercounter Gourmet Ice Machine, 52 lb., 25 lb. Bin, 115V
A 15-inch undercounter ice machine that makes clear octagon cubes for bars, offices and break rooms.

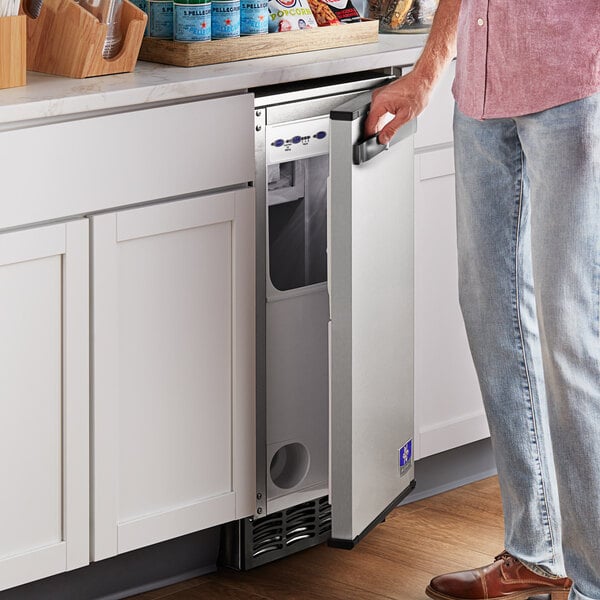

The Manitowoc Ice UCP0050A is a self-contained, air-cooled undercounter ice machine with its own 25 lb. bin. Manitowoc rates it at 52 lb. of individual octagon cubes a day at 70°F air and 50°F water, and 42 lb. at 90°F air and 70°F water. It fits a standard 15" cabinet opening or stands alone with its stainless steel top and sides, and it plugs into a standard 115V outlet with the included 6 ft. cord.
Air moves through the front grille, so the sides can sit flush with cabinets.
Individual cubes with a unique octagon shape, about 1-3/8" x 1-3/8".
An integrated filter with depth filtration and scale inhibitor; the replacement cartridge is AR-2800.
Automatic ice making, patented cleaning and sanitizing, delay start and a filter replacement light.
An LED-lit 25 lb. bin with a large opening for easy scooping.
Ships hinged on the right and changes easily to the left during installation.
Manitowoc calls R290 its most energy efficient, environmentally friendly refrigerant.
It is 14-3/4" W x 22-3/4" D x 33-1/2" H and is designed for a standard 15" cabinet opening. Manitowoc requires no minimum clearance because air flows through the front.
115V, 60 Hz, single phase. It comes pre-wired with a 6 ft. cord and NEMA 5-15P plug, draws 4.1 A total, with a 15 A max fuse.
52 lb. a day at 70°F air and 50°F water, and 42 lb. at 90°F air and 70°F water. The bin holds 25 lb.

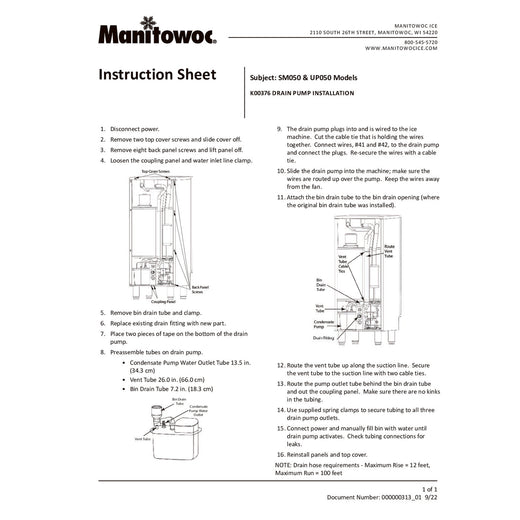

It has a 3/4" bin drain. Where no floor drain is close, the optional drain pump fits inside the machine during installation.
The water filter is built in, with an auto-bypass for easy change-out. The replacement filter is AR-2800.

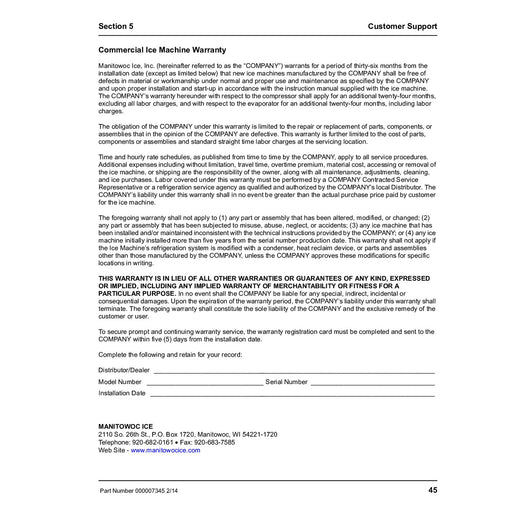

Manitowoc gives a 3-year commercial parts and labor warranty on the entire machine, and a 1-year limited warranty for residential use.
Yes. Manitowoc Ice equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Manitowoc Ice |
|---|---|
| Model Number | UCP0050A |
| Sheet Model | UCP0050A-161 |
| Type | Undercounter Ice Machine with Bin, Air-Cooled |
| Ice Type | Octagon Gourmet Cube |
| Cube Size | 1-3/8" x 1-3/8" |
| Width | 14.75 Inches |
| Depth | 22.75 Inches |
| Height | 33.5 Inches |
| Cabinet Opening | 15" Standard Cabinet or Freestanding |
| Clearance | No Minimum Clearance Required |
| Legs | Levelers 0" to 1"Optional K-00345 Legs 4.25" to 6" |
| Capacity | 52 lb. per 24 Hours |
| Ice Production | 52 lb. at 70°F Air/50°F Water42 lb. at 90°F Air/70°F Water |
| Bin Storage | 25 lb. |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 4.1 Amps |
| Max Fuse Size | 15 AmpsHACR Breaker Allowed |
| Plug Type | NEMA 5-15P |
| Cord | 6 ft., Factory Pre-Wired |
| Refrigerant | R290 |
| Compressor | 1/6 HP Nominal |
| Condenser | Air-CooledAir In Right, Out Left, Front |
| BTU per Hour | 1,145 Average2,300 Peak |
| Energy Use | 12.0 kWh per 100 lb. of Ice at 90°F Air/70°F Water |
| Potable Water Use | 29 gal. per 100 lb. of Ice |
| Water Inlet | 1/4" O.D. Copper Tube |
| Drain | 3/4" Bin DrainOptional Internal Drain Pump |
| Water Pressure | 20 to 80 psi |
| Ambient Range | 50°F to 110°F |
| Water Range | 35°F to 90°F |
| Control Type | Front PanelAutomatic Ice MakingCleaning and SanitizingDelay StartFilter Light |
| Exterior | Stainless Steel Top and Sides |
| Insulation | Foamed-In-Place, CFC-Free |
| Water Filter | Integrated, Depth Filtration and Scale InhibitorReplacement AR-2800 |
| Door | Hinged Right, Reversible to LeftLED-Lit Bin |
| Certifications | NSF, cUL |
| Warranty | 3 Years Commercial Parts and Labor1 Year Residential Limited |
