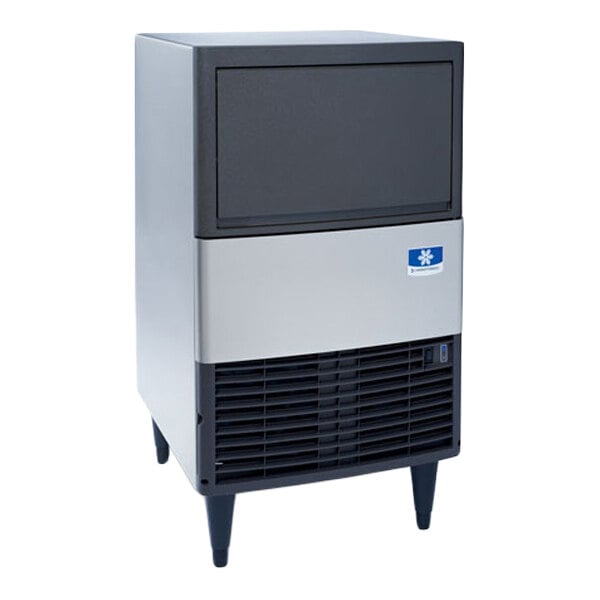

Manitowoc Ice UDP0080A-161 NEO 19.69" Air-Cooled Undercounter Dice Cube Ice Machine, 110 lb., 31 lb. Bin, 115V
A compact 19.69-inch-wide undercounter ice machine that makes up to 110 lb. of dice cubes a day for bars, offices and small kitchens.
The Manitowoc NEO UDP0080A-161 is part of the NEO 60/85 series of small undercounter cubers. It makes up to 110 lb. of 7/8" dice cubes in 24 hours at 70°F air and 50°F water (75 lb. at 90°F air and 70°F water) and keeps up to 31 lb. in its built-in bin. Air moves in and out the front, so it can go under a counter or next to other equipment. It plugs into a standard 115V outlet with its 6 ft. cord and NEMA 5-15P plug.
Measure the space with the legs in place: Manitowoc gives a 30" height on 6" legs, and the legs adjust up to 7.25".
Rated 110 lb. of dice cubes per 24 hours at 70°F air and 50°F water, and 75 lb. at 90°F air and 70°F water.
The 3.99 cu. ft. cabinet stores up to 31 lb. of 7/8" dice cubes.
An on, off and clean switch sits on the front, so you do not need to remove the front panel to run a cleaning cycle.
Front ventilation suits installation under countertops or next to other equipment.
The reusable air filter slides out from the left front without tools and protects the condenser from lint, grease and dust.
Uses R290 refrigerant with a 1/4 HP compressor. Energy use is 9.3 kWh per 100 lb. of ice.
Up to 110 lb. of dice cubes in 24 hours at 70°F air and 50°F water, and 75 lb. at 90°F air and 70°F water. The bin holds up to 31 lb.
A standard 115V, 60 Hz outlet. It draws 4.2 amps and comes with a 6 ft. cord and NEMA 5-15P plug. Maximum fuse size is 15 amps.
19.69" wide and 22.34" deep, 30" high on 6" legs. The legs adjust from 6" to 7.25".
Dice cubes, 7/8" x 7/8" x 7/8".
No. Manitowoc states the NEO 60/85 series is not compatible with LuminIce II or iAuCS.

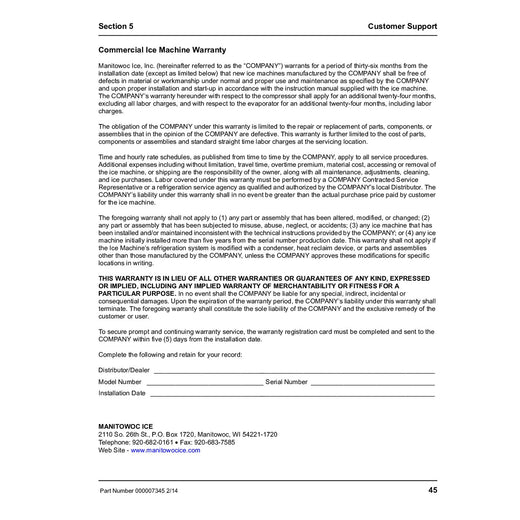

Manitowoc lists a limited commercial warranty of 3 years parts and labor on the ice maker, 5 years parts and labor on the evaporator, and 5 years parts and 3 years labor on the compressor.
Yes. Manitowoc Ice equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.

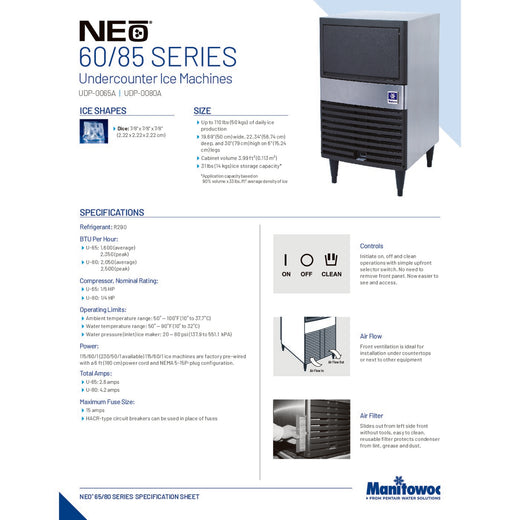

Specs
| Manufacturer | Manitowoc Ice |
|---|---|
| Model Number | UDP0080A-161 |
| Series | NEO 60/85 Series Undercounter |
| Type | Self-Contained Air-Cooled Undercounter Cube Ice Machine with Bin |
| Width | 19.69 Inches |
| Depth | 22.34 Inches |
| Height | 30 Inches |
| Height Detail | 30" High on 6" LegsLegs Adjust 6" to 7.25" |
| Clearance | Top, Sides and Back 5" RecommendedNo Minimum Required |
| Capacity | 110 lb. per 24 Hours |
| Production at 70°F Air / 50°F Water | 110 lb. per 24 Hours |
| Production at 90°F Air / 70°F Water | 75 lb. per 24 Hours |
| Ice Storage | 31 lb.Cabinet Volume 3.99 cu. ft. |
| Ice Shape | Dice Cube |
| Cube Size | 7/8" x 7/8" x 7/8" |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 4.2 Amps |
| Max Fuse Size | 15 Amps, HACR Breaker Allowed |
| Plug Type | NEMA 5-15P |
| Cord | 6 ft. Pre-Wired |
| Condenser | Air-CooledFront AirflowSlide-Out Reusable Air Filter |
| Refrigerant | R290 |
| Compressor | 1/4 HP |
| Heat of Rejection | 2,050 BTU/hr Average2,500 BTU/hr Peak |
| Energy Use | 9.3 kWh per 100 lb. of Ice at 90°F Air / 70°F Water |
| Potable Water Use | 39.3 gal. per 100 lb. of Ice |
| Water Inlet | 3/8" MPT20 to 80 psi |
| Drain | 5/8" ID Ice-Making Water and Bin Drain |
| Temperature Range | 50 to 100°F Ambient |
| Water Temperature | 50 to 90°F |
| Control Type | Front Selector SwitchOn, Off, Clean |
| Standard Accessories | Plastic Ice Scoop6" Adjustable Legs |
| Not Compatible With | LuminIce IIiAuCS |
| Certifications | NSF, cULus, AHRI Certified, CE |
| Warranty | 3 Years Parts and Labor |
| Warranty Detail | 3 Years Parts and LaborEvaporator 5 Years Parts and LaborCompressor 5 Years Parts, 3 Years Labor |
