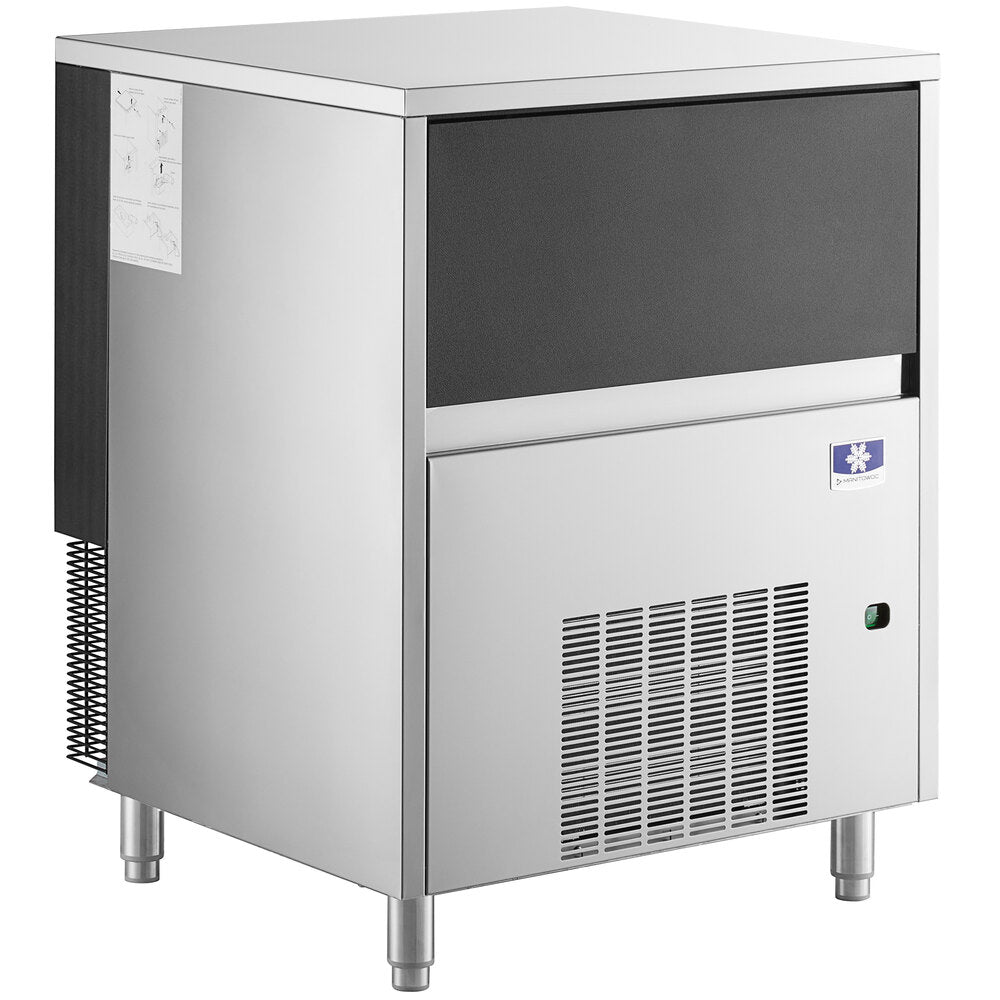

Manitowoc Ice UFP0350A-161 398 lb. Undercounter Flake Ice Machine, 60 lb. Storage, Air-Cooled, 115V
A self-contained undercounter machine that makes and stores flake ice for food display, salad bars and cold therapy or healthcare.
The Manitowoc Ice UFP0350A-161 makes up to 398 lb. of flake ice a day at 70°F air and 50°F water, and 328 lb. at 90°F air and 70°F water. It stores up to 60 lb. in its own bin, runs on R290 refrigerant, and plugs into a standard 115V outlet with its 6 ft. cord. Manitowoc notes it fits under standard counter heights.
Height is 39.52" with the legs at 6"; the legs adjust down to 4-1/2".
Flake ice is small, hard bits of ice suited to presentation. With a 73% ice to water ratio, it forms around objects without bruising and holds them in place.
The bin holds up to 60 lb. of ice by Manitowoc's application rating (40 lb. by the 2017 AHRI rating).
Air enters at the front and leaves at the back, with no side vents, so it can sit beside other equipment.
High load bearings are built for reliability in daily use.

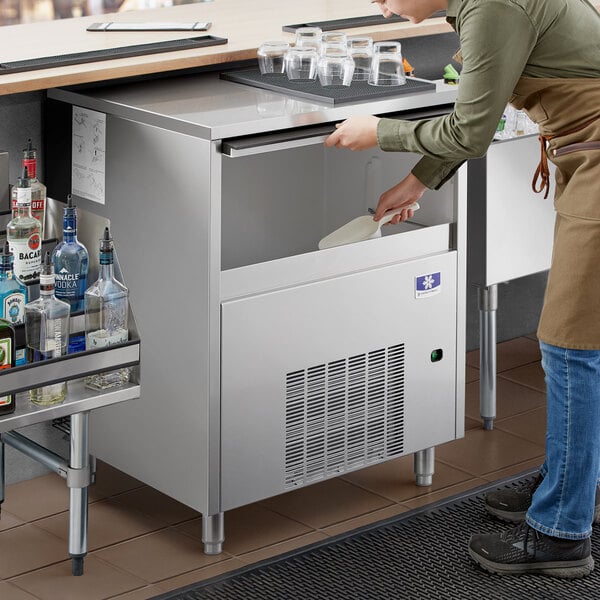

The easy access door slides up and out of the way while you scoop.
Natural R290 refrigerant and a 3/4 HP compressor.
Up to 398 lb. a day at 70°F air and 50°F water. In a hot spot at 90°F air and 70°F water, Manitowoc rates it at 328 lb.
115V, 60 Hz, single phase. It has a 6 ft. cord with a NEMA 5-15P plug, draws 7.5 amps and takes a 15 amp maximum fuse.
It measures 29.06" wide, 27.17" deep and 39.52" high with the legs at 6". Leave 2" at the sides and 8" at the back.
A 3/8" NPT water inlet and a 1/2" NPT water outlet. Water pressure must be between 14 and 80 psi.

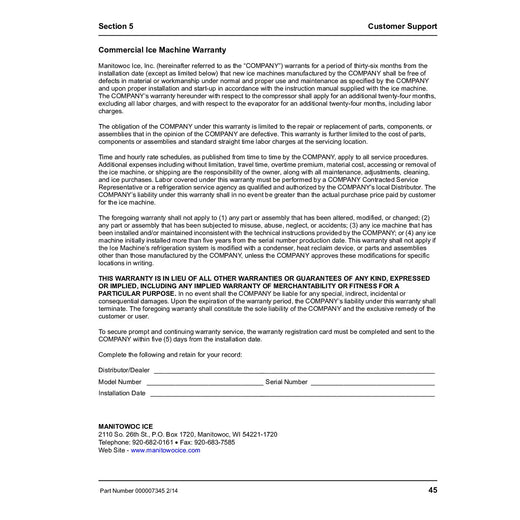

Manitowoc lists a commercial warranty of 3 years parts and 3 years labor on the ice maker, and 5 years parts with 3 years labor on the compressor.
Yes. Manitowoc Ice equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.

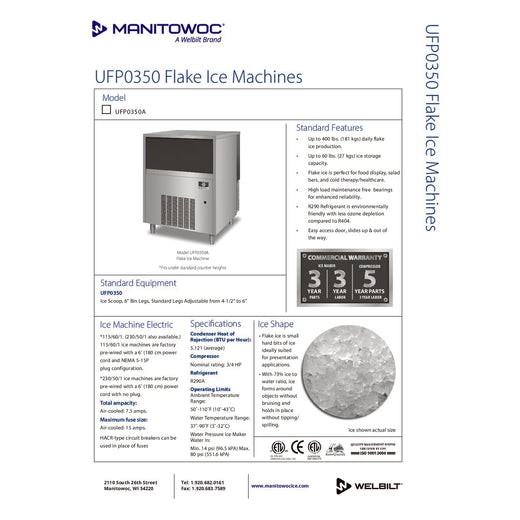

Specs
| Manufacturer | Manitowoc Ice |
|---|---|
| Model Number | UFP0350A-161 |
| Series | UFP undercounter flake ice machine |
| Ice Type | Flake |
| Condenser | Self-contained air-cooled |
| Width | 29.06 Inches |
| Depth | 27.17 Inches |
| Height | 39.52 Inches |
| Height Note | Height includes the adjustable bin legs set at 6"; the drawing shows 33.52" without the 6" legs |
| Installation Clearance | Sides 2"Back 8" |
| Capacity | 398 lb. per 24 hours |
| Production at 70°F Air/50°F Water | 398 lb.181 kg |
| Production at 90°F Air/70°F Water | 328 lb. |
| Ice Storage, Application | 60 lb. |
| Ice Storage, 2017 AHRI | 40 lb. |
| Bin Volume, 2018 AHRI | 2.04 cu. ft. |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Amps | 7.5 Amps |
| Maximum Fuse Size | 15 Amps; HACR-type breakers allowed |
| Plug Type | NEMA 5-15P |
| Cord | 6 ft. factory-wired power cord |
| Refrigerant | R290 |
| Compressor | 3/4 HP nominal |
| Condenser Heat of Rejection | 5,121 BTU per hour, average |
| Energy Use | 5.27 kWh per 100 lb. of ice at 90°F air/70°F water |
| Potable Water Use | 12 gal. per 100 lb. of ice |
| Water Inlet | 3/8" NPT |
| Water Outlet | 1/2" NPT |
| Water Pressure | 14 to 80 psi |
| Ambient Temperature | 50°F to 110°F |
| Water Temperature | 37°F to 90°F |
| Standard Equipment | Ice scoop6" bin legs, adjustable 4-1/2" to 6" |
| Certifications | ETL Listed to UL 563 and CAN/CSA C22.2 No. 120, ETL Sanitation to NSF/ANSI 12, CE |
| Warranty | 3 Years Parts and Labor on the Ice Maker |
| Compressor Warranty | 5 years parts, 3 years labor |
