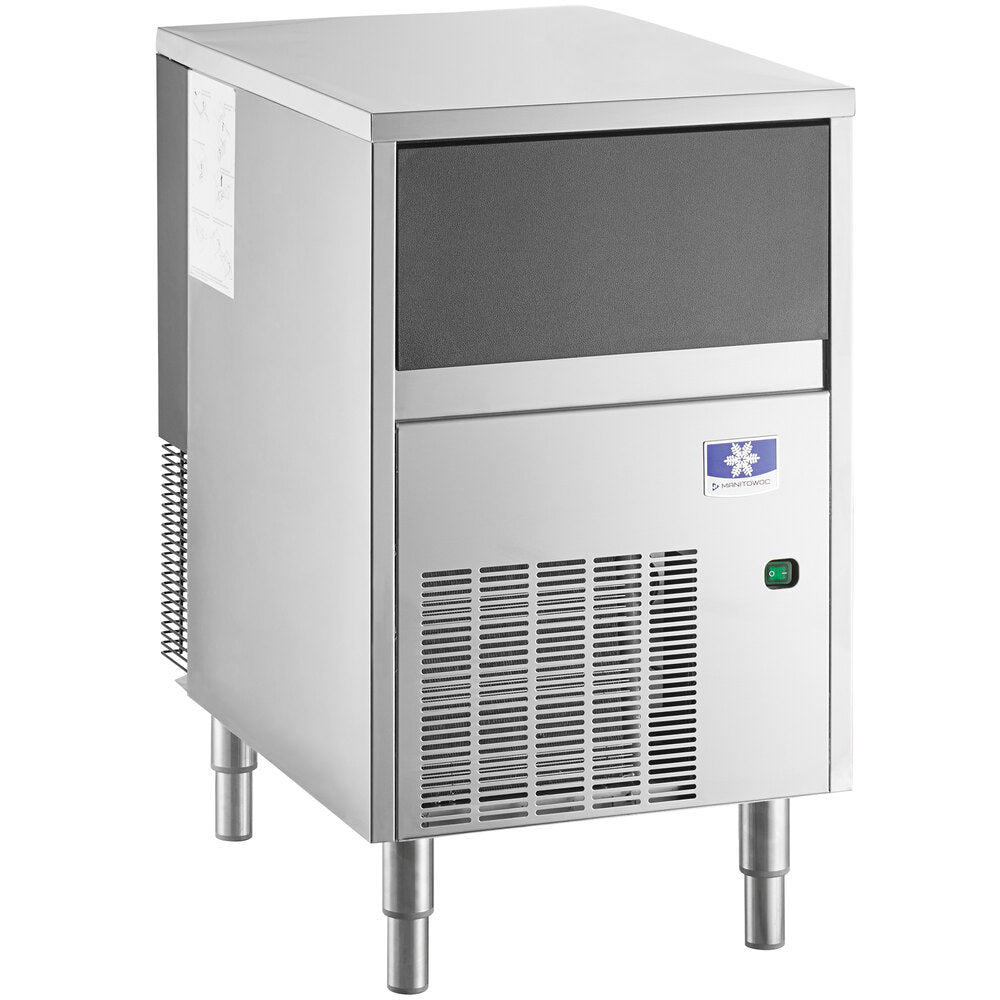

Manitowoc Ice UNP0200A-161 213 lb. Undercounter Nugget Ice Machine, 30 lb. Storage, Air-Cooled, 115V
A self-contained undercounter machine that makes and stores nugget ice for carbonated beverages, blended smoothies and healthcare or physical therapy.
The Manitowoc Ice UNP0200A-161 makes up to 213 lb. of nugget ice a day at 70°F air and 50°F water, and 164 lb. at 90°F air and 70°F water. It stores up to 30 lb. in its own bin, runs on R290 refrigerant, and plugs into a standard 115V outlet with its 6 ft. cord. Manitowoc positions the UNP0200 for kitchen counters and the UNP0300 for bar height counters.
Height is 33.17" with the legs at 6"; the legs adjust down to 4-1/2".
Nugget ice is small pieces about 3/8" to 1/2" across, with an 85% ice to water ratio and a soft, chewable texture.
The bin holds up to 30 lb. of ice by Manitowoc's application rating (20 lb. by the 2017 AHRI rating).
Air enters at the front and leaves at the back, with no side vents, so it can sit beside other equipment.
High load bearings are built for reliability in daily use.
The UNP0200A carries the ENERGY STAR mark on the Manitowoc sheet, at 6.65 kWh per 100 lb. of ice.
Natural R290 refrigerant and a 1/4 HP compressor.
Up to 213 lb. a day at 70°F air and 50°F water. In a hot spot at 90°F air and 70°F water, Manitowoc rates it at 164 lb.
115V, 60 Hz, single phase. It has a 6 ft. cord with a NEMA 5-15P plug, draws 7.5 amps and takes a 15 amp maximum fuse.
It measures 19.69" wide, 25.98" deep and 33.17" high with the legs at 6". Leave 2" at the sides and 5" at the back.
A 3/8" NPT water inlet and a 1/2" NPT water outlet. Water pressure must be between 14 and 80 psi.

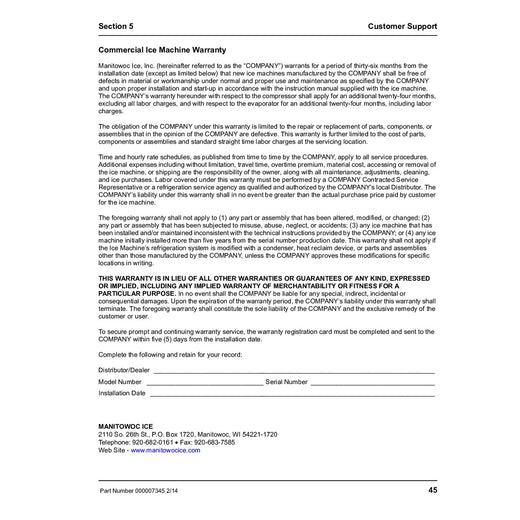

Manitowoc lists a commercial warranty of 3 years parts and 3 years labor on the ice maker, and 5 years parts with 3 years labor on the compressor.
Yes. The Manitowoc sheet marks the UNP0200 as ENERGY STAR (version 3.0).
Yes. Manitowoc Ice equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Manitowoc Ice |
|---|---|
| Model Number | UNP0200A-161 |
| Series | UNP undercounter nugget ice machine |
| Ice Type | Nugget |
| Condenser | Self-contained air-cooled |
| Width | 19.69 Inches |
| Depth | 25.98 Inches |
| Height | 33.17 Inches |
| Height Note | Height includes the adjustable bin legs set at 6"; the drawing shows 27.17" without the 6" legs |
| Installation Clearance | Sides 2"Back 5" |
| Capacity | 213 lb. per 24 hours |
| Production at 70°F Air/50°F Water | 213 lb.97 kg |
| Production at 90°F Air/70°F Water | 164 lb. |
| Ice Storage, Application | 30 lb. |
| Ice Storage, 2017 AHRI | 20 lb. |
| Bin Volume, 2018 AHRI | 1.03 cu. ft. |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Amps | 7.5 Amps |
| Maximum Fuse Size | 15 Amps; HACR-type breakers allowed |
| Plug Type | NEMA 5-15P |
| Cord | 6 ft. factory-wired power cord |
| Refrigerant | R290 |
| Compressor | 1/4 HP nominal |
| Condenser Heat of Rejection | 3,038 BTU per hour, average |
| Energy Use | 6.65 kWh per 100 lb. of ice at 90°F air/70°F water |
| Potable Water Use | 12 gal. per 100 lb. of ice |
| Water Inlet | 3/8" NPT |
| Water Outlet | 1/2" NPT |
| Water Pressure | 14 to 80 psi |
| Ambient Temperature | 50°F to 110°F |
| Water Temperature | 37°F to 90°F |
| Standard Equipment | Ice scoop6" bin legs, adjustable 4-1/2" to 6" |
| Certifications | ETL Listed to UL 563 and CAN/CSA C22.2 No. 120, ETL Sanitation to NSF/ANSI 12, CE, ENERGY STAR |
| Warranty | 3 Years Parts and Labor on the Ice Maker |
| Compressor Warranty | 5 years parts, 3 years labor |
