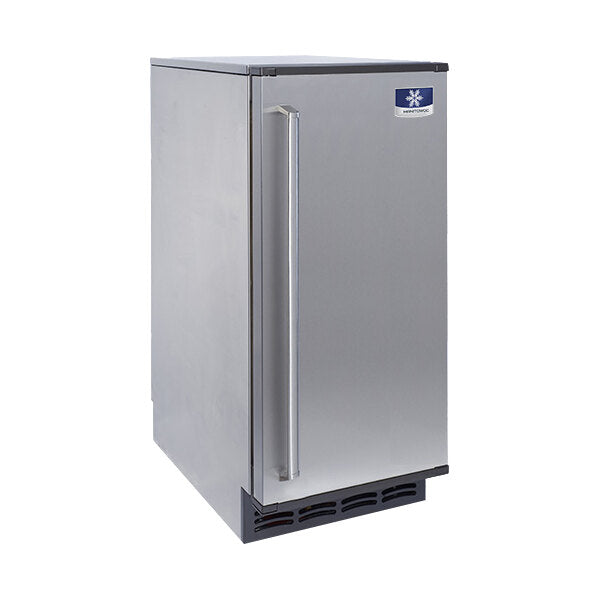

Manitowoc Ice USE0050A-161 CrystalCraft Premier 14.75" Undercounter Square Cube Ice Machine, 41 lb., 25 lb. Bin, 115V
A 15-inch undercounter ice machine that makes crystal-clear 1.5-inch square cubes for premium cocktails and spirits.
The Manitowoc CrystalCraft Premier USE0050A makes large, individual 1.5" square cubes of about 40 g each. They are crystal clear and melt slowly, so they keep the flavor of a premium drink. It makes up to 41 lb. of ice in 24 hours at 70°F air and 50°F water and stores 25 lb. in a lighted bin. It is designed to fit a standard 15" cabinet opening or to stand alone with its stainless steel top and sides, and it plugs into 115V with a 6 ft. cord and NEMA 5-15P plug.
Built in under a bar? The 14.75" cabinet is made for a standard 15" opening, and air goes in on the right and out on the left at the front.
1.5" x 1.5" x 1.5" square cubes of about 40 g, clear and slow melting for premium beverages.
Rated 41 lb. per 24 hours at 70°F air and 50°F water, and 31 lb. at 90°F air and 70°F water, with 25 lb. of storage.
Designed for a standard 15" cabinet opening, or stand-alone with stainless steel top and sides. No minimum clearance is required.
Automatic ice making, patented cleaning and sanitizing, delay start and a filter replacement light.
An integrated depth filter with scale inhibitor and auto-bypass. Replacement filter AR-2800 (K-00374, 12 pack).
An LED-lit bin with a large opening makes scooping easy.
Crystal-clear individual square cubes, 1.5" x 1.5" x 1.5", about 40 g each. They melt slowly, which suits premium cocktails and spirits.
Up to 41 lb. in 24 hours at 70°F air and 50°F water, and 31 lb. at 90°F air and 70°F water. The bin holds 25 lb.
It is 14.75" W x 22.75" D x 33.50" H and is designed to install in a standard 15" wide opening. No minimum clearance is required.
Manitowoc offers the K00516 drain pump, which fits inside the machine during installation.
115V, 60 Hz, single phase. It draws 4.1 amps and comes with a 6 ft. cord and NEMA 5-15P plug.

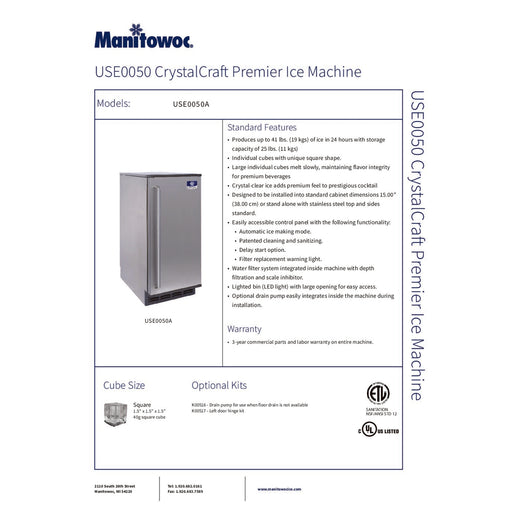

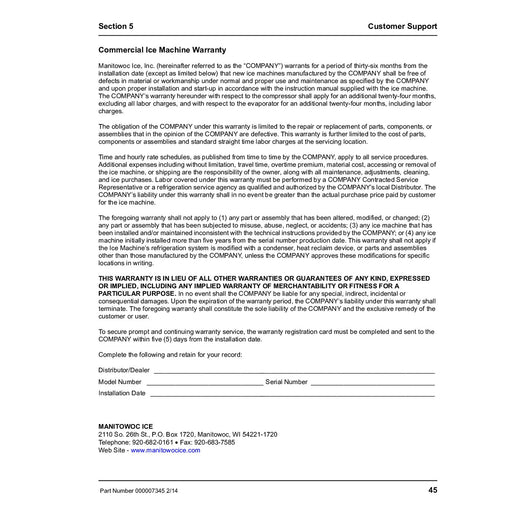

The spec sheet lists a 3-year commercial parts and labor warranty on the entire machine. Manitowoc's CrystalCraft warranty statement adds 5 years parts and 3 years labor on the compressor.
Yes. Manitowoc Ice equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Manitowoc Ice |
|---|---|
| Model Number | USE0050A-161 |
| Series | CrystalCraft Premier |
| Type | Air-Cooled Undercounter Square Cube Ice Machine with Bin |
| Width | 14.75 Inches |
| Depth | 22.75 Inches |
| Height | 33.50 Inches |
| Legs | Levelers Standard, 0" to 1"Optional Legs K-00345, 4.25" to 6.00" |
| Installation | Fits Standard 15" Cabinet OpeningNo Minimum Clearance |
| Capacity | 41 lb. per 24 Hours |
| Production at 70°F Air / 50°F Water | 41 lb. per 24 Hours |
| Production at 90°F Air / 70°F Water | 31 lb. per 24 Hours |
| Ice Storage | 25 lb. |
| Ice Shape | Square Cube |
| Cube Size | 1.5" x 1.5" x 1.5"About 40 g |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 4.1 Amps |
| Max Fuse Size | 15 Amps, HACR Breaker Allowed |
| Plug Type | NEMA 5-15P |
| Cord | 6 ft. Pre-Wired |
| Condenser | Air-CooledAir In Right Front, Out Left Front |
| Compressor | 1/6 HP |
| Heat of Rejection | 1,145 BTU/hr Average2,300 BTU/hr Peak |
| Energy Use | 23.03 kWh per 100 lb. of Ice at 90°F Air / 70°F Water |
| Water Use | 38.1 gal. per 100 lb. of Ice |
| Water Inlet | 1/4" OD Copper Tube20 to 80 psi |
| Drain | 3/4" Bin Drain |
| Temperature Range | 50 to 110°F Ambient |
| Water Temperature | 35 to 90°F |
| Control Type | Front Control PanelAutomatic Ice Making, Cleaning and Sanitizing, Delay Start, Filter Light |
| Exterior | Stainless Steel Top and Sides |
| Insulation | Foamed-in-Place, CFC-Free |
| Water Filtration | Integrated Depth Filter with Scale InhibitorReplacement AR-2800, K-00374 12 Pack |
| Optional Kits | K00516 Drain PumpK00517 Left Door Hinge KitK-00345 Legs |
| Certifications | ETL Sanitation NSF/ANSI 12, cULus Listed |
| Warranty | 3 Years Parts and Labor |
| Warranty Detail | Entire Machine 3 Years Parts and LaborCompressor 5 Years Parts, 3 Years Labor |
