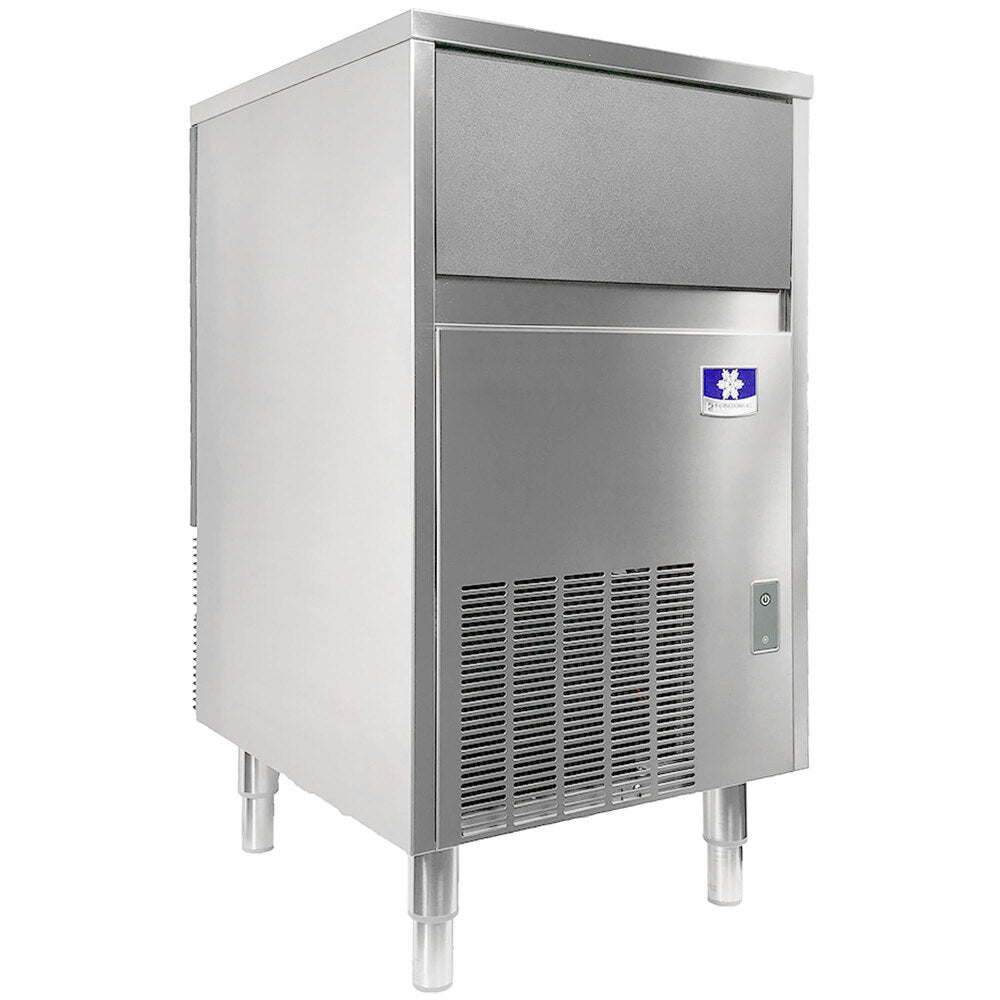

Manitowoc Ice USP0100A-161 CrystalCraft 100 lb. Undercounter Square Cube Ice Machine, 38 lb. Storage, 115V
A compact undercounter machine that makes clear, slow-melting 1-inch square cubes for craft cocktails and premium drinks.
The Manitowoc Ice USP0100A-161 CrystalCraft makes up to 100 lb. a day of crystal clear, individually formed 1" x 1" cubes, each about 22.5 g, and stores up to 38 lb., about 868 cubes. It has a heavy duty stainless steel cabinet, R290 refrigerant, and plugs into a 115V outlet with its 6 ft. cord. Manitowoc built it with fewer moving parts and easy one-touch cleaning.
The legs adjust from 4-1/2" to 6"; the drawing shows 31.5" cabinet height without the legs.
Each cube is crystal clear, 1" x 1" and weighs 22.5 g, so it melts slowly and shows off the drink.
The bin holds 38 lb. of ice, about 868 cubes, under the ice maker.
A heavy duty stainless steel cabinet resists corrosion behind the bar.
Air enters at the front and leaves at the back, with no side vents.
Fewer moving parts and one-touch cleaning keep routine care simple.
Crystal clear, individually formed square cubes, 1" x 1", about 22.5 g each. Manitowoc designs them to melt slowly for handcrafted cocktails.
Up to 100 lb. a day at 70°F air and 50°F water, and 88 lb. at 90°F air and 70°F water. The bin stores 38 lb.
115V, 60 Hz, single phase, with a 6 ft. cord and NEMA 5-15P plug. It draws 10 amps; maximum fuse size is 15 amps.
It is 19.68" wide, 22.83" deep and 37.5" high with the legs at 6". Leave 2" at the sides and top and 8" at the back.

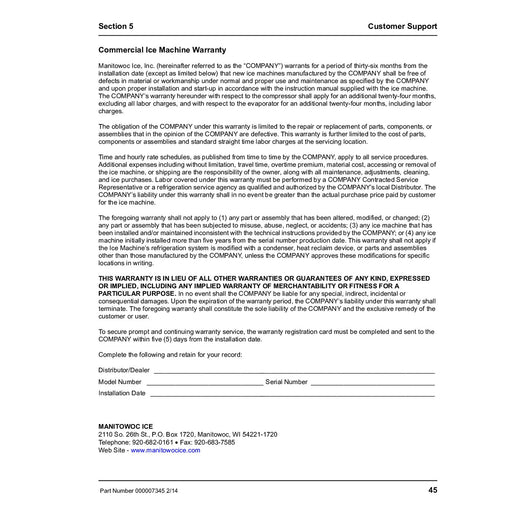

Manitowoc covers the USP0100 for 3 years parts and labor.
Yes. Manitowoc Ice equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Manitowoc Ice |
|---|---|
| Model Number | USP0100A-161 |
| Product Line | CrystalCraft |
| Ice Type | Square cube, crystal clear |
| Cube Size | 1" x 1", 22.5 g |
| Condenser | Self-contained air-cooled |
| Width | 19.68 Inches |
| Depth | 22.83 Inches |
| Height | 37.5 Inches |
| Height Note | Height includes adjustable bin legs set at 6"; drawing shows 31.5" without legs |
| Installation Clearance | Sides 2"Back 8"Top 2" |
| Capacity | 100 lb. per 24 hours |
| Production at 90°F Air/70°F Water | 88 lb. |
| Ice Storage | 38 lb.About 868 cubes |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Amps | 10 Amps |
| Maximum Fuse Size | 15 Amps; HACR-type breakers allowed |
| Plug Type | NEMA 5-15P |
| Cord | 6 ft. factory-wired power cord |
| Refrigerant | R290 |
| Compressor | 1/3 HP nominal |
| Heat Rejection | 2,350 BTU per hour average3,637 BTU per hour peak |
| Energy Use | 9.62 kWh per 100 lb. of ice at 90°F air/70°F water |
| Potable Water Use | 55.4 gal. per 100 lb. of ice |
| Water Inlet | 3/8" NPT |
| Water Outlet | 1/2" NPT |
| Water Pressure | 20 to 80 psi |
| Ambient Temperature | 50°F to 110°F |
| Water Temperature | 40°F to 90°F |
| Exterior | Heavy duty stainless steel |
| Standard Equipment | Ice scoop6" bin legs, adjustable 4-1/2" to 6" |
| Certifications | ETL Listed to UL 563 and CAN/CSA C22.2 No. 120, ETL Sanitation to NSF/ANSI 12, CE, AHRI Certified |
| Warranty | 3 Years Parts and Labor |
