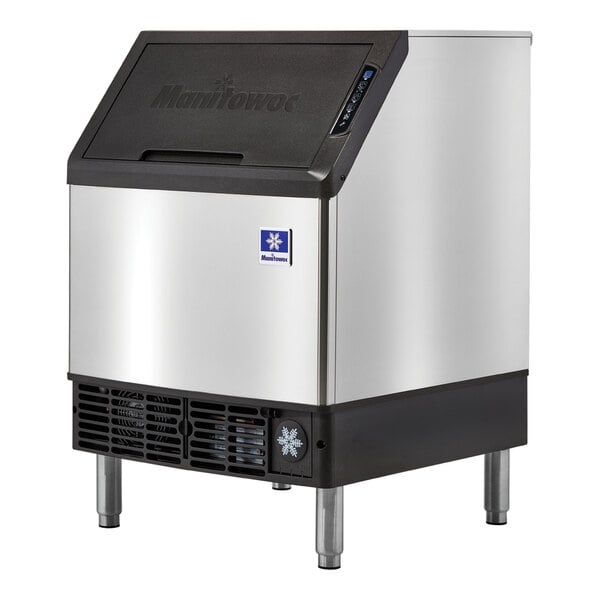

Manitowoc Ice UYP0140A-161B NEO 150 lb. Undercounter Half Dice Ice Machine, 90 lb. Storage, 115V
A front-breathing undercounter ice machine that makes and stores half dice ice for bars, cafes and small kitchens.
The Manitowoc Ice NEO UYP0140A-161B is a self-contained, air-cooled undercounter ice machine that makes up to 150 lb. of half dice ice a day at 70°F air and 50°F water (114 lb. at 90°F air and 70°F water) and stores up to 90 lb. It breathes from the front, has onboard water filtration and a removable bin, and plugs into a 115V outlet with its 8 ft. cord.
Front ventilation means it can sit under a countertop or beside other equipment.
Half-dice cubes measure 3/8" x 1-1/8" x 7/8", a size that fills glasses and bags well.
Front airflow suits installation under countertops or next to other equipment; Manitowoc recommends 5" at top, sides and back but requires no minimum.
An integrated water filter improves efficiency and performance and keeps ice cleaner and clearer.
The forward-sliding storage bin comes out for access to refrigeration parts during cleaning and maintenance.
Touchpad keys and lights for on/off, delay, clean, filter change, full bin and service.
Up to 150 lb. a day at 70°F air and 50°F water, or 114 lb. at 90°F air and 70°F water. The bin holds 90 lb. by Manitowoc's application rating.
115V, 60 Hz, single phase. It comes with an 8 ft. cord and NEMA 5-15P plug, draws 5.0 amps and takes a 15 amp maximum fuse. The B in -161B means the US NEMA plug.
It is 26" wide, 28.5" deep and 38.5" high on its 6" legs. The cabinet without legs is 32.5" high. Manitowoc recommends 5" at top, sides and back, but no minimum clearance is required.
A 3/8" FPT ice making water inlet, a 1/2" FPT ice making water drain and a 1/2" FPT bin drain. Water pressure must be 20 to 80 psi.
Manitowoc lists internal cartridges K00530 (standard, 5 micron) and K00531 (enhanced, 0.5 micron).

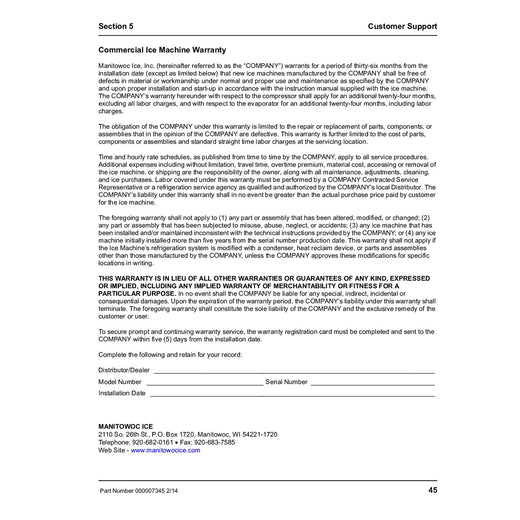

Limited commercial warranty: ice maker 3 years parts and labor, evaporator 5 years parts and labor, compressor 5 years parts and 3 years labor.
Yes. Manitowoc Ice equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Manitowoc Ice |
|---|---|
| Model Number | UYP0140A-161B |

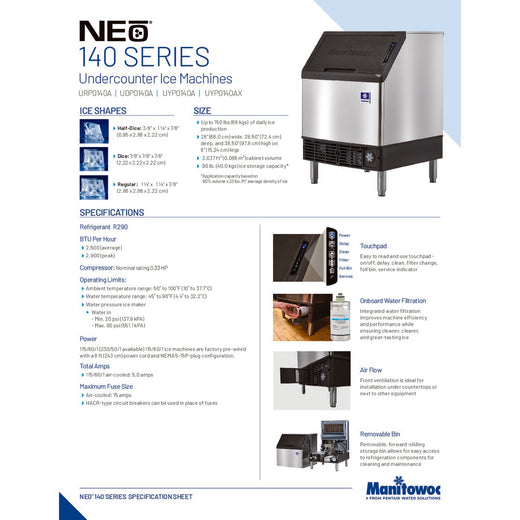

| Series | NEO 140 Series undercounter |
| Ice Type | Half dice cube |
| Cube Size | 3/8" x 1-1/8" x 7/8" |
| Condenser | Self-contained air-cooled |
| Model Suffix | -161: 115/60/1B: NEMA plug, USA |
| Width | 26 Inches |
| Depth | 28.5 Inches |
| Height | 38.5 Inches |
| Cabinet Height Without Legs | 32.5 Inches |
| Installation Clearance | 5" recommended at top, sides and backNo minimum required |
| Capacity | 150 lb. per 24 hours |
| Production at 70°F Air/50°F Water | 150 lb. |
| Production at 90°F Air/70°F Water | 114 lb. |
| Ice Storage | 90 lb., application capacity |
| Cabinet Volume | 3.037 cu. ft. |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Amps | 5.0 Amps |
| Maximum Fuse Size | 15 Amps; HACR-type breakers allowed |
| Plug Type | NEMA 5-15P |
| Cord | 8 ft. factory-wired power cord |
| Refrigerant | R290 |
| Compressor | 0.33 HP nominal |
| Heat Rejection | 2,500 BTU per hour average2,900 BTU per hour peak |
| Energy Use | 7.25 kWh per 100 lb. of ice at 90°F air/70°F water |
| Potable Water Use | 17 gal. per 100 lb. of ice |
| Water Inlet | 3/8" FPT |
| Ice Making Water Drain | 1/2" FPT |
| Bin Drain | 1/2" FPT |
| Water Pressure | 20 to 80 psi |
| Water Filter | OnboardReplacement K00530 standard 5 micron, K00531 enhanced 0.5 micron |
| Ambient Temperature | 50°F to 100°F |
| Water Temperature | 45°F to 90°F |
| Control Type | Touchpad: power, delay, clean, filter, full bin, service |
| Standard Equipment | 6" adjustable legsPlastic NEO ice scoop |
| Shipping Weight | 150 lb. |
| Certifications | ETL Listed to UL 563 and CAN/CSA C22.2 No. 120, ETL Sanitation to NSF/ANSI 12, AHRI Certified, California Low Lead Qualified |
| Warranty | 3 Years Parts and Labor on the Ice Maker |
| Evaporator Warranty | 5 years parts and labor |
| Compressor Warranty | 5 years parts, 3 years labor |
