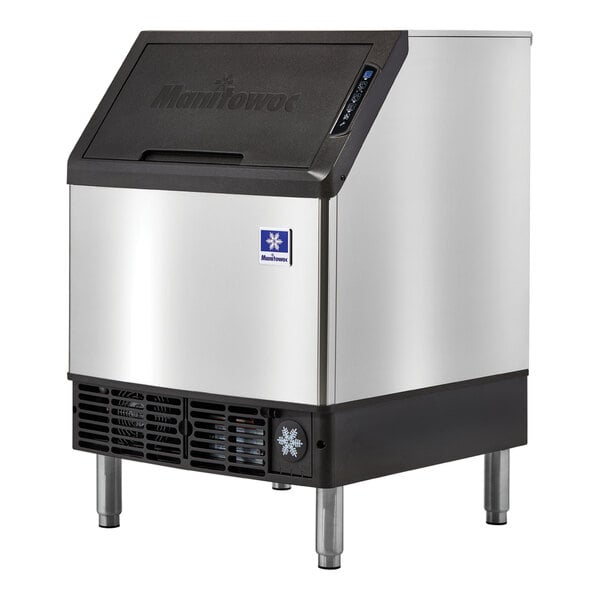

Manitowoc Ice UYP0240W-161B NEO 26" Water-Cooled Undercounter Half-Dice Cube Ice Machine, 235 lb., 90 lb. Bin, 115V
A 26-inch-wide undercounter ice machine that makes up to 235 lb. of half dice cubes a day and holds 90 lb. in its own bin.
The Manitowoc NEO UYP0240W-161B is a self-contained, water-cooled undercounter cuber from the NEO 240 series. It makes up to 235 lb. of half dice ice in 24 hours at 70°F air and 50°F water (214 lb. at 90°F air and 70°F water) and stores it in a 90 lb. built-in bin. Its water-cooled cupronickel condenser adds protection from corrosive water elements and needs its own condenser water supply and drain. The -161B version runs on 115V and comes pre-wired with an 8 ft. cord and NEMA 5-15P plug.
Measure the opening under the counter: the machine is 38.5" tall on 6" legs, and Manitowoc asks for a 43.5" H high cut-out when built in.
Rated 235 lb. of half dice cubes per 24 hours at 70°F air and 50°F water, and 214 lb. at 90°F air and 70°F water.
The 3.037 cu. ft. cabinet holds 90 lb. of ice. The bin slides forward and comes out for access to the refrigeration parts.
Front touchpad with on/off, delay, clean, filter change, full bin and service indicator.
Integrated water filtration with a built-in bypass. Replacement cartridges: K00530 standard 5 micron or K00531 enhanced 0.5 micron.
The cupronickel condenser adds protection from corrosive water. It uses about 166 gal. of condenser water per 100 lb. of ice.
Uses natural R290 refrigerant, a 5.3 oz. charge, with a 1/2 HP compressor. Energy use is 4.65 kWh per 100 lb. of ice.
Up to 235 lb. of half dice cubes in 24 hours at 70°F air and 50°F water, and 214 lb. at 90°F air and 70°F water. The bin holds 90 lb.
115V, 60 Hz, single phase. It draws 6 amps and comes with an 8 ft. cord and NEMA 5-15P plug. Use a dedicated circuit with a 15 amp maximum fuse or HACR breaker.
The unit is 26" W x 28.5" D x 38.5" H on 6" legs. For a built-in cabinet, Manitowoc lists a minimum cut-out of 31" W x 33.5" D x 43.5" H.
Half-Dice cubes measure 3/8" x 1-1/8" x 7/8".
3/8" FPT water inlet with 20 to 80 psi potable cold water, plus a 1/2" FPT ice-making drain and a 1/2" FPT bin drain to a vented floor drain. The water-cooled condenser adds a 3/8" FPT inlet (20 to 150 psi) and a 1/2" FPT drain.

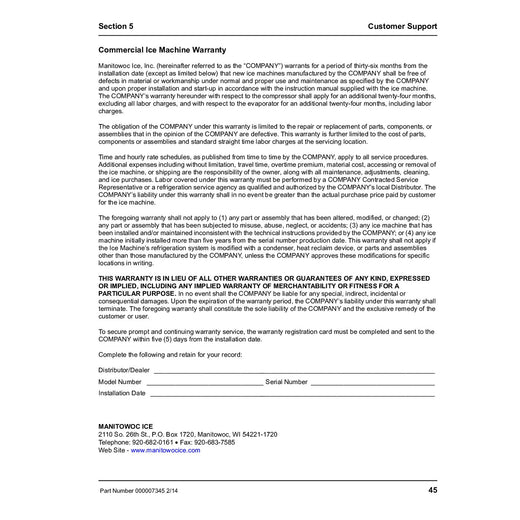

Manitowoc lists a limited commercial warranty of 3 years parts and labor on the ice maker, 5 years parts and labor on the evaporator, and 5 years parts and 3 years labor on the compressor. Coverage begins on the installation date.
Yes. Manitowoc Ice equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Manitowoc Ice |
|---|---|
| Model Number | UYP0240W-161B |
| Series | NEO 240 Series Undercounter |
| Type | Self-Contained Water-Cooled Undercounter Cube Ice Machine with Bin |
| Shipping Weight | 165 lb. |
| Width | 26 Inches |
| Depth | 28.5 Inches |
| Height | 38.5 Inches |
| Height Detail | 32.50" Cabinet on 6" Adjustable Legs |
| Built-In Cut-Out | 31" W x 33.5" D x 43.5" H |
| Clearance | Top, Sides and Back 5" Recommended, No Minimum RequiredFront 36" for Filter Panel |
| Capacity | 235 lb. per 24 Hours |
| Production at 70°F Air / 50°F Water | 235 lb. per 24 Hours |
| Production at 90°F Air / 70°F Water | 214 lb. per 24 Hours |
| Ice Storage | 90 lb.Cabinet Volume 3.037 cu. ft. |
| Ice Shape | Half-Dice Cube |
| Cube Size | 3/8" x 1-1/8" x 7/8" |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 6 Amps |
| Max Fuse Size | 15 Amps, HACR Breaker Allowed |
| Plug Type | NEMA 5-15P |
| Cord | 8 ft. Pre-Wired |
| Condenser | Water-CooledCupronickel |
| Refrigerant | R2905.3 oz. Charge |
| Compressor | 1/2 HP |
| Heat of Rejection | 3,700 BTU/hr Average4,400 BTU/hr Peak |
| Energy Use | 4.65 kWh per 100 lb. of Ice at 90°F Air / 70°F Water |
| Potable Water Use | 17 gal. per 100 lb. of Ice |
| Water Inlet | 3/8" FPT20 to 80 psi |
| Drains | 1/2" FPT Ice-Making Drain1/2" FPT Bin Drain |
| Condenser Water | 3/8" FPT Inlet, 20 to 150 psi1/2" FPT Drain166 gal. per 100 lb. of Ice |
| Temperature Range | 50 to 100°F Ambient |
| Water Temperature | 45 to 90°F |
| Control Type | TouchpadOn/Off, Delay, Clean, Filter Change, Full Bin, Service Indicator |
| Bin | Removable, Forward-Sliding Storage Bin |
| Standard Accessories | Plastic NEO Ice Scoop6" Adjustable Legs |
| Water Filtration | OnboardReplacement Cartridges K00530 5 Micron, K00531 0.5 Micron |
| Certifications | ETL Listed, ETL Sanitation, AHRI Certified, California Low Lead Qualified |
| Warranty | 3 Years Parts and Labor |
| Warranty Detail | 3 Years Parts and LaborEvaporator 5 Years Parts and LaborCompressor 5 Years Parts, 3 Years Labor |
