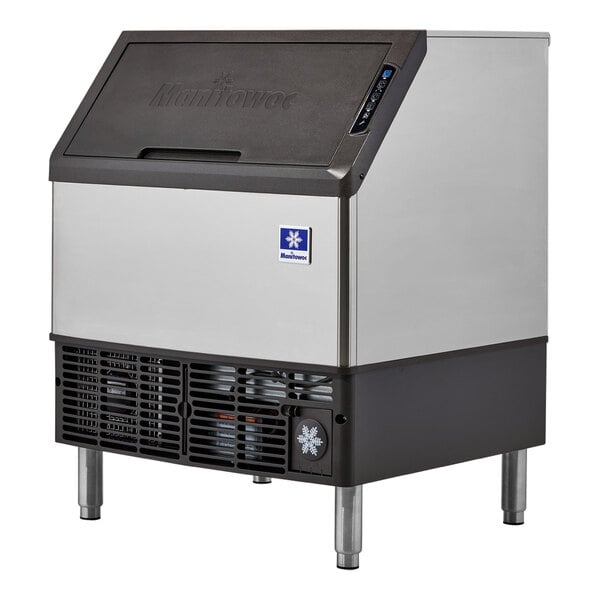

Manitowoc Ice UYP0310A-161B NEO 30" Air-Cooled Undercounter Half-Dice Cube Ice Machine, 330 lb., 119 lb. Bin, 115V
A 30-inch-wide undercounter ice machine that makes up to 330 lb. of half dice cubes a day and holds 119 lb. in its own bin.
The Manitowoc NEO UYP0310A-161B is a self-contained, air-cooled undercounter cuber from the NEO 310 series. It makes up to 330 lb. of half dice ice in 24 hours at 70°F air and 50°F water (270 lb. at 90°F air and 70°F water) and stores it in a 119 lb. built-in bin. Air goes in and out the front, so it can sit under a counter or next to other equipment. The -161B version runs on 115V and comes pre-wired with an 8 ft. cord and NEMA 5-15P plug.
Measure the opening under the counter: the machine is 38.5" tall on 6" legs, and Manitowoc asks for a 43.5" H high cut-out when built in.
Rated 330 lb. of half dice cubes per 24 hours at 70°F air and 50°F water, and 270 lb. at 90°F air and 70°F water.
The 3.99 cu. ft. cabinet holds 119 lb. of ice. The bin slides forward and comes out for access to the refrigeration parts.
Front touchpad with on/off, delay, clean, filter change, full bin and service indicator.
Integrated water filtration with a built-in bypass. Replacement cartridges: K00530 standard 5 micron or K00531 enhanced 0.5 micron.
Air enters and leaves through the front, which suits installation under countertops or next to other equipment.
Uses natural R290 refrigerant, a 5.2 oz. charge, with a 1/2 HP compressor. Energy use is 5.85 kWh per 100 lb. of ice.
Up to 330 lb. of half dice cubes in 24 hours at 70°F air and 50°F water, and 270 lb. at 90°F air and 70°F water. The bin holds 119 lb.
115V, 60 Hz, single phase. It draws 8 amps and comes with an 8 ft. cord and NEMA 5-15P plug. Use a dedicated circuit with a 15 amp maximum fuse or HACR breaker.
The unit is 30" W x 28.5" D x 38.5" H on 6" legs. For a built-in cabinet, Manitowoc lists a minimum cut-out of 35" W x 33.5" D x 43.5" H.
Half-Dice cubes measure 3/8" x 1-1/8" x 7/8".
3/8" FPT water inlet with 20 to 80 psi potable cold water, plus a 1/2" FPT ice-making drain and a 1/2" FPT bin drain to a vented floor drain.

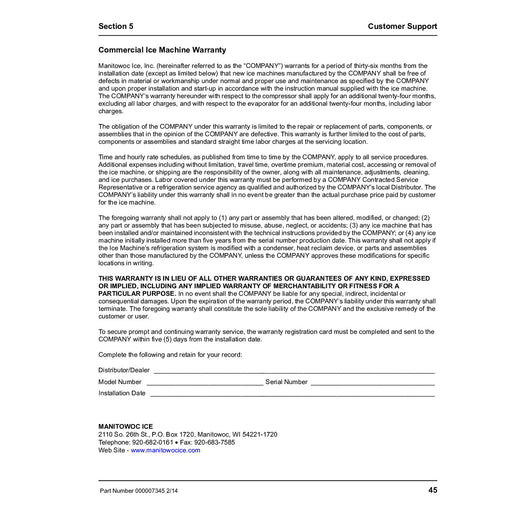

Manitowoc lists a limited commercial warranty of 3 years parts and labor on the ice maker, 5 years parts and labor on the evaporator, and 5 years parts and 3 years labor on the compressor. Coverage begins on the installation date.
Yes. Manitowoc Ice equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Manitowoc Ice |
|---|---|
| Model Number | UYP0310A-161B |
| Series | NEO 310 Series Undercounter |
| Type | Self-Contained Air-Cooled Undercounter Cube Ice Machine with Bin |
| Shipping Weight | 190 lb. |
| Width | 30 Inches |
| Depth | 28.5 Inches |
| Height | 38.5 Inches |
| Height Detail | 32.50" Cabinet on 6" Adjustable Legs |
| Built-In Cut-Out | 35" W x 33.5" D x 43.5" H |
| Clearance | Top, Sides and Back 5" Recommended, No Minimum RequiredFront 36" for Filter Panel |
| Capacity | 330 lb. per 24 Hours |
| Production at 70°F Air / 50°F Water | 330 lb. per 24 Hours |
| Production at 90°F Air / 70°F Water | 270 lb. per 24 Hours |
| Ice Storage | 119 lb.Cabinet Volume 3.99 cu. ft. |
| Ice Shape | Half-Dice Cube |
| Cube Size | 3/8" x 1-1/8" x 7/8" |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 8 Amps |
| Max Fuse Size | 15 Amps, HACR Breaker Allowed |
| Plug Type | NEMA 5-15P |
| Cord | 8 ft. Pre-Wired |
| Condenser | Air-CooledFront Airflow |
| Refrigerant | R2905.2 oz. Charge |
| Compressor | 1/2 HP |
| Heat of Rejection | 5,500 BTU/hr Average6,500 BTU/hr Peak |
| Energy Use | 5.85 kWh per 100 lb. of Ice at 90°F Air / 70°F Water |
| Potable Water Use | 15.5 gal. per 100 lb. of Ice |
| Water Inlet | 3/8" FPT20 to 80 psi |
| Drains | 1/2" FPT Ice-Making Drain1/2" FPT Bin Drain |
| Temperature Range | 50 to 100°F Ambient |
| Water Temperature | 45 to 90°F |
| Control Type | TouchpadOn/Off, Delay, Clean, Filter Change, Full Bin, Service Indicator |
| Bin | Removable, Forward-Sliding Storage Bin |
| Standard Accessories | Plastic NEO Ice Scoop6" Adjustable Legs |
| Water Filtration | OnboardReplacement Cartridges K00530 5 Micron, K00531 0.5 Micron |
| Certifications | ETL Listed, ETL Sanitation, AHRI Certified, California Low Lead Qualified |
| Warranty | 3 Years Parts and Labor |
| Warranty Detail | 3 Years Parts and LaborEvaporator 5 Years Parts and LaborCompressor 5 Years Parts, 3 Years Labor |
