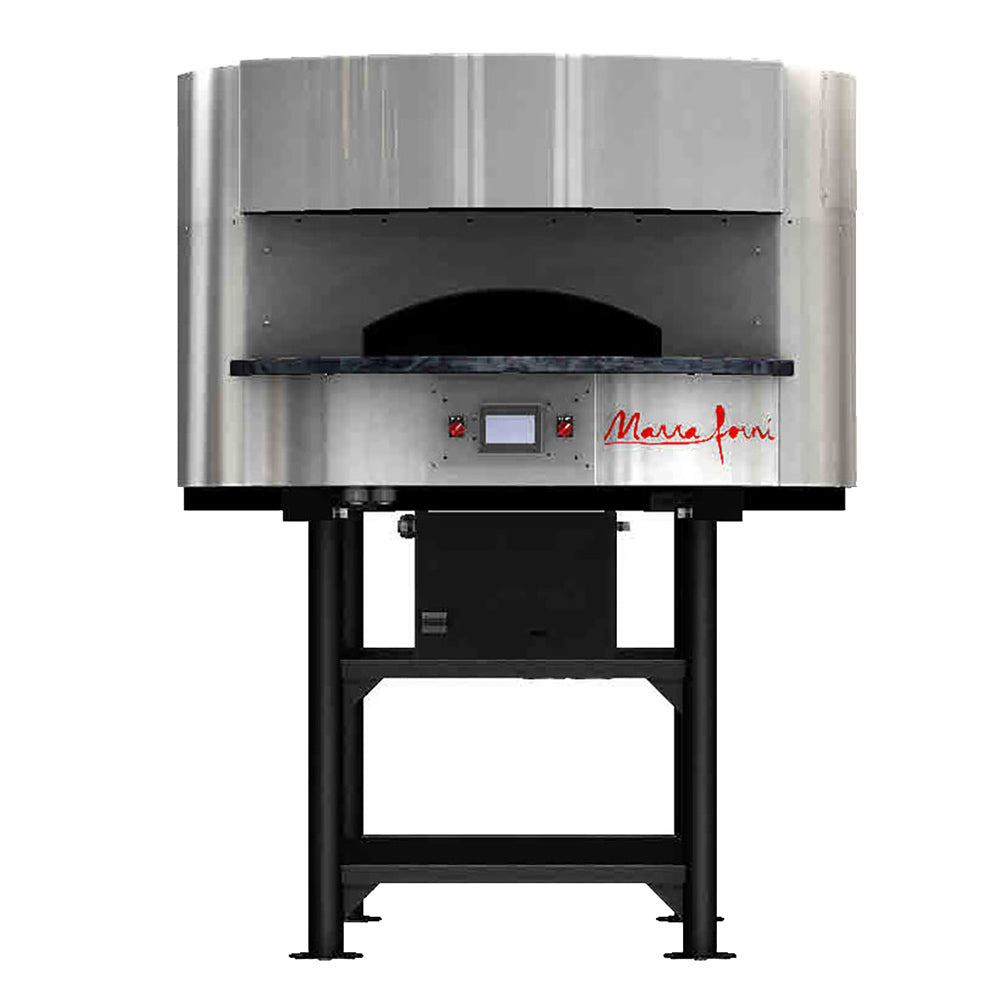

Marra Forni ELMR39-43 58" Electric Brick Pizza Oven, Round Stainless Exterior, 38-7/8" x 42-5/8" Deck, 208-240V 3-Phase
An electric brick oven with a round, flush stainless steel exterior that wipes clean that bakes pizza at up to 950°F without a gas line or wood.
The Marra Forni ELMR39-43 is a freestanding ELMR (Electric Metal Round) oven for pizzerias, restaurants and kitchens where gas or wood is not an option. Its 38-7/8" x 42-5/8" MarraStone deck holds about 5 twelve-inch pizzas per load, and separate upper and lower infrared heaters run from 200 to 950°F under a MarraSmart touchscreen. It has a round, flush stainless steel exterior that wipes clean and runs on 208-240V 3-phase power, hardwired by your electrician.
Marra Forni does not list a minimum doorway. Measure every door and turn on the delivery path against the 66-1/4" depth and the crate size, and call us before ordering.
A single 208-240V 3-phase hardwired connection powers the oven, so it suits sites without gas service or wood storage.
The MarraStone refractory brick deck, made with volcanic material, holds heat up to 950°F for steady baking.
Separate infrared heaters above and below the deck are set independently on the MarraSmart touchscreen, which also stores menus and runs timed on/off.
A flush stainless steel exterior and a 1-1/4" black granite ledge make daily wipe-downs quick.
Interior lighting and a removable front door make it easy to watch the bake and clean the chamber.
It needs a 208-240V, 50/60 Hz, 3-phase supply for 18.1 kW: 50 A peak load, 70 A minimum supply ampacity and a 70 A maximum breaker. Your electrician hardwires it to the internal terminal block; a 380-450V 3-phase version is also listed.
No gas line is needed. It can go under a Type 1 exhaust hood, or connect to Marra Forni's optional direct-vent system (8" collar, 150 CFM), which also requires the exhaust fan option. Your installer is responsible for meeting local ventilation codes.
The oven measures 57-7/8" W x 66-1/4" D x 79-1/8" H and ships in a 73" x 83" x 87" crate weighing 1,770 lb. Marra Forni does not list a minimum doorway, so measure the delivery path and call us before ordering.
Marra Forni rates the 38-7/8" x 42-5/8" deck for about 10 eight-inch, 6 ten-inch, 5 twelve-inch or 4 sixteen-inch pizzas per load. Output depends on the product and set temperature.
Yes. The 200-950°F range covers pizza, bread and other approved foods, and the MarraSmart controller stores programs for each menu item.
Marra Forni ovens are quoted per order. Call (201) 467-8222 or request a quote for current pricing, lead time and freight to your ZIP code.
The current spec sheet does not state warranty terms. Ask us and we will include Marra Forni's current warranty with your quote.
Specs
| Manufacturer | Marra Forni |
|---|---|
| Model Number | ELMR39-43 |
| Quantity | 1 Each |
| Shipping Weight | 1,770 lb. (Crated) |
| Unit Weight | 1,470 lb. |
| Width | 57.875 Inches |
| Depth | 66.25 Inches |
| Height | 79.125 Inches |
| Overall Width at Widest Point | 61-7/8" |
| Crated Size | 73" W x 83" D x 87" H |
| Number of Decks | 1 |
| Deck Size | 38-7/8" W x 42-5/8" D |
| Cooking Surface | 11.50 sq. ft. |
| Door Opening | 24" W x 5-1/2" H |
| Capacity | 5 x 12" Pizzas |
| Pizzas per Load (Typical) | 8": 1010": 612": 516": 4 |
| Temperature Range | 200 - 950 Degrees F |
| Voltage | 208-240 Volts |
| Hertz | 50/60 |
| Phase | 3 |
| Wattage | 18.1 kW |
| Amps | 50 Amps |
| Minimum Supply Ampacity | 70 A |
| Maximum Breaker / Disconnect | 70 A |
| International Voltage | 380-450V 3-Phase29 A Peak40 A Breaker |
| Electrical Connection | Internal Terminal Block With Strain ReliefFlexible Connection by Others |
| Plug Type | Hardwired |
| Power Type | Electric |
| Heating | Upper and Lower Radiant Infrared Elements |
| Deck Material | MarraStone Refractory Brick With Volcanic Material |
| Controls | MarraSmart Programmable Digital Touchscreen |
| Exterior | Stainless Steel ExteriorGalvanneal Interior Walls and Ceiling |
| Mantle | 1-1/4" Black Granite Ledge |
| Door | Removable Oven Door |
| Lighting | Interior Lighting |
| Stand | Matte Black Steel Stand |
| Ventilation | Type 1 Hood or Optional Direct Vent8" Round Collar, 150 CFM at 0.01" W.C. |
| Clearance | 2" From Combustible Surfaces (Sides and Rear)0" From Non-Combustible Surfaces18" Side Clearance Recommended for Service |
| Freight | LTL, Freight Class 77.5 |
| Certifications | cETLus, ETL Sanitation |
| Standards | UL 197CSA C22.2 No. 109NSF/ANSI 4 |
| Country of Origin | Made in USA |
| Usage | Commercial Pizza, Baking and Cooking |
