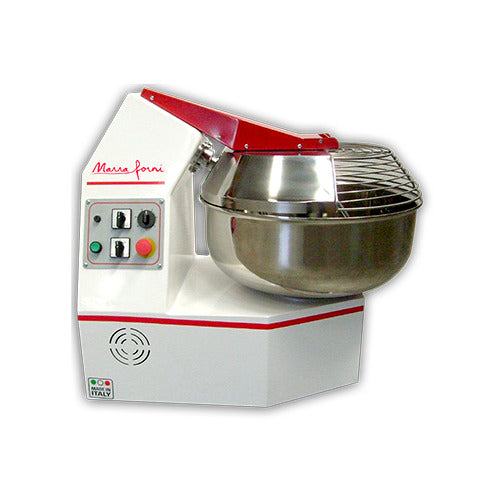

Marra Forni FC35M Fork Dough Mixer, 42 Qt. Bowl, 77 lb. Dough Capacity, 1.5 HP, 220V Single-Phase
A 42 qt. fork mixer that folds up to 77 lb. of pizza or bread dough without heating it.
The Marra Forni FC35M is a fork dough mixer for pizzerias, bakeries and restaurants that make their own dough. It kneads 35 kg (77 lb.) of dough with 50 lb. of flour in a 42 qt. stainless steel bowl, about 90-110 dough balls per 17-20 minute mix. The 1.5 hp motor runs on 220V single-phase power from a 15 A circuit. Fork mixing folds and oxygenates the dough instead of heating it, which suits soft and high-hydration doughs.
The fork folds and oxygenates the dough quickly, so it does not warm up from friction during mixing.
A motor with two gear reducers in an oil bath drives the bowl and fork through trapezoidal belts and cast iron pulleys.
The transparent polycarbonate cover over the bowl trips a switch and stops the fork when it is lifted; START restarts it once closed.
The side control panel works at 24V, and the electrical parts sit in an IP54 box with short-circuit and overload protection.
It runs on 220V single-phase power and needs a 15 A circuit. The mixer has a power cable on its side; any plug or switch not supplied by Marra Forni must match the nameplate rating, and the machine must be connected through a manual disconnect.
It measures about 23.33" wide, 34.84" deep and 35.04" high and weighs 320 lb. Place it on a flat, solid floor with room to reach every side for cleaning and service, and measure doorways on the delivery path.
Marra Forni rates it for 35 kg (77 lb.) of dough and 50 lb. of flour in a 42 qt. bowl. That is about 90-110 dough balls per 17-20 minute mix.
Marra Forni recommends fork mixers for soft and high-hydration doughs: the fork folds the dough and oxygenates it without warming it, so the oven, not the mixer, heats the dough. Spiral mixers handle a wider range of doughs and mix about twice as fast.
Marra Forni designed its mixers for flour-and-water doughs for pizza, bread and other baked goods. Using it for anything else is treated as misuse and voids the warranty.
Clean the bowl, fork and grill daily and the whole machine weekly with a mild detergent for food machines, with the power disconnected. A trained technician should adjust the drive belt tension after the first 20 hours and then monthly, and the power cord should be checked monthly.
Marra Forni equipment is quoted per order. Call (201) 467-8222 or request a quote for current pricing, lead time and freight to your ZIP code.
Marra Forni's mixer manual lists a one-year parts and labor warranty from the date of purchase, excluding damage from improper installation, maintenance, misuse or tampering. Repairs must be done by an authorized technician. Ask us for the current terms with your quote.
Specs
| Manufacturer | Marra Forni |
|---|---|
| Model Number | FC35M |
| Quantity | 1 Each |
| Unit Weight | 320 lb. |
| Width | 23.33 Inches |
| Depth | 34.84 Inches |
| Height | 35.04 Inches |
| Mixer Type | Fork Dough Mixer |
| Capacity | 77 lb. Dough |
| Kneading Capacity | 35 kg / 77 lb. |
| Flour Capacity | 50 lb. |
| Bowl Capacity | 42 Quarts |
| Output | About 90-110 Dough Balls per 17-20 Minute Mix |
| Horsepower | 1.5 HP |
| Motor | Single-Phase |
| Voltage | 220 Volts |
| Phase | 1 |
| Amps | 15 Amp Circuit |
| Power Connection | Power Cable on the Side of the MachinePlug and Disconnect Must Match the Nameplate Rating |
| Bowl, Fork and Shaft | Stainless Steel |
| Bowl Guard | Transparent Polycarbonate Bowl Cover |
| Drive | Motor With Two Oil-Bath Gear Reducers, Trapezoidal Belts and Cast Iron Pulleys |
| Body | Sheet Steel With Non-Toxic, Food-Safe Epoxy Paint |
| Safety | Guard Switch Stops the Fork When the Guard Is LiftedIP54 Electrical Box24V ControlsShort-Circuit and Overload Protection |
| Controls | Control Panel on the Side of the Machine |
| Electrical Standard | Electric System and Safety Devices Meet European Regulations |
| Freight Class | 85 |
| Warranty | One Year Parts and Labor |
| Usage | Flour-and-Water Doughs for Pizza, Bread and Baked Goods |
