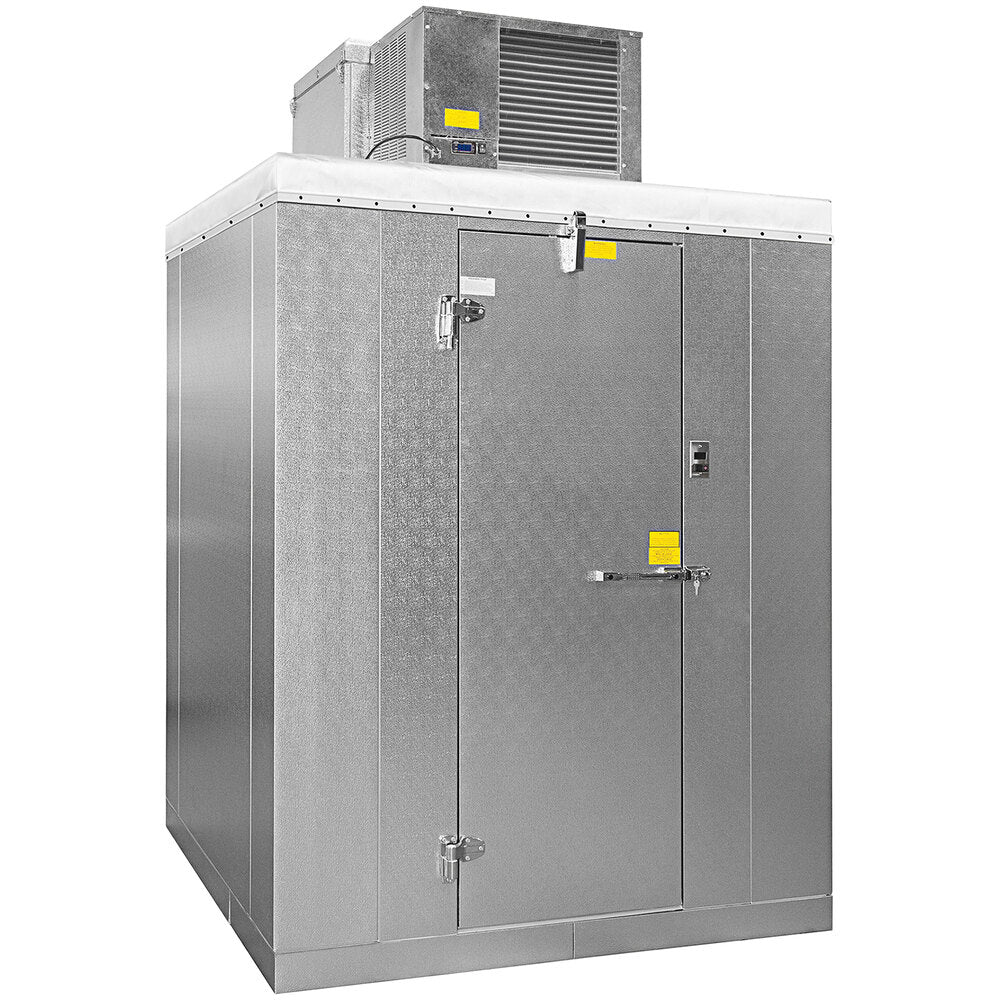

Master-Bilt QODB77610-C 6' x 10' Outdoor Walk-In Cooler with Floor, 7'7" H, Capsule Pak ECO 3/4 HP R290, 115V
A 6' x 10' cooler for outdoor installation, with a one-piece R290 refrigeration system that mounts on the roof and plugs in.
The Master-Bilt QODB77610-C is a QS Series outdoor walk-in cooler with a 6' x 10' footprint, 7'7" high with an aluminum floor, and 344 cu. ft. of storage. It is matched with the Capsule Pak ECO CPB075PC-E-0, a 3/4 HP self-contained ceiling-mount system rated 6,700 BTUH that runs on 115/60/1 power with a NEMA 5-20P plug. Walls and ceiling are 4" foamed-in-place panels clad in 26 gauge stucco embossed coated steel, and the +37°F design temperature is held by a LogiTemp electronic controller. Outdoor models add a one-piece white membrane roof with flashing trim.
Keep 24" open on each side of the roof-mounted system for condenser air and service access.
Panels are 4" thick, metal clad and foamed in place with HFC-free HFO polyurethane. Minimum R-value is 25 for walls, ceiling and door.
The CPB075PC-E-0 puts the condensing unit and evaporator coil in one pre-charged housing that drops into a factory-cut ceiling opening. A flush coil keeps the components out of the storage space.
The system uses 9.5 oz. of R290 (two compressors at 4.75 oz each) and is DOE, CARB and SNAP compliant, with an AWEF of 7.6.
Digital readout, four-button setup and electronic automatic defrost on coolers and freezers. Error codes and settings are available online as a standard outdoor feature.
Self-closing flush door with stepped profile, two cam-lift hinges, spring closer, magnetic gasket, heated threshold, perimeter heater wire and a deadbolt handle with key/padlock feature and inside safety release.
A one-piece 35 mil white membrane roof needs no seaming or gluing, and metal trim flashes it to the wall panels with TEK screws. Outdoor cooler systems add a heater to keep the box at set point in low ambient temperatures.
The box is 6' x 10' (72" x 120") and 7'7" high with its floor. The roof-mounted Capsule Pak ECO housing adds 14.92", and Master-Bilt asks for 4" above it and 24" on each side.
The CPB075PC-E-0 runs on 115/60/1 at 11.4 A and has a 9 ft. cord with a NEMA 5-20P plug, so it needs its own grounded receptacle. The door section takes a separate 120/60/1 feed at 0.88 A, wired to a junction box.
It is designed for +37°F. The cooler control comes set at 35°F, and the set point can be adjusted from 32°F to 55°F.
Yes. It has a smooth aluminum interior floor rated for uniformly distributed loads up to 800 lb. per sq. ft.
Master-Bilt lists a 15-year panel warranty and 18 months parts and labor. A 5-year compressor warranty is available as an option. Warranty repairs must be done by an RSG authorized service provider.
Options include 30" or 36" doors, U-shaped shelving kits in Green Kote or Chrome Kote, an exterior ramp, floor tread kickplate kit, strip curtains, a leak detector/alarm and the 5-year compressor warranty. Outdoor models can add a door rain hood. They are not included in this listing.
Yes. Outdoor QS models include the membrane roof kit and -20°F ambient controls, and the outdoor cooler system has a heater to keep product from freezing in cold weather.
Yes. Master-Bilt equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Master-Bilt |
|---|---|
| Model Number | QODB77610-C |
| Series | QS Series Walk-In |
| QS Sheet Model | QOD77610 |
| Type | Outdoor Walk-In Cooler, Self-Contained Ceiling Mount Refrigeration |
| Usage | Outdoor |
| Width | 72 Inches |
| Depth | 120 Inches |
| Height | 91 Inches |
| Nominal Size | 6' x 10' x 7'7"Sizes Listed as Actual |
| Refrigeration Housing | 14.92" High48.25" Long4" Clearance Above, 24" Each Side |
| Capacity | 344 cu. ft. |
| Refrigeration System | Capsule Pak ECO CPB075PC-E-0Self-Contained, Ceiling Mount, Air Cooled |
| Horsepower | 3/4 HP |
| Capacity BTUH | 6,700 BTUH16-Hour Design Runtime, 90°F Ambient |
| Refrigerant | R2909.5 oz. Charge |
| AWEF | 7.6 |
| Temperature Range | 32°F to 55°F Set Point |
| Design Temperature | +37°F |
| Defrost | Electronic Automatic Defrost |
| Low Ambient Protection | Crankcase HeatersCooler Heater Below 32°F Ambient |
| System Ship Weight | 228 lb. |
| Voltage | 115 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 11.4 Amps |
| Plug Type | NEMA 5-20P |
| Cord | 9 ft. Attached to Condensing Unit |
| Door Section Electrical | 120/60/10.88 A106.07 WField Wired to Junction Box |
| Door Opening | 26" W x 78" H30" or 36" Optional |
| Door Features | Self-Closing, Flush, InfittingRight or Left HingeCam-Lift HingesSpring CloserDeadbolt Handle with Inside Safety ReleaseMagnetic GasketHeated ThresholdPerimeter Heater Wire |
| Door Energy Use | 2.49 kWh/day |
| Lighting and Controls | Vapor-Proof LED Light Above DoorDigital ThermometerLight Switch with Exterior Pilot Light |
| Panels | 4" Foamed-In-Place HFO Polyurethane, HFC FreeCam-Lock FastenersFoamed-In Gaskets |
| Exterior | 26 Gauge Stucco Embossed Coated Steel |
| Interior | 26 Gauge Stucco Embossed Coated Steel |
| Floor | Smooth Aluminum800 lb. per sq. ft. Uniform Load |
| R-Value | Walls and Ceiling R-25Door R-25 |
| Outdoor Kit | One-Piece 35 mil White Membrane RoofMetal Flashing Trim-20°F Ambient ControlsLow Ambient Heater |
| Control Type | LogiTemp Electronic ControllerDigital ReadoutOnline Data Standard |
| Certifications | UL and C-UL Listed System, UL NCKL, NSF, USDA Accepted, DOE Compliant |
| Other Listings | City of Houston, California State, Oregon State, CN UL Flame SpreadCARB and SNAP Compliant System |
| Warranty | 15-Year Panel, 18-Month Parts and Labor |
| Optional Warranty | 5-Year Compressor |
