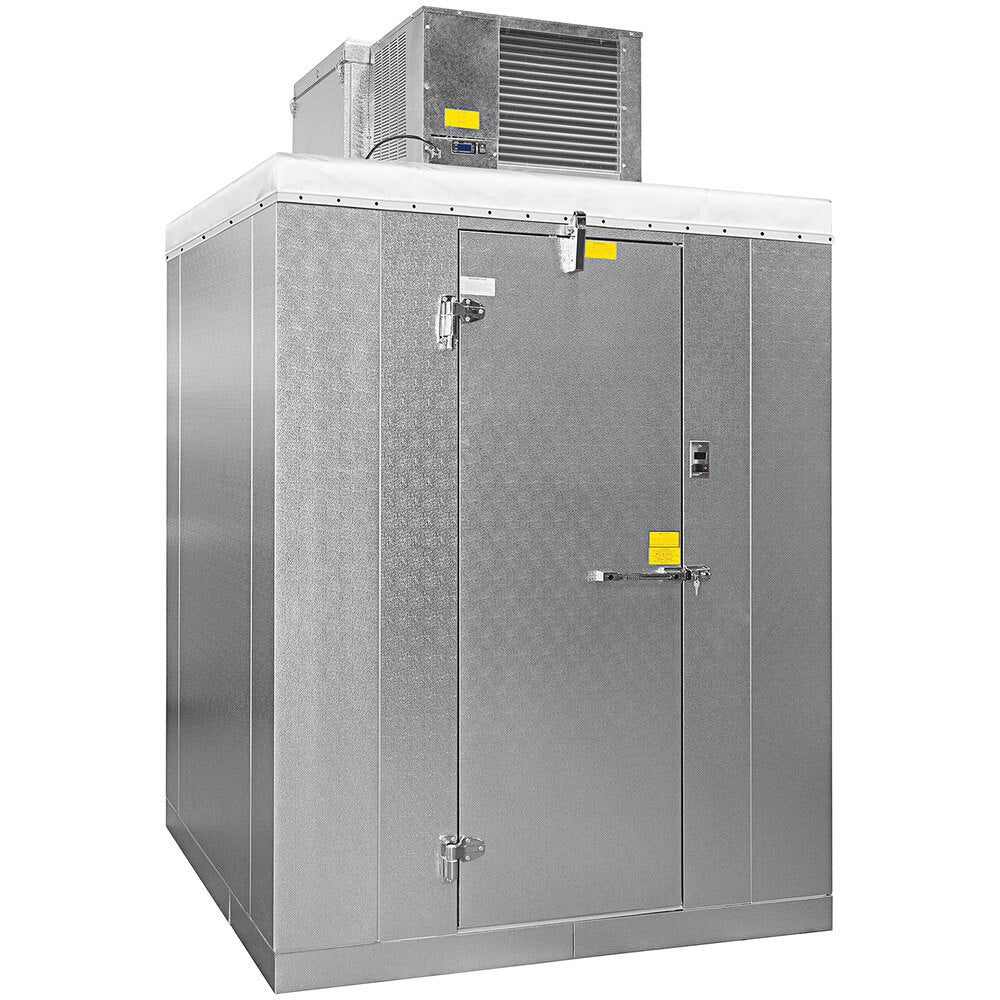

Master-Bilt QODF771010-C 10' x 10' Outdoor Walk-In Freezer with Floor, 7'7" H, Capsule Pak ECO 1-3/4 HP R290, 230V
A 10' x 10' freezer for outdoor installation, with a one-piece R290 refrigeration system that mounts on the roof and plugs in.
The Master-Bilt QODF771010-C is a QS Series outdoor walk-in freezer with a 10' x 10' footprint, 7'7" high with an aluminum floor, and 602 cu. ft. of storage. It is matched with the Capsule Pak ECO CPF175PC-E-4, a 1-3/4 HP self-contained ceiling-mount system rated 6,300 BTUH that runs on 230/60/1 power with a NEMA 6-15P plug. Walls and ceiling are 4" foamed-in-place panels clad in 26 gauge stucco embossed coated steel, and the -10°F design temperature is held by a LogiTemp electronic controller. Outdoor models add a one-piece white membrane roof with flashing trim.
Keep 24" open on each side of the roof-mounted system for condenser air and service access.
Panels are 4" thick, metal clad and foamed in place with HFC-free HFO polyurethane. Minimum R-value is 32 for walls, ceiling and door and 28 for the floor.
The CPF175PC-E-4 puts the condensing unit and evaporator coil in one pre-charged housing that drops into a factory-cut ceiling opening. A flush coil keeps the components out of the storage space.
The system uses 10.5 oz. of R290 (two compressors at 5.25 oz each) and is DOE, CARB and SNAP compliant, with an AWEF of 3.12.
Digital readout, four-button setup and electronic automatic defrost on coolers and freezers. Error codes and settings are available online as a standard outdoor feature.
Self-closing flush door with stepped profile, two cam-lift hinges, spring closer, magnetic gasket, heated threshold, perimeter heater wire and a deadbolt handle with key/padlock feature and inside safety release.
A one-piece 35 mil white membrane roof needs no seaming or gluing, and metal trim flashes it to the wall panels with TEK screws. Outdoor systems have crankcase heaters for low ambient conditions.
The box is 10' x 10' (120" x 120") and 7'7" high with its floor. The roof-mounted Capsule Pak ECO housing adds 18.75", and Master-Bilt asks for 4" above it and 24" on each side.
The CPF175PC-E-4 runs on 230/60/1 at 10.7 A and has a 9 ft. cord with a NEMA 6-15P plug, so it needs its own grounded receptacle. The door section takes a separate 120/60/1 feed at 1.73 A, wired to a junction box.
It is designed for -10°F. The freezer control comes set at -10°F, and the set point can be adjusted from -20°F to 10°F.
Yes. It has a smooth aluminum interior floor rated for uniformly distributed loads up to 800 lb. per sq. ft.
Master-Bilt lists a 15-year panel warranty and 18 months parts and labor. A 5-year compressor warranty is available as an option. Warranty repairs must be done by an RSG authorized service provider.
Options include 30" or 36" doors, U-shaped shelving kits in Green Kote or Chrome Kote, an exterior ramp, floor tread kickplate kit, strip curtains, a leak detector/alarm and the 5-year compressor warranty. Outdoor models can add a door rain hood. They are not included in this listing.
Yes. Outdoor QS models include the membrane roof kit and -20°F ambient controls.
Yes. Master-Bilt equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Master-Bilt |
|---|---|
| Model Number | QODF771010-C |
| Series | QS Series Walk-In |
| QS Sheet Model | QOD771010 |
| Type | Outdoor Walk-In Freezer, Self-Contained Ceiling Mount Refrigeration |
| Usage | Outdoor |
| Width | 120 Inches |
| Depth | 120 Inches |
| Height | 91 Inches |
| Nominal Size | 10' x 10' x 7'7"Sizes Listed as Actual |
| Refrigeration Housing | 18.75" High48.25" Long4" Clearance Above, 24" Each Side |
| Capacity | 602 cu. ft. |
| Refrigeration System | Capsule Pak ECO CPF175PC-E-4Self-Contained, Ceiling Mount, Air Cooled |
| Horsepower | 1-3/4 HP |
| Capacity BTUH | 6,300 BTUH20-Hour Design Runtime, 90°F Ambient |
| Refrigerant | R29010.5 oz. Charge |
| AWEF | 3.12 |
| Temperature Range | -20°F to 10°F Set Point |
| Design Temperature | -10°F |
| Defrost | Electronic Automatic Defrost |
| Low Ambient Protection | Crankcase Heaters |
| System Ship Weight | 390 lb. |
| Voltage | 230 Volts |
| Hertz | 60 Hz |
| Phase | 1 |
| Amps | 10.7 Amps |
| Plug Type | NEMA 6-15P |
| Cord | 9 ft. Attached to Condensing Unit |
| Door Section Electrical | 120/60/11.73 A207.07 WField Wired to Junction Box |
| Door Opening | 26" W x 78" H30" or 36" Optional |
| Door Features | Self-Closing, Flush, InfittingRight or Left HingeCam-Lift HingesSpring CloserDeadbolt Handle with Inside Safety ReleaseMagnetic GasketHeated ThresholdPerimeter Heater Wire |
| Door Energy Use | 7.01 kWh/day |
| Lighting and Controls | Vapor-Proof LED Light Above DoorDigital ThermometerLight Switch with Exterior Pilot Light |
| Panels | 4" Foamed-In-Place HFO Polyurethane, HFC FreeCam-Lock FastenersFoamed-In Gaskets |
| Exterior | 26 Gauge Stucco Embossed Coated Steel |
| Interior | 26 Gauge Stucco Embossed Coated Steel |
| Floor | Smooth Aluminum800 lb. per sq. ft. Uniform Load |
| R-Value | Walls and Ceiling R-32Door R-32Floor R-28 |
| Outdoor Kit | One-Piece 35 mil White Membrane RoofMetal Flashing Trim-20°F Ambient Controls |
| Pressure Relief | Freezer Pressure Relief Port |
| Control Type | LogiTemp Electronic ControllerDigital ReadoutOnline Data Standard |
| Certifications | UL and C-UL Listed System, UL NCKL, NSF, USDA Accepted, DOE Compliant |
| Other Listings | City of Houston, California State, Oregon State, CN UL Flame SpreadCARB and SNAP Compliant System |
| Warranty | 15-Year Panel, 18-Month Parts and Labor |
| Optional Warranty | 5-Year Compressor |
