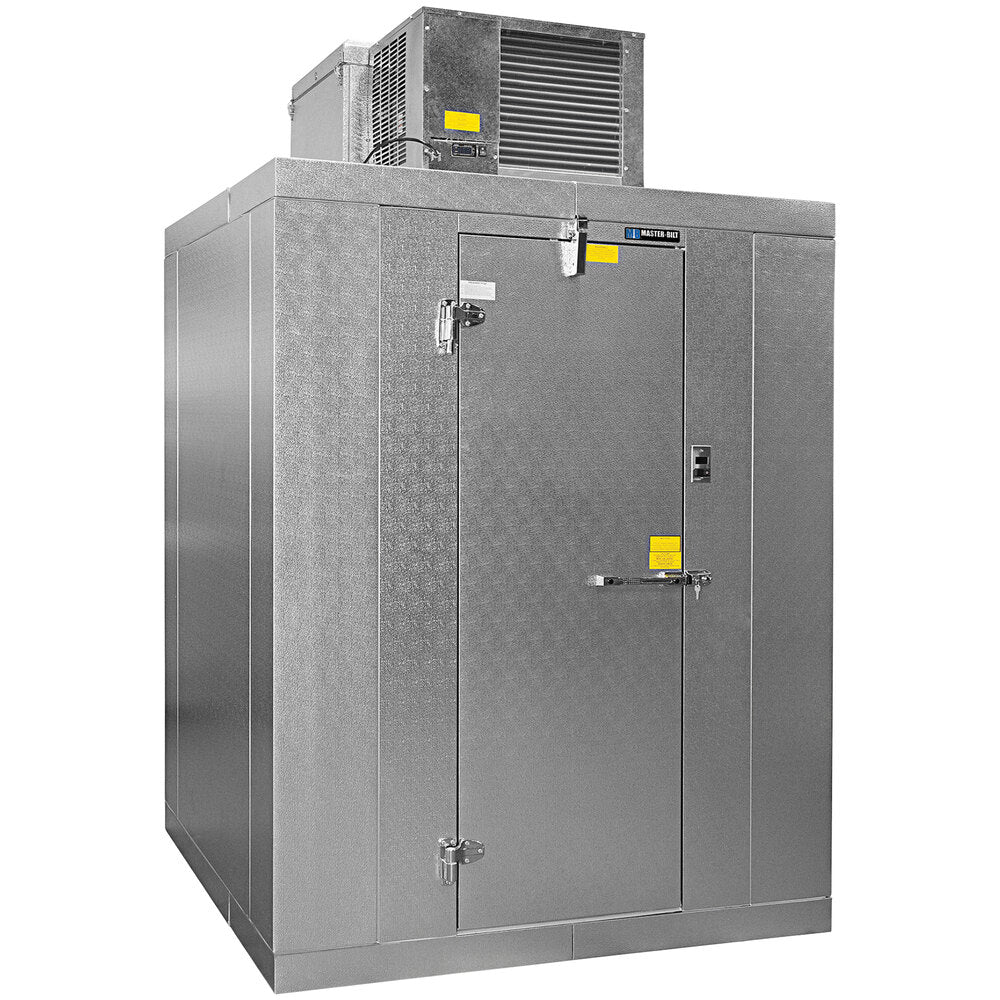

Master-Bilt QSB7466-C QS Series 6' x 6' Indoor Walk-In Cooler, Floorless, 7'4" H, Capsule Pak ECO Top-Mount, 115V
A 6' x 6' indoor walk-in cooler that holds +37°F with a plug-in Capsule Pak ECO system on the roof, so there is no remote condensing unit to pipe.
The Master-Bilt QSB7466-C is a QS Series single-room walk-in cooler with a 6' x 6' footprint, 7'3-5/8" high, and 196 cu. ft. of storage. It has no insulated floor: the wall panels sit on NSF listed vinyl floor sealers over your existing level floor. A matched CPB050PC-S-0 Capsule Pak ECO system (1/2 HP, R290) sets into a factory-cut ceiling opening, with a flush coil that keeps the whole interior usable. It runs on 115V, 60 Hz, 1-phase power through a cord and NEMA 5-15P plug.
Measure the room height before you order: the walk-in is 7'3-5/8" high and the refrigeration system sits on top of it.
The one-piece CPB050PC-S-0 holds condensing unit and evaporator in one pre-charged housing. It plugs into a NEMA 5-15P receptacle, with no refrigerant piping on site.
The evaporator coil sits flush in the ceiling instead of hanging down, which keeps all components outside the storage area for 100% usable interior space.
Panels are 4" thick, foamed-in-place with HFO polyurethane and locked with cam fasteners. Minimum ratings: R-25 walls, ceiling and door.
The electronic LogiTemp controller has a digital readout, four-button setup and automatic defrost. Online data access is optional on indoor systems.
Deadbolt handle with key or padlock feature and inside safety release, cam-lift hinges, spring closer, magnetic gasket, heater wire and a double sweep gasket.
Indoor Capsule Pak ECO systems evaporate condensate with wicking pads and condenser air, so no plumbing is needed.
The walk-in is 7'3-5/8" high. The Capsule Pak ECO housing measures 14.92" high on Master-Bilt's side view, and Master-Bilt asks for at least 4" of clearance above it. Plan on about 107" (8'11") of clear height.
The refrigeration system is cord connected: 115V, 60 Hz, 1-phase, 6.9 A, with a 9 ft. cord and NEMA 5-15P plug. The door section, pre-wired for its LED light, heater wire and digital thermometer, needs its own 120V supply field wired to a junction box; it draws 0.88 A.
The cooler is designed for +37°F. The matched CPB050PC-S-0 is rated 4,100 BTUH at 90°F ambient.
No. The indoor Capsule Pak ECO is pre-charged with R290 and evaporates its own condensate with wicking pads and condenser air, so no drain line or field piping is needed.
Master-Bilt warrants the walk-in panels for 15 years and the original equipment parts and labor for 18 months, with repairs done by a Master-Bilt authorized service provider. A 5-year compressor warranty is available as an option.
Yes, if the floor is level. The wall panels rest on NSF listed vinyl floor sealers that stop heat conduction at floor level. Master-Bilt makes the 74 Series floorless as coolers only.
Master-Bilt offers 30" or 36" doors, U-shaped shelving kits, an exterior ramp, kick plates, strip curtains, non-skid floor strips, a leak detector/alarm and a 5-year compressor warranty. Ask us before you order.
Yes. Master-Bilt equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Master-Bilt |
|---|---|
| Model Number | QSB7466-C |
| Series | QS Series 74 Series, floorless |
| Type | Indoor walk-in cooler, single compartment, self-contained ceiling-mount refrigeration |
| Installation | Indoor |
| Width | 72 Inches |
| Depth | 72 Inches |
| Height | 87-5/8 Inches |
| Footprint | 6' x 6', sizes listed as actual |
| Series Height | 7'4" less floor, 7 ft. 3-5/8 in. per spec sheet |
| Capacity | 196 cu. ft. |
| Door Opening | 26 in. W x 78 in. H |
| Refrigeration Housing | 48.25 in. long x 14.92 in. high on side view |
| Refrigeration System | Capsule Pak ECO CPB050PC-S-0, one-piece ceiling mount, indoor |
| Horsepower | 1/2 HP |
| Compressors | 1 |
| Refrigeration Capacity | 4,100 BTUH at 90°F ambient |
| Refrigerant | R290 |
| Refrigerant Charge | 5.25 oz. total |
| Temperature Range | +37°F |
| AWEF | 5.61 |
| Controller | LogiTemp electronic controller with automatic defrost |
| Condensate | Wicking pads with condenser air, no drain line |
| Refrigeration System Ship Weight | 192 lb. |
| Voltage | 115 Volts |
| Amps | 6.9 Amps |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Plug Type | NEMA 5-15P |
| Power Cord | 9 ft., attached to condensing unit section |
| Door Section Power | 120/60/1 field wired to junction box0.88 A, 106.07 W |
| Door Energy Use | 2.49 kWh/day, door model QS26X78 |
| Panels | 4 in. thick, foamed-in-place HFO polyurethane, cam-lock fasteners, foamed-in-place gaskets |
| Insulation R-Value | R-25 walls, ceiling and door |
| Interior and Exterior Finish | 26 gauge corrosion resistant stucco embossed coated steel |
| Floor | Floorless, NSF listed vinyl floor sealers supplied |
| Door | Self-closing, flush mounted, infitting; right or left hinge; 4 in. thick |
| Door Hardware | Deadbolt locking handle with key/padlock feature and inside safety release, 2 cam-lift hinges, spring closer |
| Door Seals | Magnetic gasket, perimeter heater wire, double sweep gasket, heated threshold |
| Lighting | LED light above door, digital thermometer and light switch with pilot light |
| Certifications | UL, C-UL, NSF, DOE Compliant |
| Listings | UL NCKL ignition protected; UL flame spread 25 or less on foam cores; City of Houston, California State and Oregon State listed; USDA accepted |
| Warranty | 15-Year Panel, 18-Month Parts and Labor |
| Optional Warranty | 5-year compressor warranty |
