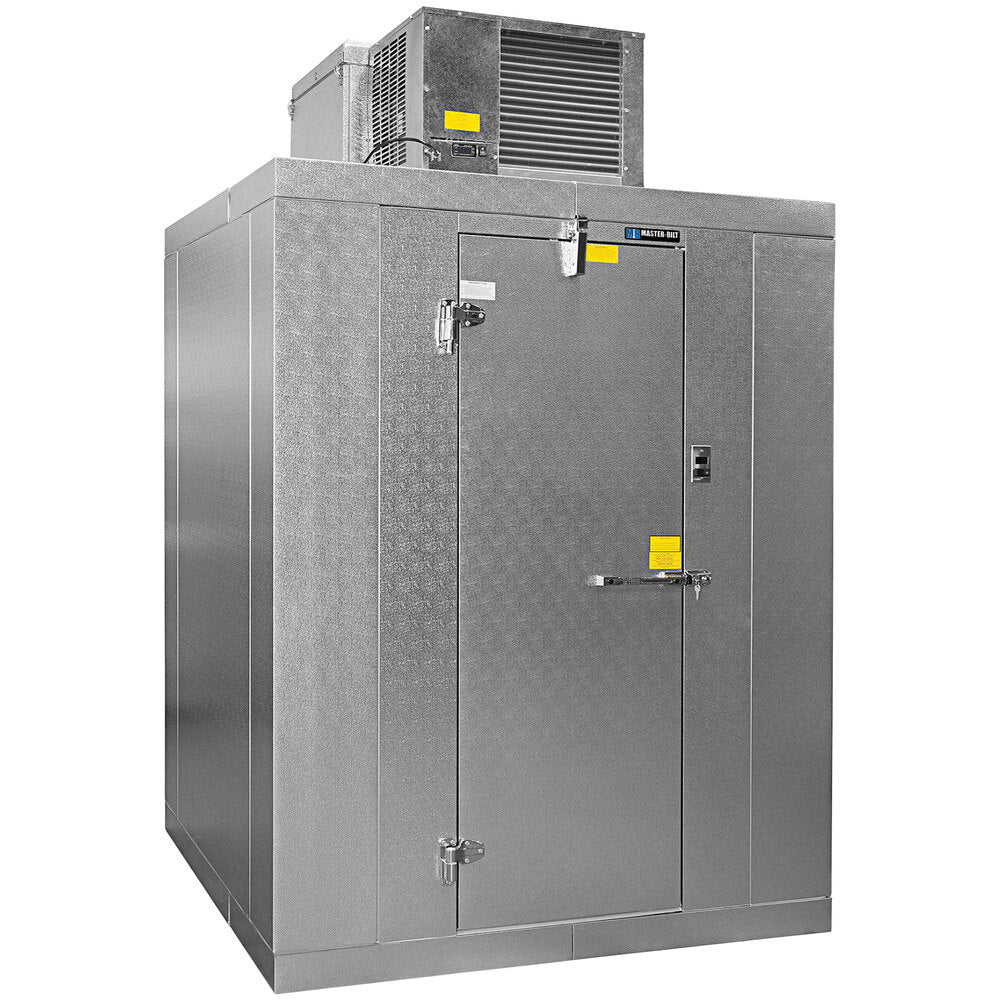

Master-Bilt QSB77814-C QS Series 8' x 14' Indoor Walk-In Cooler with Floor, 7'7" H, Capsule Pak ECO Top-Mount, 115V
An 8' x 14' indoor walk-in cooler that holds +37°F with a plug-in Capsule Pak ECO system on the roof, so there is no remote condensing unit to pipe.
The Master-Bilt QSB77814-C is a QS Series single-room walk-in cooler with an 8' x 14' footprint, 7'7" high, and 675 cu. ft. of storage. It comes with a smooth aluminum interior floor rated for 800 lb. per sq. ft. of uniform load. A matched CPB100PC-S-0 Capsule Pak ECO system (1 HP, R290) sets into a factory-cut ceiling opening, with a flush coil that keeps the whole interior usable. It runs on 115V, 60 Hz, 1-phase power through a cord and NEMA 5-20P plug.
Measure the room height before you order: the walk-in is 7'7" high and the refrigeration system sits on top of it.
The one-piece CPB100PC-S-0 holds condensing unit and evaporator in one pre-charged housing. It plugs into a NEMA 5-20P receptacle, with no refrigerant piping on site.
The evaporator coil sits flush in the ceiling instead of hanging down, which keeps all components outside the storage area for 100% usable interior space.
Panels are 4" thick, foamed-in-place with HFO polyurethane and locked with cam fasteners. Minimum ratings: R-25 walls, ceiling and door.
The electronic LogiTemp controller has a digital readout, four-button setup and automatic defrost. Online data access is optional on indoor systems.
Deadbolt handle with key or padlock feature and inside safety release, cam-lift hinges, spring closer, magnetic gasket, heater wire and a double sweep gasket.
Indoor Capsule Pak ECO systems evaporate condensate with wicking pads and condenser air, so no plumbing is needed.
The walk-in is 7'7" high. The Capsule Pak ECO housing measures 18.75" high on Master-Bilt's side view, and Master-Bilt asks for at least 4" of clearance above it. Plan on about 114" (9'6") of clear height.
The refrigeration system is cord connected: 115V, 60 Hz, 1-phase, 15.3 A, with a 9 ft. cord and NEMA 5-20P plug. The door section, pre-wired for its LED light, heater wire and digital thermometer, needs its own 120V supply field wired to a junction box; it draws 0.88 A.
The cooler is designed for +37°F. The matched CPB100PC-S-0 is rated 8,800 BTUH at 90°F ambient.
No. The indoor Capsule Pak ECO is pre-charged with R290 and evaporates its own condensate with wicking pads and condenser air, so no drain line or field piping is needed.
Master-Bilt warrants the walk-in panels for 15 years and the original equipment parts and labor for 18 months, with repairs done by a Master-Bilt authorized service provider. A 5-year compressor warranty is available as an option.
The aluminum floor is rated for 800 lb. per sq. ft. of uniform load. Master-Bilt does not warrant floor panels that are wet mopped or hosed, carry rolling cart traffic on non-reinforced floors, or are loaded beyond 800 lb. per sq. ft.
Master-Bilt offers 30" or 36" doors, U-shaped shelving kits, an exterior ramp, kick plates, strip curtains, non-skid floor strips, a leak detector/alarm and a 5-year compressor warranty. Ask us before you order.
Yes. Master-Bilt equipment carries our Best Price Guarantee. Found it lower? Send us the lower price with a quote request or call us, and we will match it.
Specs
| Manufacturer | Master-Bilt |
|---|---|
| Model Number | QSB77814-C |
| Series | QS Series 77 Series, with floor |
| Type | Indoor walk-in cooler, single compartment, self-contained ceiling-mount refrigeration |
| Installation | Indoor |
| Width | 96 Inches |
| Depth | 168 Inches |
| Height | 91 Inches |
| Footprint | 8' x 14', sizes listed as actual |
| Series Height | 7'7" with floor |
| Capacity | 675 cu. ft. |
| Door Opening | 26 in. W x 78 in. H |
| Refrigeration Housing | 48.25 in. long x 18.75 in. high on side view |
| Refrigeration System | Capsule Pak ECO CPB100PC-S-0, one-piece ceiling mount, indoor |
| Horsepower | 1 HP |
| Compressors | 2 |
| Refrigeration Capacity | 8,800 BTUH at 90°F ambient |
| Refrigerant | R290 |
| Refrigerant Charge | 10.5 oz. total |
| Temperature Range | +37°F |
| AWEF | 5.61 |
| Controller | LogiTemp electronic controller with automatic defrost |
| Condensate | Wicking pads with condenser air, no drain line |
| Refrigeration System Ship Weight | 257 lb. |
| Voltage | 115 Volts |
| Amps | 15.3 Amps |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Plug Type | NEMA 5-20P |
| Power Cord | 9 ft., attached to condensing unit section |
| Door Section Power | 120/60/1 field wired to junction box0.88 A, 106.07 W |
| Door Energy Use | 2.49 kWh/day, door model QS26X78 |
| Panels | 4 in. thick, foamed-in-place HFO polyurethane, cam-lock fasteners, foamed-in-place gaskets |
| Insulation R-Value | R-25 walls, ceiling and door |
| Interior and Exterior Finish | 26 gauge corrosion resistant stucco embossed coated steel |
| Floor | Smooth aluminum interior floor, 800 lb. per sq. ft. uniform load |
| Door | Self-closing, flush mounted, infitting; right or left hinge; 4 in. thick |
| Door Hardware | Deadbolt locking handle with key/padlock feature and inside safety release, 2 cam-lift hinges, spring closer |
| Door Seals | Magnetic gasket, perimeter heater wire, double sweep gasket, heated threshold |
| Lighting | LED light above door, digital thermometer and light switch with pilot light |
| Certifications | UL, C-UL, NSF, DOE Compliant |
| Listings | UL NCKL ignition protected; UL flame spread 25 or less on foam cores; City of Houston, California State and Oregon State listed; USDA accepted |
| Warranty | 15-Year Panel, 18-Month Parts and Labor |
| Optional Warranty | 5-year compressor warranty |
