Description
Stack two Turbofan E22M3 or E23M3 half-size convection ovens on one mobile base.
The Moffat Turbofan DSK22/23C is the caster double stacking kit for the Turbofan E22M3 and E23M3 half-size manual convection ovens, for cafes, bakeries and restaurants that need two ovens in one spot and want to roll them out for cleaning. It is a stainless steel base stand on four 3" swivel casters, two of them locking, with an oven spacer frame and a bottom oven vent extension. Two ovens on the kit take a 24" wide space, 60.75" high with E22M3 ovens or 65.13" with E23M3 ovens.
Will it fit
- Stacked size
- 24" W; 60.75" H with two E22M3, 65.13" H with two E23M3
- Stacked depth
- 25.38" (E22M3) or 25.25" (E23M3)
- Base footprint
- 22.38" W × 19.25" D at the legs (per drawing)
- Fits
- Two Turbofan E22M3 or two E23M3 ovens (sold separately)
- Clearances
- 1" rear, 1" each side; 12" from heat sources
- Shipping
- 23.25" W × 6.25" D × 33.13" H carton, 40 lb
This is the caster version; the adjustable-feet version is DSK22/23. Ovens are sold separately.
Two ovens, one footprint
Two half-size ovens stacked on a 24" wide base.
Mobile base
Four 3" swivel casters; the two front casters lock.
Stainless steel stand
Welded square-tube base frame and a stainless steel spacer frame.
Vent extension included
The kit includes a vent extension for the bottom oven.
Delivery and setup
- Free shipping on this item. Usually ships in 1 business day.
- Ships knocked down in one 40 lb carton for assembly on site. Inspect the carton before you sign for it.
- Ovens are not included and ship separately.
- See our shipping policy for delivery details.
Questions buyers ask
Which ovens does it fit?
Moffat lists it for the Turbofan E22M3 and E23M3 half-size manual convection ovens. It stacks two ovens of the same model: two E22M3 or two E23M3.
Are the ovens included?

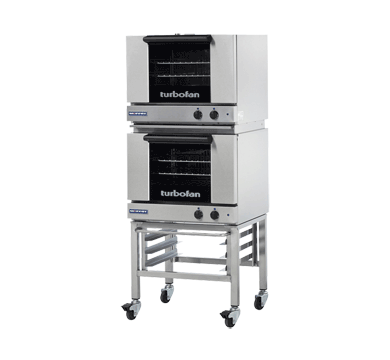

No. This is the stacking kit only; the photo shows it with two E22M3 ovens. Moffat's caster double-stack models (E22M3/2C, E23M3/2C) are two individual ovens plus this kit, assembled on site.
How tall is the stack?
Two E22M3 ovens on this kit stand 60.75" high; two E23M3 ovens stand 65.13" high. Both stacks are 24" wide. The casters add 3.25" over the adjustable-feet kit.
Do the casters lock?
The two front casters are dual wheel with a swivel lock. All four are 3" diameter swivel casters.
What is in the kit?
A welded stainless steel base stand on 4 casters, a stainless steel oven spacer frame and a bottom oven vent extension. It ships knocked down in one 40 lb carton.
What power do the ovens need?
Each oven has its own cord. An E22M3 plugs into a 110-120V outlet (NEMA 5-15P, 12 A); an E23M3 needs 208V, 13 A or 220-240V, 12 A (NEMA 6-15P). Plan one outlet per oven.
How much clearance does the stack need?
The same as the ovens: 1" at the rear and on each side, and 12" from sources of heat.
Specs
| Manufacturer | Moffat |
|---|---|
| Brand | Turbofan |
| Model Number | DSK22/23C (Moffat spec sheets also call it DSK2223C) |
| Quantity | 1 Kit |
| Shipping Weight | 40 lbs |
| Packed Dimensions | 23.25" W x 6.25" D x 33.13" H2.8 cu. ft. |
| Compatible Ovens | Two Turbofan E22M3 ovensTwo Turbofan E23M3 ovens |
| Stacked Width | 24 Inches |
| Stacked Depth | 25.38 Inches (E22M3)25.25 Inches (E23M3) |
| Stacked Height | 60.75 Inches with two E22M3 ovens65.13 Inches with two E23M3 ovens |
| Caster Height Add-On | 3.25 Inches over the adjustable-feet stack (Moffat) |
| Base Footprint | 22.38" W x 19.25" D at the legs (per drawing) |
| Base Stand | Welded 1 1/2" and 1 1/4" square tube front and rear frames |
| Casters | 4 x 3" diameter swivel casters2 front casters dual wheel with swivel lock |
| Spacer | Stainless steel oven spacer frame |
| Vent | Bottom oven vent extension |
| Material | Stainless steel base stand and spacer frame |
| Assembly | Supplied knocked down (CKD) for assembly on site |
| Ovens Included | No |
| Oven Clearances | 1" rear1" left side1" right side12" from heat sources |
| Country of Origin | New Zealand |
