Description
Stack a Turbofan E33 half-size convection oven on a P10M proofer/holding cabinet.
The Moffat Turbofan DSKE33P10 is the double stacking kit for mounting a Turbofan E33D5 or E33T5 half-size electric convection oven on a P10M proofer/holding cabinet, for cafes, bakeries and convenience stores that proof and bake in a tight space. The finished stack is 24" wide, 26 3/4" deep and 65 1/2" high and rolls on the proofer's castors.
Will it fit
- Stacked size
- 24" W × 26 3/4" D × 65 1/2" H with oven and proofer
- Fits
- Turbofan E33D5 or E33T5 oven on a P10M proofer (sold separately)
- Clearances
- 2" rear, 2" left, 3" right; 12" from heat sources; 20" for service on fixed installations
- Power
- None for the kit; oven 208V or 220-240V hard-wired, proofer 110-120V NEMA 5-15P
Measure the space before ordering. The oven and proofer are sold separately.
Oven over proofer
Bake on top and proof below in one 24" wide footprint.
Made for E33 and P10M
Moffat's kit for the Turbofan E33 oven and P10M proofer pair.
Mobile stack
The finished stack rolls on the proofer's castors; the front pair lock.
Delivery and setup
- Free shipping on this item. Usually ships in 1 business day.
- Ships as a kit only; the oven and proofer ship separately. Inspect the carton before you sign for it.
- See our shipping policy for delivery details.
Questions buyers ask
Which oven and proofer does it fit?
Moffat lists this kit for the Turbofan E33D5 (digital) and E33T5 (touch screen) half-size convection ovens on a P10M 10-tray proofer/holding cabinet.
Why does Moffat's site show DSKE33P10M?
Moffat's US website names the kit DSKE33P10M; Moffat's price list uses DSKE33P10. Both describe the double stacking kit for E33 ovens on a P10M.
Are the oven and proofer included?
No. This is the stacking kit only; the oven and the proofer are sold separately.
How big is the finished stack?

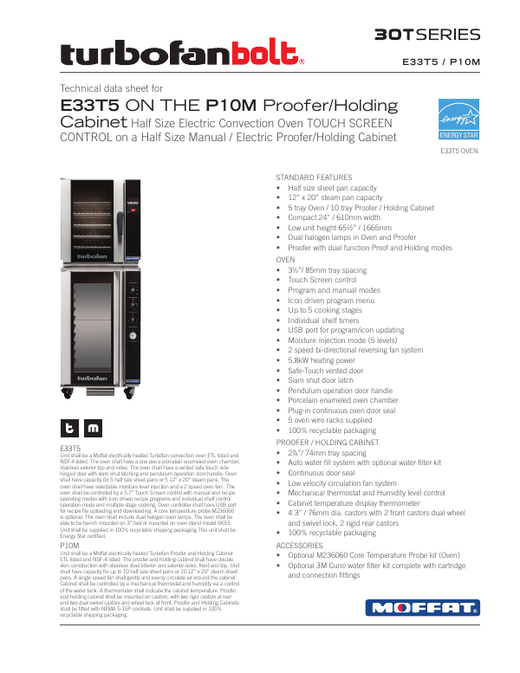

Moffat's E33T5/P10M sheet gives 24" wide, 26 3/4" deep and 65 1/2" high, with the oven sitting on top of the 40" tall P10M.
Can the stack be moved?
The stack stands on the P10M's four 3" castors: two front swivel castors with locks and two rigid rear castors.
What power does the stack need?
The kit needs none, but each unit needs its own supply. The E33 oven is hard-wired with no cordset (208V or 220-240V, 1-phase). The P10M plugs into a 110-120V outlet with its NEMA 5-15P cord (11.6 A).
How much clearance does the stack need?
Moffat specifies 2" at the rear, 2" on the left, 3" on the right and 12" from heat sources; fixed installations need 20" for service.
Specs
| Manufacturer | Moffat |
|---|---|
| Brand | Turbofan |
| Model Number | DSKE33P10 (moffatusa.com lists it as DSKE33P10M) |
| Quantity | 1 Kit |
| Kit Type | Oven-on-proofer double stacking kit |
| Top Unit | Turbofan E33D5 (digital) or E33T5 (touch screen) half-size electric convection oven |
| Bottom Unit | Turbofan P10M 10-tray half-size proofer/holding cabinet |
| Stacked Width | 24 Inches |
| Stacked Depth | 26.75 Inches (26 3/4") |
| Stacked Height | 65.5 Inches (65 1/2") including the proofer's 3" castors |
| Oven Base Height | 40 Inches from the floor (top of the P10M, per drawing) |
| Mobility | Stack stands on the P10M's 4 x 3" castors2 front swivel castors with locks, 2 rigid rear castors |
| Equipment Net Weight | E33 oven 158 lbs + P10M 171 lbs = 329 lbs |
| Stack Clearances | 2" rear2" left side3" right side20" for service on fixed installations12" from heat sources |
| Power | Kit needs noneE33D5 oven: 208V 27.8A or 220-240V 25A, 1-phase, no cordsetE33T5 oven: 208V 26A or 220-240V 25A, 1-phase, no cordsetProofer: 110-120V 11.6A, NEMA 5-15P cordset |
| Equipment Included | No (oven and proofer sold separately) |
| Related Kits | DSKE33 / DSKE33C (two E33 ovens stacked) |
