Description
Stack a Turbofan E35 convection oven on a P85 proofer/holding cabinet.
The Moffat Turbofan DSKE35P85 is the stacking kit for mounting a Turbofan E35 full-size electric convection oven on a P85 proofer/holding cabinet, for bakeries, cafes and restaurants that proof and bake in a small space. With an E35 oven on a P85M8 the stack is 35 7/8" wide, 36 3/8" deep and 70 1/8" high and rolls on the proofer's castors.
Will it fit
- Stacked size
- 35 7/8" W × 36 3/8" D × 70 1/8" H with E35 oven on P85M8
- Fits
- Turbofan E35D6-26 or E35T6-26 oven on a P85M8 proofer (sold separately)
- Clearances
- 2" rear and sides; 12" from heat sources; 20" for service on fixed installations
- Power
- None for the kit; oven 208V or 220-240V hard-wired, proofer 110-120V NEMA 5-15P
Measure the space before ordering. The oven and proofer are sold separately.
Oven over proofer
Bake on top and proof below in one 35 7/8" wide footprint.
Made for E35 and P85
Moffat's kit for the Turbofan E35 oven and P85 proofer pair.
Mobile stack
The finished stack rolls on the proofer's castors; the front pair lock.
Delivery and setup
- Free shipping on this item. Usually ships in 1 business day.
- Ships as a kit only; the oven and proofer ship separately. Inspect the carton before you sign for it.
- See our shipping policy for delivery details.
Questions buyers ask
Which oven and proofer does it fit?

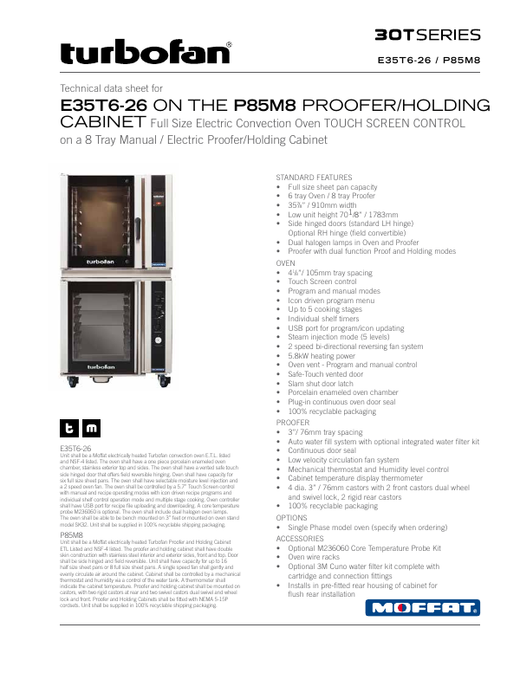

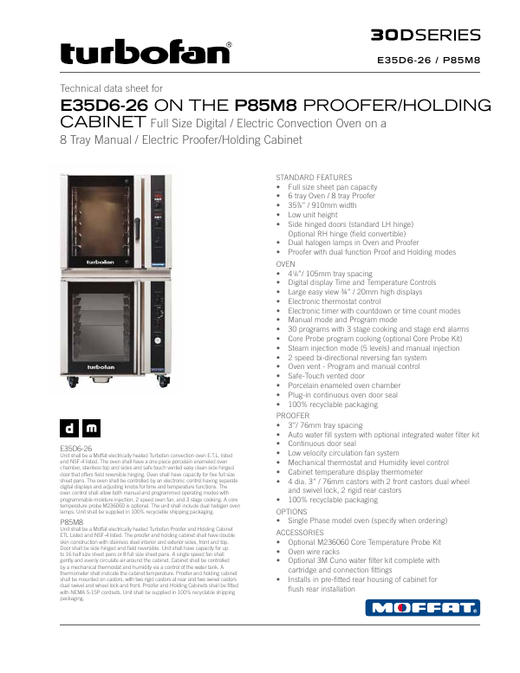

Moffat lists the DSKE35P85 for stacking a Turbofan E35 full-size convection oven on a P85 proofer/holding cabinet. Moffat's US stack sheets show the E35D6-26 (digital) and E35T6-26 (touch screen) on a P85M8. For a P85M12, call us to confirm before ordering.
Are the oven and proofer included?
No. This is the stacking kit only; the oven and the proofer are sold separately.
How big is the finished stack?
An E35 oven on a P85M8 stands 70 1/8" (1783 mm) high, 35 7/8" wide and 36 3/8" (923 mm) deep, per Moffat's stack sheets.
Can the stack be moved?
The stack stands on the P85M8's four 3" castors: two front swivel castors with locks and two rigid rear castors.
What power does the stack need?
The kit needs none, but each unit needs its own supply. The E35 oven is hard-wired with no cordset: 208V (54 A 1-phase or 31 A per phase 3-phase) or 220-240V (52 A 1-phase or 30 A per phase 3-phase). The P85M8 plugs into a 110-120V outlet with its NEMA 5-15P cord (11.6 A).
How much clearance does the stack need?
Moffat specifies 2" at the rear and on each side and 12" from heat sources; fixed installations need 20" for service.
Can I stack two P85M8 proofers instead?
Yes, with a different kit: Moffat uses the DSKP85 for two P85M8 proofers.
Specs
| Manufacturer | Moffat |
|---|---|
| Brand | Turbofan |
| Model Number | DSKE35P85 |
| Quantity | 1 Kit |
| Kit Type | Oven-on-proofer stacking kit |
| Top Unit | Turbofan E35 full-size electric convection oven (E35D6-26 digital or E35T6-26 touch screen) |
| Bottom Unit | Turbofan P85 proofer/holding cabinet (P85M8 8-tray on Moffat's stack sheets) |
| Stacked Width | 35.88 Inches (35 7/8") |
| Stacked Depth | 36.38 Inches (36 3/8", 923 mm) |
| Stacked Height | 70.13 Inches (70 1/8", 1783 mm) with E35 oven on P85M8 |
| Mobility | Stack stands on the P85M8's 4 x 3" castors2 front swivel castors with locks, 2 rigid rear castors |
| Equipment Net Weight | E35 oven 302 lbs + P85M8 205 lbs = 507 lbs |
| Stack Clearances | 2" rear2" left side2" right side20" for service on fixed installations12" from heat sources |
| Power | Kit needs noneOven: 208V or 220-240V, 1-phase or 3-phase (specify), no cordsetProofer: 110-120V 11.6A, NEMA 5-15P cordset |
| Equipment Included | No (oven and proofer sold separately) |
| Related Kits | DSKP85 (two P85M8 proofers stacked) |
