Description
Bake and reheat three half-size sheet pans on a counter with a convection oven that plugs into a standard outlet.

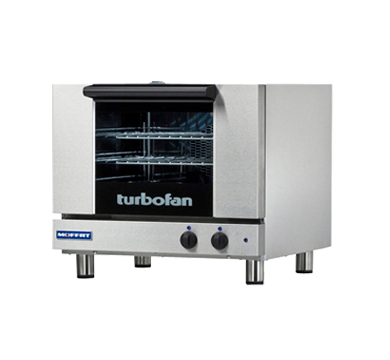

The Moffat Turbofan E22M3 is a compact half-size convection oven for cafes, delis, coffee shops, bars and convenience stores. It holds three 18" x 13" sheet pans, uses a simple 150-500°F thermostat and 60-minute timer, and plugs into a 120V outlet. It fits in 24" of counter width.
Will it fit · Will it plug in
- Outside size
- 24" W × 23.88" D × 21.75" H (including 3" feet)
- Door swing
- 13" drop-down door
- Inside
- 19.5" W × 13.38" D × 10" H, 1.48 cu. ft.
- Power
- 110-120V, 1-phase, 1.5 kW, 12 A; NEMA 5-15P plug fitted
- Clearances
- 8" top, 1" rear and sides; 12" from heat sources
- Shipping
- 29.5" W × 25" D × 27.75" H packed, 106 lb
Measure doorways on the delivery path against the 29.5" x 25" x 27.75" carton; the oven itself is 24" wide.
Simple manual controls
One knob sets 150-500°F, a second runs the 60-minute timer, and a buzzer sounds when time is up.
Plugs into the wall
A 120V NEMA 5-15P cord comes fitted, so no hardwiring is needed.
Small footprint
At 24" wide it fits on a counter where a full-size oven will not.
Easy to clean
Porcelain enameled chamber, removable side racks, plug-in door seal and hinge-out inner door glass.
Grows with you
Run it on the counter, on the SK23 stand, or double stack two ovens with a DSK2223 kit.
Delivery and setup
- Free shipping on this item. Usually ships in 1 business day.
- Ships by freight carrier at 106 lb. Inspect the carton before you sign for it.
- The four adjustable feet ship with the oven; fit them before setting it in place.
- Before first use, run the oven empty for about 1 hour at 400°F to burn off any fumes or odors.
- See our shipping policy for delivery details.
Questions buyers ask
What outlet does it need?
A standard 110-120V outlet for its 15 A NEMA 5-15P plug. It draws 1.5 kW, 12 A, single phase. The manual calls for an isolation switch next to the oven that the operator can reach.
How many pans does it hold?
Three half-size 18" x 13" sheet pans, on three rack positions spaced 70 mm (about 2 3/4") apart. Three wire racks are included. It does not take full-size sheet pans.
How much counter space does it need?
It is 24" wide, 23.88" deep and 21.75" high on its 3" feet. Leave 8" above for the top vent, 1" behind and on each side, and 12" from heat sources. The drop-down door opens 13" forward.
Does it need a water line?
No. Moffat lists no water connection or moisture injection for this model; it needs only the 120V outlet.
Can I put it on a stand or stack two?

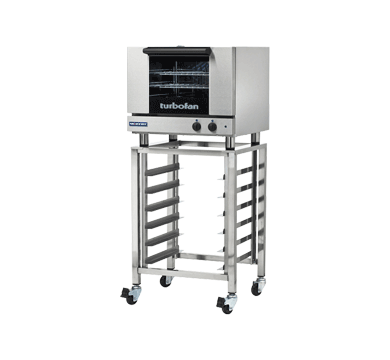

Yes. Moffat offers the SK23 stand on casters with 6 tray runners (56.63" total height with the oven) and the DSK2223 (feet) or DSK2223C (casters) double stacking kits. All are sold separately.
How do I clean it?
Let it cool to about 120°F, then lift out the wire racks and side racks, pull out the plug-in door seal and wash them with mild detergent. The inner door glass hinges out so you can clean between the panes. Avoid abrasive pads.
What does the warranty cover?
Moffat warrants new equipment installed in the US against defects in material and workmanship for 1 year from installation or 18 months from shipment, whichever comes first, for commercial use. Light bulbs, rubber seals and broken glass doors are not covered.
Specs
| Manufacturer | Moffat |
|---|---|
| Brand | Turbofan |
| Model Number | E22M3 |
| Series | Turbofan 20M Series |
| Quantity | 1 Each |
| Shipping Weight | 106 lbs |
| Net Weight | 78 lbs |
| Width | 24 Inches |
| Depth | 23.88 Inches |
| Height | 21.75 Inches (including 3" feet) |
| Height on SK23 Stand | 56.63 Inches (stand sold separately) |
| Door Swing | 13 Inches (drop-down door) |
| Packed Dimensions | 29.5" W x 25" D x 27.75" H12 cu. ft. |
| Interior Dimensions | 19.5" W x 13.38" D x 10" H1.48 cu. ft. |
| Oven Rack Size | 18" x 13" |
| Capacity | 3 Half-Size Sheet Pans (18" x 13") |
| Rack Positions | 3 |
| Rack Spacing | 70 mm (2 3/4") |
| Racks Included | 3 chrome-plated wire racks |
| Power Type | Electric |
| Voltage | 110-120 Volts |
| Wattage | 1.5 kW |
| Amps | 12 A |
| Phase | 1 Phase |
| Hertz | 60 Hz |
| Plug Type | NEMA 5-15P (15 A cordset fitted) |
| Controls | Mechanical thermostat and 60-minute manual timerpower on, heating on and time-up indicator lights |
| Temperature Range | 150 - 500 Degrees F |
| Timer | 60 minutes, with time-up buzzer |
| Fan | Single-direction low-velocity fan |
| Door | Drop-down, Safe-Touch vented door with Stay-Cool handle and counterbalanced hinges |
| Door Glass | 0.2" outer glass0.2" low energy loss inner glass, hinges out for cleaning |
| Door Seal | Plug-in continuous seal, removable without tools |
| Interior | Porcelain enameled, fully welded oven chamberremovable chrome-plated wire side racks |
| Exterior | Stainless steel front, sides, top and control panelaluminized coated steel base and rear |
| Feet | 3" high adjustable stainless steel feet with anti-skid pads |
| Vent | On top of the oven; keep it clear |
| Clearances | 8" top1" rear1" left side1" right side |
| Clearance from Heat Sources | 12" from the sides |
| Accessories | SK23 standDSK2223 double stacking kit (feet)DSK2223C double stacking kit (casters) |
| Certifications | cETLusNSF |
| Warranty | 1 year from installation or 18 months from shipment, whichever comes first (Moffat US warranty) |
| Usage | Commercial use only |
| Country of Origin | New Zealand |
