Description
Program, steam and bake three half-size sheet pans on a 24" counter space.
The Moffat Turbofan E23D3 is a half-size digital convection oven for cafes, bakeries, delis and restaurants with limited space. It holds three 18" x 13" sheet pans, stores 20 three-stage programs, adds steam at five levels, and uses a bi-directional reversing fan for even baking. It fits in 24" of counter width and plugs into a 208V or 220-240V NEMA 6-15 receptacle.
Will it fit · Will it plug in
- Outside size
- 24" W × 25.25" D × 23.88" H (including 3" feet)
- Door swing
- 15.13" drop-down door
- Inside
- 19.5" W × 13.38" D × 12" H
- Power
- 208V 1-phase, 2.7 kW, or 220-240V 1-phase, 3.0 kW; NEMA 6-15P plug fitted
- Water
- Optional cold water line, 20-80 psi, for steam injection
- Clearances
- 1" rear and sides; 12" from heat sources
One model covers both voltages; tell us your supply when you order. Measure doorways on the delivery path; the oven itself is 24" wide.
Programs for repeat items
Store 20 programs with up to 3 cooking stages each, or set time and temperature by hand.
Steam when you want it
Five steam injection levels plus manual injection, using an optional cold water line.
Even bake on 3 pans
A bi-directional fan reverses direction to move heat evenly across the 3 1/3" spaced racks.
Easy to read
Separate 3/4" high digital displays for time and temperature, and a halogen lamp inside.
Small footprint
At 24" wide it fits on a counter, on the SK23 stand, or double stacked with a DSK2223 kit.
Delivery and setup
- Free shipping on this item. Usually ships in 1 business day.
- Ships by freight carrier at 120 lb. Inspect the carton before you sign for it.
- The adjustable feet ship with the oven; fit them before setting it in place.
- See our shipping policy for delivery details.
Questions buyers ask
What power does it need?
Moffat lists two single-phase options: 208V at 2.7 kW, or 220-240V at 3.0 kW. Tell us which supply you have when you order.
What outlet does it use?
It comes with a NEMA 6-15P cord and plug, so you need a matching 250V 15 A receptacle, not a standard 120V outlet. Call us to confirm the amp draw for your circuit before ordering.
How many pans does it hold?
Three half-size 18" x 13" sheet pans, on three rack positions spaced 3 1/3" apart. Three wire racks are included. It does not take full-size sheet pans.
Does it need a water line?
Only for steam injection. Connect a cold water line at 20 to 80 psi to use the 5 steam levels or manual injection; without water it works as a dry convection oven.
Can I save recipes?
Yes. Store up to 20 programs with up to 3 cooking stages each, with an alarm at the end of each stage, or cook in manual mode.
How much counter space does it need?
It is 24" wide, 25.25" deep and 23.88" high on its 3" feet. Leave 1" behind and on each side and 12" from heat sources. The drop-down door opens 15.13" forward.
Can I put it on a stand or stack two?

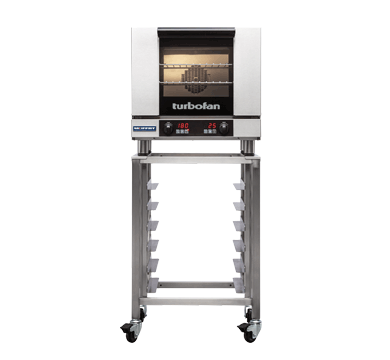

Yes. Moffat offers the SK23 stand (58.5" total height with the oven) and the DSK2223 (feet) or DSK2223C (casters) double stacking kits. All are sold separately.
What does the warranty cover?
Moffat warrants new equipment installed in the US against defects in material and workmanship for 1 year from installation or 18 months from shipment, whichever comes first, for commercial use. Light bulbs, rubber seals and broken glass doors are not covered.
Specs
| Manufacturer | Moffat |
|---|---|
| Brand | Turbofan |
| Model Number | E23D3 |
| Series | Turbofan 20 Series (digital) |
| Quantity | 1 Each |
| Shipping Weight | 120 lbs (54.6 kg) |
| Net Weight | 94 lbs (42.4 kg) |
| Width | 24 Inches |
| Depth | 25.25 Inches |
| Height | 23.88 Inches (including 3" feet) |
| Height on SK23 Stand | 58.5 Inches (stand sold separately) |
| Door Swing | 15.13 Inches (drop-down door) |
| Interior Dimensions | 19.5" W x 13.38" D x 12" H |
| Oven Rack Size | 18" x 13" |
| Capacity | 3 Half-Size Sheet Pans (18" x 13") |
| Rack Positions | 3 |
| Rack Spacing | 3 1/3 Inches |
| Racks Included | 3 chrome-plated wire racks |
| Power Type | Electric |
| Voltage | 208 Volts220-240 Volts (specify when ordering) |
| Wattage | 2.7 kW (208V)3.0 kW (220-240V) |
| Phase | 1 Phase |
| Plug Type | NEMA 6-15P (cordset fitted) |
| Controls | Electronic, with separate digital time and temperature displays (3/4" high) and setting knobs |
| Cooking Modes | Manual modeProgram mode |
| Programs | 20 programs, 3 cooking stages each, with stage end alarms |
| Timer | Electronic, 180 minutes countdownup to 999 minutes in time count mode |
| Steam Injection | 5 levels plus manual injection |
| Water Connection | Optional cold water line for steam injection, 20 psi minimum80 psi maximum |
| Fan | Bi-directional reversing fan, 7" stainless steel fan |
| Oven Light | Halogen lamp |
| Safety | Over-temperature safety cut-out |
| Door | Drop-down, Safe-Touch vented door with Stay-Cool handle and counterbalanced hinges |
| Door Glass | Easy-clean system, inner glass hinges out without tools |
| Door Seal | Plug-in continuous seal, removable without tools |
| Interior | Porcelain enameled oven chamberremovable chrome-plated wire side racks and stainless steel fan baffle |
| Exterior | Stainless steel front, sides, top and control panel |
| Feet | 3" high adjustable stainless steel feet |
| Clearances | 1" rear1" left side1" right side |
| Clearance from Heat Sources | 12" from the sides |
| Accessories | SK23 standDSK2223 double stacking kit (feet)DSK2223C double stacking kit (casters) |
| Warranty | 1 year from installation or 18 months from shipment, whichever comes first (Moffat US warranty) |
| Usage | Commercial use only |
| Country of Origin | New Zealand |
