Description
Bake and roast three full-size sheet pans in a plug-in countertop convection oven.

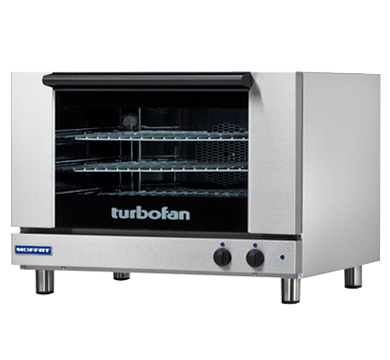

The Moffat Turbofan E27M3 is a manual full-size electric convection oven for cafes, delis, convenience stores and small kitchens. It holds three 18" x 26" sheet pans, heats from 150 to 500°F with a reversing fan, and comes with a NEMA 6-20P plug for 208V or 220-240V single-phase power. It sits on a counter on 3" feet, or on Moffat's SK2731U stand.
Will it fit · Will it plug in
- Outside size
- 31.88" W × 30" D × 23.88" H (including 3" feet)
- Door
- Drop-down door; allow 15.13" in front when open
- Inside
- 27.38" W × 18.5" D × 12" H, 3.53 cu. ft.
- Power
- 208V 1-phase, 4.2 kW, 20 A, or 220-240V 1-phase, 4.7 kW, 19.6 A; NEMA 6-20P plug fitted
- Clearances
- 8" top, 1" rear, 1" each side; 12" from heat sources
- Shipping
- 34.25" W × 32.88" D × 29.75" H packed, 175 lb
One model covers both voltages; tell us your supply when you order. Measure doorways on the delivery path against the 34.25" x 32.88" x 29.75" carton.
Three-pan capacity
Three full-size sheet pans on three rack positions spaced 3 1/3" apart.
Simple dial controls
One thermostat dial from 150 to 500°F and a 60-minute timer with a buzzer.
Even airflow
A bi-directional fan reverses direction to move heat evenly around all three pans.
Plug-in power
A NEMA 6-20P cord comes fitted for 208V or 220-240V single-phase power.
Easy to clean
Porcelain enameled chamber, removable side racks and fan baffle, and a hinge-out inner door glass.
Delivery and setup
- Free shipping on this item. Usually ships in 1 business day.
- Ships by freight carrier at 175 lb. Inspect the carton before you sign for it.
- The four adjustable legs ship with the oven; fit them and level the oven before use.
- Run the oven empty for about 1 hour at 400°F before first use to burn off any fumes or odors.
- See our shipping policy for delivery details.
Questions buyers ask
What outlet does it need?
It comes with a NEMA 6-20P cord and plug, so it needs a matching 20 A receptacle on a 208V or 220-240V single-phase circuit. It draws 4.2 kW and 20 A at 208V, or 4.7 kW and 19.6 A at 220-240V. Tell us your voltage when you order.
Will it plug into a regular 120V wall outlet?
No. The E27M3 runs only on 208V or 220-240V single-phase power.
How many pans does it hold?
Three full-size 18" x 26" sheet pans, loaded side to side on three rack positions spaced 3 1/3" apart. Three wire racks are included.
How much space does it need?
It is 31.88" wide, 30" deep and 23.88" high on its 3" feet. Leave 8" above, 1" behind and 1" on each side, keep it 12" from heat sources, and allow 15.13" in front for the drop-down door.
Does the timer turn the oven off?
No. The 60-minute timer sounds a buzzer and lights the time-up indicator; the oven keeps heating until you turn the temperature control to Off.
Can I put it on a stand or stack two?
Yes. Moffat offers the SK2731U stand (58.5" total height with the oven) and the DSK272831 double stacking kit, on feet, or DSK272831C, on casters. Each is sold separately.
How do I clean it?
The side racks, fan baffle, door seal and inner door glass all come out without tools. Wash them with a mild detergent and hot water; avoid abrasive pads. Moffat recommends a service check every 6 months.
What does the warranty cover?
Moffat warrants new equipment installed in the US against defects in material and workmanship for 1 year from installation or 18 months from shipment, whichever comes first, for commercial use. Light bulbs, rubber seals and broken glass doors are not covered.
Specs
| Manufacturer | Moffat |
|---|---|
| Brand | Turbofan |
| Model Number | E27M3 |
| Series | Turbofan 20M Series |
| Quantity | 1 Each |
| Shipping Weight | 175 lbs |
| Net Weight | 136 lbs |
| Width | 31.88 Inches |
| Depth | 30 Inches |
| Height | 23.88 Inches (including 3" feet) |
| Height on SK2731U Stand | 58.5 Inches (stand sold separately) |
| Door Clearance | 15.13 Inches in front of the oven with the drop-down door open |
| Packed Dimensions | 34.25" W x 32.88" D x 29.75" H19.4 cu. ft. |
| Interior Dimensions | 27.38" W x 18.5" D x 12" H3.53 cu. ft. |
| Oven Rack Size | 26" W x 18" D |
| Capacity | 3 Full-Size Sheet Pans (18" x 26") |
| Rack Positions | 3 |
| Rack Spacing | 3 1/3 Inches |
| Racks Included | 3 chrome-plated wire racks |
| Power Type | Electric |
| Voltage | 208 Volts220-240 Volts (specify when ordering) |
| Wattage | 4.2 kW (208V)4.7 kW (220-240V) |
| Heating Elements | 4.0 kW (208V)4.5 kW (220-240V) |
| Amps | 20 A (208V)19.6 A (220-240V) |
| Phase | 1 Phase |
| Hertz | 50/60 Hz |
| Plug Type | NEMA 6-20P (20 A cordset fitted) |
| Controls | Mechanical thermostat60-minute bake timerpower on, heating on and time-up indicators |
| Temperature Range | 150 - 500 Degrees F |
| Timer | 60 minutes, with time-up light and buzzer |
| Fan | Bi-directional reversing fan, 7" stainless steel |
| Oven Lights | Dual halogen lamps |
| Door | Safe-Touch vented drop-down doorstay-cool handleheavy-duty counterbalanced hinges |
| Door Glass | 0.2" outer glass0.2" low energy loss inner glass, hinges out for cleaning |
| Door Seal | Plug-in continuous seal, removable without tools |
| Interior | Porcelain enameled, fully welded oven chamberremovable side racks and fan baffle |
| Exterior | Stainless steel front, sides and topaluminized coated steel base and rear |
| Feet | 3" high adjustable stainless steel feet |
| Safety | Over-temperature safety cut-out |
| Clearances | 8" top1" rear1" left side1" right side |
| Clearance from Heat Sources | 12" from the sides |
| Accessories | SK2731U standDSK272831 double stacking kit (feet)DSK272831C double stacking kit (casters) |
| Certifications | cETLusNSF |
| Warranty | 1 year from installation or 18 months from shipment, whichever comes first (Moffat US warranty) |
| Usage | Commercial use only |
| Country of Origin | New Zealand |
