Description
Bake and roast four full-size sheet pans with programmed steam in a countertop oven under 32" wide.

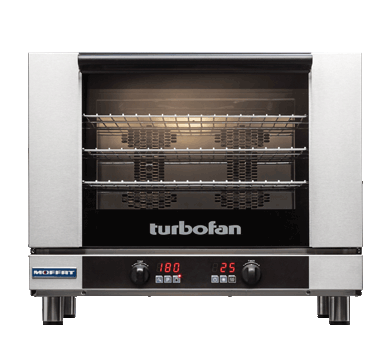

The Moffat Turbofan E28D4 is a digital full-size electric convection oven for bakeries, cafes, restaurants and caterers. It holds four 18" x 26" sheet pans, stores 20 three-stage programs, adds steam at five levels, and runs twin reversing fans. It runs on 208V or 220-240V single-phase power, wired in by an electrician.
Will it fit · Will it plug in
- Outside size
- 31.88" W × 30" D × 26" H (including 3" feet)
- Door
- Drop-down door; allow 17.38" in front when open
- Inside
- 27.38" W × 18.5" D × 14" H
- Power
- 208V 1-phase, 5.4 kW, or 220-240V 1-phase, 6.0 kW; no cord supplied
- Water
- Optional cold water line, 20-80 psi, for steam injection
- Clearances
- 1" rear, 1" each side; 12" from heat sources
- Shipping
- 34.25" W × 32.88" D × 29.75" H packed, 191 lb
One model covers both voltages; tell us your supply when you order. There is no cord or plug, so plan for an electrician. Measure doorways on the delivery path against the 34.25" x 32.88" x 29.75" carton.
Four-pan capacity
Four full-size sheet pans on four rack positions spaced 3 1/8" apart.
Programs for repeat items
Store 20 programs with 3 cooking stages each, or cook manually with separate time and temperature knobs.
Steam when you want it
Five steam injection levels plus manual injection, using an optional cold water connection.
Even airflow
Twin bi-directional fans reverse direction to move heat evenly around all four pans.
Easy to clean
Porcelain enameled chamber, removable side racks and fan baffle, and a hinge-out inner door glass.
Delivery and setup
- Free shipping on this item. Usually ships in 1 business day.
- Ships by freight carrier at 191 lb. Inspect the carton before you sign for it.
- Fit and level the adjustable feet before setting the oven in place.
- Have a qualified electrician connect it to a grounded supply.
- See our shipping policy for delivery details.
Questions buyers ask
What power does it need?
Moffat lists two single-phase options on one model: 208V at 5.4 kW or 220-240V at 6.0 kW. Tell us which supply you have when you order. Moffat's US literature does not list the amperage, so call us to confirm breaker size before your electrician wires it.
Does it come with a plug?
No. Moffat supplies no cordset; a qualified electrician connects it to a grounded supply.
Do I need a water line?
Only for steam injection. Connect an optional cold water line at 20 to 80 psi; without water it works as a dry convection oven.
How many pans does it hold?
Four full-size 18" x 26" sheet pans, or eight 13" x 18" half-size pans, on four rack positions spaced 3 1/8" apart. Four wire racks are included.
How much space does it need?
It is 31.88" wide, 30" deep and 26" high on its 3" feet. Leave 1" behind and 1" on each side, keep it 12" from heat sources, and allow 17.38" in front for the drop-down door.
Can I save recipes?
Yes. It stores 20 programs with up to 3 cooking stages each and alarms at the end of each stage, or you can cook in manual mode with the time and temperature knobs.
Can I put it on a stand or stack two?
Yes. Moffat offers the SK2731U stand (60.75" total height with the oven) and the DSK272831 double stacking kit, on feet, or DSK272831C, on casters. Each is sold separately.
What does the warranty cover?
Moffat warrants new equipment installed in the US against defects in material and workmanship for 1 year from installation or 18 months from shipment, whichever comes first, for commercial use. Light bulbs, rubber seals and broken glass doors are not covered.
Specs
| Manufacturer | Moffat |
|---|---|
| Brand | Turbofan |
| Model Number | E28D4 |
| Series | Turbofan 20 Series |
| Quantity | 1 Each |
| Shipping Weight | 191 lbs (86.5 kg) |
| Net Weight | 153 lbs (69.5 kg) |
| Width | 31.88 Inches |
| Depth | 30 Inches |
| Height | 26 Inches (including 3" feet) |
| Height on SK2731U Stand | 60.75 Inches (stand sold separately) |
| Door Clearance | 17.38 Inches in front of the oven with the drop-down door open |
| Packed Dimensions | 870 mm W x 835 mm D x 755 mm H (34.25" x 32.88" x 29.75") |
| Interior Dimensions | 27.38" W x 18.5" D x 14" H |
| Oven Rack Size | 26" W x 18" D |
| Capacity | 4 Full-Size Sheet Pans (18" x 26")8 Half-Size Sheet Pans (13" x 18") |
| Rack Positions | 4 |
| Rack Spacing | 3 1/8 Inches |
| Racks Included | 4 chrome-plated wire racks |
| Power Type | Electric |
| Voltage | 208 Volts220-240 Volts (specify when ordering) |
| Wattage | 5.4 kW (208V)6.0 kW (220-240V) |
| Phase | 1 Phase |
| Plug Type | No cordset supplied (connected on site by an electrician) |
| Water Connection | Optional cold water line for steam injection |
| Water Pressure | 20 psi minimum80 psi maximum |
| Controls | Electronic, with separate digital time and temperature displays (3/4" high) and setting knobs |
| Modes | Manual modeProgram mode |
| Programs | 20 programs, 3 cooking stages each, with stage end alarms |
| Thermostat | Electronic, 50 - 260 Degrees C (150 - 500 Degrees F) |
| Timer | 180 minutes countdownup to 999 minutes in time count mode |
| Steam Injection | 5 levels plus manual injection |
| Fans | Twin bi-directional reversing fans, 7" stainless steel |
| Oven Lights | Dual halogen lamps |
| Door | Safe-Touch vented drop-down doorstay-cool handleheavy-duty counterbalanced hinges |
| Door Glass | 0.2" outer glass0.2" low energy loss inner glass, hinges out for cleaning |
| Door Seal | Plug-in continuous seal, removable without tools |
| Interior | Porcelain enameled, fully welded oven chamberremovable side racks and fan baffle |
| Exterior | Stainless steel front, sides and topaluminized coated steel base and rear |
| Feet | 3" high adjustable stainless steel feet |
| Safety | Over-temperature safety cut-out |
| Clearances | 1" rear1" left side1" right side |
| Clearance from Heat Sources | 12" from the sides |
| Accessories | SK2731U standDSK272831 double stacking kit (feet)DSK272831C double stacking kit (casters) |
| Certifications | NSF |
| Warranty | 1 year from installation or 18 months from shipment, whichever comes first (Moffat US warranty) |
| Usage | Commercial use only |
| Country of Origin | New Zealand |
