Description
Bake five full-size sheet pans with touch screen recipes and a timer for every shelf.

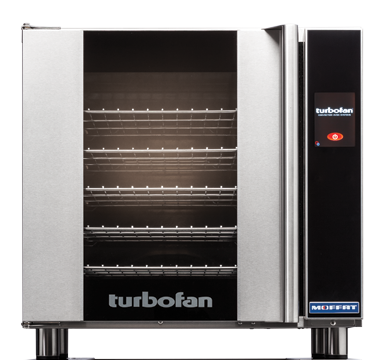

The Moffat Turbofan E32T5 is a full-size touch screen electric convection oven for bakeries, cafes, restaurants and caterers. It holds five 18" x 26" sheet pans, runs saved multi-stage programs or a separate timer on each shelf, adds moisture at five levels, and uses a 2-speed reversing fan. It fits in 28.88" of counter width and runs on 208V or 220-240V single-phase power.
Will it fit · Will it plug in
- Outside size
- 28.88" W × 31.88" D × 28.75" H (including 3" feet)
- Door swing
- 22.75" side-hinged door, left-hand hinge standard
- Inside
- 18.25" W × 27.5" D × 20.25" H, 6 cu. ft.
- Power
- 208V 1-phase, 5.8 kW, 28 A, or 220-240V 1-phase, 6.5 kW, 27 A; no cord supplied
- Water
- Optional 3/4" GHT cold water, 20-80 psi, for moisture mode
- Clearances
- 8" top, 2" rear, 2" left, 3" right; 12" from heat sources
- Shipping
- 29.88" W × 36.38" D × 32" H packed, 231 lb
One model covers both voltages; tell us your supply when you order. There is no cord or plug, so plan for an electrician. Measure doorways on the delivery path against the 29.88" x 36.38" x 32" carton.
Touch screen recipes
A 5.7" touch screen with picture icons runs saved multi-stage programs; update programs and icons by USB.
Shelf timers
Run a separate timer on each of the five shelves at one temperature.
Moisture when you want it
Five moisture injection levels, using an optional cold water connection.
Even baking on 5 pans
A 2-speed bi-directional fan reverses direction to spread heat across all five rack positions.
Saves energy when idle
ENERGY STAR certified, with an Energy Save Set-Back mode and an Auto-Start mode.
Flexible setup
Runs on a counter on 3" feet, on the SK32 stand, or double stacked with the DSKE32 kit.
Delivery and setup
- Free shipping on this item. Usually ships in 1 business day.
- Ships by freight carrier at 231 lb. Inspect the carton before you sign for it.
- The four adjustable legs, five wire racks and the 3/4" GHT water adaptor ship with the oven.
- Have a qualified electrician connect it, then run the oven empty for about 1 hour at 400°F to burn off any fumes or odors.
- See our shipping policy for delivery details.
Questions buyers ask
What power does it need?
Moffat lists two electrical options on one model: 208V, 1-phase, 5.8 kW, 28 A, or 220-240V, 1-phase, 6.5 kW, 27 A, both at 60 Hz. Tell us which supply you have when you order.
Does it come with a plug?
No. Moffat supplies no cordset; a qualified electrician connects it through the terminal block, and the manual calls for an isolation switch next to the oven.
Do I need a water line?
Only for moisture mode. It takes a 3/4" GHT cold water connection (brass adaptor supplied) at 20 to 80 psi; without water it works as a dry convection oven.
Can I cook different items on different shelves?
Yes. Shelf mode sets a separate timer for each shelf at one oven temperature, with an alarm as each shelf finishes.
How many pans does it hold?
Five full-size 18" x 26" sheet pans on five rack positions spaced 3 1/3" apart. Five wire racks are included.
How much space does it need?
It is 28.88" wide, 31.88" deep and 28.75" high on its 3" feet. Leave 8" above, 2" behind, 2" on the left and 3" on the right, 12" from heat sources, and 20" on the right for service on a fixed installation. The side-hinged door swings out 22.75".
Can I put it on a stand or stack two?
Yes. Moffat offers the SK32 stand (63.13" total height with the oven) and the DSKE32 double stacking kit (also listed as DSK32), or DSKE32C on casters; each is sold separately.
What does the warranty cover?
Moffat warrants new equipment installed in the US against defects in material and workmanship for 1 year from installation or 18 months from shipment, whichever comes first, for commercial use. Light bulbs, rubber seals and broken glass doors are not covered.
Specs
| Manufacturer | Moffat |
|---|---|
| Brand | Turbofan |
| Model Number | E32T5 |
| Series | Turbofan 30 Series |
| Quantity | 1 Each |
| Shipping Weight | 231 lbs |
| Net Weight | 196 lbs |
| Width | 28.88 Inches |
| Depth | 31.88 Inches |
| Height | 28.75 Inches (including 3" feet) |
| Height on SK32 Stand | 63.13 Inches (stand sold separately) |
| Door Swing | 22.75 Inches (side-hinged door) |
| Packed Dimensions | 29.88" W x 36.38" D x 32" H20.1 cu. ft. |
| Interior Dimensions | 18.25" W x 27.5" D x 20.25" H6 cu. ft. |
| Oven Rack Size | 18" x 26" |
| Capacity | 5 Full-Size Sheet Pans (18" x 26") |
| Rack Positions | 5 |
| Rack Spacing | 3 1/3 Inches |
| Racks Included | 5 chrome-plated wire racks |
| Power Type | Electric |
| Voltage | 208 Volts220-240 Volts (specify when ordering) |
| Wattage | 5.8 kW (208V)6.5 kW (220-240V) |
| Amps | 28 A (208V)27 A (220-240V) |
| Phase | 1 Phase |
| Hertz | 60 Hz |
| Plug Type | No cordset supplied (connected on site by an electrician) |
| Water Connection | 3/4" GHT male, cold water (optional, for moisture mode); GHT brass adaptor supplied |
| Water Pressure | 20 psi minimum80 psi maximum |
| Controls | 5.7" LED backlit touch screenicon driven program menuUSB port for program and icon updates |
| Modes | ManualProgramShelf mode with individual shelf timersAuto-StartEnergy Save Set-Back |
| Cooking Stages | Multiple stages per program |
| Cook Time | Straight or Flex cooking time |
| Temperature Range | 120 - 500 Degrees F |
| Fan | 2-speed bi-directional reversing fan |
| Moisture Injection | 5 levels |
| Core Probe | Program cooking with optional M236060 Core Temperature Probe Kit |
| Oven Lights | Dual halogen lamps |
| Door | Safe-Touch vented side-hinged door, left-hand hinge standard, field convertible to right-hand |
| Door Glass | 0.2" outer glass0.2" low energy loss inner glass, hinges out for cleaning |
| Door Seal | Push-fit continuous seal, removable without tools |
| Interior | Porcelain enameled, fully welded oven chamberremovable stainless steel side racks and fan baffle |
| Exterior | Stainless steel front, sides and topaluminized coated steel base and rear |
| Feet | 3" high adjustable stainless steel feet |
| Safety | Safety thermostat cut-out |
| Clearances | 8" top2" rear2" left side3" right side20" right side for service on fixed installations |
| Clearance from Heat Sources | 12" from the sides |
| Accessories | SK32 standDSKE32 double stacking kit (feet; also listed as DSK32)DSKE32C (casters; also listed as DSK32C)M236060 core probe kit |
| Certifications | cETLusNSFENERGY STAR |
| Warranty | 1 year from installation or 18 months from shipment, whichever comes first (Moffat US warranty) |
| Usage | Commercial use only |
| Country of Origin | New Zealand |
