Description
Bake, roast and steam five half-size pans in a digital convection oven only 24" wide.

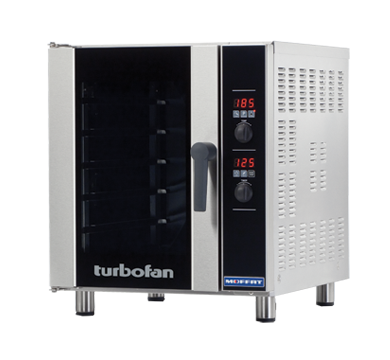

The Moffat Turbofan E33D5 is a half-size digital electric convection oven for bakeries, cafes, restaurants and caterers. It holds five 13" x 18" sheet pans or five 12" x 20" hotel pans, stores 20 three-stage programs, adds moisture at five levels, and runs a 2-speed reversing fan. It is ENERGY STAR certified and runs on 208V or 220-240V single-phase power.
Will it fit · Will it plug in
- Outside size
- 24" W × 26.75" D × 28.75" H
- Door swing
- 17.88" side-hinged door
- Inside
- 13" W × 22.5" D × 20.25" H, 3.53 cu. ft.
- Power
- 208V 1-phase, 5.8 kW, 27.8 A, or 220-240V 1-phase, 6.0 kW, 25 A; no cord supplied
- Water
- Optional 3/4" GHT cold water, 20-80 psi, for moisture mode
- Clearances
- 8" top, 2" rear, 2" left, 3" right; 12" from heat sources
- Shipping
- 25.75" W × 32.75" D × 31.75" H packed, 205 lb
One model covers both voltages; tell us your supply when you order. There is no cord or plug, so plan for an electrician. Measure doorways on the delivery path against the 25.75" x 32.75" x 31.75" carton.
Even baking on 5 pans
A 2-speed bi-directional fan reverses direction; the low speed suits delicate items.
Programs for repeat items
Store 20 programs with up to 3 cooking stages each, or cook manually with separate time and temperature knobs.
Moisture when you want it
Five automatic moisture levels plus manual injection, using an optional cold water connection.
Cook to core temperature
Add the optional M236060 probe kit to finish programs at a set core temperature.
Narrow footprint
Holds five 12" x 20" hotel pans in an oven only 24" wide.
Delivery and setup
- Free shipping on this item. Usually ships in 1 business day.
- Ships by freight carrier at 205 lb. Inspect the carton before you sign for it.
- The four adjustable feet ship with the oven; fit them before setting it in place.
- Have a qualified electrician connect it, then run the oven empty for about 1 hour at 400°F to burn off any fumes or odors.
- See our shipping policy for delivery details.
Questions buyers ask
What power does it need?
Moffat lists two single-phase options at 60 Hz: 208V, 5.8 kW, 27.8 A, or 220-240V, 6.0 kW, 25 A. Tell us which supply you have when you order.
Does it come with a plug?
No. Moffat supplies no cordset; a qualified electrician connects it to a grounded supply, and the manual calls for an isolation switch next to the oven.
Do I need a water line?
Only for moisture injection. It takes a 3/4" GHT cold water connection at 20 to 80 psi; without water it works as a dry convection oven.
What pans does it take?
Five half-size 13" x 18" sheet pans or five 12" x 20" hotel pans, on five rack positions spaced 3 1/3" apart. It does not take full-size 18" x 26" sheet pans.
How much space does it need?
It is 24" wide, 26.75" deep and 28.75" high. Leave 8" above for the top vent, 2" behind, 2" on the left and 3" on the right, 12" from heat sources, and 20" for service on a fixed installation. The side-hinged door swings out 17.88".
Can I put it on a stand or stack two?

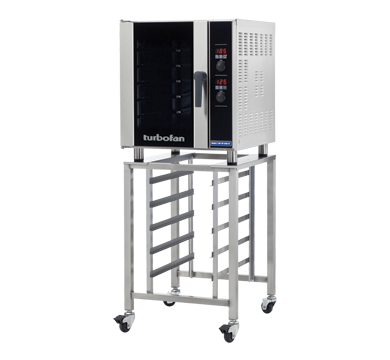

Yes. Moffat offers the SK33 stand (63" total height with the oven), the DSKE33 (feet) and DSK33C (casters) double stacking kits, and the M236060 core probe kit. All are sold separately.
How do I clean it?
Let it cool to about 120°F, then remove the side racks and fan baffle, pull out the plug-in door seal and wash them with mild detergent. The inner door glass hinges out without tools.
What does the warranty cover?
Moffat warrants new equipment installed in the US against defects in material and workmanship for 1 year from installation or 18 months from shipment, whichever comes first, for commercial use. Light bulbs, rubber seals and broken glass doors are not covered.
Specs
| Manufacturer | Moffat |
|---|---|
| Brand | Turbofan |
| Model Number | E33D5 |
| Series | Turbofan 30D Series |
| Quantity | 1 Each |
| Shipping Weight | 205 lbs |
| Net Weight | 158 lbs |
| Width | 24 Inches |
| Depth | 26.75 Inches |
| Height | 28.75 Inches |
| Height on SK33 Stand | 63 Inches (stand sold separately) |
| Door Swing | 17.88 Inches (side-hinged door) |
| Packed Dimensions | 25.75" W x 32.75" D x 31.75" H15.5 cu. ft. |
| Interior Dimensions | 13" W x 22.5" D x 20.25" H3.53 cu. ft. |
| Oven Rack Size | 13" x 20.88" |
| Capacity | 5 Half-Size Sheet Pans (13" x 18")5 Hotel Pans (12" x 20") |
| Rack Positions | 5 |
| Rack Spacing | 3 1/3 Inches |
| Racks Included | 5 |
| Power Type | Electric |
| Voltage | 208 Volts220-240 Volts (specify when ordering) |
| Wattage | 5.8 kW (208V)6.0 kW (220-240V) |
| Amps | 27.8 A (208V)25 A (220-240V) |
| Phase | 1 Phase |
| Hertz | 60 Hz |
| Plug Type | No cordset supplied (connected on site by an electrician) |
| Water Connection | 3/4" GHT male, cold water (optional, for moisture mode) |
| Water Pressure | 20 psi minimum80 psi maximum |
| Controls | Electronic, with separate 3/4" high LED time and temperature displays and setting knobs |
| Cooking Modes | Manual modeProgram mode |
| Programs | 20 programs, 3 cooking stages each, with stage end alarms |
| Temperature Range | 120 - 500 Degrees F |
| Timer | 180 minutes countdownup to 999 minutes in time count mode |
| Fan | 2-speed bi-directional reversing fan |
| Moisture Injection | 5 levels plus manual injection |
| Core Probe | Program cooking with optional M236060 Core Temperature Probe Kit (122-194°F) |
| Oven Lights | Dual halogen lamps |
| Safety | Over-temperature safety cut-out |
| Door | Side-hinged, Safe-Touch vented, slam-shut latch, pendulum operation handle |
| Door Glass | 0.2" outer glass0.2" low energy loss inner glass, hinges out for cleaning |
| Door Seal | Plug-in continuous seal, removable without tools |
| Interior | Porcelain enameled, fully welded oven chamberremovable stainless steel side racks and fan baffle |
| Exterior | Stainless steel front, sides, top and control panelaluminized coated steel base and rear |
| Feet | 3" high adjustable stainless steel feet with anti-skid pads |
| Vent | On top of the oven; keep it clear |
| Clearances | 8" top2" rear2" left side3" right side20" for service on fixed installations |
| Clearance from Heat Sources | 12" from the sides |
| Accessories | SK33 standDSKE33 double stacking kit (feet; listed by Moffat as DSK33)DSK33C double stacking kit (casters)M236060 core probe kit |
| Certifications | cETLusNSFENERGY STAR |
| Warranty | 1 year from installation or 18 months from shipment, whichever comes first (Moffat US warranty) |
| Usage | Commercial use only |
| Country of Origin | New Zealand |
