Description
Run multi-stage recipes and separate shelf timers from a touch screen in a convection oven only 24" wide.

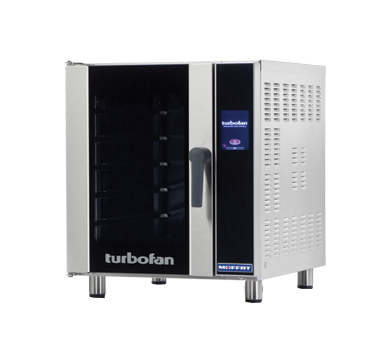

The Moffat Turbofan E33T5 is a half-size touch screen electric convection oven for bakeries, cafes, convenience stores and restaurants that need consistent results from any staff member. It holds five 13" x 18" sheet pans or five 12" x 20" hotel pans, runs icon-driven multi-stage recipes and individual shelf timers, adds moisture at five levels, and is ENERGY STAR certified. It runs on 208V or 220-240V single-phase power.
Will it fit · Will it plug in
- Outside size
- 24" W × 26.75" D × 28.75" H (including 3" feet)
- Door swing
- 17.88" side-hinged door
- Inside
- 13" W × 22.5" D × 20.25" H, 3.53 cu. ft.
- Power
- 208V 1-phase, 5.4 kW, 26 A, or 220-240V 1-phase, 6.0 kW, 25 A; no cord supplied
- Water
- Optional 3/4" GHT cold water, 20-80 psi, for moisture mode
- Clearances
- 8" top, 2" rear, 2" left, 3" right; 12" from heat sources
- Shipping
- 25.75" W × 32.75" D × 31.75" H packed, 205 lb
One model covers both voltages; tell us your supply when you order. There is no cord or plug, so plan for an electrician. Measure doorways on the delivery path against the 25.75" x 32.75" x 31.75" carton.
Touch screen recipes
A 5.7" touch screen with picture icons runs multi-stage recipes, so staff press one button for each item.
Shelf timers
Cook different items on each shelf with its own timer and an alarm as each one finishes.
Moisture when you want it
Five moisture levels using an optional cold water connection.
Saves energy between rushes
Auto-Start preheats on a schedule and Set-Back lowers the temperature when the oven sits idle.
Update by USB
Load recipes and icon images from a USB drive instead of programming each oven by hand.
Delivery and setup
- Free shipping on this item. Usually ships in 1 business day.
- Ships by freight carrier at 205 lb. Inspect the carton before you sign for it.
- The four adjustable feet, five wire racks and the GHT water adaptor ship with the oven; fit the feet before setting it in place.
- Have a qualified electrician connect it, then run the oven empty for about 1 hour at 400°F to burn off any fumes or odors.
- See our shipping policy for delivery details.
Questions buyers ask
What power does it need?
Moffat lists two single-phase options at 60 Hz: 208V, 5.4 kW, 26 A, or 220-240V, 6.0 kW, 25 A. Tell us which supply you have when you order.
Does it come with a plug?
No. Moffat supplies no cordset; a qualified electrician connects it to a grounded supply, and the manual calls for an isolation switch next to the oven.
Do I need a water line?
Only for moisture injection. It takes a 3/4" GHT cold water connection at 20 to 80 psi; the brass GHT adaptor and washer come with US ovens. Without water it works as a dry convection oven.
Can I cook different items on each shelf?
Yes. Shelf mode lets you set a separate timer for each of the five shelves at one temperature, and an alarm sounds as each shelf finishes.
What pans does it take?
Five half-size 13" x 18" sheet pans or five 12" x 20" hotel pans, on five rack positions spaced 3 1/3" apart. Five wire racks are included. It does not take full-size 18" x 26" sheet pans.
How much space does it need?
It is 24" wide, 26.75" deep and 28.75" high on its 3" feet. Leave 8" above for the top vent, 2" behind, 2" on the left and 3" on the right, 12" from heat sources, and 20" for service on a fixed installation. The side-hinged door swings out 17.88".
Can I put it on a stand or stack two?

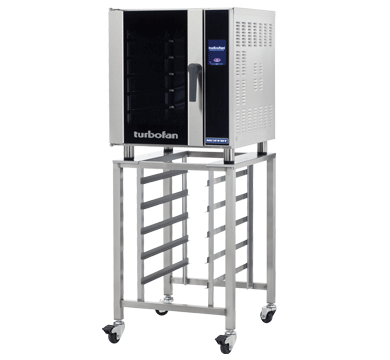

Yes. Moffat offers the SK33 stand (63" total height with the oven), the DSKE33 (feet) and DSK33C (casters) double stacking kits, and the M236060 core probe kit. All are sold separately.
What does the warranty cover?
Moffat warrants new equipment installed in the US against defects in material and workmanship for 1 year from installation or 18 months from shipment, whichever comes first, for commercial use. Light bulbs, rubber seals and broken glass doors are not covered.
Specs
| Manufacturer | Moffat |
|---|---|
| Brand | Turbofan |
| Model Number | E33T5 |
| Series | Turbofan 30T Series (touch screen) |
| Quantity | 1 Each |
| Shipping Weight | 205 lbs |
| Net Weight | 158 lbs |
| Width | 24 Inches |
| Depth | 26.75 Inches |
| Height | 28.75 Inches (including 3" feet) |
| Height on SK33 Stand | 63 Inches (stand sold separately) |
| Door Swing | 17.88 Inches (side-hinged door) |
| Packed Dimensions | 25.75" W x 32.75" D x 31.75" H15.5 cu. ft. |
| Interior Dimensions | 13" W x 22.5" D x 20.25" H3.53 cu. ft. |
| Oven Rack Size | 13" x 20.88" |
| Capacity | 5 Half-Size Sheet Pans (13" x 18")5 Hotel Pans (12" x 20") |
| Rack Positions | 5 |
| Rack Spacing | 3 1/3 Inches |
| Racks Included | 5 wire racks |
| Power Type | Electric |
| Voltage | 208 Volts220-240 Volts (specify when ordering) |
| Wattage | 5.4 kW (208V)6.0 kW (220-240V) |
| Amps | 26 A (208V)25 A (220-240V) |
| Phase | 1 Phase |
| Hertz | 60 Hz |
| Plug Type | No cordset supplied (connected on site by an electrician) |
| Water Connection | 3/4" GHT male, cold water (optional, for moisture mode); GHT brass adaptor and washer supplied |
| Water Pressure | 20 psi minimum80 psi maximum |
| Controls | 5.7" LED backlit touch screenicon-driven program menu |
| Cooking Modes | Manual modeProgram modeShelf mode with individual shelf timers |
| Programs | Multiple-stage recipes; straight or flex cooking time |
| Other Functions | Auto-Start modeEnergy Save Set-Back modeUSB port for program and icon updates |
| Temperature Range | 85 - 500 Degrees F |
| Fan | 2-speed bi-directional reversing fan |
| Moisture Injection | 5 levels |
| Core Probe | Optional M236060 Core Temperature Probe Kit |
| Oven Lights | Dual halogen lamps |
| Safety | Safety thermostat cut-out |
| Door | Side-hinged, Safe-Touch vented, slam-shut latch, pendulum operation handle |
| Door Glass | 0.2" outer glass0.2" low energy loss inner glass, hinges out for cleaning |
| Door Seal | Push-fit continuous seal, removable without tools |
| Interior | Porcelain enameled, fully welded oven chamberremovable stainless steel side racks and fan baffle |
| Exterior | Stainless steel front, sides, top and control panelaluminized coated steel base and rear |
| Feet | 3" high adjustable stainless steel feet with anti-skid pads |
| Vent | On top of the oven; keep it clear |
| Clearances | 8" top2" rear2" left side3" right side20" for service on fixed installations |
| Clearance from Heat Sources | 12" from the sides |
| Accessories | SK33 standDSKE33 double stacking kit (feet; listed by Moffat as DSK33)DSK33C double stacking kit (casters)M236060 core probe kit |
| Certifications | cETLusNSFENERGY STAR |
| Warranty | 1 year from installation or 18 months from shipment, whichever comes first (Moffat US warranty) |
| Usage | Commercial use only |
| Country of Origin | New Zealand |
